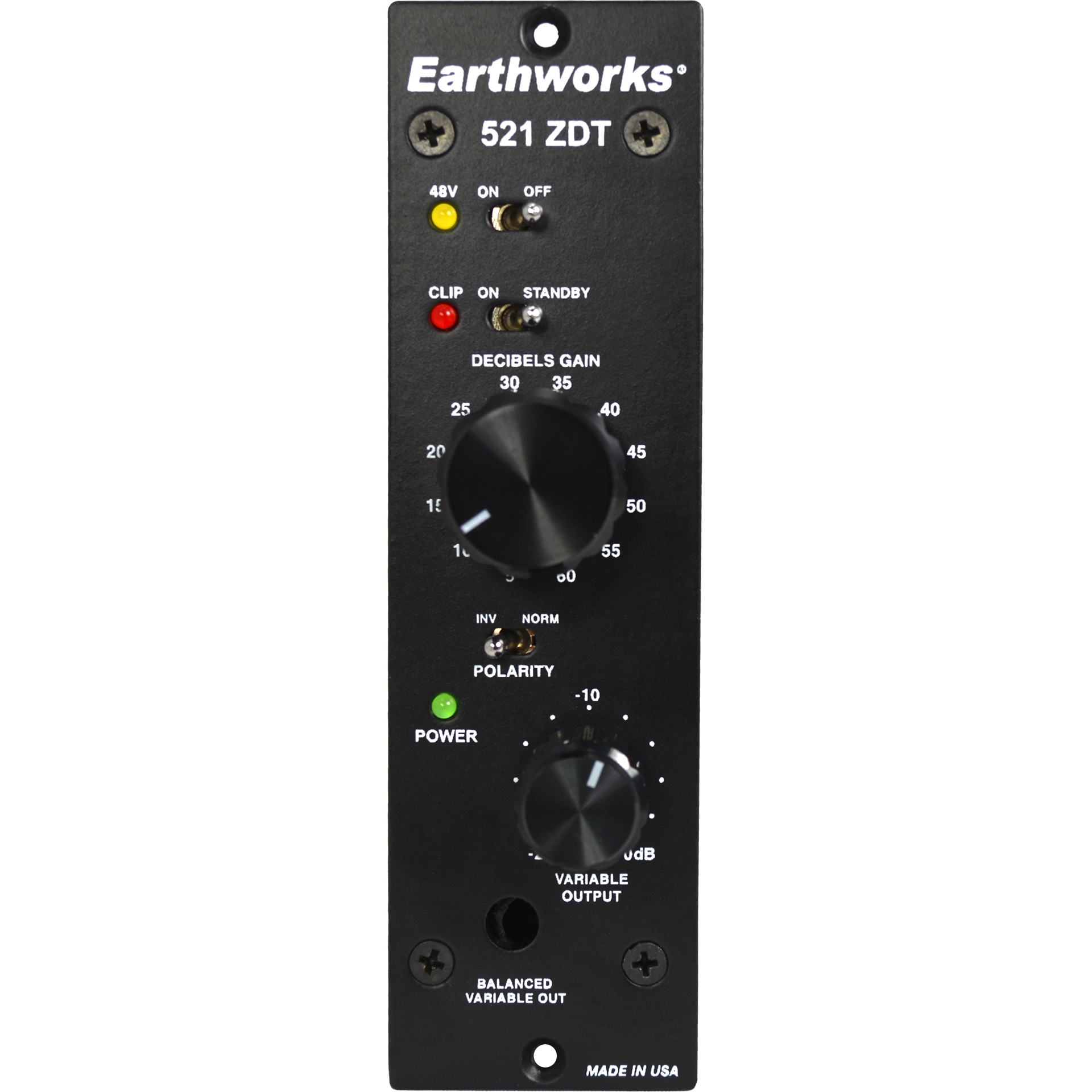

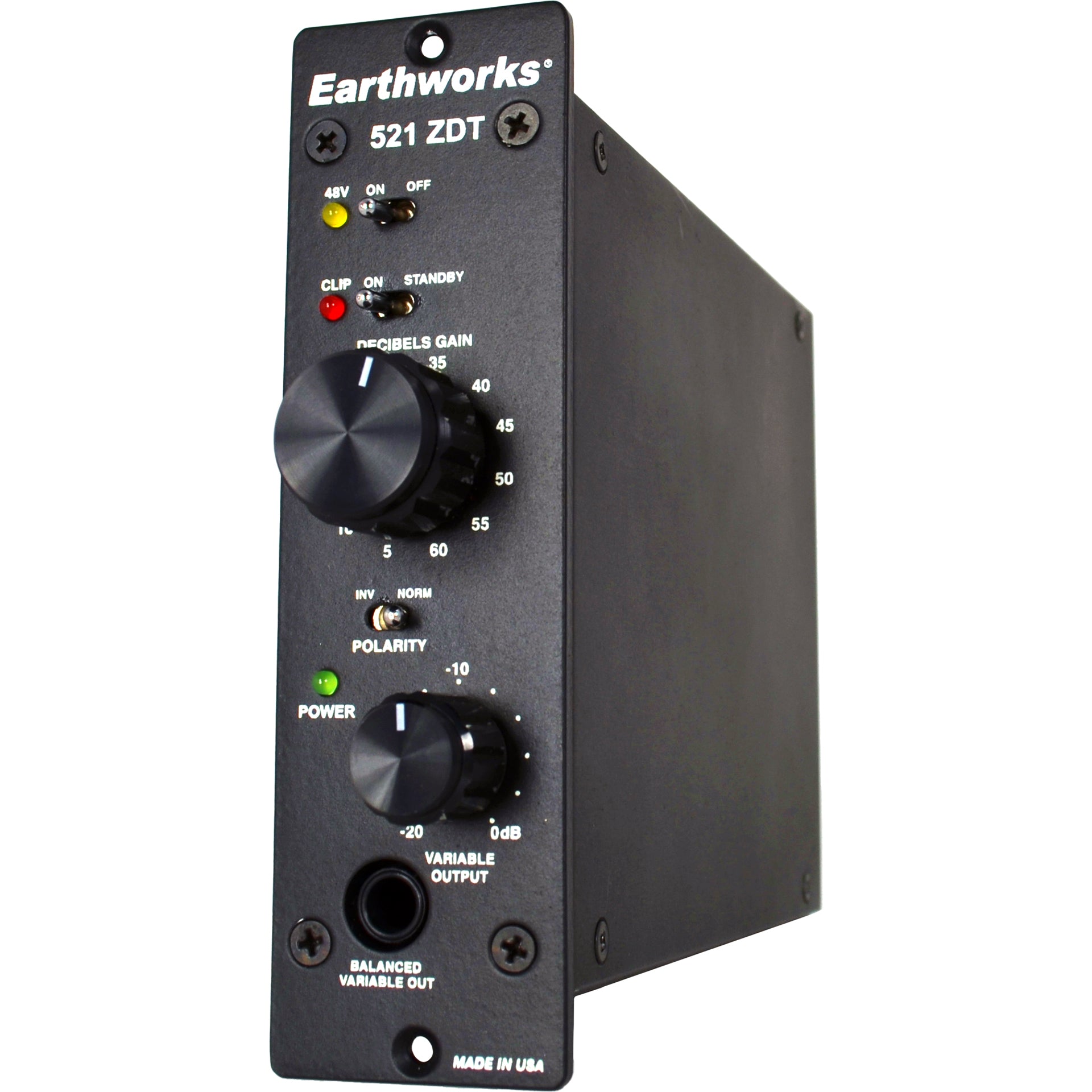

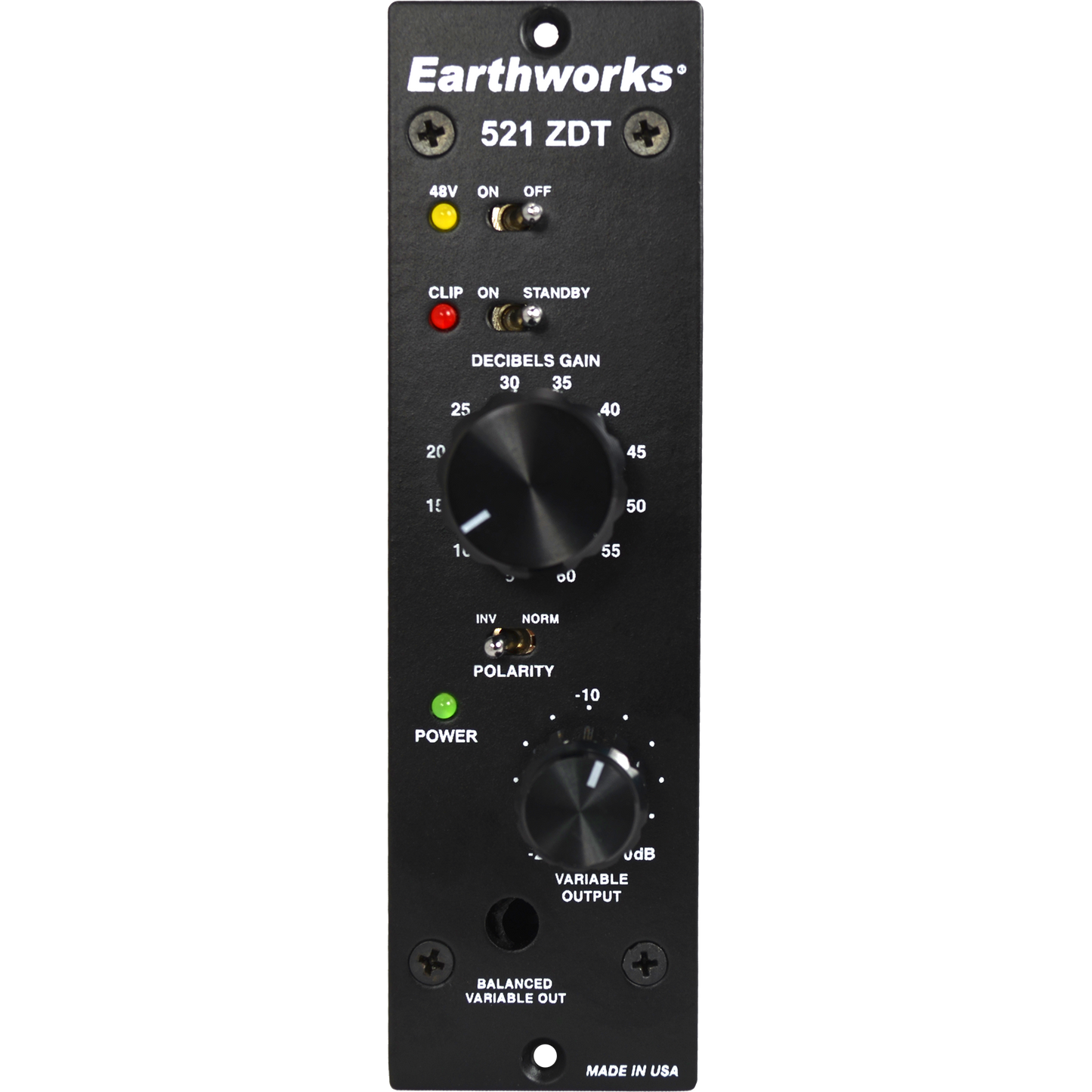

Based on the ZDT Preamp technology designed by David Blackmer, the 1 RU space 521 ZDT Single-Channel Mic Preamplifier from Earthworks brings the exacting standards of the Zero Distortion Technology preamplifiers to the convenient 500 series format.
The solid-state 521 ZDT Preamplifier features switchable phantom power, polarity invert, and peak amplitude clip detection. The transformerless output stage of the 521 ZDT preamplifier can easily drive long cable runs without loss of quality, making it suitable for remote recordings. Transparent gain is switchable from 5 to 60 dB in 5 dB steps.
The Earthworks microphone preamplifier topology provides strong common mode rejection, a high overload margin, and a low noise floor, combined with the wide bandwidth of the ZDT preamplifiers (1 Hz to 200 kHz +0.5 dB), and distortion of less than one part per million (0.0001%). This level of performance is maintained over an extensive range of impedances applied to the input, making the 521 ZDT preamplifier suitable for practically any microphone—ribbon, dynamic, or condenser.
| Product Name | Earthworks 521 ZDT Single Channel Microphone Preamp 500 Series Unit |
|---|---|
| Brand | Earthworks |
| UPC | 827517317090 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Clean, uncolored 500 series preamplifier for standard 500 series racks (required; sold separately)
- Zero distortion, less than 1 ppm (>0.0001%)
- Solid state, transformerless
- Switchable 48V phantom power
- Polarity invert switch
- Peak amplitude clip detection
- Transparent gain switchable from 5 to 60 dB in 5 dB steps
- High output level of +30 dBu
- Fully differential (balanced) from input to output (i.e., no internal conversion to single-ended)
- All discrete components; Class A amplification (no ICs and electrolytic capacitors in signal path)
- Greater transparency with minimum signal path and features
- Low noise floor
- Wide bandwidth
- Suitable for most ribbon, dynamic, or condenser microphones
- Preamplifier Type: Solid state
- Number of Channels 1
- Frequency Response 2 Hz to 100 kHz ± 0.1 dB
- 1 Hz to 200 kHz ± 0.5 dB
- Impulse Response 1.4 µs
- Distortion XLR Out: less than 1 ppm (0.0001%)
- 1/4" Out: 0.001%
- Input Noise 1.6 nV/Hz½ at 20 dB gain
- 0.6 nV/Hz½ at 60 dB gain
- EIN -132 dBV at 20 dB gain
- -143 dBV at 60 dB gain
- Slew Rate 22 V/µs
- Output DC Offset: ±1 mV typical, servo balanced
- Input / Output Connectors 500 series EDAC Edge connector
- Input Impedance XLR: 10 kΩ phantom on
- 100 kΩ phantom off
- Front Panel Balanced Out: 1/4" TRS XLR female, balanced, transformerless (variable)
- Dimensions One 500 series rack space: 1.50 x 5.25 x 6.00" (38.10 x 133.35 x 152.40 mm)
- Weight 0.80 lb (0.36 kg)
Earthworks 521 ZDT Single Channel Microphone Preamp 500 Series Unit
Based on the ZDT Preamp technology designed by David Blackmer, the 1 RU space 521 ZDT Single-Channel Mic Preamplifier from Earthworks brings the exacting standards of the Zero Distortion Technology preamplifiers to the convenient 500 series format.
The solid-state 521 ZDT Preamplifier features switchable phantom power, polarity invert, and peak amplitude clip detection. The transformerless output stage of the 521 ZDT preamplifier can easily drive long cable runs without loss of quality, making it suitable for remote recordings. Transparent gain is switchable from 5 to 60 dB in 5 dB steps.
The Earthworks microphone preamplifier topology provides strong common mode rejection, a high overload margin, and a low noise floor, combined with the wide bandwidth of the ZDT preamplifiers (1 Hz to 200 kHz +0.5 dB), and distortion of less than one part per million (0.0001%). This level of performance is maintained over an extensive range of impedances applied to the input, making the 521 ZDT preamplifier suitable for practically any microphone—ribbon, dynamic, or condenser.
| Product Name | Earthworks 521 ZDT Single Channel Microphone Preamp 500 Series Unit |
|---|---|
| Brand | Earthworks |
| UPC | 827517317090 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Clean, uncolored 500 series preamplifier for standard 500 series racks (required; sold separately)
- Zero distortion, less than 1 ppm (>0.0001%)
- Solid state, transformerless
- Switchable 48V phantom power
- Polarity invert switch
- Peak amplitude clip detection
- Transparent gain switchable from 5 to 60 dB in 5 dB steps
- High output level of +30 dBu
- Fully differential (balanced) from input to output (i.e., no internal conversion to single-ended)
- All discrete components; Class A amplification (no ICs and electrolytic capacitors in signal path)
- Greater transparency with minimum signal path and features
- Low noise floor
- Wide bandwidth
- Suitable for most ribbon, dynamic, or condenser microphones
- Preamplifier Type: Solid state
- Number of Channels 1
- Frequency Response 2 Hz to 100 kHz ± 0.1 dB
- 1 Hz to 200 kHz ± 0.5 dB
- Impulse Response 1.4 µs
- Distortion XLR Out: less than 1 ppm (0.0001%)
- 1/4" Out: 0.001%
- Input Noise 1.6 nV/Hz½ at 20 dB gain
- 0.6 nV/Hz½ at 60 dB gain
- EIN -132 dBV at 20 dB gain
- -143 dBV at 60 dB gain
- Slew Rate 22 V/µs
- Output DC Offset: ±1 mV typical, servo balanced
- Input / Output Connectors 500 series EDAC Edge connector
- Input Impedance XLR: 10 kΩ phantom on
- 100 kΩ phantom off
- Front Panel Balanced Out: 1/4" TRS XLR female, balanced, transformerless (variable)
- Dimensions One 500 series rack space: 1.50 x 5.25 x 6.00" (38.10 x 133.35 x 152.40 mm)
- Weight 0.80 lb (0.36 kg)
