Grace Design M905 Analog Reference Monitor Controller w/ Analog Inputs Only
Grace Design M905 Analog Reference Monitor Controller w/ Analog Inputs Only
Regular price
$3,415.00
Regular price
Sale price
$3,415.00
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Limited quantities available!
Couldn't load pickup availability
This is the world's finest stereo monitor controller, with built in mastering quality Digital to Analog Converters, audiophile-grade headphone amplifier and unrivaled system configuration tools. For hardworking audio professionals and studios that demand the very best playback available.
View full details
- Details
- Features
- Reviews
Why you need the Grace Design M905-AN Analog Reference Monitor:
The m905 Analog is Grace Design's analog-only stereo monitor controller, engineered from the ground up to provide audio playback performance with a comprehensive and intuitive feature set. The m905 Analog model features the same configuration as the standard m905 with all the same great monitoring features, except no digital input and a second pair of balanced analog inputs. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface.

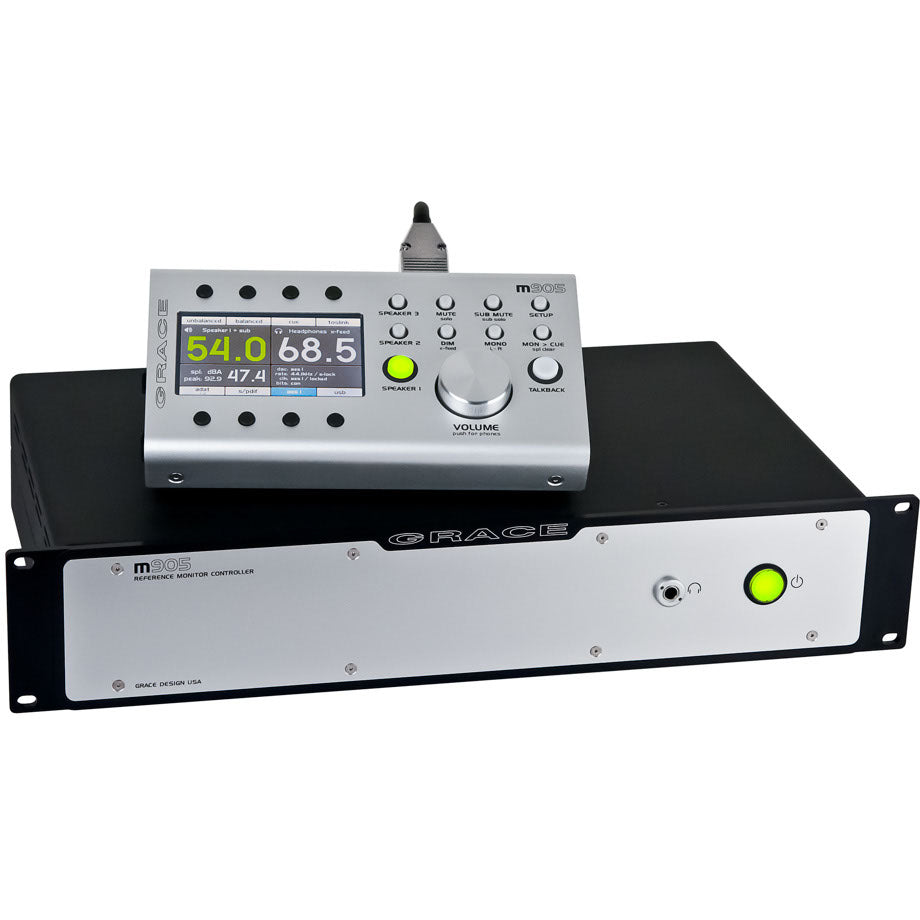

The remote control unit is powerful, clean and ergonomic. It includes a headphone output, talkback microphone, and dedicated real time SPL meter. Controls are designed so that anyone unfamiliar with the system can operate it immediately and intuitively, then with a minimal time investment advanced setup and calibration features are accessed and programmed with ease.
The m905 Analog offers more monitoring management features than any current monitor controller. But its true essence is as the most sonically reliable and innate centerpiece available for your studio – homebase for your ears, eyes and hands.
Features:

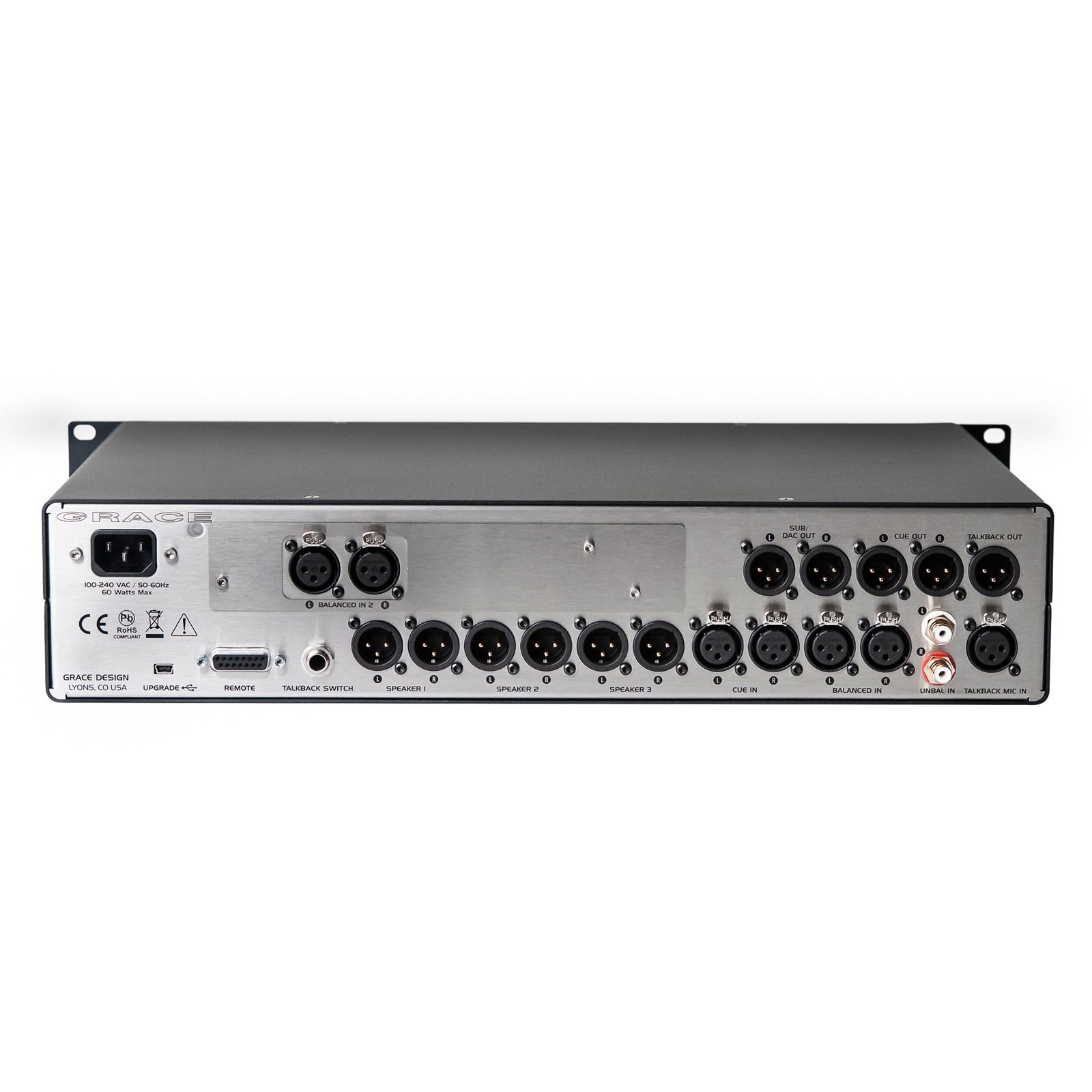

- Analog inputs:
- One (1) Unbalanced
- Two (2) Balanced
- CUE
- Talkback mic
- S-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
- Sleek, ergonomic hybrid RCU with hardware switches, large level encoder and graphical LCD
- LCD display shows input, level, output, SPL and DAC status plus a powerful calibration menu
- SPL meter sourced by built in RCU mic - includes level, peak, fast and slow modes, A & C weighting
- Precision .5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry, with outputs on both the RCU and mainframe
- Built in crossfeed circuit for simulating loudspeaker listening with headphones
- Dedicated mono, dim, mute, sub mute switches
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
- 3 available stereo speaker outputs, two available as 2.1
- Multi-mode SUB / METER out SUB out mode for stereo or multiple mono subwoofer outputs
- METER out mode fed by selected input signal, level calibration from 0-100 or post speaker fader level
| Product Name | Grace Design M905 Analog Reference Monitor Controller w/ Analog Inputs Only |
|---|---|
| Brand | Grace Design |
| Condition | New |
| MPN | m905-An |
| UPC | 823821109055 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Analog inputs:
- One (1) Unbalanced
- Two (2) Balanced
- CUE
- Talkback mic
- S-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
- Sleek, ergonomic hybrid RCU with hardware switches, large level encoder and graphical LCD
- LCD display shows input, level, output, SPL and DAC status plus a powerful calibration menu
- SPL meter sourced by built in RCU mic - includes level, peak, fast and slow modes, A & C weighting
- Precision .5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry, with outputs on both the RCU and mainframe
- Built in crossfeed circuit for simulating loudspeaker listening with headphones
- Dedicated mono, dim, mute, sub mute switches
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
- 3 available stereo speaker outputs, two available as 2.1
- Multi-mode SUB / METER out SUB out mode for stereo or multiple mono subwoofer outputs
- METER out mode fed by selected input signal, level calibration from 0-100 or post speaker fader level
Grace Design M905 Analog Reference Monitor Controller w/ Analog Inputs Only
Details
Why you need the Grace Design M905-AN Analog Reference Monitor:
The m905 Analog is Grace Design's analog-only stereo monitor controller, engineered from the ground up to provide audio playback performance with a comprehensive and intuitive feature set. The m905 Analog model features the same configuration as the standard m905 with all the same great monitoring features, except no digital input and a second pair of balanced analog inputs. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface.
The remote control unit is powerful, clean and ergonomic. It includes a headphone output, talkback microphone, and dedicated real time SPL meter. Controls are designed so that anyone unfamiliar with the system can operate it immediately and intuitively, then with a minimal time investment advanced setup and calibration features are accessed and programmed with ease.
The m905 Analog offers more monitoring management features than any current monitor controller. But its true essence is as the most sonically reliable and innate centerpiece available for your studio – homebase for your ears, eyes and hands.
Features:
- Analog inputs:
- One (1) Unbalanced
- Two (2) Balanced
- CUE
- Talkback mic
- S-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
- Sleek, ergonomic hybrid RCU with hardware switches, large level encoder and graphical LCD
- LCD display shows input, level, output, SPL and DAC status plus a powerful calibration menu
- SPL meter sourced by built in RCU mic - includes level, peak, fast and slow modes, A & C weighting
- Precision .5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry, with outputs on both the RCU and mainframe
- Built in crossfeed circuit for simulating loudspeaker listening with headphones
- Dedicated mono, dim, mute, sub mute switches
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
- 3 available stereo speaker outputs, two available as 2.1
- Multi-mode SUB / METER out SUB out mode for stereo or multiple mono subwoofer outputs
- METER out mode fed by selected input signal, level calibration from 0-100 or post speaker fader level
| Product Name | Grace Design M905 Analog Reference Monitor Controller w/ Analog Inputs Only |
|---|---|
| Brand | Grace Design |
| Condition | New |
| MPN | m905-An |
| UPC | 823821109055 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Analog inputs:
- One (1) Unbalanced
- Two (2) Balanced
- CUE
- Talkback mic
- S-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
- Sleek, ergonomic hybrid RCU with hardware switches, large level encoder and graphical LCD
- LCD display shows input, level, output, SPL and DAC status plus a powerful calibration menu
- SPL meter sourced by built in RCU mic - includes level, peak, fast and slow modes, A & C weighting
- Precision .5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry, with outputs on both the RCU and mainframe
- Built in crossfeed circuit for simulating loudspeaker listening with headphones
- Dedicated mono, dim, mute, sub mute switches
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
- 3 available stereo speaker outputs, two available as 2.1
- Multi-mode SUB / METER out SUB out mode for stereo or multiple mono subwoofer outputs
- METER out mode fed by selected input signal, level calibration from 0-100 or post speaker fader level
