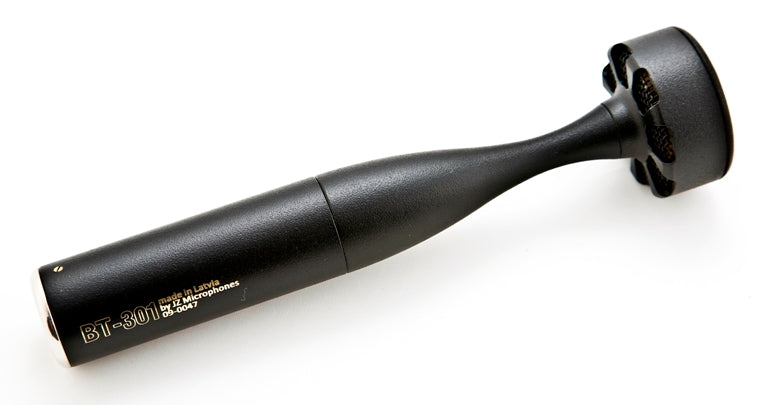

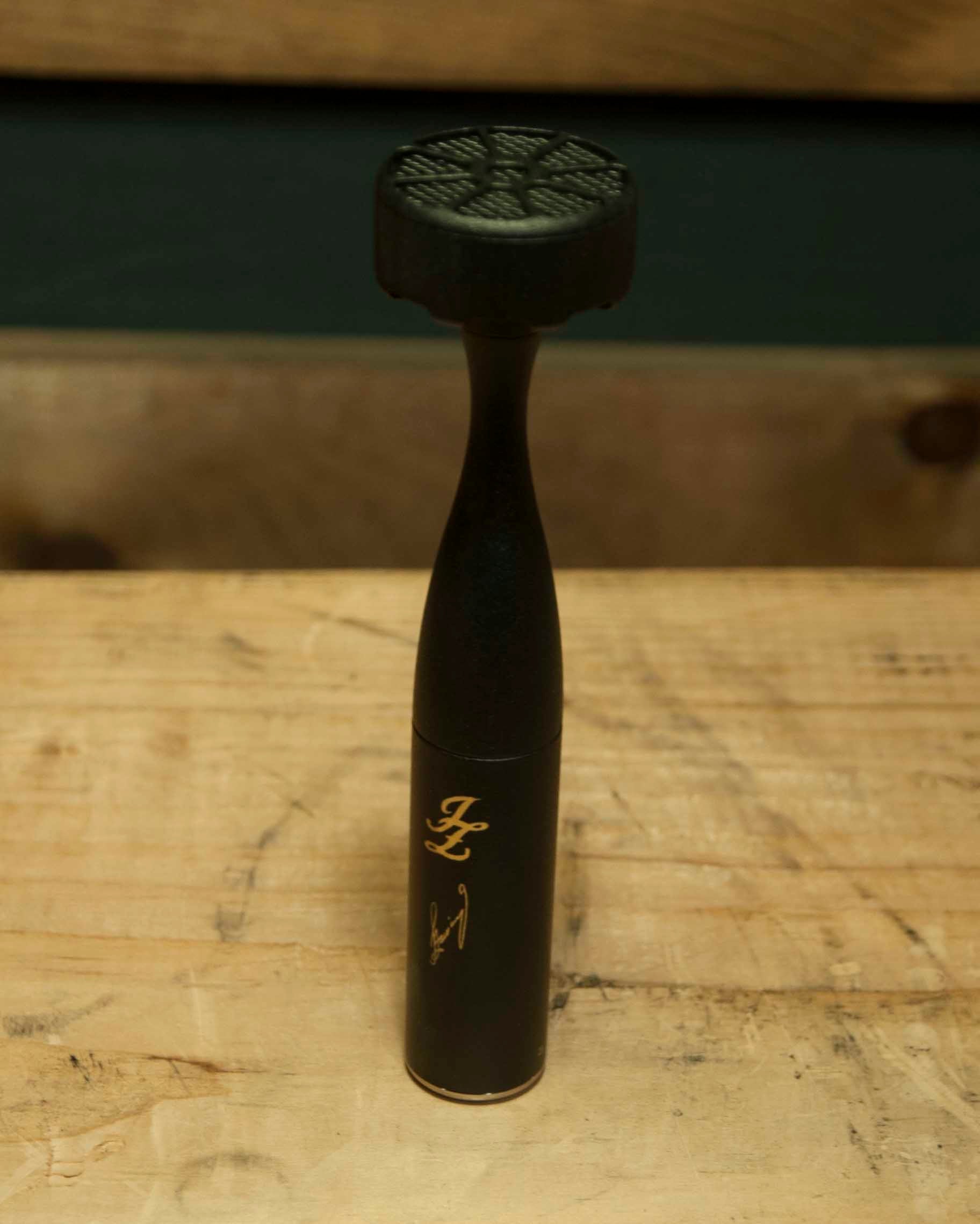

JZ Microphones BT301 Mid-Sized Casule Microphone
JZ BT301 mic is unusually shaped cardoid, mid-sized capsule microphone which gives great results in almost any application it is used. BT301 is the ideal for strummed string instruments, upright piano, cello, contrabass, violin, hand percussion and similar chores, finding its place any higher end mic locker.
JZ BT301 is a perfect microphone for serious acoustic applications. Its GDC3 capsule provides the user with clear, powerful capture of most arco and plucked string instruments, amplified or naturally. Its clever body shape ensures minimal rear axis interference to the cardiod polar response
Michael Wagener (Metallica, Queen, Ozzy Ozbourne, Alice Cooper)
"I tried the combination of a BT201 and BT301 on acoustic guitar and it was the best sound I’ve heard from any new microphone."
JZ BT301
Transducer type
electrostatic condenser
Operating principal
pressure gradient
Diaphragms active diameter
21mm
Frequency range
20 Hz to 20 kHz
Polar pattern
Cardioid
Output impedance
50 ohms
Rated load impedance
1000 ohms
Suggested load impedance
>500 ohms
Sensitivity at 1000 Hz into 1000 ohms load
33mV/Pa
S/N Ratio CCIR 468-3 weighted
76 dB
S/N Ratio DIN/IEC 651 A-weighted
87 db-A
Equivalent noise level DIN/IEC A-weighted
5,5 dB-A
Maximum SPL for 0.5% THD at 1000 ohm load
133,5 dB
Dynamic range of the microphone preamplifier
128 db
Phantom powering voltage on pins 2 & 3 of XLR
+48 V (+/-4 V)
Current consumption
< 2 mA
Output connector
3-pin XLR male, gold plated
contacts
Signal polarity
positive toward pressure on a
diaphragm produces positive
polarity voltage on XLR pin #2
relatively to pin #3
| Product Name | JZ Microphones BT301 Mid-Sized Casule Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | BT301 |
| Shipping Option | Free Shipping to the Continental U.S. |
JZ Microphones BT301 Mid-Sized Casule Microphone
Details
JZ Microphones BT301 Mid-Sized Casule Microphone
JZ BT301 mic is unusually shaped cardoid, mid-sized capsule microphone which gives great results in almost any application it is used. BT301 is the ideal for strummed string instruments, upright piano, cello, contrabass, violin, hand percussion and similar chores, finding its place any higher end mic locker.
JZ BT301 is a perfect microphone for serious acoustic applications. Its GDC3 capsule provides the user with clear, powerful capture of most arco and plucked string instruments, amplified or naturally. Its clever body shape ensures minimal rear axis interference to the cardiod polar response
Michael Wagener (Metallica, Queen, Ozzy Ozbourne, Alice Cooper)
"I tried the combination of a BT201 and BT301 on acoustic guitar and it was the best sound I’ve heard from any new microphone."
JZ BT301
Transducer type
electrostatic condenser
Operating principal
pressure gradient
Diaphragms active diameter
21mm
Frequency range
20 Hz to 20 kHz
Polar pattern
Cardioid
Output impedance
50 ohms
Rated load impedance
1000 ohms
Suggested load impedance
>500 ohms
Sensitivity at 1000 Hz into 1000 ohms load
33mV/Pa
S/N Ratio CCIR 468-3 weighted
76 dB
S/N Ratio DIN/IEC 651 A-weighted
87 db-A
Equivalent noise level DIN/IEC A-weighted
5,5 dB-A
Maximum SPL for 0.5% THD at 1000 ohm load
133,5 dB
Dynamic range of the microphone preamplifier
128 db
Phantom powering voltage on pins 2 & 3 of XLR
+48 V (+/-4 V)
Current consumption
< 2 mA
Output connector
3-pin XLR male, gold plated
contacts
Signal polarity
positive toward pressure on a
diaphragm produces positive
polarity voltage on XLR pin #2
relatively to pin #3
| Product Name | JZ Microphones BT301 Mid-Sized Casule Microphone |
|---|---|
| Brand | JZ Microphones |
| Condition | New |
| MPN | BT301 |
| Shipping Option | Free Shipping to the Continental U.S. |
