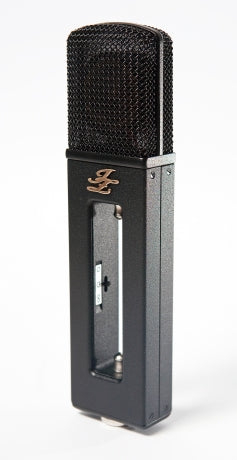

JZ Microphones engineers' and users' opinion is that any Black Hole Series microphone, which is a fantastic vocal mic, is great on every application it is used. Unbelievable clarity and definition, smoothness and feel full transparency is the way industry professionals describe their own thoughts after using the Black Hole Series microphones to record their music. It is very handy and compact with absolutely originally looking design. It has new original stand holder system (damper) and patented variable sputtering of diaphragm, using specially mixed alloy for coating. The Black Hole is produced with three switchable polar patterns (Omni, Cardioid and Figure of 8). Designer of Black Hole is sure that the result will agreeably surprise every user.



BH1

Transducer type electrostatic

Operating principal pressure gradient

Diaphragms active diameter 2 x 27 mm

Frequency range 20 Hz to 20 kHz

Polar pattern Omni / Cardioid / Figure - 8

Output impedance 50 ohms

Rated load impedance >250 ohms

Suggested load impedance 1000 ohms

Sensitivity at 1000 Hz into 1000 ohms load 18 mV/Pa

S/N Ratio CCIR 468-3 weighted 75,5 dB

S/N Ratio DIN/IEC 651 A-weighted 86,5 db-A

Equivalent noise level DIN/IEC A-weighted 7,5 dB-A

Maximum SPL for 0.5% THD at 1000 ohm load 134,5 dB

Dynamic range of the microphone preamplifier 127 db

Phantom powering voltage on pins 2 & 3 of XLR +48 V (+/-4 V

Current consumption 1,5 mA

Output connector 3-pin XLR male, gold plated contacts

Signal polarity positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3

Dimensions 203 x 51 x 28
