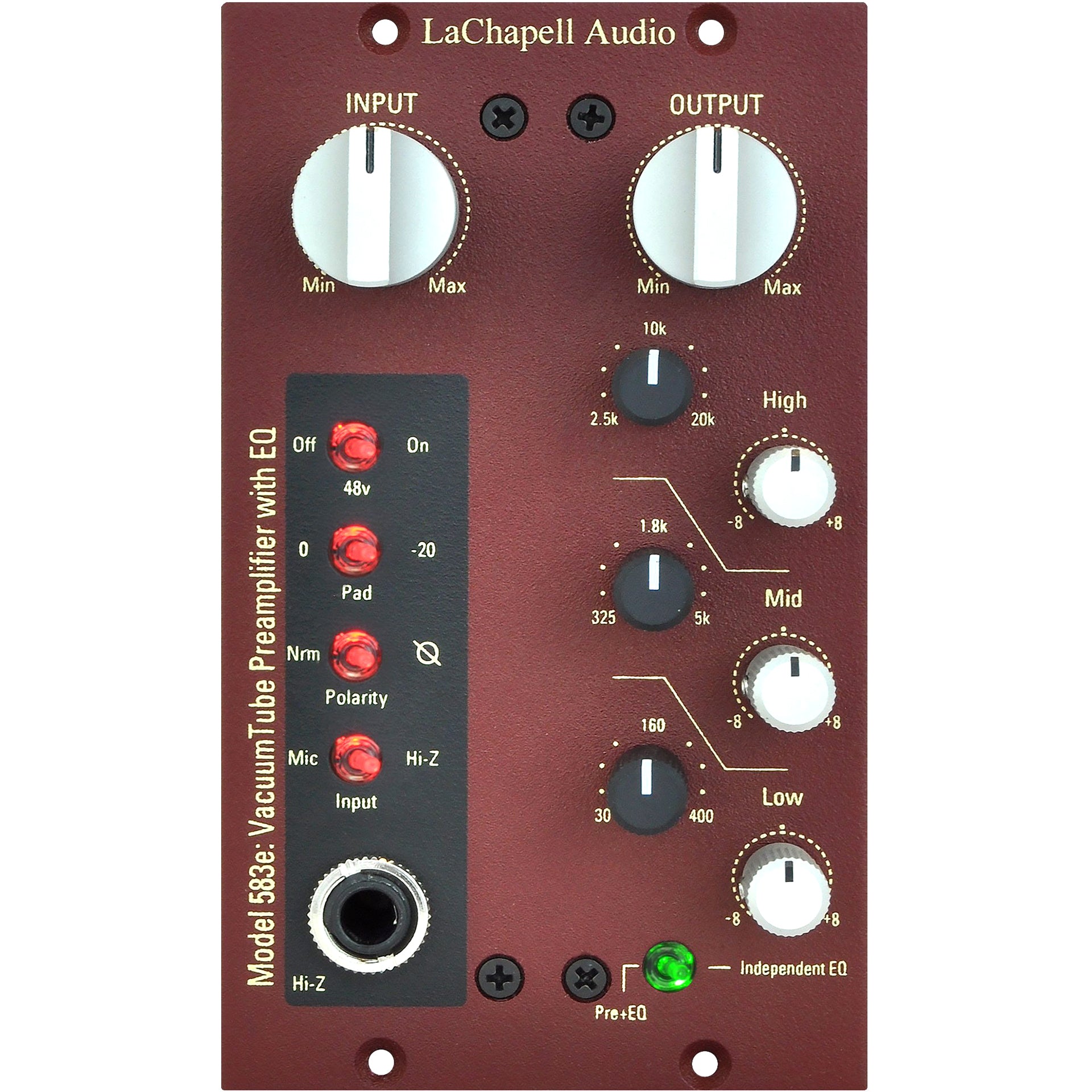

LaChapell Audio 583E 500 Series Tube Microphone Preamp / EQ

LaChapell Audio 583E 500 Series Tube Microphone Preamp / EQ

$1,475.00
$1,475.00
Sale Sold out

Condition:

On order with the manufacturer!
View full details
  • Details
  • Features
  • Reviews

The LaChapell Audio Model 583E features the same amplifier stage found on the 583S including the Jensen JT-115k input transformer coupled with an ultra-clean transformer-less three-band EQ section with fully sweeping frequency controls and cut/boost settings of +/- 8dB. The EQ can run as an integrated EQ serving the preamplifier or separate as its own autonomous module where both units run independently. Features:

More Information
Product Name LaChapell Audio 583E 500 Series Tube Microphone Preamp / EQ

Preamp

  • Internal Gain: 0 to >72dB
  • THD+N: 0.10% (minimum)
  • Frequency Response: 10Hz to 50KHz
  • Max Output: (1% THD+N) +26dBu
  • Typical EIN: -121dBu
  • Input Impedance: 1.5KΩ
  • Transformers: CINEMAG (Input), Jensen (Output)
  • Tube Compliment: 1 x 12AX7 / ECC83

EQ

  • Nosie Floor: -95dB
  • THD+N: 0.012% (@ +4 output)
  • Frequency Response: 10Hz to 50KHz (flat)
  • Cut/Boost Range: +/- 8dBu
  • Maximum Input Level: ≥25dB
  • Input Impedance: 48KΩ
  • Input/Output Type: Transformerless

LaChapell Audio 583E 500 Series Tube Microphone Preamp / EQ
Details

The LaChapell Audio Model 583E features the same amplifier stage found on the 583S including the Jensen JT-115k input transformer coupled with an ultra-clean transformer-less three-band EQ section with fully sweeping frequency controls and cut/boost settings of +/- 8dB. The EQ can run as an integrated EQ serving the preamplifier or separate as its own autonomous module where both units run independently. Features:

More Information
Product Name LaChapell Audio 583E 500 Series Tube Microphone Preamp / EQ
Features

Preamp

  • Internal Gain: 0 to >72dB
  • THD+N: 0.10% (minimum)
  • Frequency Response: 10Hz to 50KHz
  • Max Output: (1% THD+N) +26dBu
  • Typical EIN: -121dBu
  • Input Impedance: 1.5KΩ
  • Transformers: CINEMAG (Input), Jensen (Output)
  • Tube Compliment: 1 x 12AX7 / ECC83

EQ

  • Nosie Floor: -95dB
  • THD+N: 0.012% (@ +4 output)
  • Frequency Response: 10Hz to 50KHz (flat)
  • Cut/Boost Range: +/- 8dBu
  • Maximum Input Level: ≥25dB
  • Input Impedance: 48KΩ
  • Input/Output Type: Transformerless
