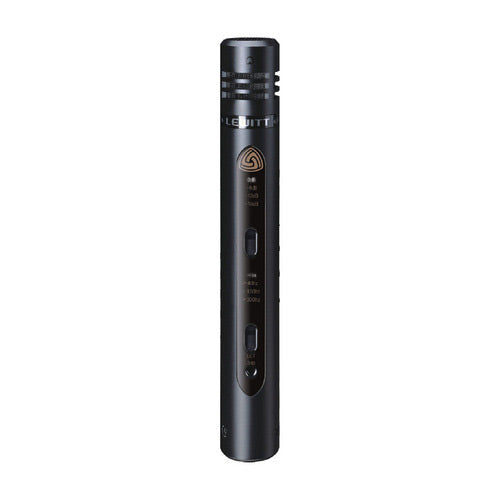

Lewitt LCT340 (CO) Cardioid Externally Polarized Condenser Microphone
LEWITT's LCT 340 is a 0.8-inch externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals, and is perfectly suited for sophisticated live and studio applications. Two interchangeable capsules allow for quick and easy switching of patterns, ensuring greater flexibility while maintaining a beautifully detailed sound reproduction.
The LCT 340 is equipped with four-position low-cut filter and pre-attenuation slide switches, dual-color LED indicators and a convenient snap closure. It offers a dynamic range of 124 dB and stands out for its extremely low self-noise level of 15 dB. Last but not least, its transformerless output makes this ruggedly designed pro-mic resistant to electrical interference and a first-class pick for true sound enthusiasts.
Features
Interchangeable capsules for cardioid and omni-directional pattern selection
0.8-inch small-diaphragm capsule for precise, characteristic sound
Dynamic range of 124 dB and extremely low self-noise level of 15 dB
LED display for quick visual indication
Immune to electromagnetic interference thanks to transformerless output stage
Rugged black die-cast body ensures long life
Hexagonal steel-mesh grille with ruthenium-galvanized finish (black)
Gold-plated 3-pin XLR output connector
Comes in a cardboard box with foam layers; includes DTP 40 Mts shock mount, LCT 40 Ws windshield, DTP 40 Lb leather bag and an optional omni-directional true condenser transducer
Acoustical operating principle pressure & pressure gradient
transducers, externally polarized
Transducer Ø 20,32 mm
0,8 inch
Directional pattern cardioid
omni
Frequency range 20 … 20.000 Hz
Sensitivity 9 mV / Pa (-41 dBV), cardioid
8 mV / Pa (-42 dBV), omni
Signal / noise ratio 79 dB-A
Equivalent noise level 15 dB-A, cardioid (IEC 61672-1)
16 dB-A, omni (IEC 61672-1)
Dynamic range of mic. Amp. 124 dB-A
Max. SPL for 0,5 % THD 139 dB, 0 dB pre-attenuation
145 dB, 6 dB pre-attenuation
151 dB, 12 dB pre-attenuation
157 dB, 18 dB pre-attenuation
Pre-attenuation pad 6 dB, 12 dB, 18 dB, switchable
Bass cut filter slope 12 dB / octave at 40 Hz
6 dB / octave at 150 Hz
6 dB / octave at 300 Hz
Rated impedance < 150 ohms
Rated load impedance > 1.000 ohms
Supply voltage 48 V + / - 4 V (IEC 61938)
Current consumption 6,6 mA (IEC 61938)
Connector gold plated 3-pin XLR
Dimension Ø 24 dia. x 160 mm
Ø 0,94 dia. x 6,3 inch
Net weight 200 g
7,05 oz
| Product Name | Lewitt LCT340 (CO) Cardioid Externally Polarized Condenser Microphone |
|---|---|
| Brand | Lewitt |
| Condition | New |
| MPN | AMS-LCT-340-CO |
| UPC | 847986000033 |
| Shipping Option | Free Shipping to the Continental U.S. |
Lewitt LCT340 (CO) Cardioid Externally Polarized Condenser Microphone
Details
Lewitt LCT340 (CO) Cardioid Externally Polarized Condenser Microphone
LEWITT's LCT 340 is a 0.8-inch externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals, and is perfectly suited for sophisticated live and studio applications. Two interchangeable capsules allow for quick and easy switching of patterns, ensuring greater flexibility while maintaining a beautifully detailed sound reproduction.
The LCT 340 is equipped with four-position low-cut filter and pre-attenuation slide switches, dual-color LED indicators and a convenient snap closure. It offers a dynamic range of 124 dB and stands out for its extremely low self-noise level of 15 dB. Last but not least, its transformerless output makes this ruggedly designed pro-mic resistant to electrical interference and a first-class pick for true sound enthusiasts.
Features
Interchangeable capsules for cardioid and omni-directional pattern selection
0.8-inch small-diaphragm capsule for precise, characteristic sound
Dynamic range of 124 dB and extremely low self-noise level of 15 dB
LED display for quick visual indication
Immune to electromagnetic interference thanks to transformerless output stage
Rugged black die-cast body ensures long life
Hexagonal steel-mesh grille with ruthenium-galvanized finish (black)
Gold-plated 3-pin XLR output connector
Comes in a cardboard box with foam layers; includes DTP 40 Mts shock mount, LCT 40 Ws windshield, DTP 40 Lb leather bag and an optional omni-directional true condenser transducer
Acoustical operating principle pressure & pressure gradient
transducers, externally polarized
Transducer Ø 20,32 mm
0,8 inch
Directional pattern cardioid
omni
Frequency range 20 … 20.000 Hz
Sensitivity 9 mV / Pa (-41 dBV), cardioid
8 mV / Pa (-42 dBV), omni
Signal / noise ratio 79 dB-A
Equivalent noise level 15 dB-A, cardioid (IEC 61672-1)
16 dB-A, omni (IEC 61672-1)
Dynamic range of mic. Amp. 124 dB-A
Max. SPL for 0,5 % THD 139 dB, 0 dB pre-attenuation
145 dB, 6 dB pre-attenuation
151 dB, 12 dB pre-attenuation
157 dB, 18 dB pre-attenuation
Pre-attenuation pad 6 dB, 12 dB, 18 dB, switchable
Bass cut filter slope 12 dB / octave at 40 Hz
6 dB / octave at 150 Hz
6 dB / octave at 300 Hz
Rated impedance < 150 ohms
Rated load impedance > 1.000 ohms
Supply voltage 48 V + / - 4 V (IEC 61938)
Current consumption 6,6 mA (IEC 61938)
Connector gold plated 3-pin XLR
Dimension Ø 24 dia. x 160 mm
Ø 0,94 dia. x 6,3 inch
Net weight 200 g
7,05 oz
| Product Name | Lewitt LCT340 (CO) Cardioid Externally Polarized Condenser Microphone |
|---|---|
| Brand | Lewitt |
| Condition | New |
| MPN | AMS-LCT-340-CO |
| UPC | 847986000033 |
| Shipping Option | Free Shipping to the Continental U.S. |
