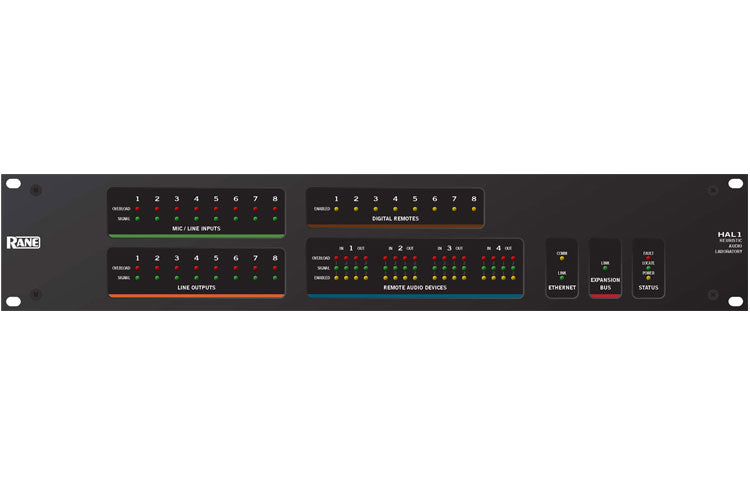

Rane HAL1 Programmable Network Audio System DSP Unit
BASIC SPECIFICATIONS:
-DSP contains 9600 MIPS of processing power
-Ethernet 1000BASE-T with Zeroconf service discovery protocol for easy set up
-8 analog balanced mic / line inputs on Euroblock connectors (green area)
-Mic inputs have switchable +48 V phantom power
-8 analog balanced line outputs on Euroblock connectors (orange area)
-Front panel signal and overload indicators for all inputs and outputs
-Four RAD Ports, each Port 2 in x 2 out plus control channel (blue areas)
-RJ-45 shielded CAT 5e connections up to 500 feet (152 meters)
-Twelve Digital Remote Ports (brown and blue areas) [DR can connect to RAD Port]
-RJ-45 shielded CAT 5e connections up to 1000 feet (304 meters)
-Two Relay Outputs on Mini-Euroblock 6-pin connectors (gray area)
-COM, NC & NO, 2 A, 48 V 60 W max switching power
-Four Logic Inputs on Mini-Euroblock 6-pin connectors (gray area)
-Internal passive pull-up
-Expansion Bus connects up to four optional EXP1 units (red area)
-Firewire IEEE 1394a 6-pin connectors
-64 x 32 audio channels
-Unit Size: 2U, 3.5"H x 19"W x 8.25"D (8.9 cm x 48.3 cm x 20.9 cm)
-Unit Weight: 7 lb (3.2 kg)
-HAL1's DSP brain can handle 80 by 48 audio channels (and has over 5 times the DSP horsepower of the RPM 88)
Just because a single blue RAD port is 2 digital in and 2 digital out, the cascadeable AM1 and AM2 Automixers offer up to 64 mic inputs at a single RAD port!
