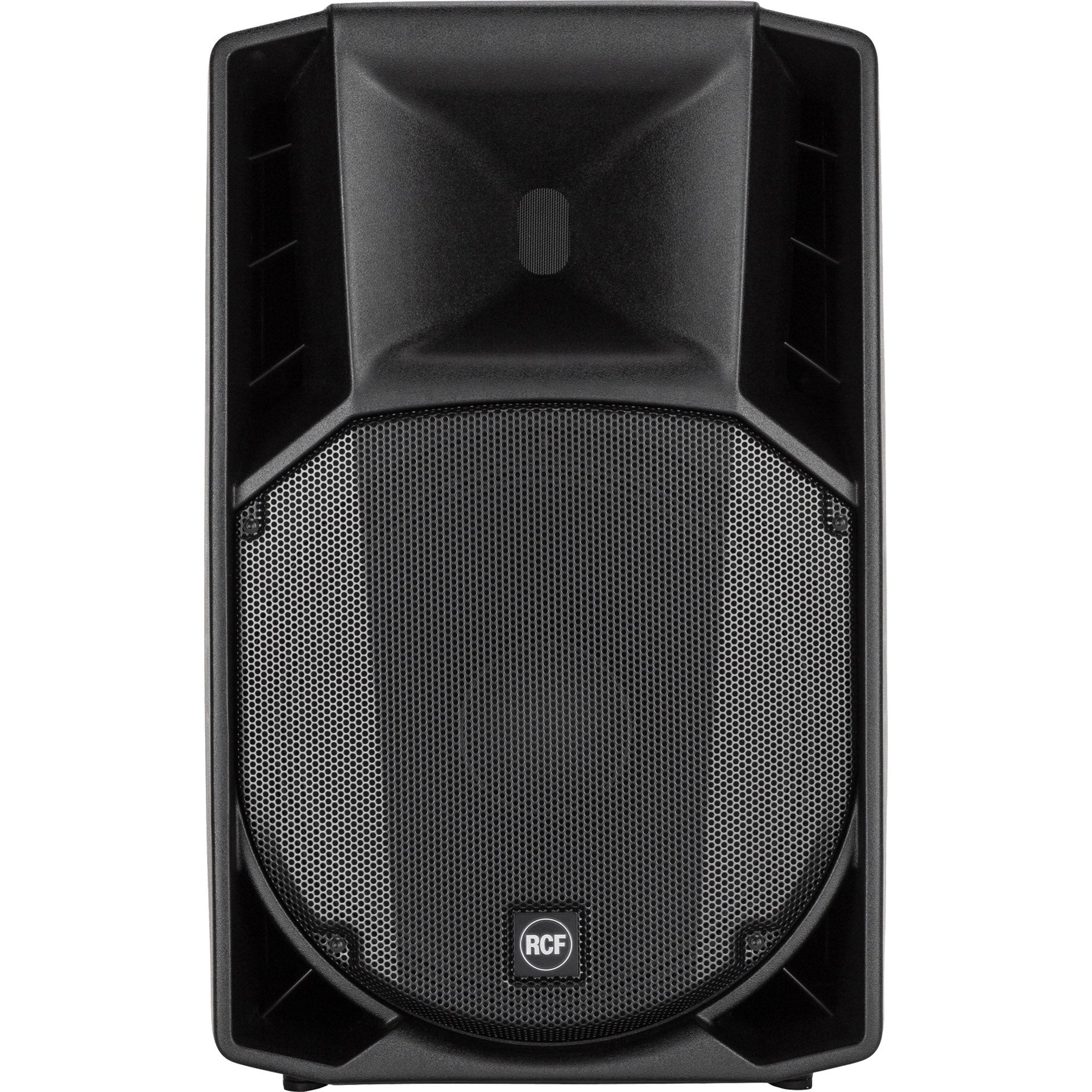

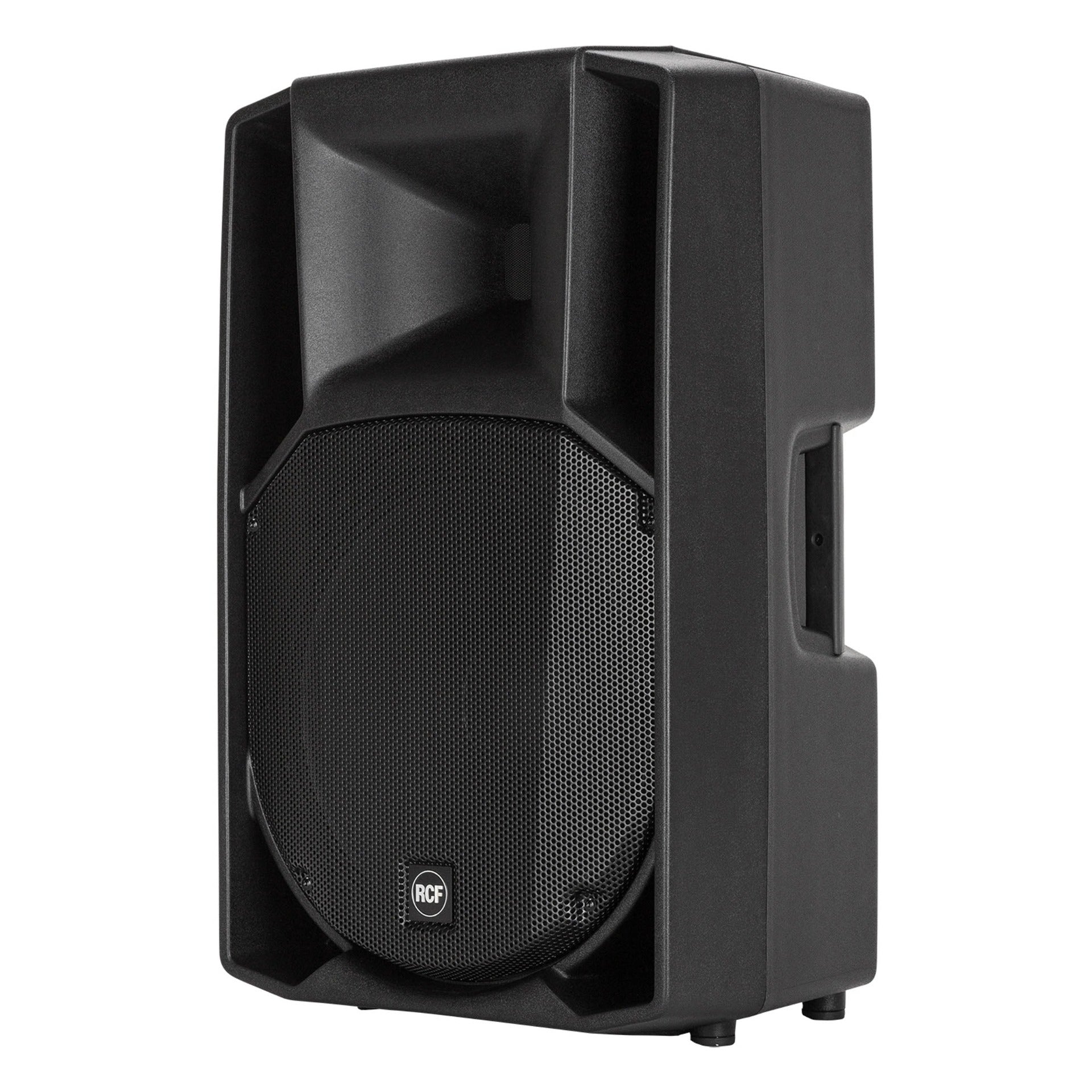

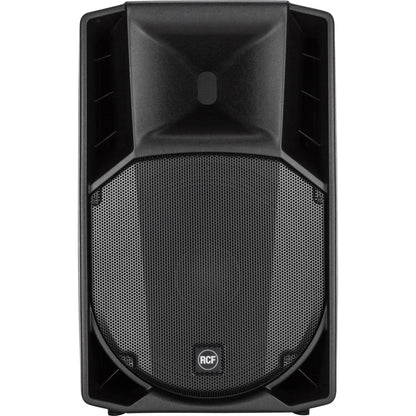

RCF ART-715A-MK4 Active 1400W 2-Way 15" w/1" HF Comp. Loudspeaker
RCF ART-715A-MK4 Active 1400W 2-Way 15" w/1" HF Comp. Loudspeaker
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Tech Specs
- Reviews
ART 715-A MK4 is a unique product in its category. The professional compressiondriver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
- 130 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 15" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
| Product Name | RCF ART-715A-MK4 Active 1400W 2-Way 15" w/1" HF Comp. Loudspeaker |
|---|---|
| Brand | RCF |
| Condition | New |
| MPN | ART-715A-MK4 |
| Shipping Option | Free Shipping to the Continental U.S. |
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:45Hz ÷20000Hz
- Max SPL:130dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1", 1.75" v.c.
- Woofer:15", 2.5" v.c.
INPUT/OUTPUT SECTION
- Input signal:bal / unbal
- Input connectors:XLR-Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:1600Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
- Total power:1400W PEAK
- High frequencies:400W PEAK
- Low frequencies:1000W PEAK
- Total power:700W RMS
- High frequencies:200W RMS
- Low frequencies:500W RMS
- Cooling:Convection / forced
- Connections:VDE connector in
CABINET
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p.
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:708 / 27.87mm/inch
- Width:437 / 17.2mm/inch
- Depth:389 / 15.31mm/inch
- Net Weight:19.6 / 43.21kg/lbs
