Switchcraft 238x3‑Conductor 1/4"" Flat Phone Plug

Switchcraft 238x3‑Conductor 1/4"" Flat Phone Plug

$6.50
$6.50
Sale Sold out

Condition:

On order with the manufacturer!
View full details
  • Details
  • Tech Specs
  • Reviews

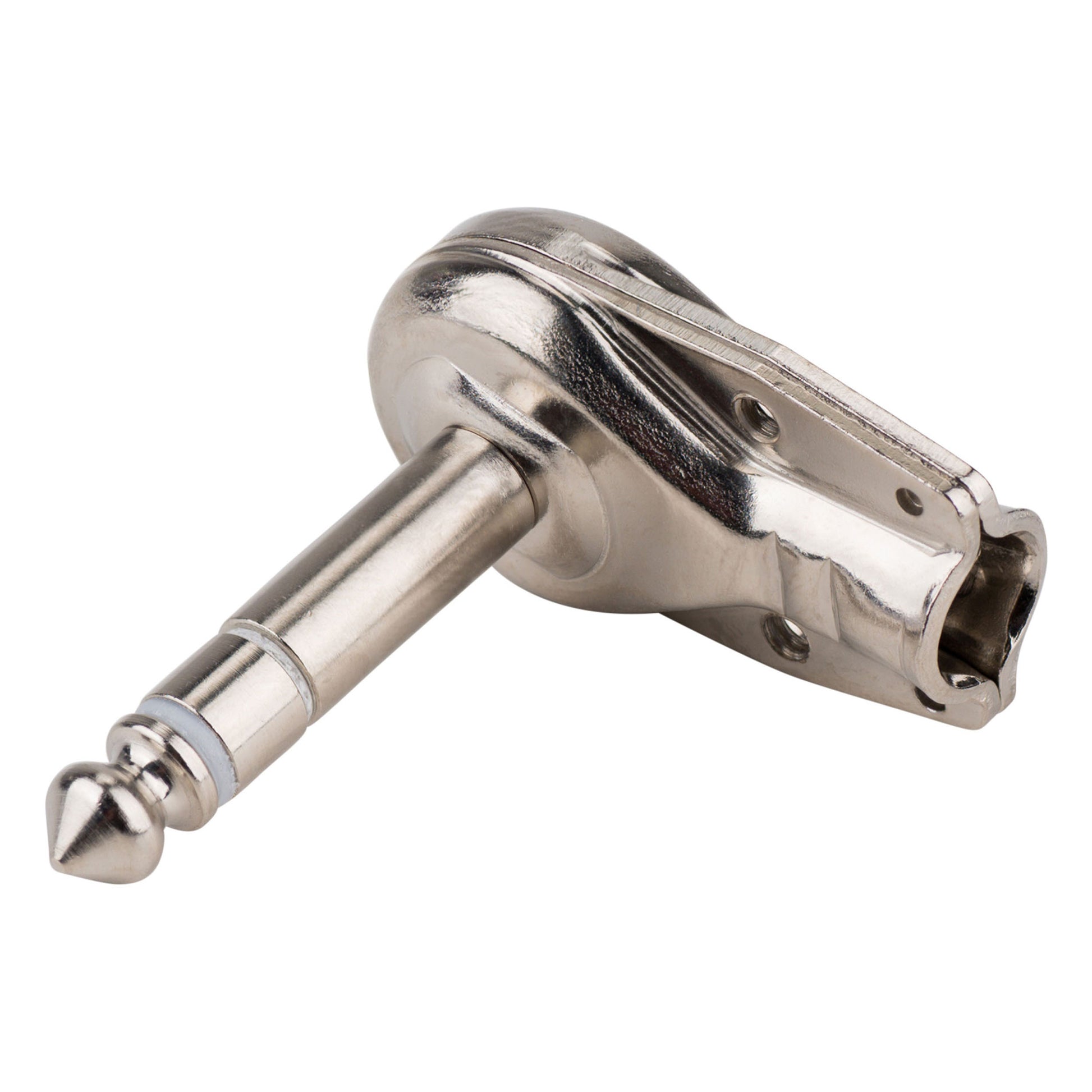

Switchcraft's 3 conductor right-angle audio phone plugs are designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring, and only three pieces to assemble - handle, insulator and finger/housing assembly and rugged reliability for stable, long-term, trouble-free operation.

More Information
Product Name Switchcraft 238x3‑Conductor 1/4"" Flat Phone Plug
Brand Switchcraft
Condition New
MPN 238XPKG
Shipping Option Free Shipping on orders over $94.72

SPECIFICATIONS - Flat

  • Tip Rod and Sleeve: Nickel-plated copper alloy.
  • Terminals: Tinned copper alloy.
  • Handle: Black or red plastic. Numbers 228 and 238, steel,nickel-plated.

SPECIFICATIONS - Typical

  • Tip, Rod and Handle: Nickel-plated copper alloy.
  • Housing/Sleeve: Nickel-plated.
  • Tip Terminal: Tin-plated copper alloy.
  • Sleeve (Clamp) Terminal: Tin-plated steel.
  • Insulation: Thermoplastic.
  • Dielectric Withstanding Voltage: 500 Vac.
  • Insulation Resistance: 50,000 Megaohms minimum (initial).



Switchcraft 238x3‑Conductor 1/4"" Flat Phone Plug
Details

Switchcraft's 3 conductor right-angle audio phone plugs are designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring, and only three pieces to assemble - handle, insulator and finger/housing assembly and rugged reliability for stable, long-term, trouble-free operation.

More Information
Product Name Switchcraft 238x3‑Conductor 1/4"" Flat Phone Plug
Brand Switchcraft
Condition New
MPN 238XPKG
Shipping Option Free Shipping on orders over $94.72
Tech Specs

SPECIFICATIONS - Flat

  • Tip Rod and Sleeve: Nickel-plated copper alloy.
  • Terminals: Tinned copper alloy.
  • Handle: Black or red plastic. Numbers 228 and 238, steel,nickel-plated.

SPECIFICATIONS - Typical

  • Tip, Rod and Handle: Nickel-plated copper alloy.
  • Housing/Sleeve: Nickel-plated.
  • Tip Terminal: Tin-plated copper alloy.
  • Sleeve (Clamp) Terminal: Tin-plated steel.
  • Insulation: Thermoplastic.
  • Dielectric Withstanding Voltage: 500 Vac.
  • Insulation Resistance: 50,000 Megaohms minimum (initial).
