Sturdy construction 3.5mm plugs with insert molded plug finger. Longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. Longer handle for improved gripping surface and easy plug withdrawl from jack.
| Product Name | Switchcraft 35HDNN 3.5mm Stereo Plug W/Nickel Handle & Tin Finger |
|---|---|
| Brand | Switchcraft |
| Condition | New |
| MPN | 35HDNNPKG |
| Shipping Option | Free Shipping on orders over $94.72 |
- Contact Resistance:<0.020 ohms
- Dielectric Withstand Voltage: 250 VAC (min.)
- Insulation Resistance @ 500 VDC: 2,000 megohms (min.)
- Working Voltage: 250 VAC, 140 VDC
- Current Carry @ Working Voltage: 4 AMPS
- Insert/Withdrawal Force: Typical 2.5/2 pounds
- Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
- Life: 5000 cycles
- Maximum Cable Size: .250" dia.
MATERIALS
- Tip Rod: Copper alloy, tin, or gold-plated
- Ring: Copper alloy, nickel, or gold-plated
- Sleeve: Copper alloy, nickel, or gold-plated
- Handle: Copper alloy, nickel, or gold-plated
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, tin-plated
- Tubular Insulator: Clear plastic

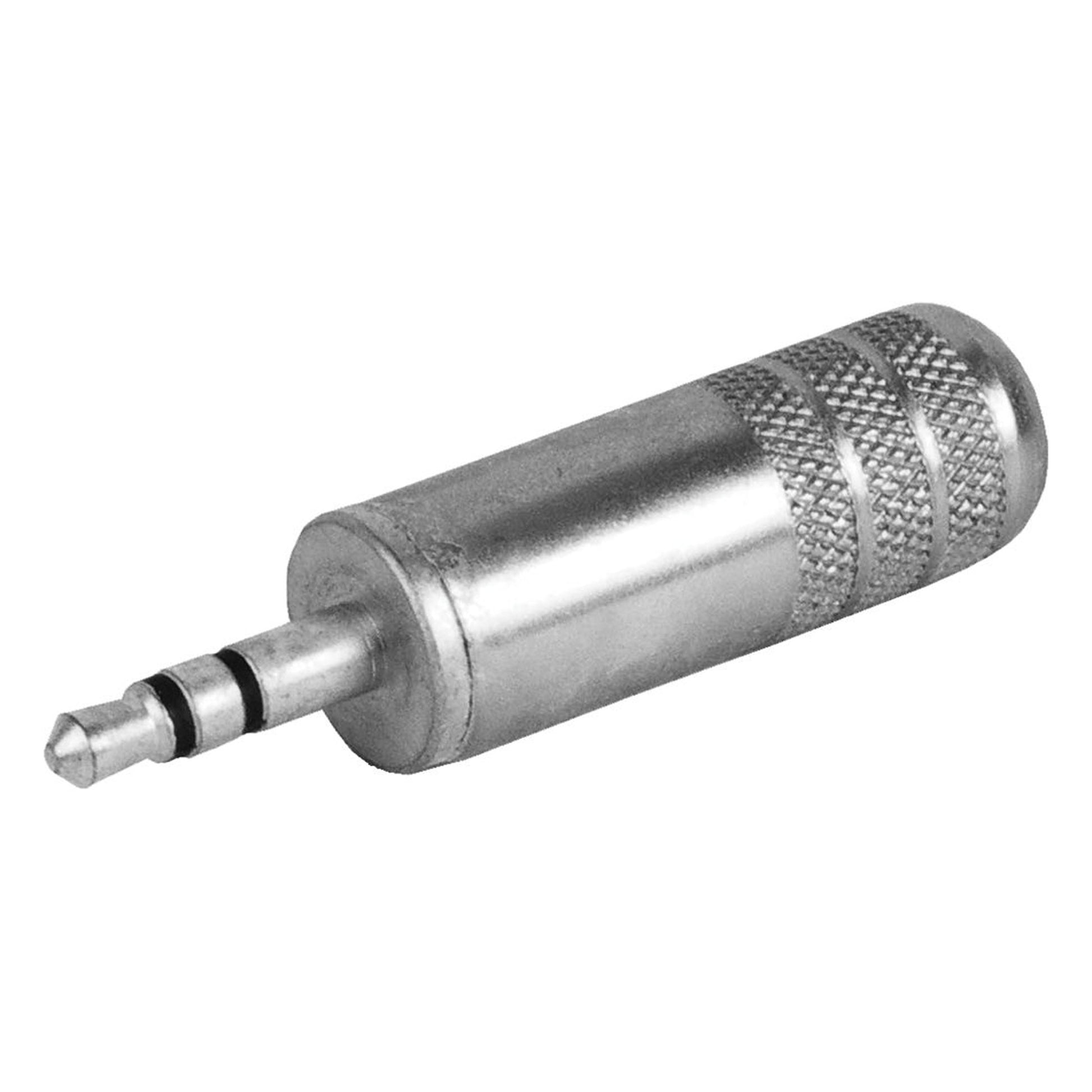

Switchcraft 35HDNN 3.5mm Stereo Plug W/Nickel Handle & Tin Finger
Details
Sturdy construction 3.5mm plugs with insert molded plug finger. Longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. Longer handle for improved gripping surface and easy plug withdrawl from jack.
| Product Name | Switchcraft 35HDNN 3.5mm Stereo Plug W/Nickel Handle & Tin Finger |
|---|---|
| Brand | Switchcraft |
| Condition | New |
| MPN | 35HDNNPKG |
| Shipping Option | Free Shipping on orders over $94.72 |
Tech Specs
- Contact Resistance:<0.020 ohms
- Dielectric Withstand Voltage: 250 VAC (min.)
- Insulation Resistance @ 500 VDC: 2,000 megohms (min.)
- Working Voltage: 250 VAC, 140 VDC
- Current Carry @ Working Voltage: 4 AMPS
- Insert/Withdrawal Force: Typical 2.5/2 pounds
- Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
- Life: 5000 cycles
- Maximum Cable Size: .250" dia.
MATERIALS
- Tip Rod: Copper alloy, tin, or gold-plated
- Ring: Copper alloy, nickel, or gold-plated
- Sleeve: Copper alloy, nickel, or gold-plated
- Handle: Copper alloy, nickel, or gold-plated
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, tin-plated
- Tubular Insulator: Clear plastic
