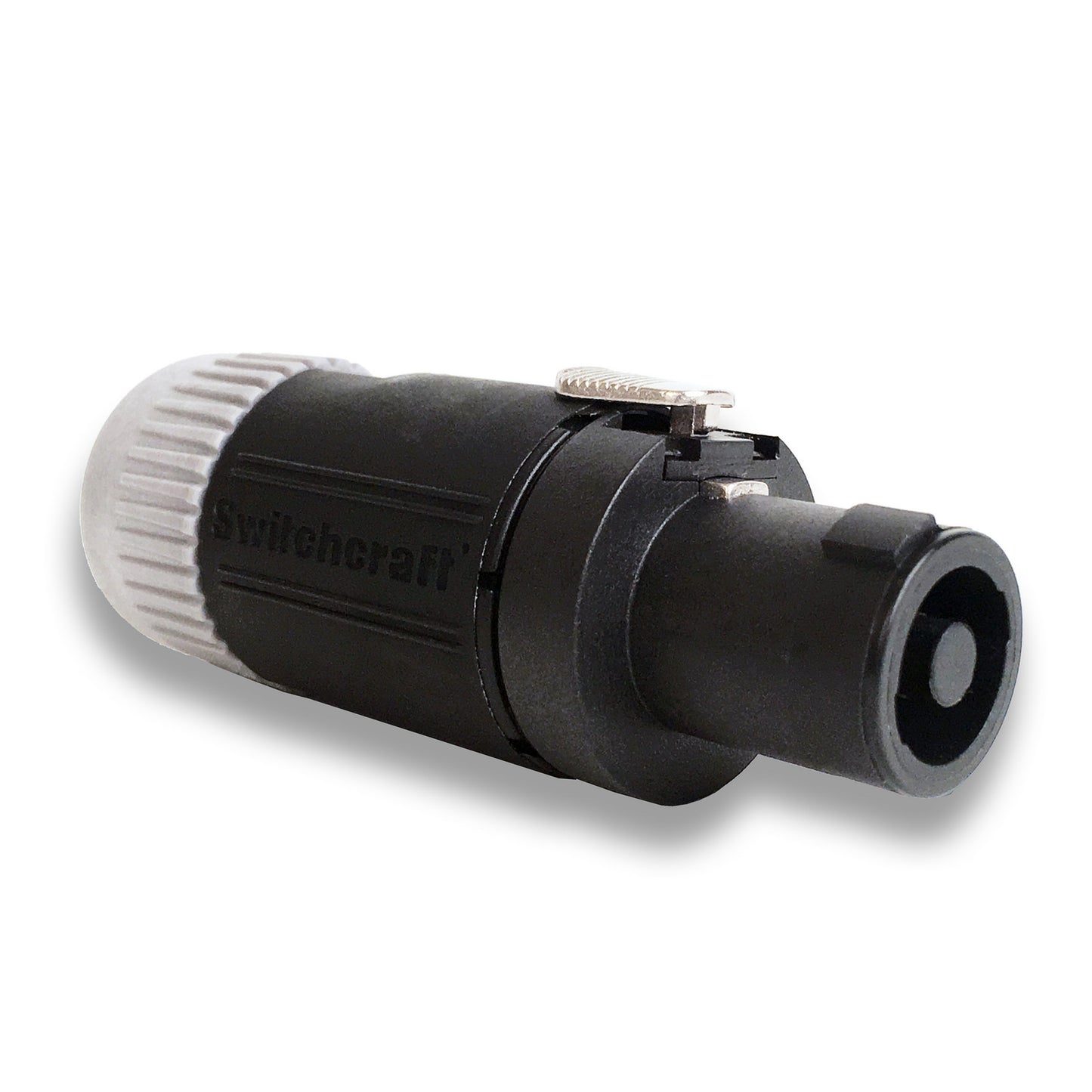

Switchcraft HPCC4FT 4 Pole Male Cable Mount Plug

Switchcraft HPCC4FT 4 Pole Male Cable Mount Plug

$7.85
$7.85
Sale Sold out

Condition:

On order with the manufacturer!
View full details
  • Details
  • Tech Specs
  • Reviews

Loudspeaker, Cable Mount Straight Cord Plug, Twist to Lock

More Information
Product Name Switchcraft HPCC4FT 4 Pole Male Cable Mount Plug
Brand Switchcraft
Condition New
MPN HPCC4FT
Shipping Option Free Shipping on orders over $94.72

Materials

  • Housings: Thermoplastic UL94V-O rated
  • Seal Rings: Thermoplastic rubber
  • Contacts: Silver-plated over copper alloy

Electrical

  • Current Rating: 30A per UL 1977
  • Voltage Rating: 1,500 AC RMS, Per Mil-Std 202, Method 301
  • Insulation Resistance: > 2T Ohms
  • Contact Resistance: 1m Ohm, 1.5m Ohm after 1,000 insertions/withdrawals

Mechanical

  • Shock: Mil-Std 202, Method 213B Cond. K
  • Vibration: Mil-Std 202, Method 201A
  • Life: 1,000 insertion/withdrawals
  • Cable Range: 0.560" OD max.

Environmental

  • Salt Spray: Mil-Std 202, Method 101D Cond. B
  • Thermal Shock: Mil-Std 202, Method 107G
  • Temperature Limits: -55 C to +85 C
  • Moisture Resistance: Mil-Std 202, Method 106E
  • Life@Ambient Temperature: Mil-Std 202, Method 108A
  • Touch Proof: IEC 65 and 1010-1
  • Weather Tightness: IEC 529, IP 25

Switchcraft HPCC4FT 4 Pole Male Cable Mount Plug
Details

Loudspeaker, Cable Mount Straight Cord Plug, Twist to Lock

More Information
Product Name Switchcraft HPCC4FT 4 Pole Male Cable Mount Plug
Brand Switchcraft
Condition New
MPN HPCC4FT
Shipping Option Free Shipping on orders over $94.72
Tech Specs

Materials

  • Housings: Thermoplastic UL94V-O rated
  • Seal Rings: Thermoplastic rubber
  • Contacts: Silver-plated over copper alloy

Electrical

  • Current Rating: 30A per UL 1977
  • Voltage Rating: 1,500 AC RMS, Per Mil-Std 202, Method 301
  • Insulation Resistance: > 2T Ohms
  • Contact Resistance: 1m Ohm, 1.5m Ohm after 1,000 insertions/withdrawals

Mechanical

  • Shock: Mil-Std 202, Method 213B Cond. K
  • Vibration: Mil-Std 202, Method 201A
  • Life: 1,000 insertion/withdrawals
  • Cable Range: 0.560" OD max.

Environmental

  • Salt Spray: Mil-Std 202, Method 101D Cond. B
  • Thermal Shock: Mil-Std 202, Method 107G
  • Temperature Limits: -55 C to +85 C
  • Moisture Resistance: Mil-Std 202, Method 106E
  • Life@Ambient Temperature: Mil-Std 202, Method 108A
  • Touch Proof: IEC 65 and 1010-1
  • Weather Tightness: IEC 529, IP 25
