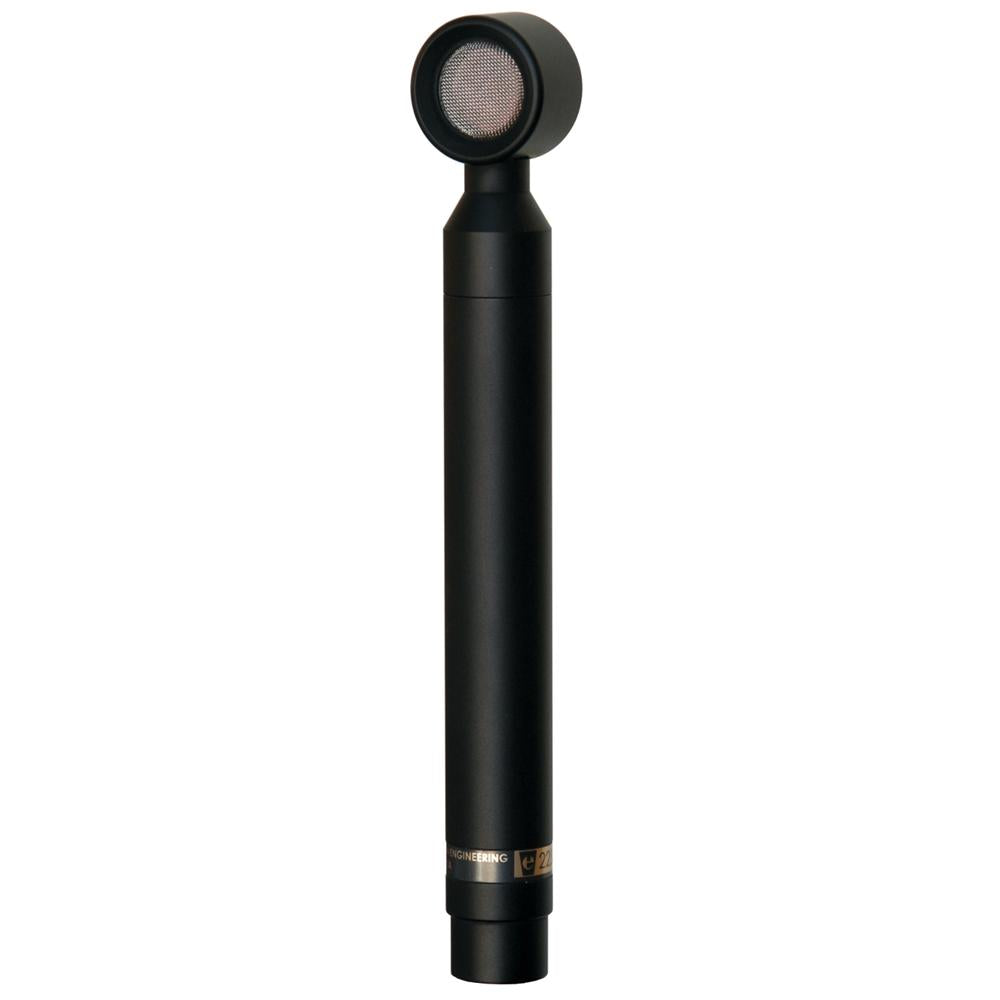

Josephson E22s Microphone

Josephson E22s Microphone

On order with the manufacturer!

View full details
  • Details
  • Tech Specs
  • Reviews

Why you need the Josephson E22s Microphone:


The Josephson e22S side-address cardioid was designed to meet the needs of noted recording engineer Steve Albini. The physical profile allows unobtrusive placement, even with tight percussion layouts. Unique among studio condenser microphones, the e22S capsule geometry is optimized for spot miking performance. The circuit uses a cascode discrete FET front end, combined with a custom Lundahl output transformer. The electronics were designed to interface easily with either transformer or direct coupled mic preamps. The e22S has low self-noise, so it delivers low level detail, and handles high sound pressure levels for minimal distortion on extremely loud passages. The microphone housing is very rugged, with a precision machined, satin black chrome finish.
More Information
Product Name Josephson E22s Microphone
Brand Josephson
Condition New
MPN E22S
Shipping Option Free Shipping to the Continental U.S.
  • Directional pattern: Cardioid
  • Frequency response: 20-20,000 Hz ±2 dB from curve
  • Sensitivity: 3.0 mV/Pa
  • Rated impedance: 200 ohms
  • Equivalent noise level: 15 dB SPL A-weighted
  • Maximum SPL: 144 dB
  • Weight: 180 g
  • Dimensions: 21mm diameter, 190mm long, 30mm head

Josephson E22s Microphone

Details

Why you need the Josephson E22s Microphone:


The Josephson e22S side-address cardioid was designed to meet the needs of noted recording engineer Steve Albini. The physical profile allows unobtrusive placement, even with tight percussion layouts. Unique among studio condenser microphones, the e22S capsule geometry is optimized for spot miking performance. The circuit uses a cascode discrete FET front end, combined with a custom Lundahl output transformer. The electronics were designed to interface easily with either transformer or direct coupled mic preamps. The e22S has low self-noise, so it delivers low level detail, and handles high sound pressure levels for minimal distortion on extremely loud passages. The microphone housing is very rugged, with a precision machined, satin black chrome finish.
More Information
Product Name Josephson E22s Microphone
Brand Josephson
Condition New
MPN E22S
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Directional pattern: Cardioid
  • Frequency response: 20-20,000 Hz ±2 dB from curve
  • Sensitivity: 3.0 mV/Pa
  • Rated impedance: 200 ohms
  • Equivalent noise level: 15 dB SPL A-weighted
  • Maximum SPL: 144 dB
  • Weight: 180 g
  • Dimensions: 21mm diameter, 190mm long, 30mm head
