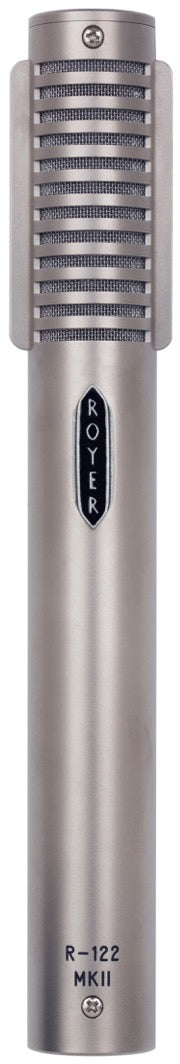

Royer R-122 MKII Active Ribbon Microphone, Nickel

Royer R-122 MKII Active Ribbon Microphone, Nickel

Limited quantities available!

The R-122 MKII takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons via the addition of a switchable -15 dB pad and a switchable bass-cut filter.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The R-122 MKII takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons via the addition of a switchable -15 dB pad and a switchable bass-cut filter. The switches are completely out of the circuit when disengaged so when both are off, the microphone is for all purposes an original R-122. The switches are located on the back of the microphone and recessed to prevent accidental activation.

The R-122 MKII’s switchable -15 dB pad is positioned before the microphone’s electronics and, when engaged, eliminates any potential for headroom-related distortion on even the loudest sound sources. Wide open electric guitars are no problem. With the pad in, the R-122 MKII’s output is actually 2 dB lower than Royer Labs flagship R-121. The R-122 MKII’s well-designed pad has no sonic imprint. Once levels are matched, the R-122 MKII reproduces sound exactly the same with the pad in as with the pad out.

The Bass Cut - When switched in, the R-122 MKII’s bass cut starts filtering at 100 Hz, 6 dB per octave, effectively reducing the mic’s bass buildup due to proximity effect. This smooth filter is extremely useful on vocals, many acoustic instruments, and close-miked electric guitars when less bottom end is desired. The R-122 MKII’s electronics are hand-wired in Royer Labs' Burbank, CA factory. The microphone utilizes a special Royer-designed toroidal transformer that delivers a faster transient response then traditional ribbons, making it a first call ribbon mic for drum overheads, percussion and all acoustic instruments.

Gain
- Conventional ribbon microphones need high-quality, high-gain microphone preamplifiers to record softer sound sources. The R-122 MKII’s output level is much higher, allowing you to use practically any mic preamplifier or board pre's to record even the quietest sounds. The R-122 MKII contains a fully balanced, hand-wired, discrete head amplifier system utilizing a specially wound toroidal transformer and ultra-low noise FET's. This system is extremely quiet and brings the R-122 MKII's sensitivity to 37 dB, all while allowing for high SPL recording! Go ahead and plug a MKII into any preamp with average gain - you'll get full Royer performance and enough level to drive any recording medium. There is no increase in self-noise in the R-122 MKII's higher sensitivity. All of the mic’s additional output comes from its large, specially wound toroidal transformer - that wonderful thing called "free gain." The phantom powered circuitry provides impedance conversion only, adding no noise of its own.

Impedance Matching
- The R-122 MKII's active electronics put a perfect load on the ribbon element at all times, allowing the microphone to deliver its full sonic potential regardless of the input characteristics of the following pre. Due to its low-impedance output, R-122 MKII's can be used on extremely long cable runs with minimal signal loss. In addition, the ribbon element can't be damaged by phantom power, miswired cables or electrical glitches.

Patented Offset Ribbon Technology
- The R-122 MKII's proprietary offset ribbon transducer (Patent # 6,434,252) positions the ribbon element closer to the front (logo) side of the microphone. This configuration gives the ribbon more room to move within the prime magnetic field while maintaining full frequency response during high SPL recordings. It's an integral piece of the magic of all Royer R-series microphones.

More Information
Product Name Royer R-122 MKII Active Ribbon Microphone, Nickel
Brand Royer
Condition New
MPN R122MKII
UPC 899060002532
Shipping Option Free Shipping to the Continental U.S.
  • Phantom powered circuitry provides high output and impedance matching
  • -15 dB pad before the mic’s electronics gives more headroom when activated.
  • Bass cut filter reduces proximity effect and bass below 100 Hz when activated
  • High SPL Capabilities
  • No distortion up to maximum SPL rating
  • Extremely low residual noise
  • Ribbon element is not affected by heat or humidity
  • Absence of high frequency phase distortion
  • Equal sensitivity from front or back of element
  • Consistent frequency response regardless of distance
  • Rear side of mic records slightly brighter when three feet or closer to sound source
Acoustic Operating Principle Electrodynamic pressure gradient with active electronics.
Polar Pattern Figure-8
Generating Element 2.5-micron aluminum ribbon
Magnets Rare Earth Neodymium
Frequency Response 30 - 15,000 Hz ±3 dB
Sensitivity -36 dB (re. 1v/pa ±1 dB)
Switchable Pad -15 dB
Switchable Bass Cut 100 Hz (6 dB per octave)
Self-Noise < 18 dB
Output Impedance 200 Ohms, balanced
Output Connector Male XLR 3-pin (Pin 2 Hot)
Rated Load Impedance 1K-Ohm minimum
Maximum SPL 135 dB @ 30 Hz
Power Requirements 48-Volt Phantom Only
Supply Current 4 mA
Dimensions 206mm L X 25mm W (8 1/8” L X 1” W)
Weight 309 grams (10.9 oz)
Finish Burnished Satin Nickel / Matte Black Chrome (optional)
Accessories Protective wood case, mic sock
Optional Accessories Wind screen, shock mount
Microphone Warranty Lifetime to original owner (repair or replace at Royer’s option)
Ribbon Element Warranty One Year

Royer R-122 MKII Active Ribbon Microphone, Nickel

Details

The R-122 MKII takes the R-122 to a whole new level, delivering unprecedented flexibility for ribbons via the addition of a switchable -15 dB pad and a switchable bass-cut filter. The switches are completely out of the circuit when disengaged so when both are off, the microphone is for all purposes an original R-122. The switches are located on the back of the microphone and recessed to prevent accidental activation.

The R-122 MKII’s switchable -15 dB pad is positioned before the microphone’s electronics and, when engaged, eliminates any potential for headroom-related distortion on even the loudest sound sources. Wide open electric guitars are no problem. With the pad in, the R-122 MKII’s output is actually 2 dB lower than Royer Labs flagship R-121. The R-122 MKII’s well-designed pad has no sonic imprint. Once levels are matched, the R-122 MKII reproduces sound exactly the same with the pad in as with the pad out.

The Bass Cut - When switched in, the R-122 MKII’s bass cut starts filtering at 100 Hz, 6 dB per octave, effectively reducing the mic’s bass buildup due to proximity effect. This smooth filter is extremely useful on vocals, many acoustic instruments, and close-miked electric guitars when less bottom end is desired. The R-122 MKII’s electronics are hand-wired in Royer Labs' Burbank, CA factory. The microphone utilizes a special Royer-designed toroidal transformer that delivers a faster transient response then traditional ribbons, making it a first call ribbon mic for drum overheads, percussion and all acoustic instruments.

Gain
- Conventional ribbon microphones need high-quality, high-gain microphone preamplifiers to record softer sound sources. The R-122 MKII’s output level is much higher, allowing you to use practically any mic preamplifier or board pre's to record even the quietest sounds. The R-122 MKII contains a fully balanced, hand-wired, discrete head amplifier system utilizing a specially wound toroidal transformer and ultra-low noise FET's. This system is extremely quiet and brings the R-122 MKII's sensitivity to 37 dB, all while allowing for high SPL recording! Go ahead and plug a MKII into any preamp with average gain - you'll get full Royer performance and enough level to drive any recording medium. There is no increase in self-noise in the R-122 MKII's higher sensitivity. All of the mic’s additional output comes from its large, specially wound toroidal transformer - that wonderful thing called "free gain." The phantom powered circuitry provides impedance conversion only, adding no noise of its own.

Impedance Matching
- The R-122 MKII's active electronics put a perfect load on the ribbon element at all times, allowing the microphone to deliver its full sonic potential regardless of the input characteristics of the following pre. Due to its low-impedance output, R-122 MKII's can be used on extremely long cable runs with minimal signal loss. In addition, the ribbon element can't be damaged by phantom power, miswired cables or electrical glitches.

Patented Offset Ribbon Technology
- The R-122 MKII's proprietary offset ribbon transducer (Patent # 6,434,252) positions the ribbon element closer to the front (logo) side of the microphone. This configuration gives the ribbon more room to move within the prime magnetic field while maintaining full frequency response during high SPL recordings. It's an integral piece of the magic of all Royer R-series microphones.

More Information
Product Name Royer R-122 MKII Active Ribbon Microphone, Nickel
Brand Royer
Condition New
MPN R122MKII
UPC 899060002532
Shipping Option Free Shipping to the Continental U.S.
Features
  • Phantom powered circuitry provides high output and impedance matching
  • -15 dB pad before the mic’s electronics gives more headroom when activated.
  • Bass cut filter reduces proximity effect and bass below 100 Hz when activated
  • High SPL Capabilities
  • No distortion up to maximum SPL rating
  • Extremely low residual noise
  • Ribbon element is not affected by heat or humidity
  • Absence of high frequency phase distortion
  • Equal sensitivity from front or back of element
  • Consistent frequency response regardless of distance
  • Rear side of mic records slightly brighter when three feet or closer to sound source
Tech Specs
Acoustic Operating Principle Electrodynamic pressure gradient with active electronics.
Polar Pattern Figure-8
Generating Element 2.5-micron aluminum ribbon
Magnets Rare Earth Neodymium
Frequency Response 30 - 15,000 Hz ±3 dB
Sensitivity -36 dB (re. 1v/pa ±1 dB)
Switchable Pad -15 dB
Switchable Bass Cut 100 Hz (6 dB per octave)
Self-Noise < 18 dB
Output Impedance 200 Ohms, balanced
Output Connector Male XLR 3-pin (Pin 2 Hot)
Rated Load Impedance 1K-Ohm minimum
Maximum SPL 135 dB @ 30 Hz
Power Requirements 48-Volt Phantom Only
Supply Current 4 mA
Dimensions 206mm L X 25mm W (8 1/8” L X 1” W)
Weight 309 grams (10.9 oz)
Finish Burnished Satin Nickel / Matte Black Chrome (optional)
Accessories Protective wood case, mic sock
Optional Accessories Wind screen, shock mount
Microphone Warranty Lifetime to original owner (repair or replace at Royer’s option)
Ribbon Element Warranty One Year
