The d:fine™ 88 Directional Headset Microphone combines the legendary sound of the 4088 Directional Capsule with the lightweight and flexible d:fine™ Headset system. Staying true to the DPA legacy, d:fine™ offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.
Like all of the microphones in the range, the d:fine™ 88 Directional Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The microphone capsule is also optimized for low distortion as well as humidity resistance.

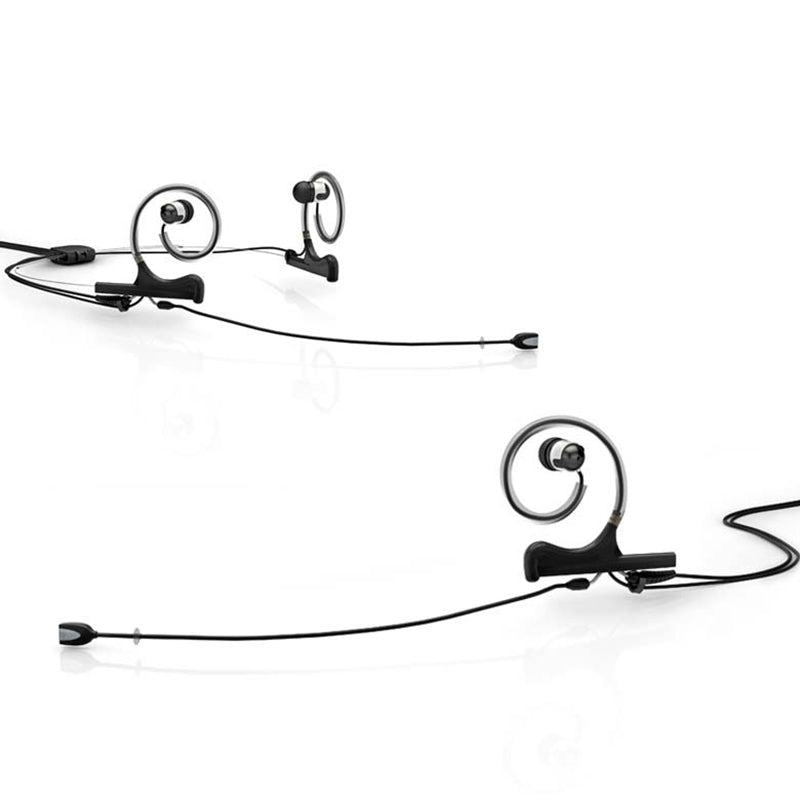

The d:fine™ 88 Directional Headset Microphone is available with single- or dual-ear mounts. Single-ear mount variants are the quickest to put on and often the best choice when miking needs to be fast and easy. Dual-ear mount variants sit more securely around the head and are ideal for active performance situations.
Available in black, beige and brown, the d:fine™ 88 Directional Headset Microphone has been ergonomically designed to fit comfortably and easily around the head. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or right ear.
Boom lengths
Two directional boom lengths are available to accommodate different applications and head sizes: 120 mm (4.7 in), 100 mm (3.9 in).
Cables
Designed for professional use, the connector splits the cable from the microphone boom. This allows you to quickly swap broken cables and/or wireless connectors.
Legacy or CORE – the choice is yours
The legacy d:fine™ 88 Directional has always been, and still is, one of the most clear, consistent and robust miniature microphones you can find on the market. It is known for working across a wide dynamic range as well as exhibiting low distortion across all SPLs. But, if you need to squeeze a little more performance out of your mics, choose CORE. The d:fine™ CORE 4288 Directional Flex Headset Microphone gets a14 dB increasein both THD and Dynamic range:
Total harmonic distortion: < 1% THD up to137 dB SPL peak
Dynamic range: Typ.111 dB
CORE availability
The d:fine™ CORE 4288 Directional Flex Headset Microphone is available in beige with 120 mm boom and either MicroDot, 3-pin LEMO, TA4F Mini-XLR or Mini-Jack termination.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
| Product Name | DPA d:fine™ 88 Capsule, Headset Mic., Dual Ear, Dual In Ear 120mm Boom Interchangeable (Beige) |
|---|---|
| Brand | DPA |
| Condition | New |
| MPN | FID88F56-2-IE2-B |
| Shipping Option | Free Shipping to the Continental U.S. |
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to both the left and right
- Minimal visual impact
- Resistant to humidity
- Modular adapter system fits most professional wireless systems
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
- Total harmonic distortion (THD) - Legacy: < 1% up to 123 dB SPL peak
- Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
- Dynamic range - Legacy: Typ. 97 dB
- Dynamic range - CORE: Typ. 111 dB
- Max. SPL, peak before clipping: 144 dB
- Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
- Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black, beige or brown
- Weight: Single Ear: 10 g (0.35 oz)
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.25 m (4.1 ft)
- Cable color: Black, beige or brown
- Cable diameter: 1.6 mm (0.06 in)
- Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
DPA d:fine™ 88 Capsule, Headset Mic., Dual Ear, Dual In Ear 120mm Boom Interchangeable (Beige)
The d:fine™ 88 Directional Headset Microphone combines the legendary sound of the 4088 Directional Capsule with the lightweight and flexible d:fine™ Headset system. Staying true to the DPA legacy, d:fine™ offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.
Like all of the microphones in the range, the d:fine™ 88 Directional Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The microphone capsule is also optimized for low distortion as well as humidity resistance.
The d:fine™ 88 Directional Headset Microphone is available with single- or dual-ear mounts. Single-ear mount variants are the quickest to put on and often the best choice when miking needs to be fast and easy. Dual-ear mount variants sit more securely around the head and are ideal for active performance situations.
Available in black, beige and brown, the d:fine™ 88 Directional Headset Microphone has been ergonomically designed to fit comfortably and easily around the head. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or right ear.
Boom lengths
Two directional boom lengths are available to accommodate different applications and head sizes: 120 mm (4.7 in), 100 mm (3.9 in).
Cables
Designed for professional use, the connector splits the cable from the microphone boom. This allows you to quickly swap broken cables and/or wireless connectors.
Legacy or CORE – the choice is yours
The legacy d:fine™ 88 Directional has always been, and still is, one of the most clear, consistent and robust miniature microphones you can find on the market. It is known for working across a wide dynamic range as well as exhibiting low distortion across all SPLs. But, if you need to squeeze a little more performance out of your mics, choose CORE. The d:fine™ CORE 4288 Directional Flex Headset Microphone gets a14 dB increasein both THD and Dynamic range:
Total harmonic distortion: < 1% THD up to137 dB SPL peak
Dynamic range: Typ.111 dB
CORE availability
The d:fine™ CORE 4288 Directional Flex Headset Microphone is available in beige with 120 mm boom and either MicroDot, 3-pin LEMO, TA4F Mini-XLR or Mini-Jack termination.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
| Product Name | DPA d:fine™ 88 Capsule, Headset Mic., Dual Ear, Dual In Ear 120mm Boom Interchangeable (Beige) |
|---|---|
| Brand | DPA |
| Condition | New |
| MPN | FID88F56-2-IE2-B |
| Shipping Option | Free Shipping to the Continental U.S. |
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to both the left and right
- Minimal visual impact
- Resistant to humidity
- Modular adapter system fits most professional wireless systems
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
- Total harmonic distortion (THD) - Legacy: < 1% up to 123 dB SPL peak
- Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
- Dynamic range - Legacy: Typ. 97 dB
- Dynamic range - CORE: Typ. 111 dB
- Max. SPL, peak before clipping: 144 dB
- Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
- Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black, beige or brown
- Weight: Single Ear: 10 g (0.35 oz)
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.25 m (4.1 ft)
- Cable color: Black, beige or brown
- Cable diameter: 1.6 mm (0.06 in)
- Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
