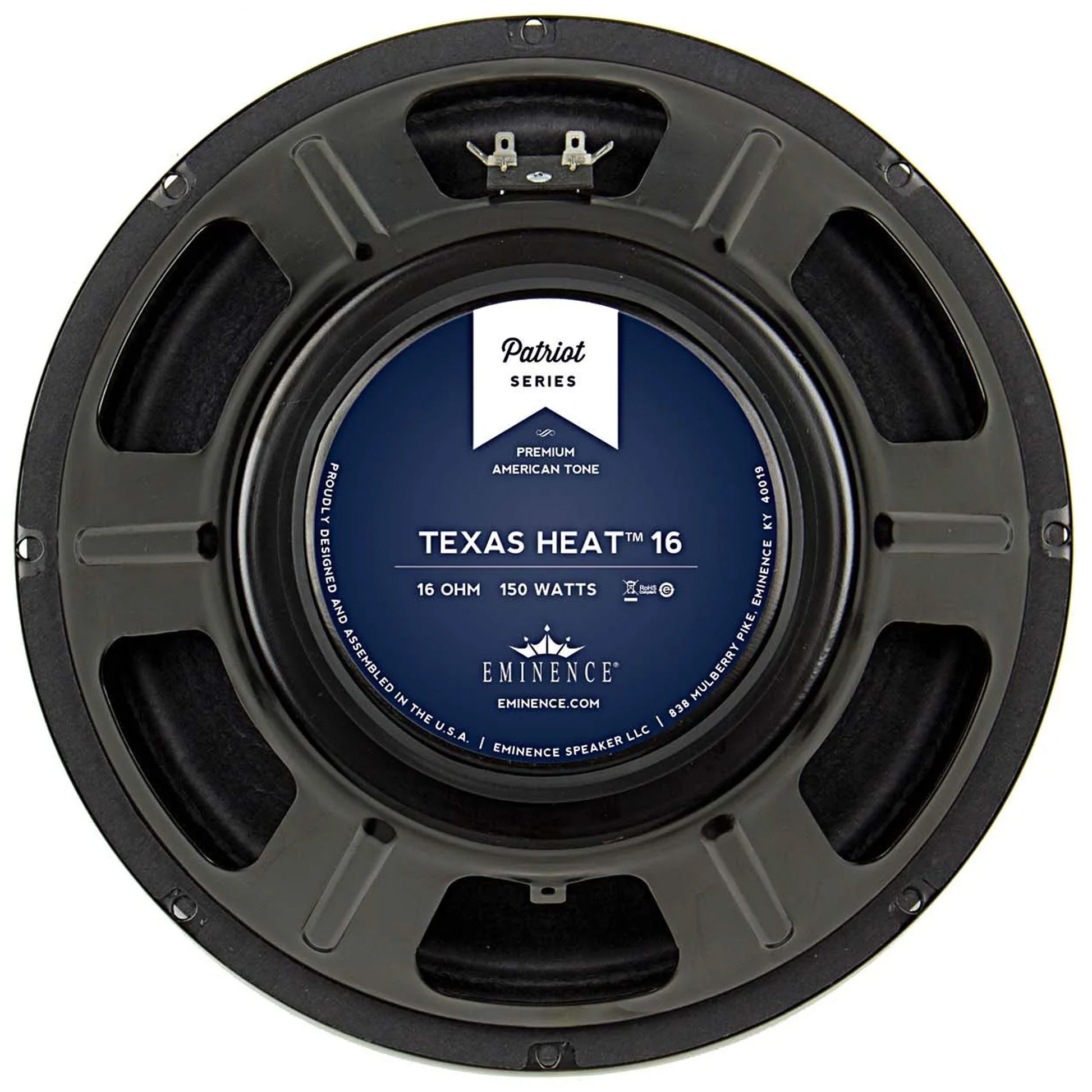

Eminence Texas Heat 12" 150W 16-Ohm Speaker

Eminence Texas Heat 12" 150W 16-Ohm Speaker

On order with the manufacturer!

Eminence Texas heat 12 Inch 150W 16OHM Speaker. Nominal Basket Diameter 12", 304.8mm.
View full details
  • Details
  • Reviews

Eminence Texas heat 12 Inch 150W 16OHM Speaker



SPECIFICATION
Nominal Basket Diameter 12", 304.8mm
Nominal Impedance* 16 ohms
Power Rating**
Watts 150W
Music Program N/A
Resonance 91Hz
Usable Frequency Range 70Hz - 5kHz
Sensitivity*** 100dB
Magnet Weight 38 oz.
Gap Height 0.31", 7.92mm
Voice Coil Diameter 2", 50.8mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 91Hz
DC Resistance (Re) 14.7
Coil Inductance (Le) 0.9mH
Mechanical Q (Qms) 12.48
Electromagnetic Q (Qes) 0.87
Total Q (Qts) 0.81
Compliance Equivalent Volume (Vas) 44.5 liters / 1.6 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 42cc
Mechanical Compliance of Suspension (Cms) 0.12mm/N
BL Product (BL) 16 T-M
Diaphragm Mass Inc. Airload (MMs) 27 grams
Efficiency Bandwidth Product (EBP) 104
Maximum Linear Excursion (Xmax) 0.8mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A

MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 122 cu.in. / 2 liters
Overall Diameter 12.02", 305.3mm
Baffle Hole Diameter 10.97", 278.6mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.63", 295.4mm
Depth 5.1", 130mm
Net Weight 8.3 lbs, 3.8 kg
Shipping Weight 10 lbs, 4.5 kgs

MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
More Information
Product Name Eminence Texas Heat 12" 150W 16-Ohm Speaker
Brand Eminence
Condition New
MPN TEXASHEAT16
UPC 876358001101
Shipping Option Free Shipping to the Continental U.S.
