Flock Audio CX 8 Channel Mic and Instrument Line Level Adjuster Module

Flock Audio CX 8 Channel Mic and Instrument Line Level Adjuster Module

Limited quantities available!

View full details
  • Details
  • Features
  • Reviews

CX is an 8 Channel Standalone Module Compatible with all PATCH Series Models allowing any type of Analog Audio Signal to be routed through the PATCH Series (+4 Line Level Design) for the most clean and transparent analog audio routing experience. Assignable, Customizable & Controlled through the PATCH APP and PATCH APP DX Software with a simple setup Menu.

HARDWARE DESIGN

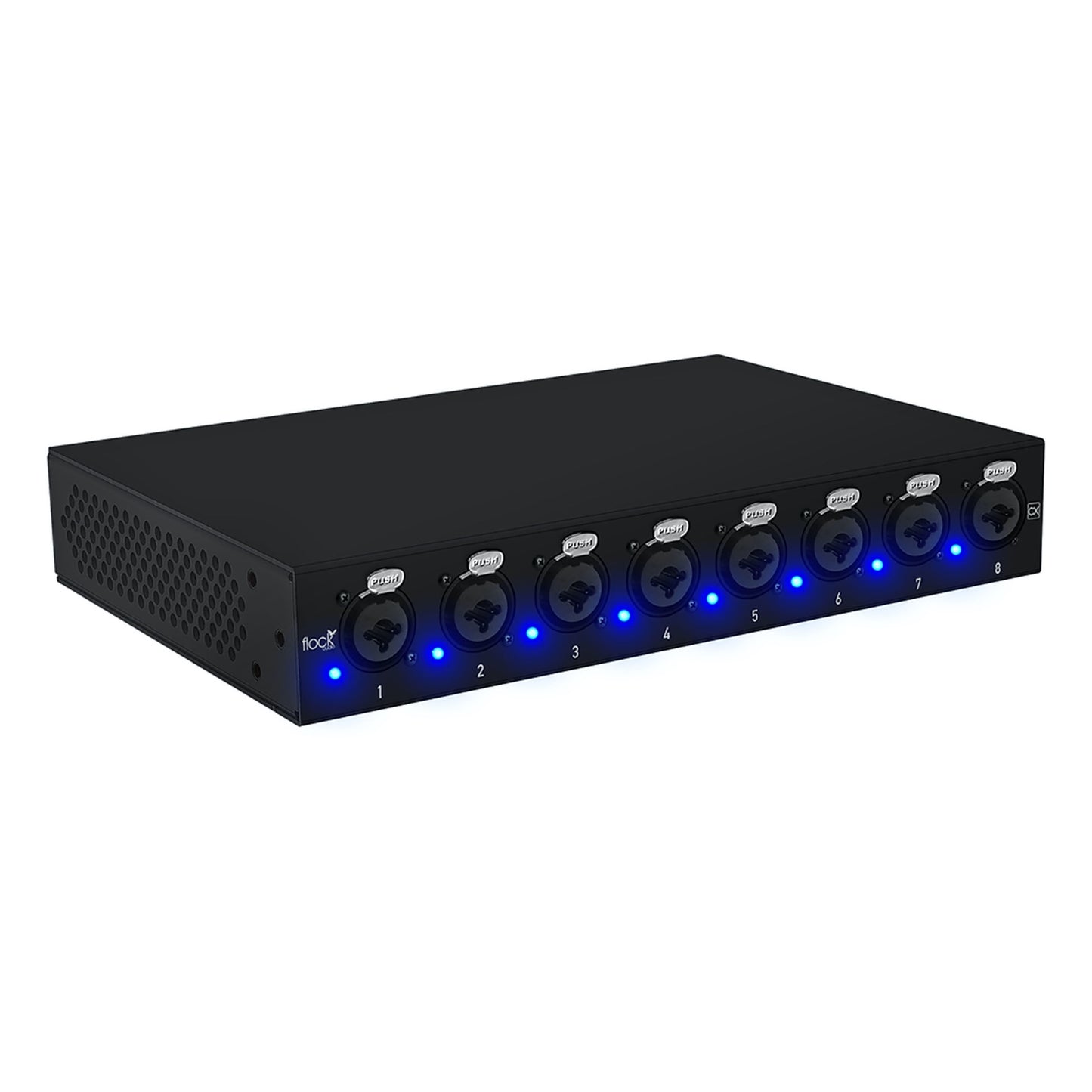

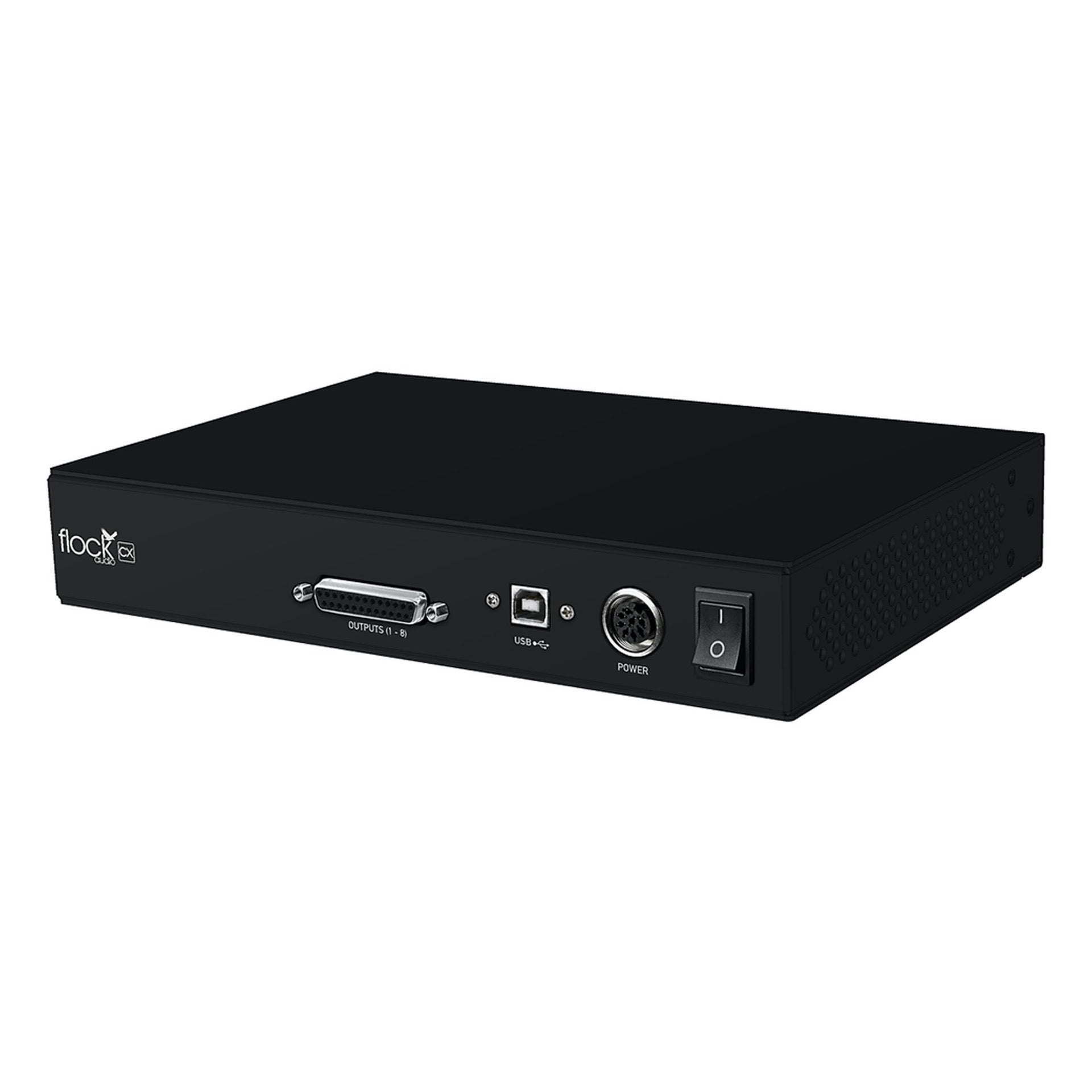

A simple & straightforward modular design hosting 8 Total - XLR/Combo Latching Inputs with 8 accompanied & individually assignable 48V LED Indicators, CX’s front panel is perfect balance of function & form. The Rear panel includes a single 8 Channel DB25/DSUB Connector for Line Level Out to your PATCH Series Models Inputs. Next to the DB25/DSUB connector is the USB-B Connection for Host Control and Threaded Locking Power Connector + Power Switch. CX can easily be placed on a desk, rack top or the floor for easy accessibility. For those preferring rack mounting, Optional Rack Ears are Included with each CX Module.

More Information
Product Name Flock Audio CX 8 Channel Mic and Instrument Line Level Adjuster Module
Shipping Option Free Shipping to the Continental U.S.
  • 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs
  • 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connectors
  • 8 Assignable Independent Channels of 48V Phantom Power
  • PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS) Connect any type of analog audio signal to the PATCH Series via the CX Hardware No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path Stand Alone Desk Module or Rack Ear Mountable Package Design (Ears Included) External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
  • 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
  • Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 5 lbs

Flock Audio CX 8 Channel Mic and Instrument Line Level Adjuster Module

Details

CX is an 8 Channel Standalone Module Compatible with all PATCH Series Models allowing any type of Analog Audio Signal to be routed through the PATCH Series (+4 Line Level Design) for the most clean and transparent analog audio routing experience. Assignable, Customizable & Controlled through the PATCH APP and PATCH APP DX Software with a simple setup Menu.

HARDWARE DESIGN

A simple & straightforward modular design hosting 8 Total - XLR/Combo Latching Inputs with 8 accompanied & individually assignable 48V LED Indicators, CX’s front panel is perfect balance of function & form. The Rear panel includes a single 8 Channel DB25/DSUB Connector for Line Level Out to your PATCH Series Models Inputs. Next to the DB25/DSUB connector is the USB-B Connection for Host Control and Threaded Locking Power Connector + Power Switch. CX can easily be placed on a desk, rack top or the floor for easy accessibility. For those preferring rack mounting, Optional Rack Ears are Included with each CX Module.

More Information
Product Name Flock Audio CX 8 Channel Mic and Instrument Line Level Adjuster Module
Shipping Option Free Shipping to the Continental U.S.
Features
  • 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs
  • 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connectors
  • 8 Assignable Independent Channels of 48V Phantom Power
  • PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS) Connect any type of analog audio signal to the PATCH Series via the CX Hardware No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path Stand Alone Desk Module or Rack Ear Mountable Package Design (Ears Included) External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
  • 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
  • Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 5 lbs
