Alto Music- Why you need the Neo Instruments Ventilator 2 Pedal
• Same Great features of the original Ventilator Plus More
• Smaller, More Compact Enclosure
• Stereo input and Internal Stop Switch
• Separate Slow and Fast Speed Control

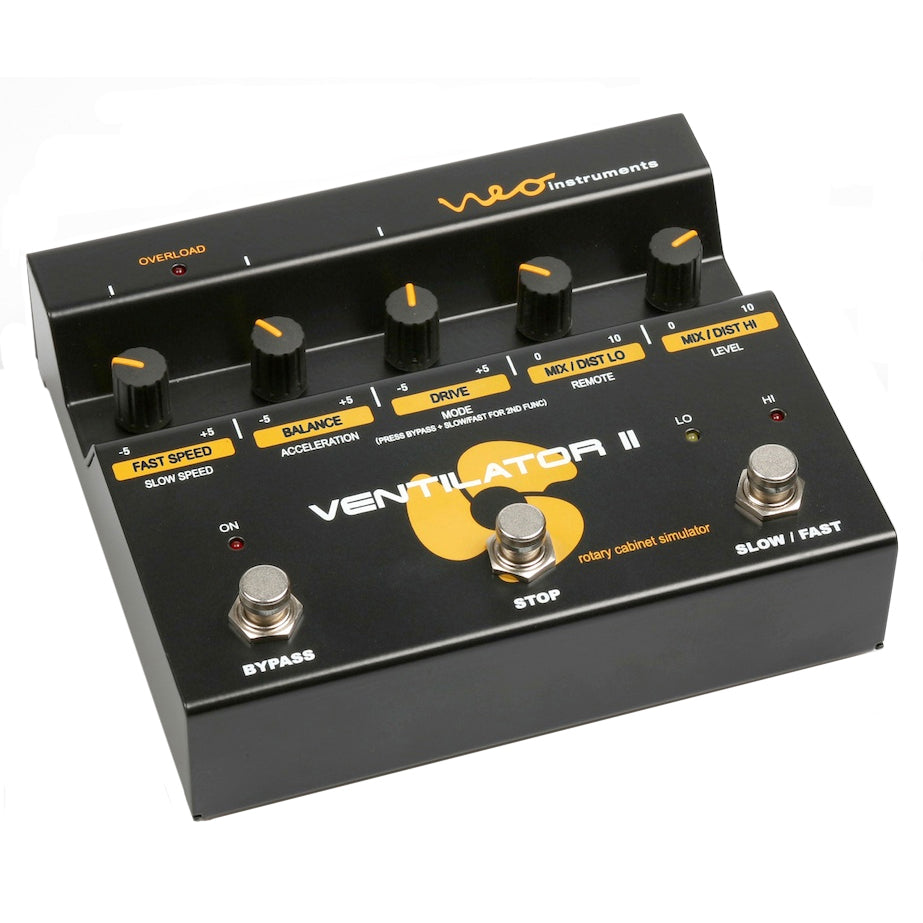

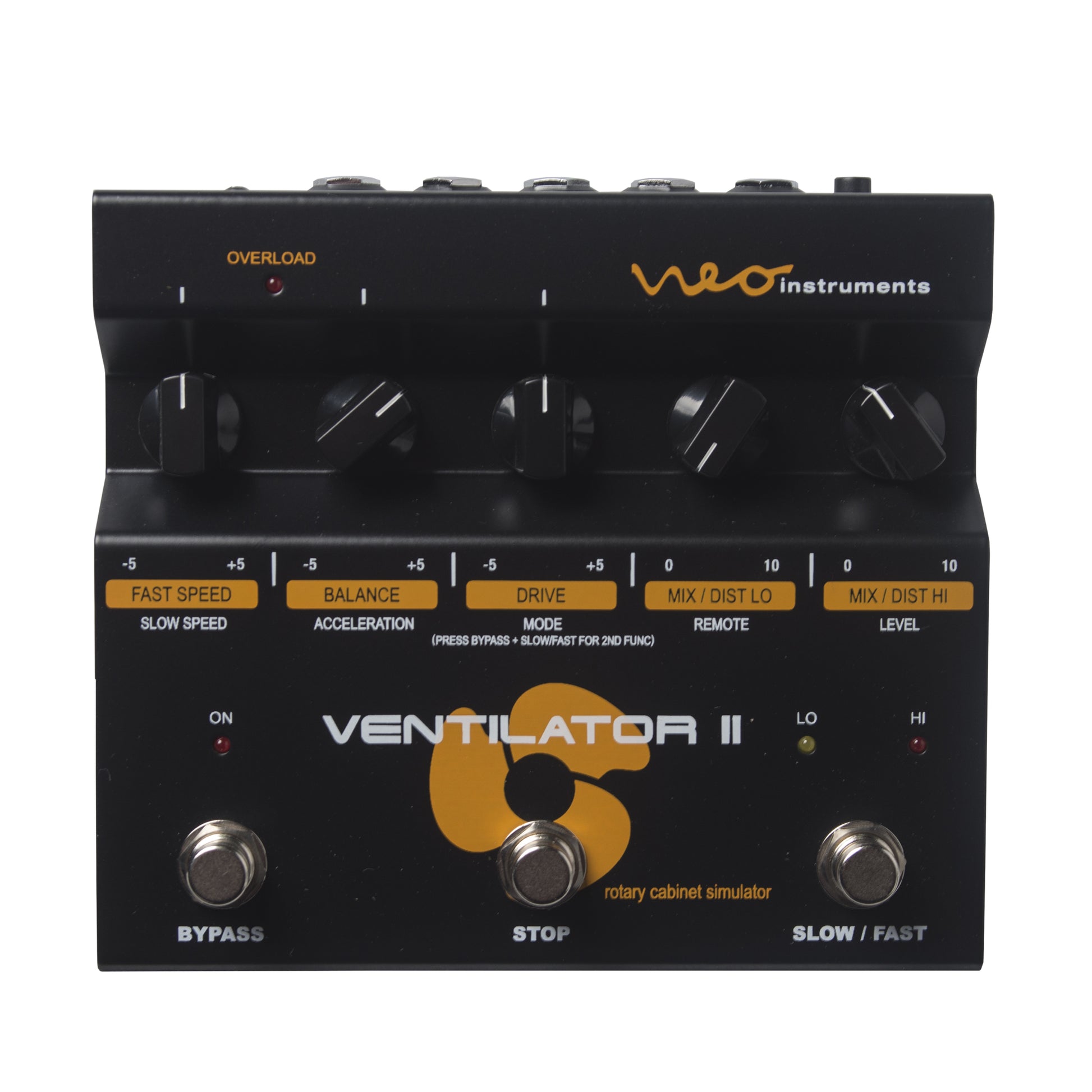

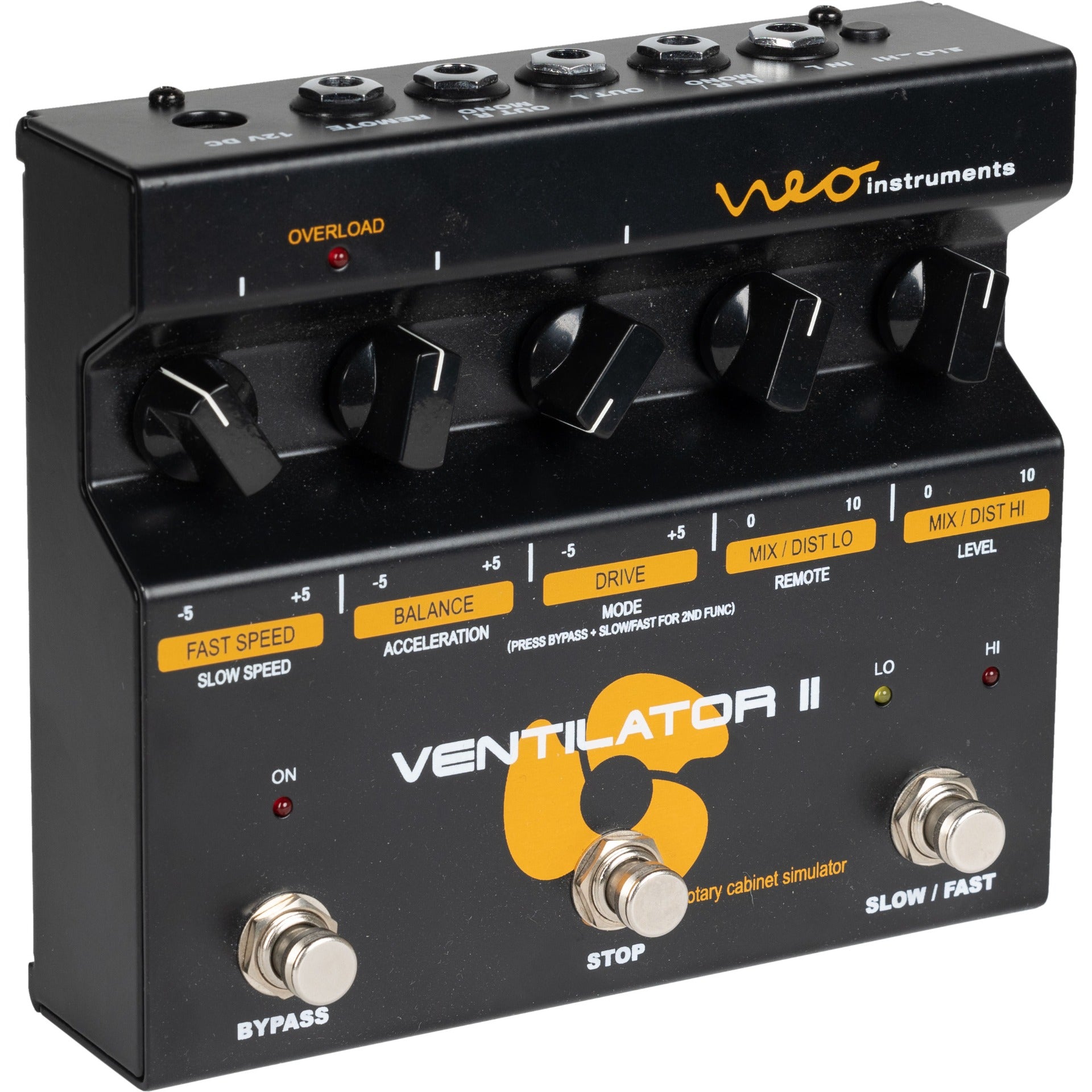

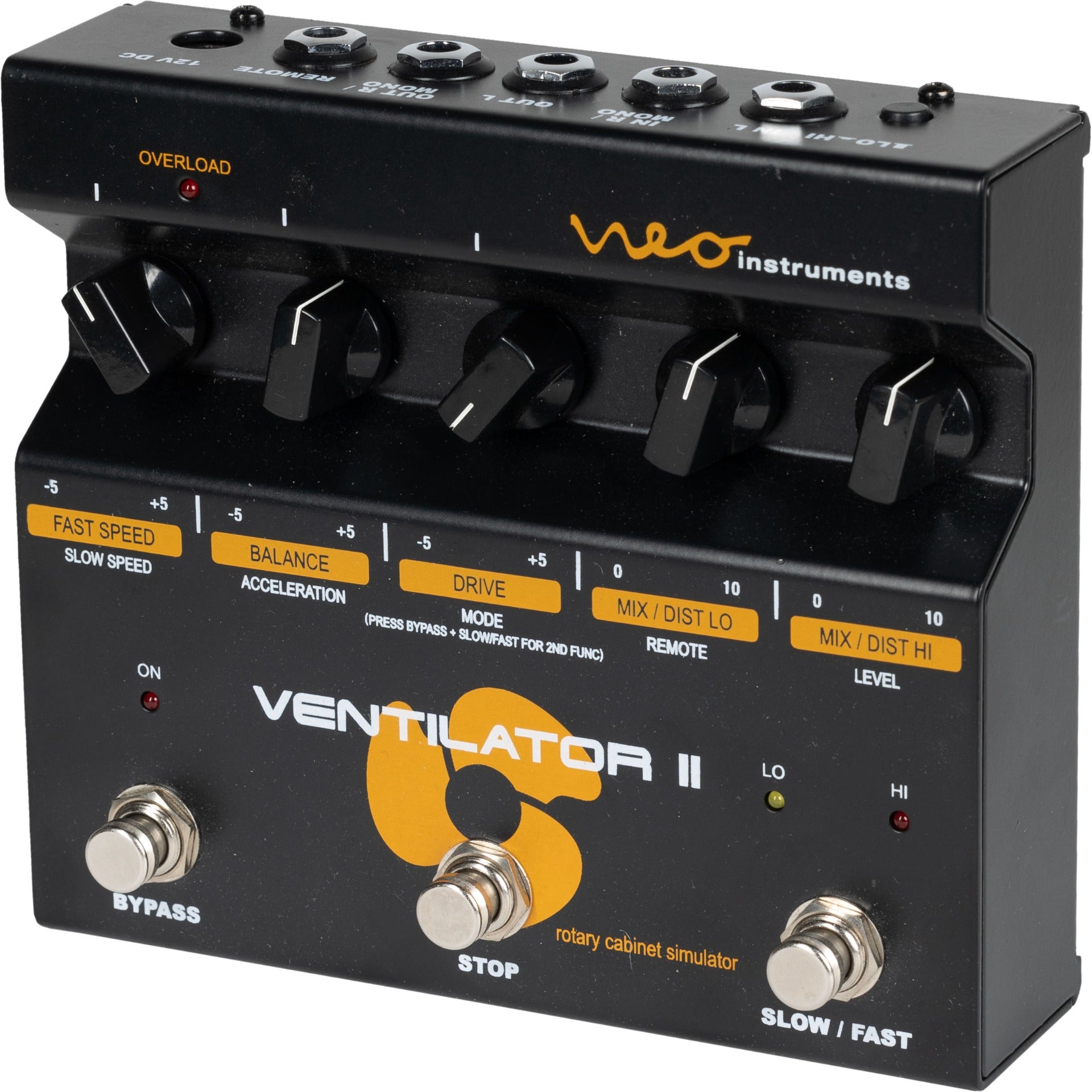

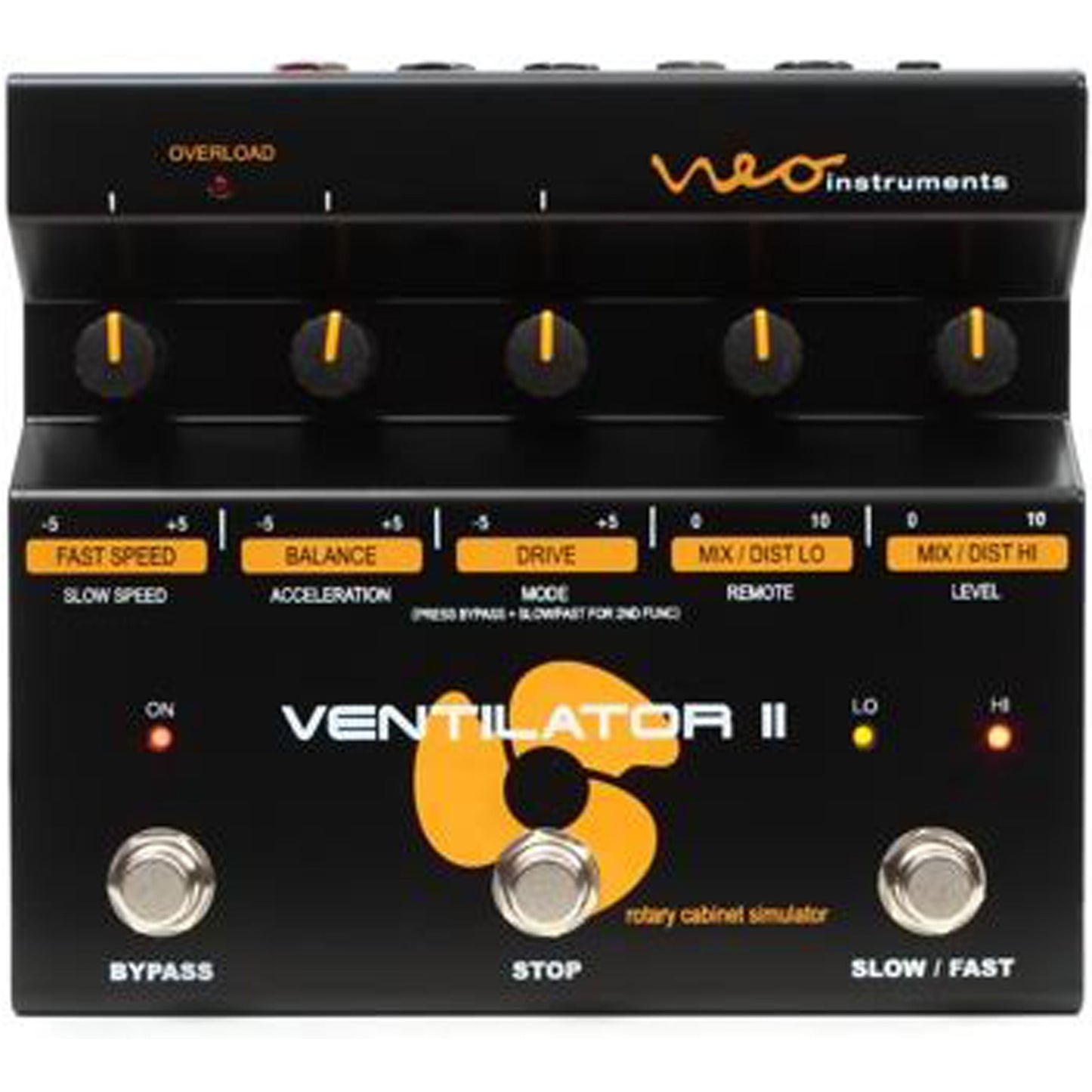

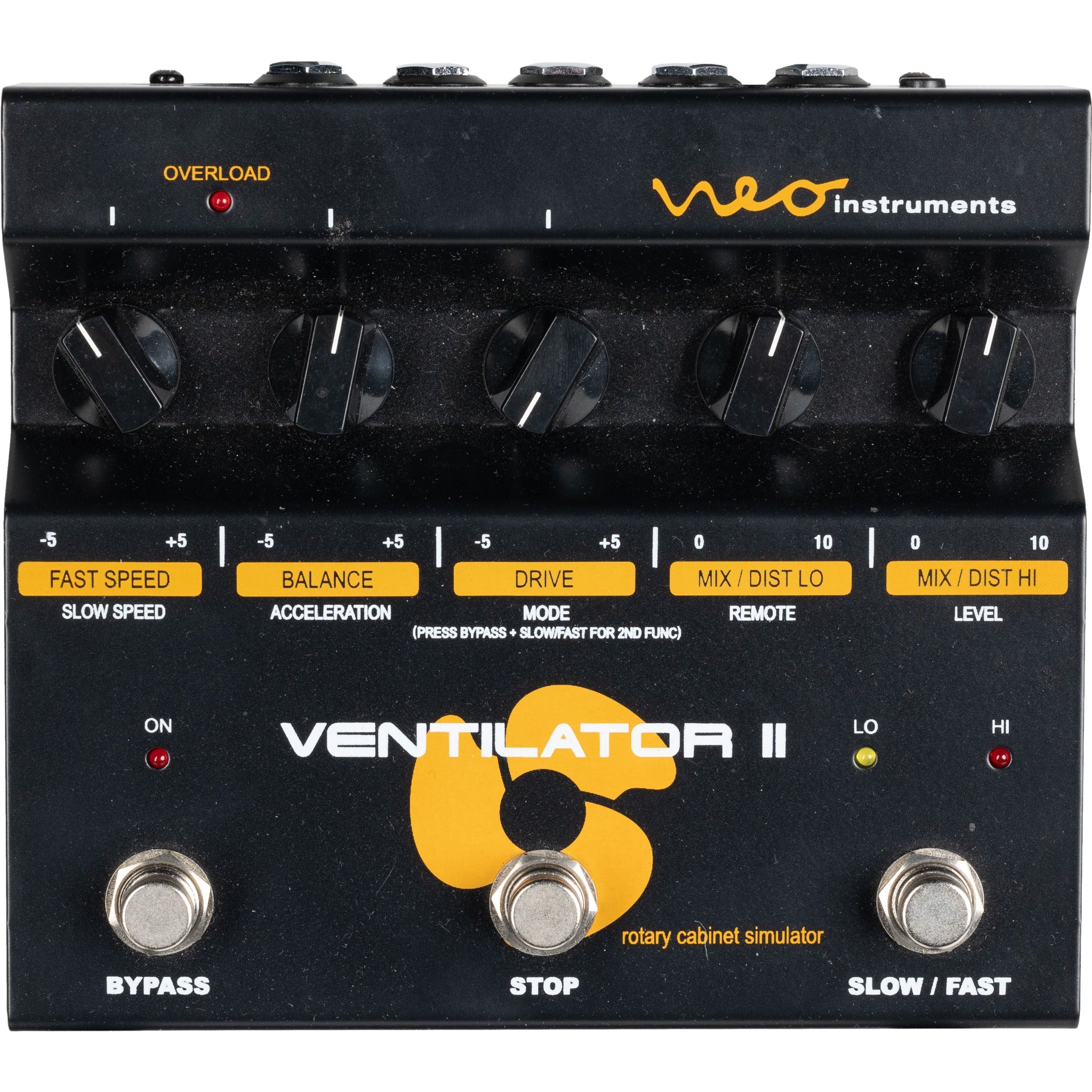

The Neo Instruments Ventilator 2 Pedal is a faithful replication of the model 122 Leslie’s® rotary effect in a small, easy to use pedal. This newly designed pedal has a smaller enclosure, stereo input, and an internal stop switch. You have separate slow and fast speed controls, separate mix/distance controls for Lo and Hi rotor, and a level control as well. You can even control the speed or mix Control via an Expression Pedal. People say "If it ain't broke, don't fix it" but Neo Instruments did and in the end, it was worth it!
| Product Name | Neo Instruments Ventilator 2 Pedal |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
- Complex modeling algorithms, precise replication of Leslie 122 rotary effects
- Simple, analog operation
- Independent simulation of bass and treble rotors with adjustable rotation speed and acceleration
- Exact reproduction of mechanical properties
- Authentic Leslie 122 speaker frequency response (can be switched off for playback via guitar amp)
- Wide & detailed parameter controls (Speed, Balance, Drive, Distance, Mode)
- 800Hz Crossover just like the original
- Drive section simulates distortion / final stage saturation of the Leslie tube amp
- Variable microphone distance
- Silent foot switches for True Bypass Relay, Slow/Fast &Stop
- Connection for Remote Foot Switch / Halfmoon Switch / Expression Pedal
- Sturdy steel housing, recessed knobs
| Signal processing | 32 Bit SHARC DSP |
| Analog Digital Conversion | 48kHz, 24 Bit |
| Digital Analog Conversion | 48kHz, 24 Bit |
| Noise Level | -80 dBA |
| Input Sensitivity | -10 dBV (Hi), 0 dBV (Lo) |
| Input Impedance | 1 MOhm |
| Output Level | +6 dBV |
| Output Impedance | 100 Ohms |
| Recommended Load Impedance | 10 KOhms or more |
| Weight | 1.1kg / 2 lbs 7 oz (without Power Supply) |
| Dimensions (W x D x H) | 160 x 143 x 55mm |
| Mains Voltage | 100-240V, 47Hz-63Hz |
| Current Draw | < 300mA |
| Connectors | Input L, Input R / Mono, Output L, Output R / Mono, Remote Input |
| Options | Ventilator Remote (II), Halfmoon Switch CU-1, Expression pedal FC7 |
Neo Instruments Ventilator 2 Pedal
Details
Alto Music- Why you need the Neo Instruments Ventilator 2 Pedal
• Same Great features of the original Ventilator Plus More
• Smaller, More Compact Enclosure
• Stereo input and Internal Stop Switch
• Separate Slow and Fast Speed Control
The Neo Instruments Ventilator 2 Pedal is a faithful replication of the model 122 Leslie’s® rotary effect in a small, easy to use pedal. This newly designed pedal has a smaller enclosure, stereo input, and an internal stop switch. You have separate slow and fast speed controls, separate mix/distance controls for Lo and Hi rotor, and a level control as well. You can even control the speed or mix Control via an Expression Pedal. People say "If it ain't broke, don't fix it" but Neo Instruments did and in the end, it was worth it!
| Product Name | Neo Instruments Ventilator 2 Pedal |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Complex modeling algorithms, precise replication of Leslie 122 rotary effects
- Simple, analog operation
- Independent simulation of bass and treble rotors with adjustable rotation speed and acceleration
- Exact reproduction of mechanical properties
- Authentic Leslie 122 speaker frequency response (can be switched off for playback via guitar amp)
- Wide & detailed parameter controls (Speed, Balance, Drive, Distance, Mode)
- 800Hz Crossover just like the original
- Drive section simulates distortion / final stage saturation of the Leslie tube amp
- Variable microphone distance
- Silent foot switches for True Bypass Relay, Slow/Fast &Stop
- Connection for Remote Foot Switch / Halfmoon Switch / Expression Pedal
- Sturdy steel housing, recessed knobs
Tech Specs
| Signal processing | 32 Bit SHARC DSP |
| Analog Digital Conversion | 48kHz, 24 Bit |
| Digital Analog Conversion | 48kHz, 24 Bit |
| Noise Level | -80 dBA |
| Input Sensitivity | -10 dBV (Hi), 0 dBV (Lo) |
| Input Impedance | 1 MOhm |
| Output Level | +6 dBV |
| Output Impedance | 100 Ohms |
| Recommended Load Impedance | 10 KOhms or more |
| Weight | 1.1kg / 2 lbs 7 oz (without Power Supply) |
| Dimensions (W x D x H) | 160 x 143 x 55mm |
| Mains Voltage | 100-240V, 47Hz-63Hz |
| Current Draw | < 300mA |

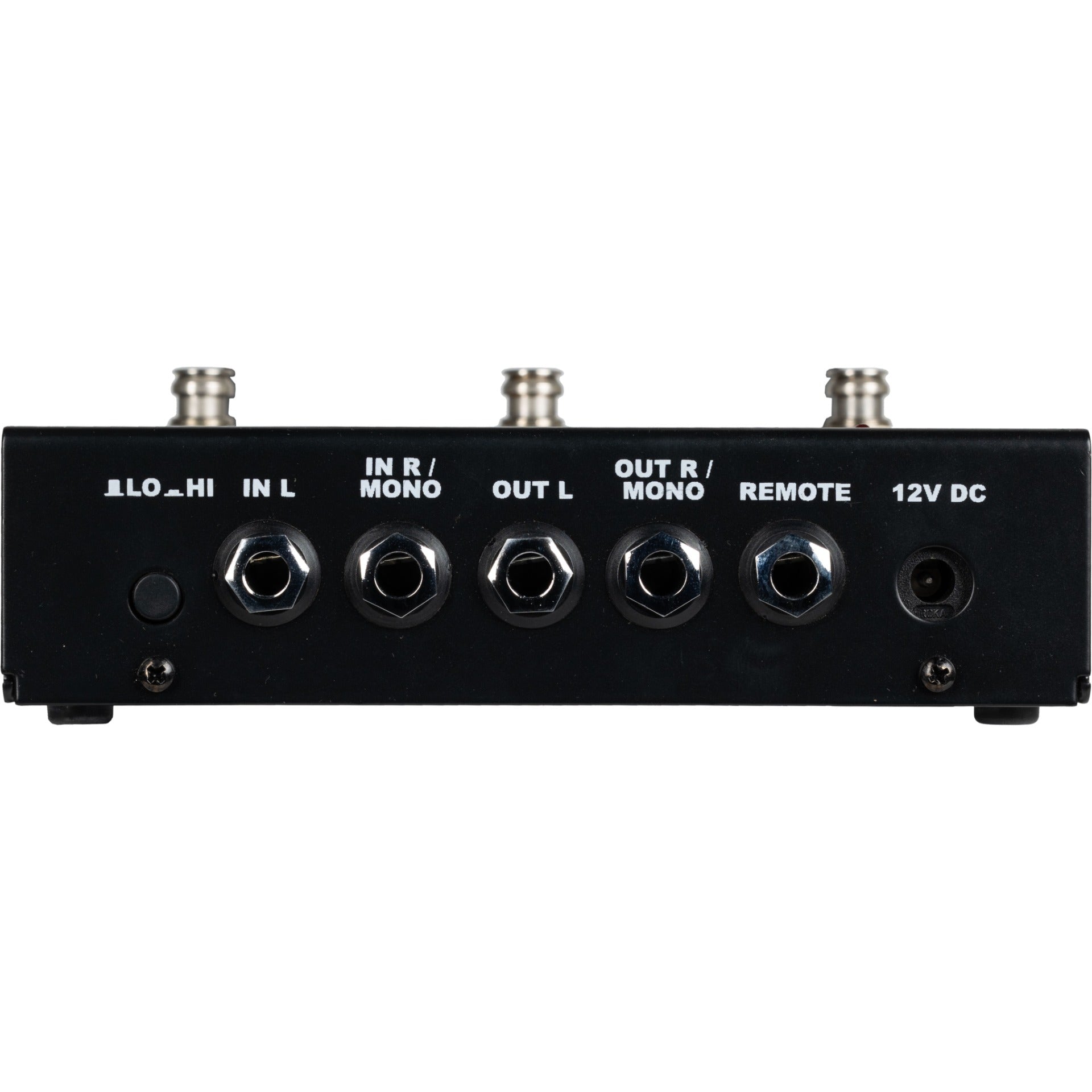

| Connectors | Input L, Input R / Mono, Output L, Output R / Mono, Remote Input |
| Options | Ventilator Remote (II), Halfmoon Switch CU-1, Expression pedal FC7 |
