UAFX Delay & Reverb Pedals
Universal Audio
UAFX Delay & Reverb Pedals

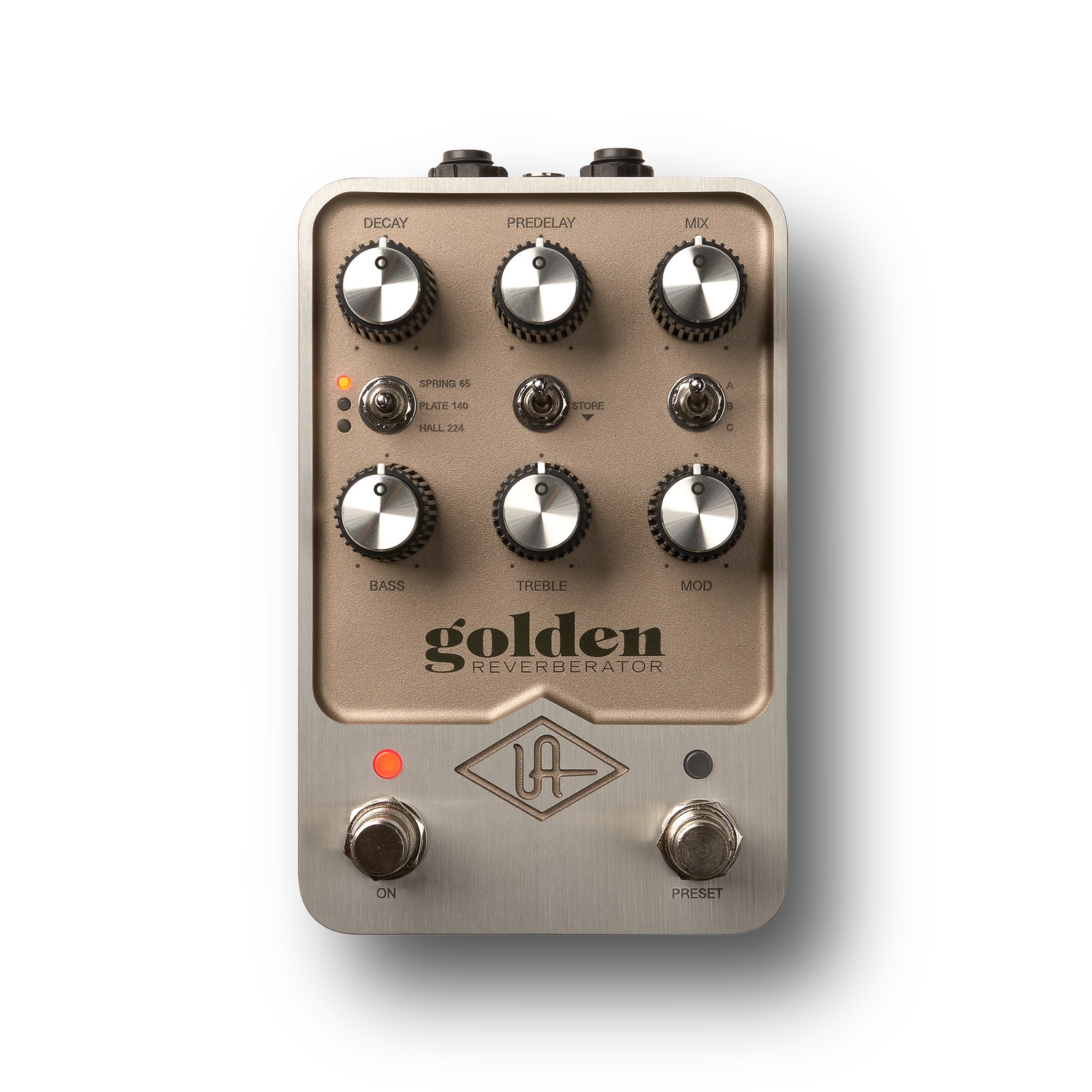

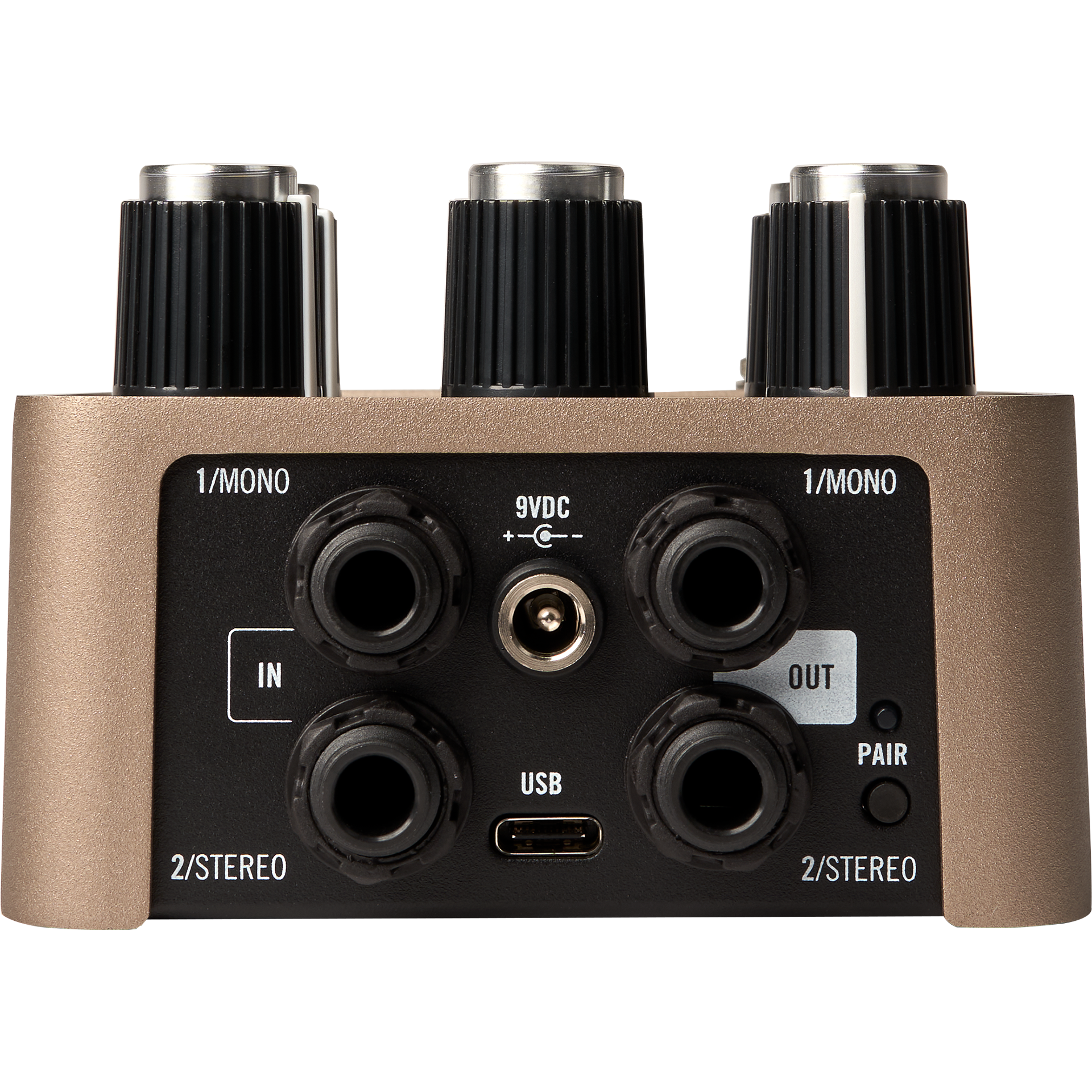

Golden
Reverberator Pedal
Engineered and developed by the acclaimed team at Universal Audio, the UAFX Golden Reverberator pedal boasts powerful dual-processor architecture for the most sonically authentic Spring, Plate, and Vintage Digital reverbs ever available in a stompbox.
From the dense sound of 1950’s studio plates, to tube-driven spring reverb of classic 1960's guitar amps and endless algorithmic wonder of vintage digital reverbs, Golden Reverberator gives you three perfectly-emulated classic reverbs in a beautiful effects pedal that’s built to last decades.
Features
- Flagship reverb emulation pedal with powerful dual-processor UAFX engine
- Three classic reverb sounds, with available modulation on each effect
- Simple Live/Preset modes for instant recall of your favorite sound
- Additional downloadable effects by the world-renowned UAD algorithm team
- True or buffered bypass,* spillover/tails, silent switching
- Analog dry through, stereo/dual mono operation
- Classic UA analog design and craftsmanship, built to last decades
Specifications
- Pedal Type: Reverb
- Analog/Digital: Digital
- Presets: Recall Stored Settings
- Effects: Spring 65, Plate 140, Hall 224
- Inputs: 2 x 1/4" TS (L/mono, R)
- Outputs: 2 x 1/4" TS (L/mono, R)
- USB: USB-C (updates)
- True Bypass: Yes, Switchable to Buffered (via software)
- Features: Dual-processor UAFX Engine
- Software: UAFX Control app (Android/iOS 11 or later)
- Power Source: 9V DC 400mA power supply (sold separately)
- Height: 2.56"
- Width: 3.62"
- Depth: 5.55"
- Weight: 1.24 lbs.
Emulations
Spring 65: Three "golden unit" spring reverb tanks, pulled from classic 1960's American guitar amps.
Plate 140: Three vintage German plate reverbs, captured at the iconic Record Plant studio.
Hall 224: A trio of perfectly modeled late-1970's digital reverb algorithms.
Bonus Effects: Free Vintage digital Plate and Chamber 224 reverbs, downloadable at registration.

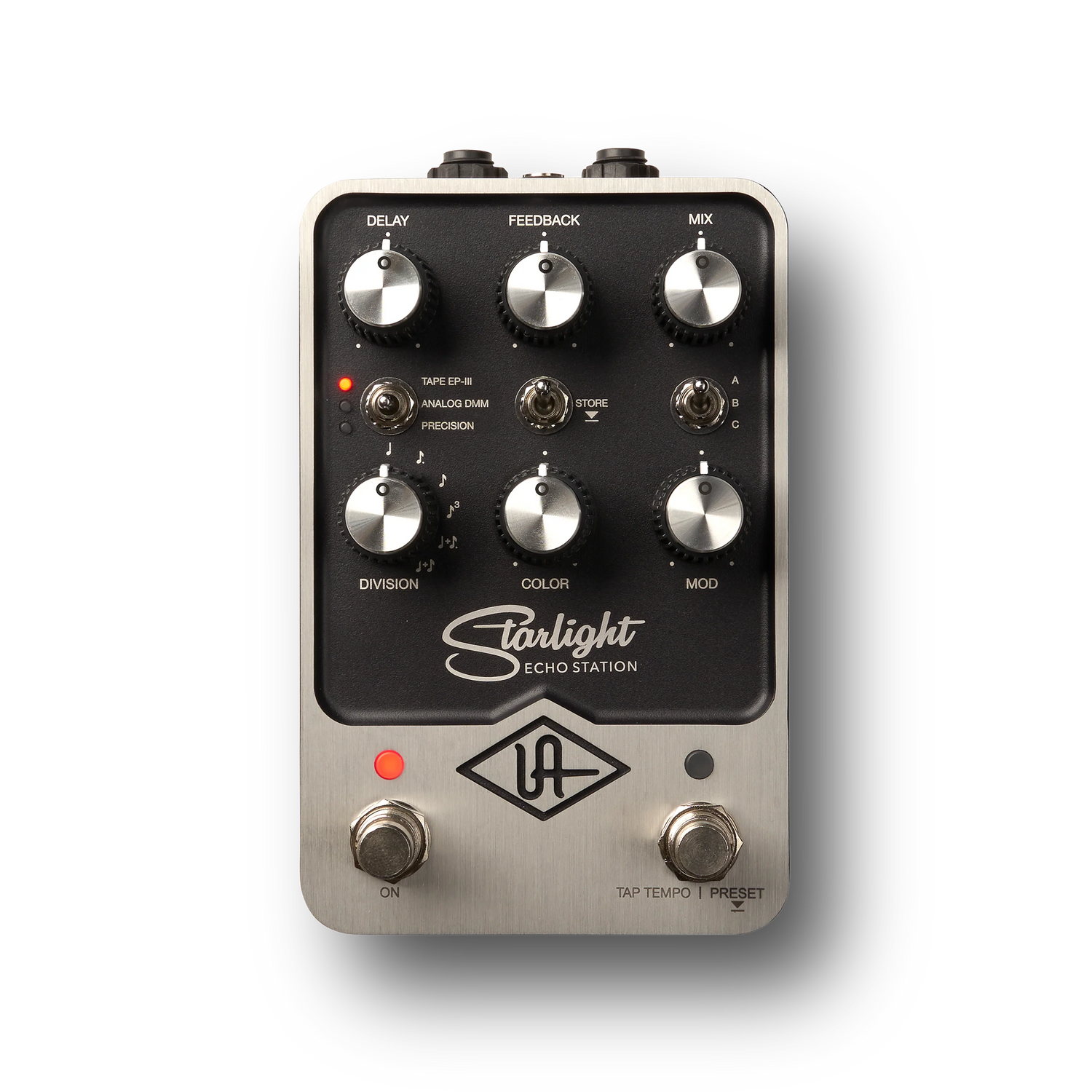

Starlight
Echo Station Delay Pedal
Engineered and developed by the acclaimed team at Universal Audio, the UAFX Starlight Echo Station boasts powerful dual-processor architecture for the most sonically authentic Tape, Analog, and Digital delays ever produced by a stompbox.
From timeless tape echo and bucket brigade analog delays, to endless, pristine digital repeats from the 1980’s, Starlight Echo Station packs three iconic delay sounds into a beautifully-crafted effects pedal that’s built to last decades.
Features
- Flagship delay pedal with powerful dual-processor UAFX engine
- Three legendary delay effects, with available tap tempo, subdivisions, and more
- Optional preamp coloration (Tape EP-III, Analog DMM)
- Simple Live+Tap/Preset modes for instant recall of your favorite sound
- Additional downloadable effects by the world-renowned UAD algorithm team
- True or buffered bypass,* spillover/tails, silent switching
- Analog dry through, stereo/dual mono operation
- Classic UA analog design and craftsmanship, built to last decades
Specifications
- Pedal Type: Delay, Echo
- Analog/Digital: Digital
- Presets: Recall Stored Settings, 6 x Subdivision Options, 2 x Dual-delay Modes
- Effects: Tape EP-III, Analog DMM, Precision Digital Delay, Cooper Time Cube Delay (download)
- Max Delay Time: 2500ms

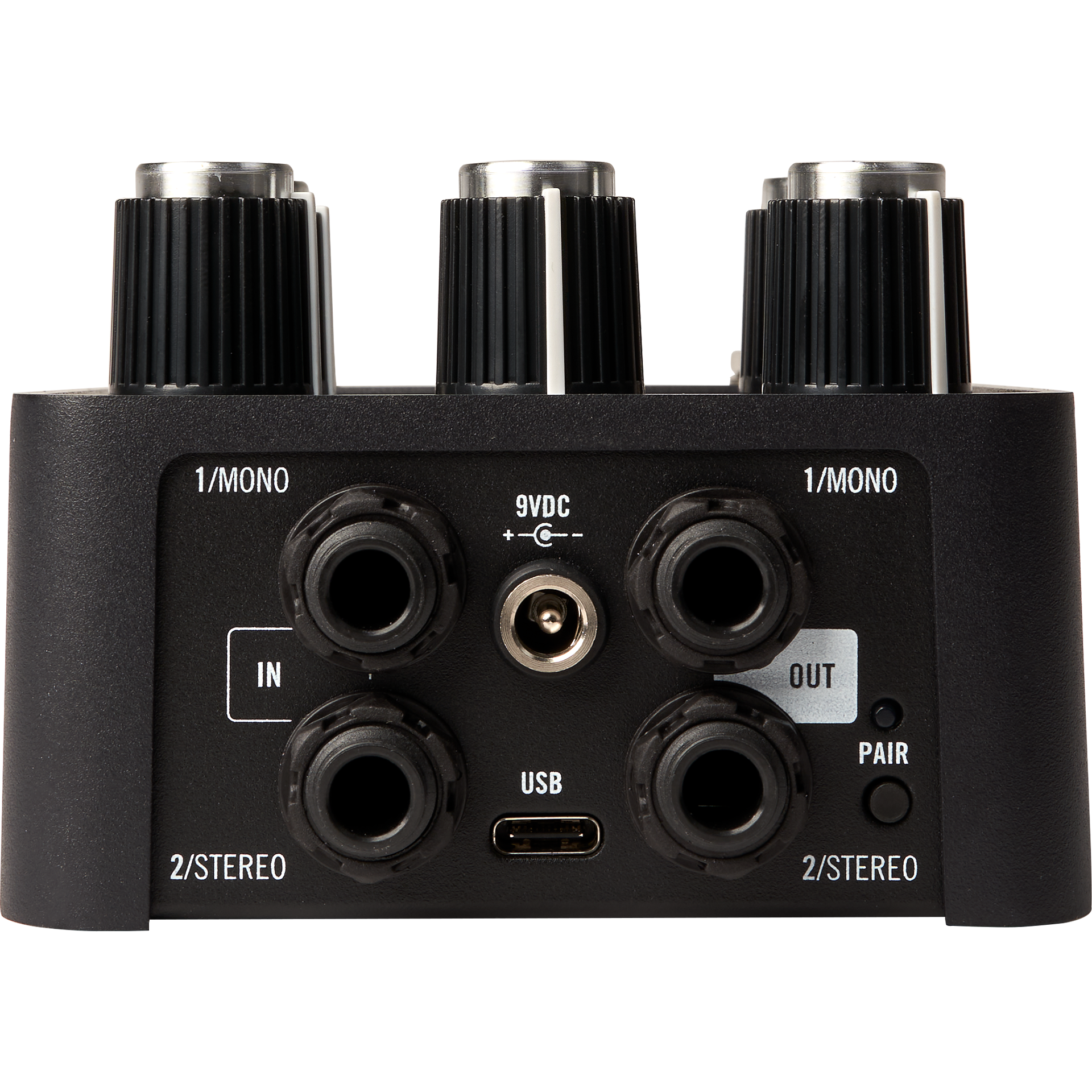

- Inputs: 2 x 1/4" TS (L/mono, R)
- Outputs: 2 x 1/4" TS (L/mono, R)
- USB: USB-C (updates)
- True Bypass: Yes, Switchable to Buffered (via software)
- Features: Dual-processor UAFX Engine
- Software: UAFX Control app (Android/iOS 11 or later)
- Power Source: 9V DC 400mA power supply (sold separately)
- Height: 2.56"
- Width: 3.62"
- Depth: 5.55"
- Weight: 1.24 lbs.
Emulations
Tape EP-III: Three unique 1960’s tape echo machines, with settings for tape age and preamp color.
Analog DMM: Vintage analog “bucket brigade” delay textures with enveloping modulation modes and subdivisions.
Precision: Pristine digital delays with endless delay trails and optional modulation, derived from the UAD plug-in library.
Bonus Effect: Free Cooper Time Cube delay, downloadable at registration.

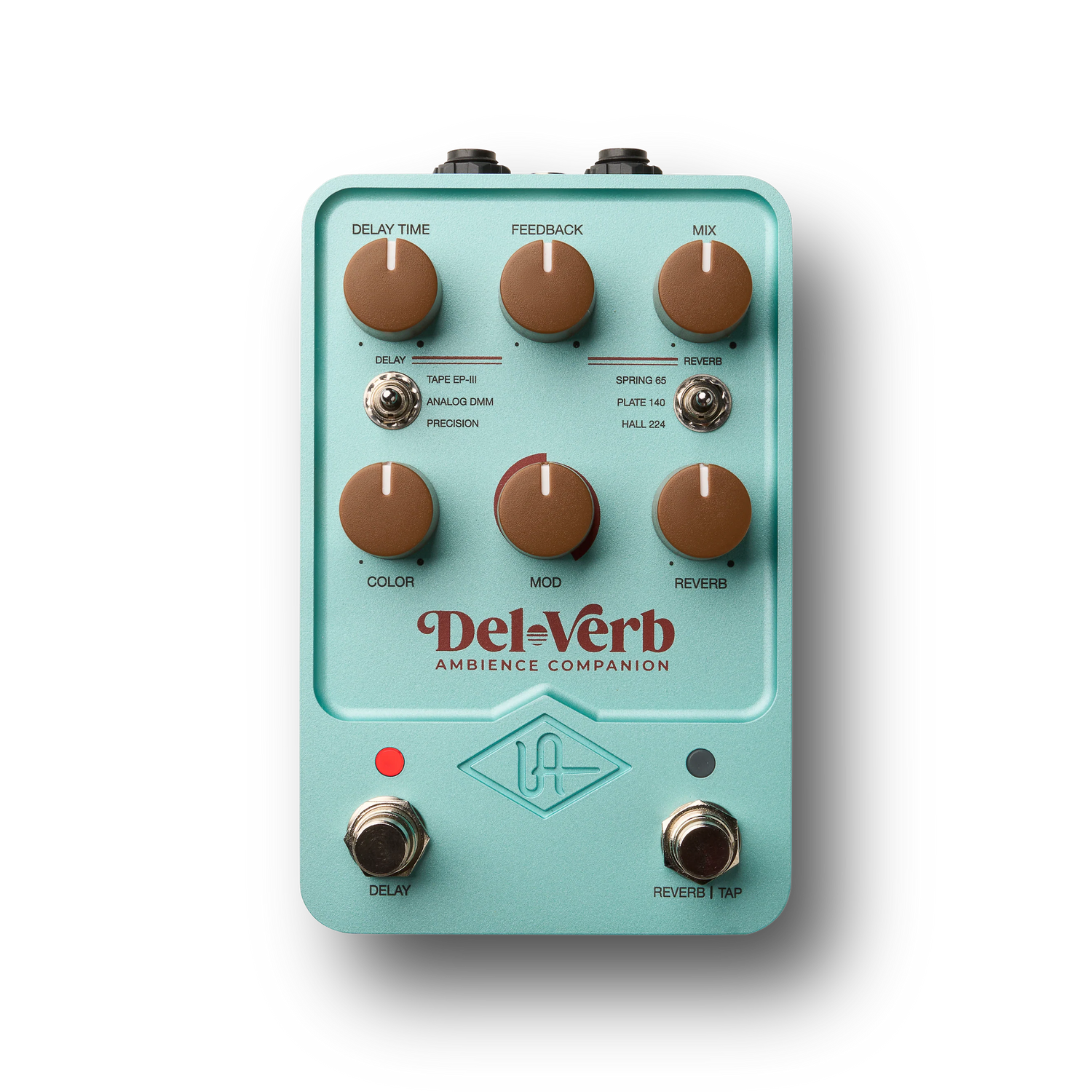

Del-Verb
Ambience Companion Reverb & Delay Pedal
Built upon award-winning UAFX dual-engine processing and stunning sonic authenticity, Del-Verb Ambience Companion packs ready-to-wear emulations of classic reverb and delay effects, in a pedal designed for immediate inspiration.
Features
- The most authentic vintage reverb and delay effects ever captured in a single effects pedal
- "Golden unit" spring reverb tank, pulled from a classic '60's American guitar amp
- Vintage German studio plate reverb sourced from The Plant (Sausalito, CA)
- Bit-for-bit vintage '80s studio digital reverb algorithms
- Definitive emulation of iconic tape echo unit and legendary preamp
- Classic bucket-brigade analog delay effects with the color, texture, and tone of the original hardware
- Pristine, studio-grade digital delays with dynamic and inspiring modulation textures
- Add tap tempo, download custom effect voicings, and more with the UAFX Control app
- Silent switching, buffered bypass, analog dry through, optional spillover/trails, stereo/dual mono operation
Specifications
- Pedal Type: Delay, Reverb
- Analog/Digital: Digital

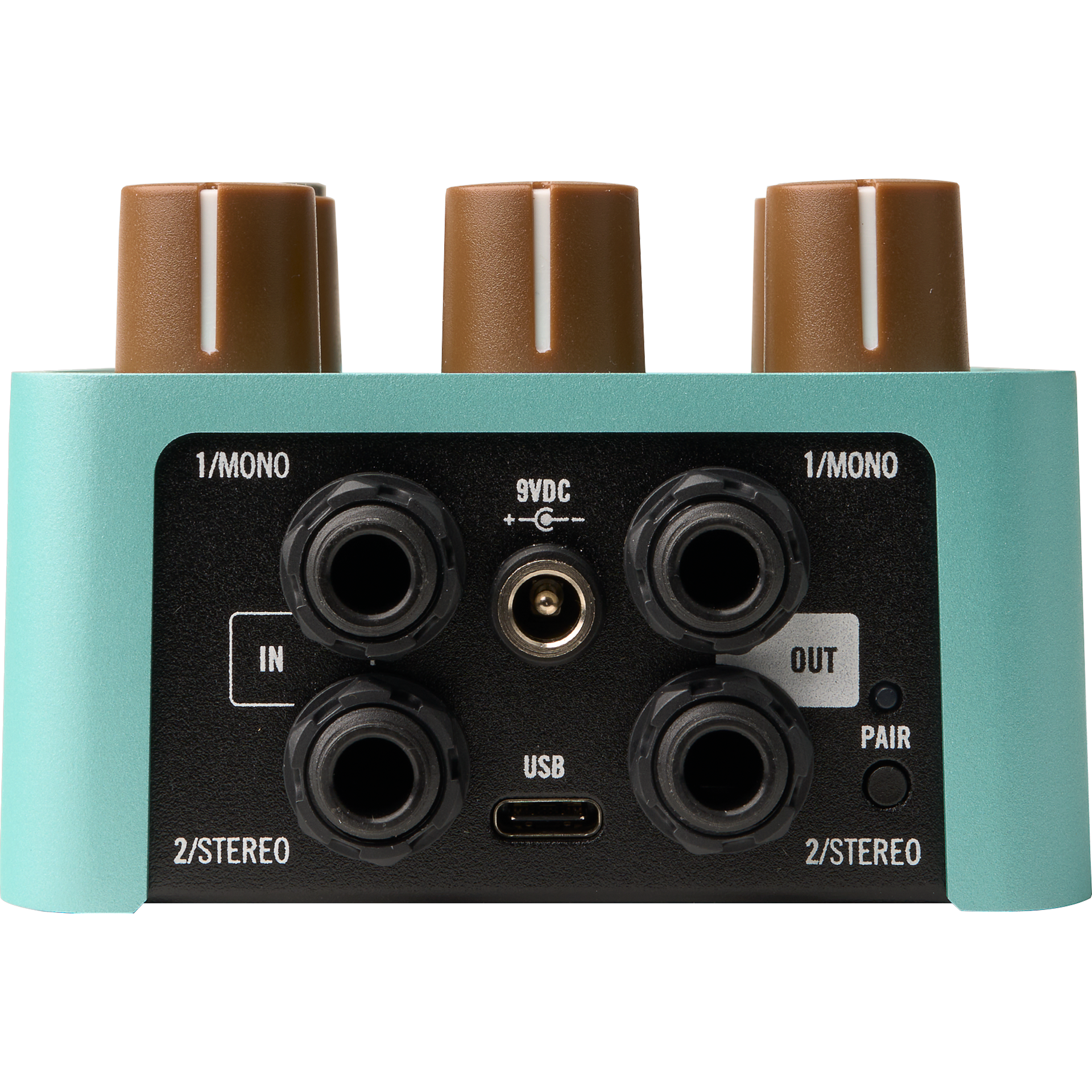

- Inputs: 2 x 1/4" TS
- Outputs: 2 x 1/4" TS
- USB: 1 x USB-C
- Bypass Switching: Buffered
- Software: UAFX Control app
- Power Source: 9V DC power supply (sold separately)
- Power Usage: 400mA
- Height: 2.56"
- Width: 3.62"
- Depth: 5.55"
- Weight: 1.24 lbs.

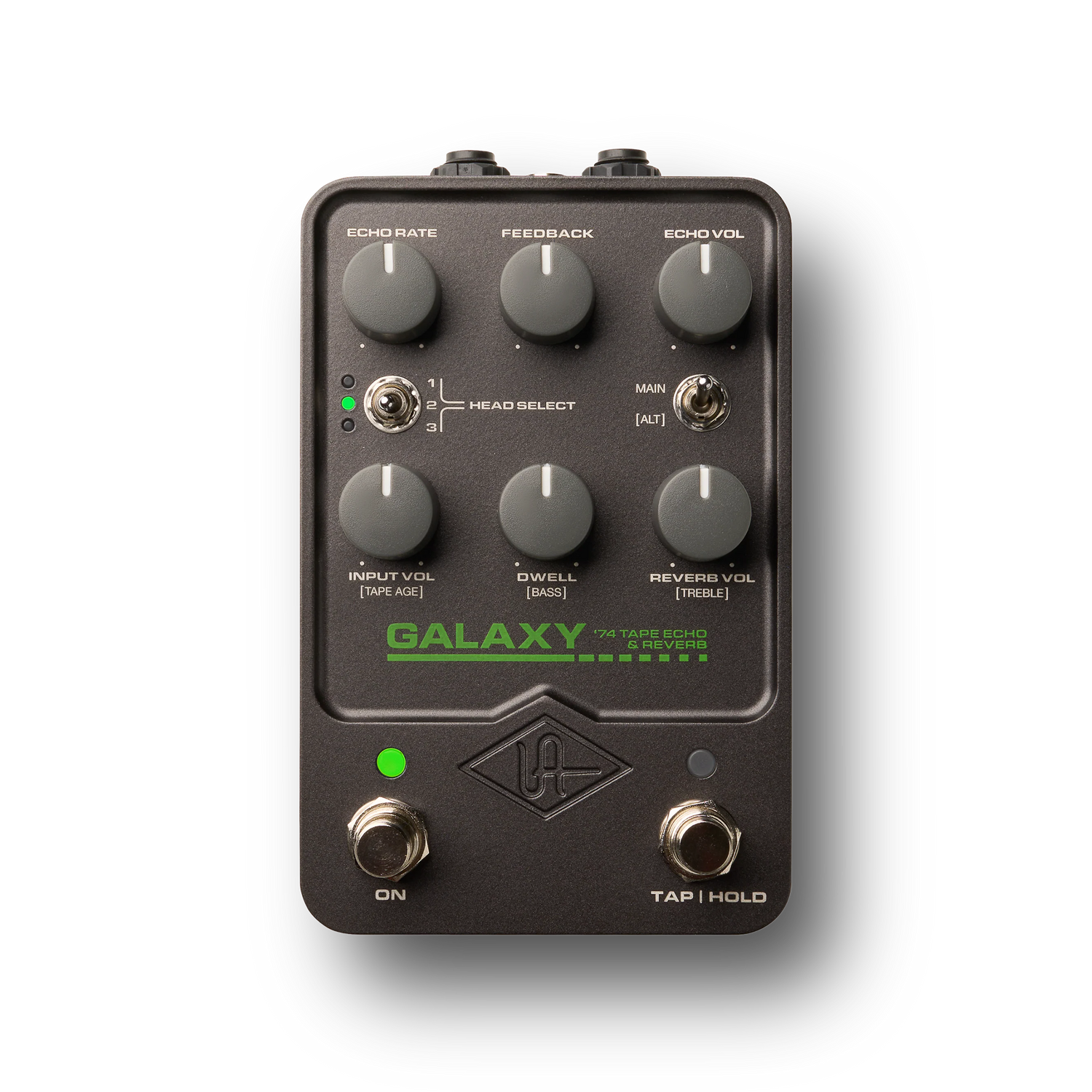

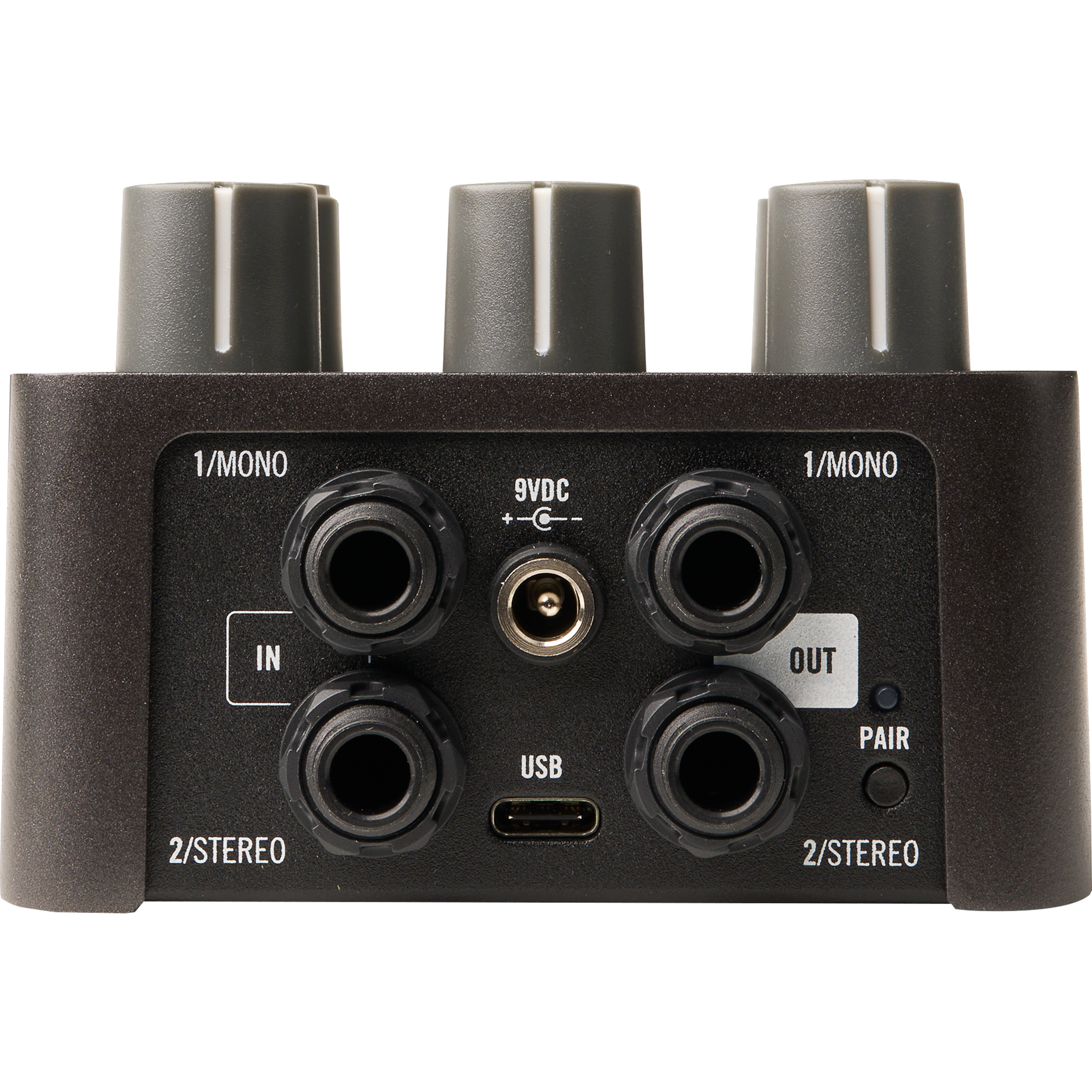

Galaxy
‘74 Tape Echo & Reverb Pedal
Built upon award-winning UAFX dual-engine processing and an unquenchable thirst for sonic authenticity, Galaxy '74 Tape Echo & Reverb captures the warm, warped, relentlessly analog effects of the iconic mid-'70s Roland Space Echo* hardware, for a crayon box of lush textures, right at your feet.
Features
- Powerful UAFX dual-engine delivers the most authentic '60s British tube combo sound ever placed into a stompbox
- Includes the world's best speaker cabinet, mic, and room tones derived from the award-winning OX Amp Top Box
- Features "hot rod" treble booster, preamp boost, and speaker swaps, plus free additional downloadable speaker cabinets and mics upon registration
- Bypass cabinet/mic emulations and use in front of your amp for added tonal flavor and overdrive sounds
- UAFX mobile app lets you customize footswitches, recall and archive your presets, unlock additional features, download artist presets, and more
- Timeless UA design and craftsmanship, built to last decades
Specifications
- Pedal Type: Reverb, Echo
- Analog/Digital: Digital
- Inputs: 2 x 1/4" TS
- Outputs: 2 x 1/4" TS
- USB: 1 x USB-C
- Bypass Switching: Buffered
- Software: UAFX Control app
- Power Source: 9V DC power supply (sold separately)
- Power Usage: 400mA
- Height: 2.56"
- Width: 3.62"
- Depth: 5.55"
- Weight: 1.24 lbs.

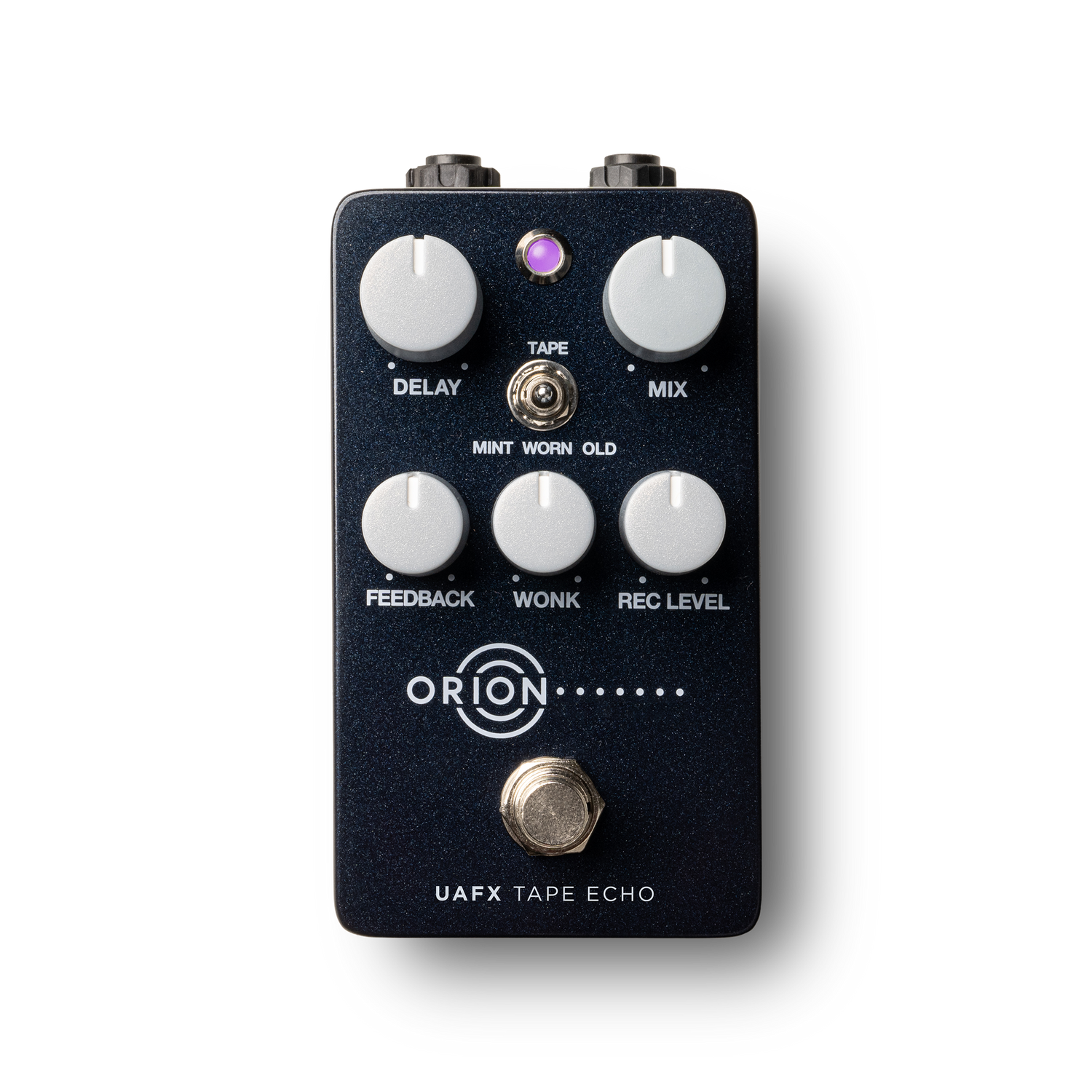

Orion
Tape Echo Pedal
Emerging from our flagship Starlight Echo Station, Orion Tape Echo gives you the magical hazy delay effects of vintage '70s Maestro Echoplex EP-III tape delays, in a classy, compact package.
Features
- Authentic emulation of a vintage Maestro EP-III tape echo in a compact stompbox*
- Perfectly captured analog preamp for fat, boosted tones and effects
- Selectable Mint, Worn, and Old tape machines for distinct color and texture
- Wonk control for modulated repeats and vibey tape splice sounds

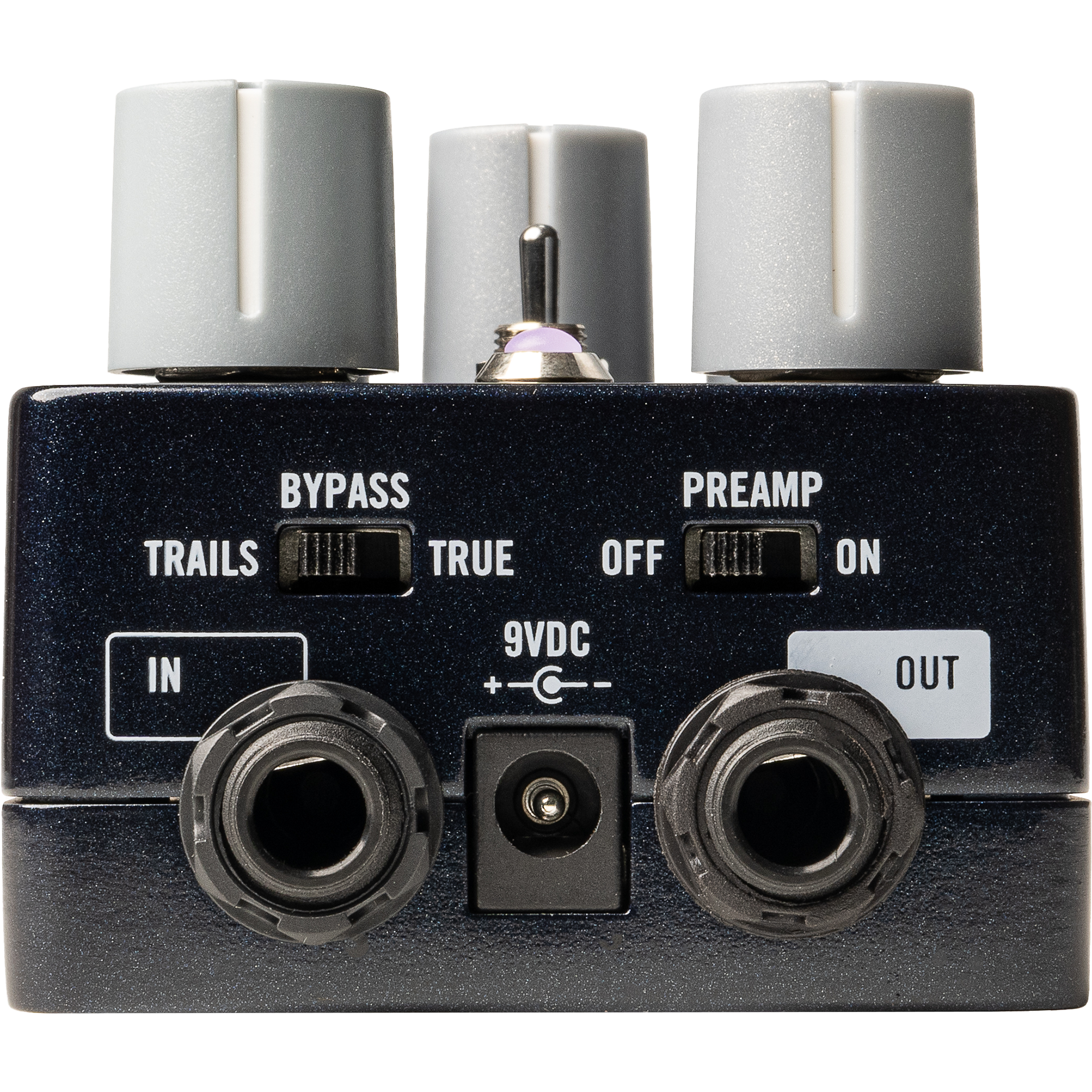

- Mono operation, true/trails bypass, Preamp off/on, analog dry through
- Timeless UA design and craftsmanship, built for decades of dependable performance
Specifications
- Pedal Type: Echo
- Analog/Digital: Digital
- Effects: Tape Machine Delays: Mint, Worn, Old
- Max Delay Time: 700ms
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4"
- USB: 1 x USB-C (updates)
- True Bypass: Yes, switchable to Trails mode
- Software: UAFX Control App
- Power Source: 9V DC (250mA) power supply (sold separately)
- Height: 2.29"
- Width: 2.58"
- Depth: 4.75"
- Weight: 0.65 lbs.

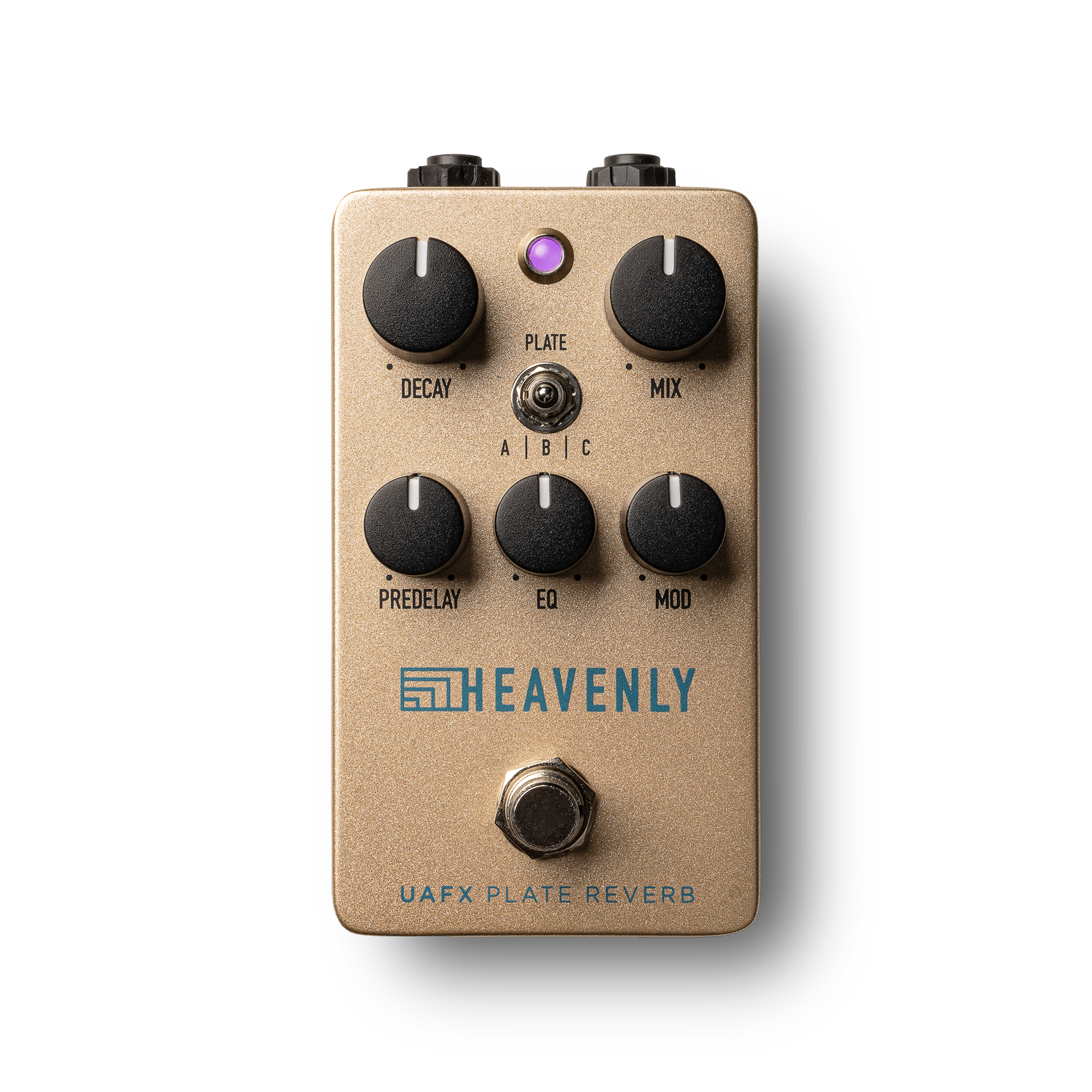

Heavenly
Plate Reverb Pedal
Born out of the award-winning Golden Reverberator, Heavenly Plate Reverb gives you the haunting ambience of the classic 1950’s studio plates heard on countless hit records, in a compact stompbox.
Features
- Authentic emulations of three vintage studio plate reverbs used on countless classic albums
- Selectable Vintage Bright, Vintage Dark, and Modern Full plate settings for endless reverb textures
- Mod, Pre-delay, EQ, and slow/fast Rate controls for simple effect sculpting

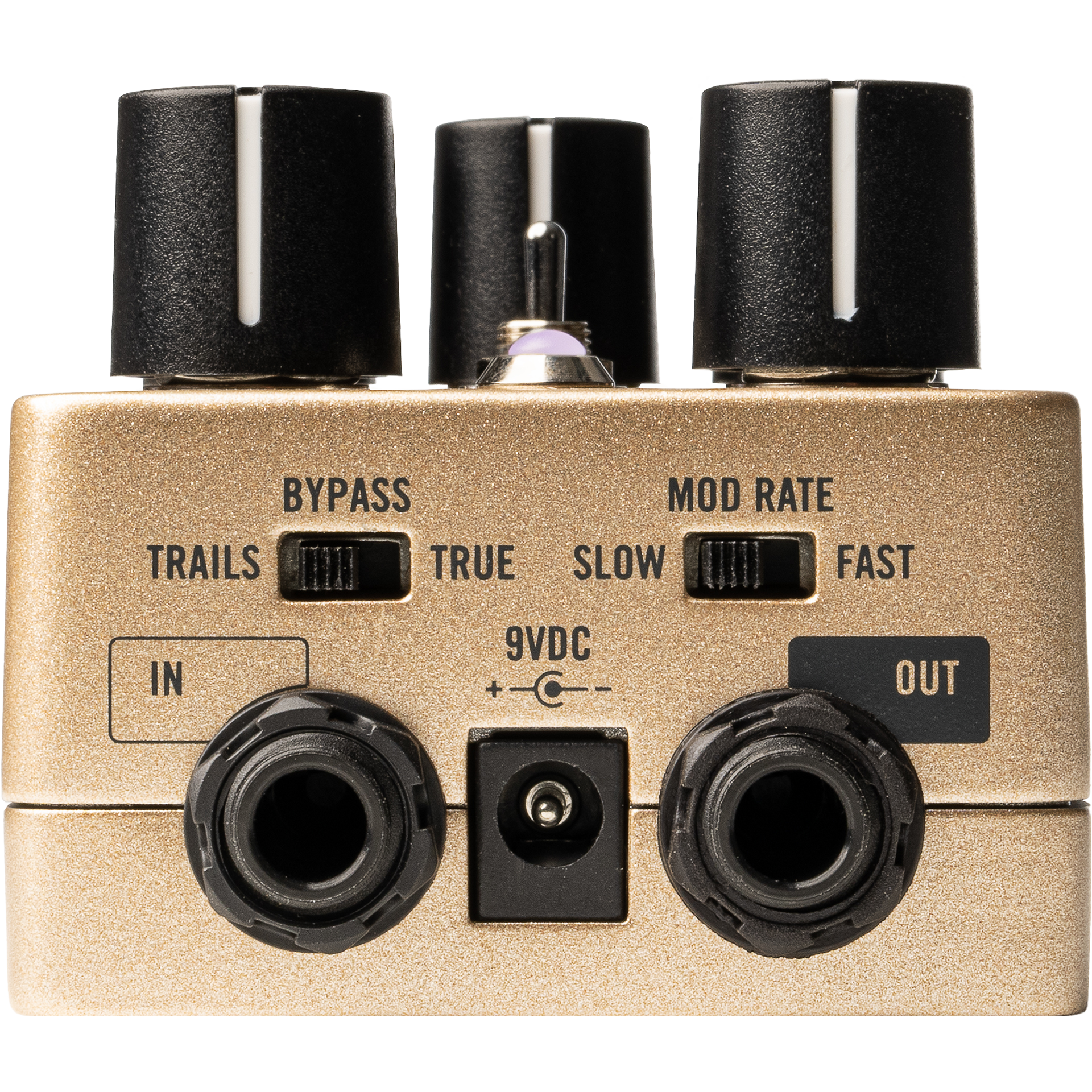

- True/trails bypass, Pre-delay, analog dry through
Specifications
- Pedal Type: Reverb
- Analog/Digital: Digital
- Effects: Vintage Bright, Vintage Dark, Modern Full
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4"
- USB: 1 x USB-C (updates)
- True Bypass: Yes, switchable to Trails mode
- Software: UAFX Control App
- Power Source: 9V DC (250mA) power supply (sold separately)
- Height: 2.29"
- Width: 2.58"
- Depth: 4.75"
- Weight: 0.65 lbs.

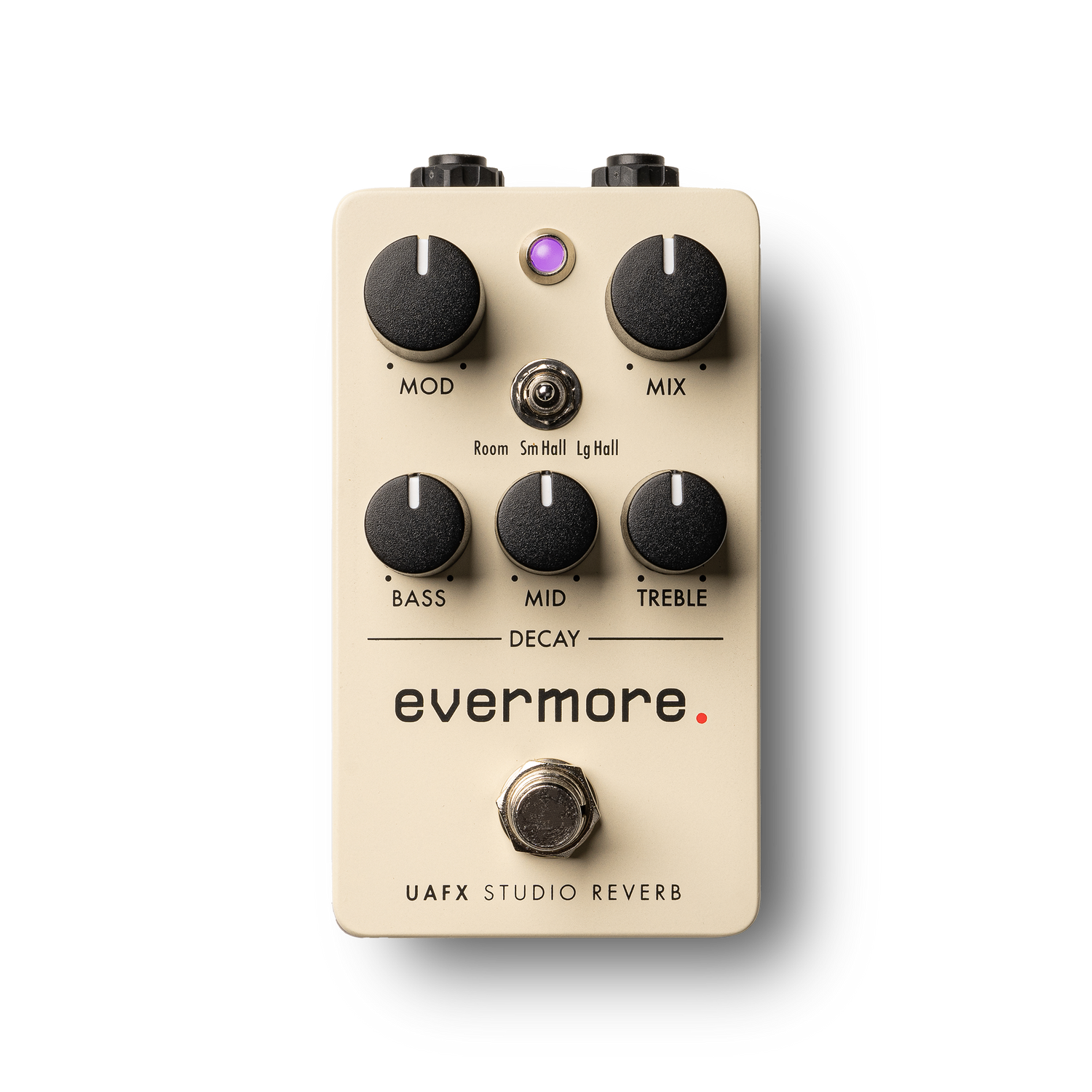

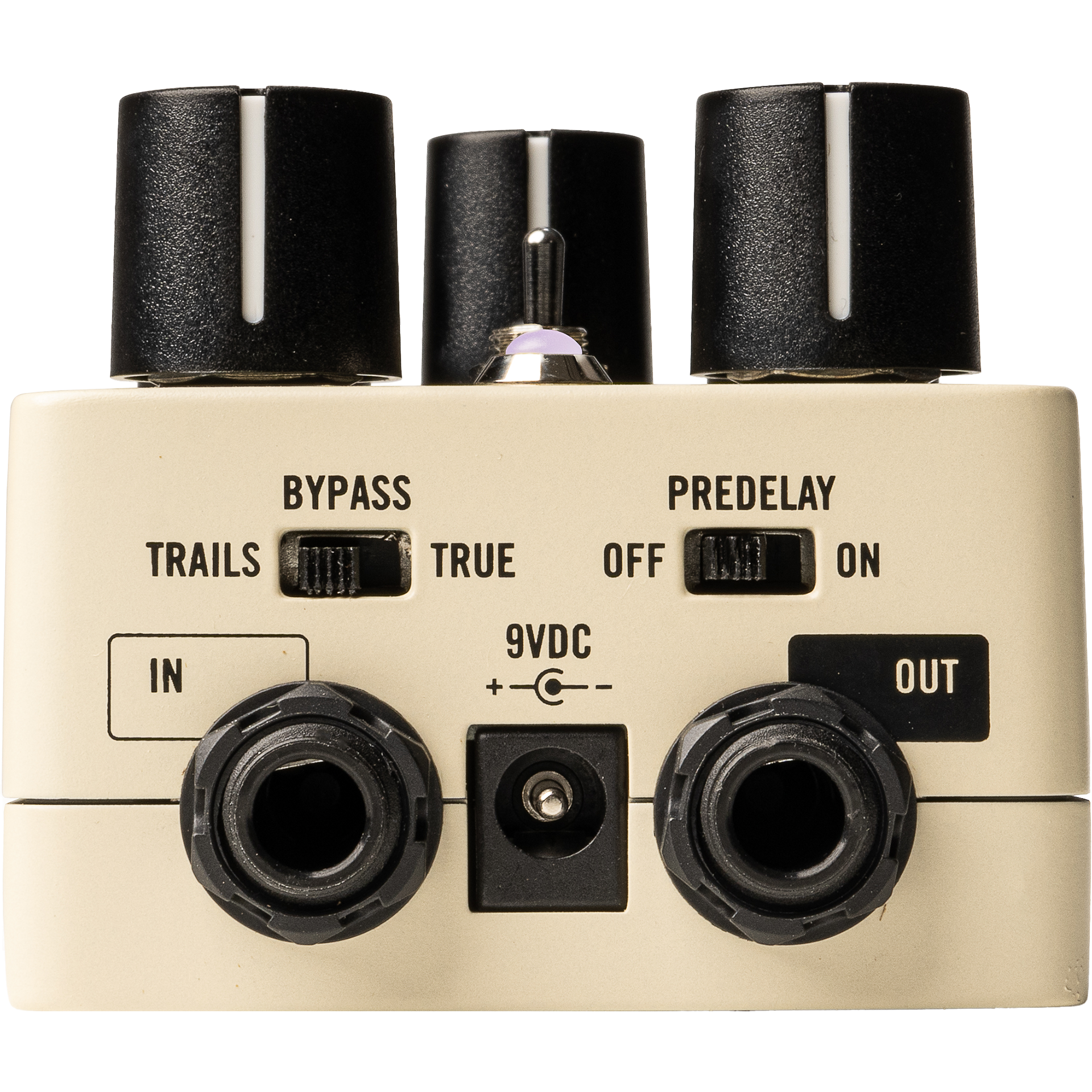

Evermore
Studio Reverb Pedal
Evermore Studio Reverb gives you the grainy ambient trails and mesmerizing modulations of the iconic late-’70s early-digital device, in a compact, elegantly crafted stompbox.
Features
- Authentic emulation of a vintage digital studio hardware, in a compact stompbox
- Bit-for-bit emulations of iconic Room, Small Hall, or Large Hall programs
- Vintage-correct Bass, Mid, and Treble decay lines
- Mod control for lush, grainy "early-digital" textures
- Selectable true/trails bypass, short/long Pre-delay, analog dry through
- Timeless UA design and craftsmanship, built for years of decades performance
Specifications
- Pedal Type: Reverb
- Analog/Digital: Digital
- Effects: Room, Small Hall, Large Hall
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4"
- USB: 1 x USB-C (updates)
- True Bypass: Yes, switchable to Trails mode
- Software: UAFX Control App
- Power Source: 9V DC (250mA) power supply (sold separately)
- Height: 2.29"
- Width: 2.58"
- Depth: 4.75"
- Weight: 0.65 lbs.
