Universal Audio Apollo Rackmount | Gen 2
Universal Audio
Apollo Rackmount | Gen 2 Interfaces

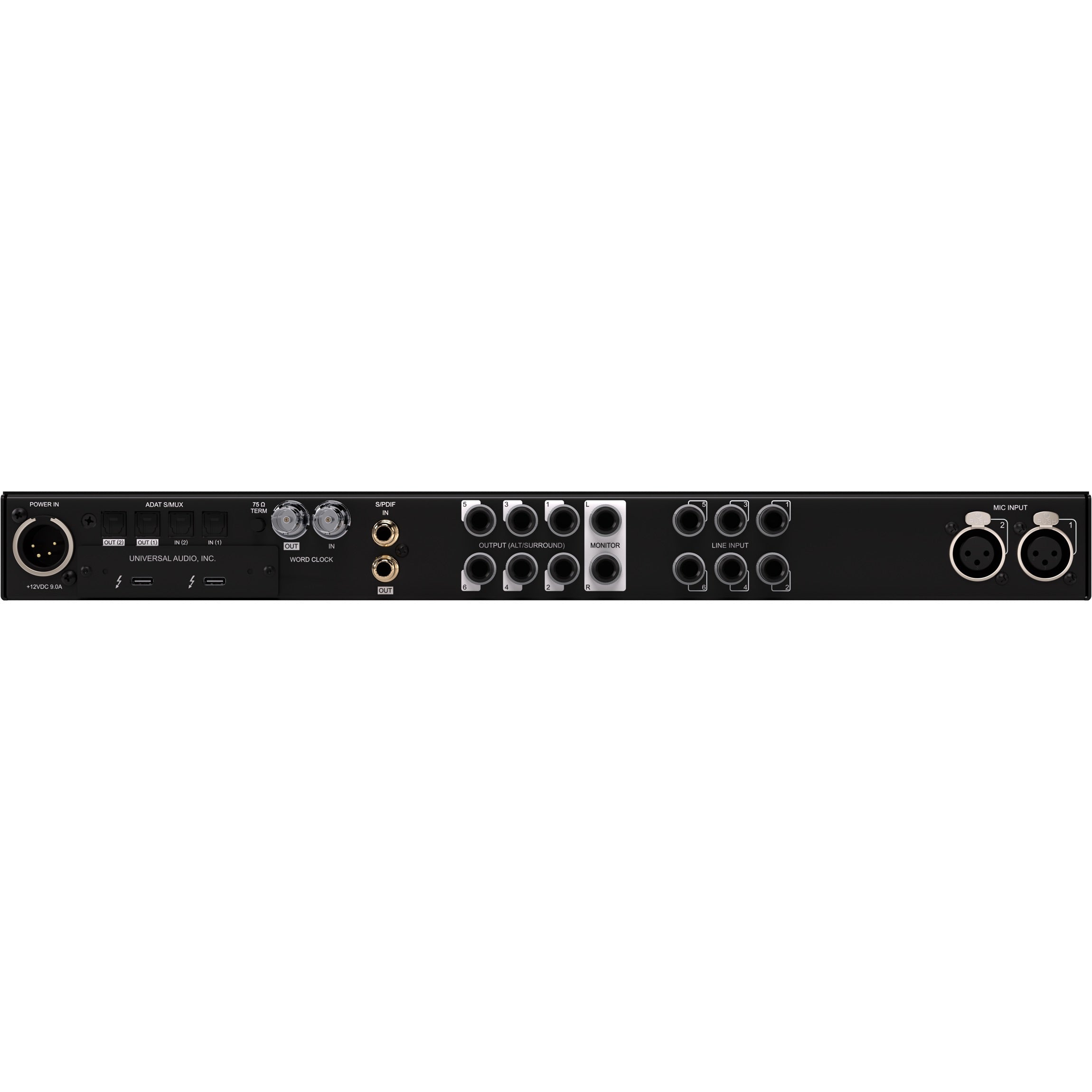

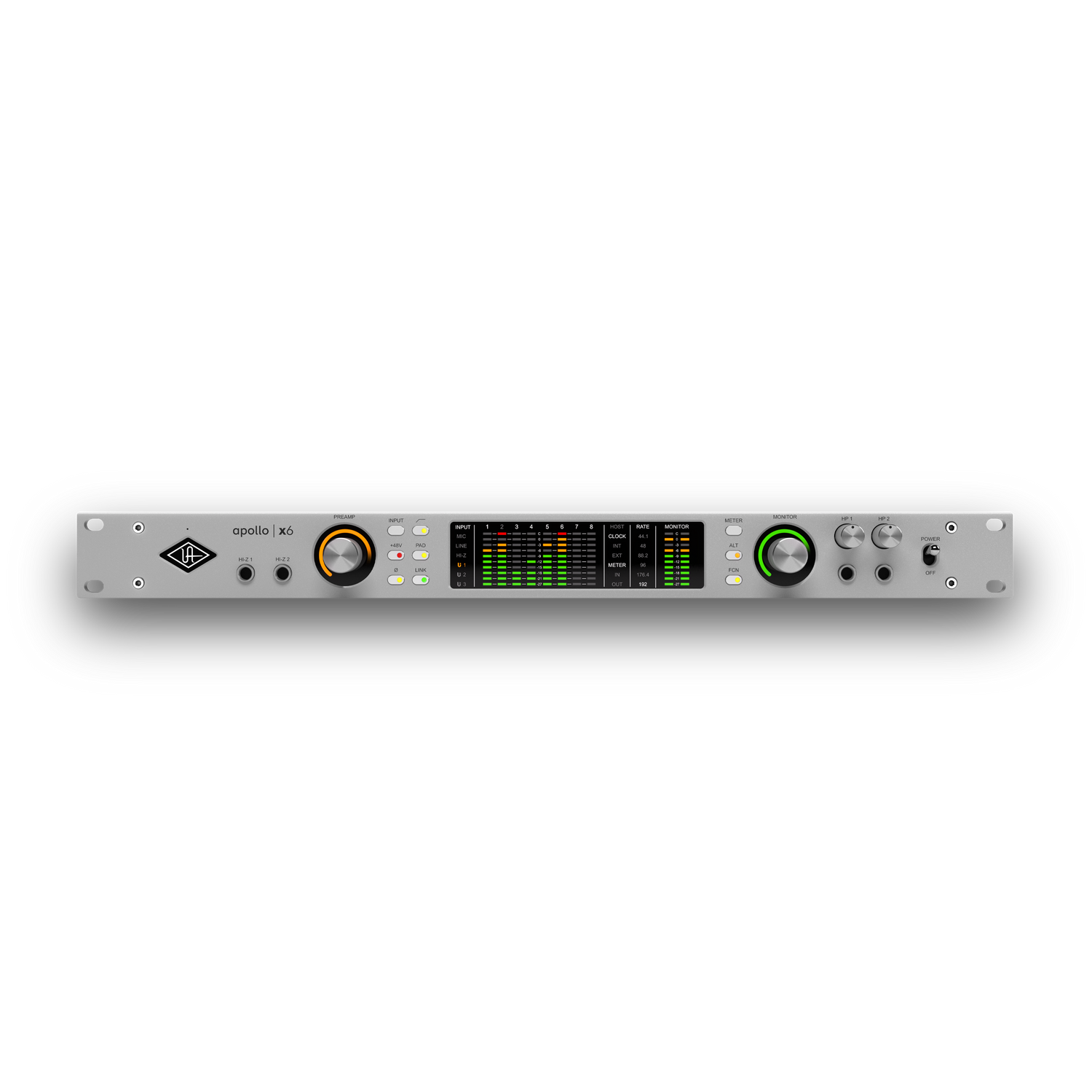

Apollo X6 | Gen 2
Thunderbolt Audio Interface
The centerpiece of your next music production.
Produce hits with our most advanced Apollo x6 to date. Featuring highest-resolution audio conversion, two Unison™ mic preamps, and realtime UAD processing — which lets you record through plug-ins from Neve, API, Manley, Auto-Tune, and more without latency — Apollo x6 puts decades of inspiring analog sound right in your rack.
Features
- 18 x 24 Thunderbolt audio interface with HEXA Core DSP plug-in processing
- Four Unison™ mic preamps, two Hi-Z instrument inputs, eight 1/4" line inputs, two optical Toslink I/O (ADAT S/MUX), RCA coaxial I/O (S/PDIF), word clock I/O (BNC)
- Two 1/4" monitor outs, eight 1/4" line outs (ALT / 7.1 surround), two 1/4" TRS headphone outs
- Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
- Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of -127 dB
- Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®*
- Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
- Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
- Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
- Includes up to 50+ UAD plug-ins with Essentials+ or Studio+ Editions
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
- Expandable with Thunderbolt Apollo interfaces or select models over Dante
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
- Computer Connectivity: Thunderbolt 3
- Form Factor: Rackmount
- Simultaneous I/O: 18 x 24
- A/D Resolution: 24-bit/192kHz
- Number of Preamps: 4 x mic, 2 x instrument
- Phantom Power: Yes
- Analog Inputs: 4 x XLR (mic/line), 2 x 1/4" (Hi-Z), 8 x 1/4" (line)
- Analog Outputs: 2 x 1/4" (monitor), 8 x 1/4" (alt/7.1 surround)
- Digital Inputs: 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
- Digital Outputs: 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
- Headphones: 2 x 1/4"
- Thunderbolt: 2 x USB-C (Thunderbolt 3)
- Clock I/O: In/Out (75 ohm termination switch)
- Rack Spaces: 1U
- Power Supply: 12V DC power supply
Studio+ Edition
Included Plug-Ins in Studio+ Edition
Channel Strips & Preamps (9)
- Avalon VT-737sp Channel Strip
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Manley Reference Microphone Preamp
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
- V76 Preamplifier
Compressors / Limiters (17)
- dbx 160 Compressor / Limiter
- Empirical Labs Distressor
- Fairchild 670 Legacy
- Fairchild 660 Compressor
- Fairchild 670 Compressor
- Teletronix LA-2 Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-3A Classic Audio Leveler
- UA 1176 Rev A Classic Limiter
- UA 1176AE Classic Limiter
- UA 1176LN Rev E Classic Limiter
- UA 1176LN Legacy
- UA 1176SE Legacy
- UA 175B Classic Limiter
- UA 176 Classic Limiter
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
Special Processing (7)
- Auto-Tune Realtime Access
- Auto-Tune Realtime Advanced
- Auto-Tune Realtime X
- Oxide Tape Recorder
- Precision Enhancer Hz
- Studer A800 Multichannel Tape Recorder
- Verve Analog Machines Essentials
Instruments (6)
- Electra 88 Vintage Keyboard Studio
- Moog Minimoog
- Opal Morphing Synth
- PolyMAX Polyphonic Synth
- Ravel Grand Piano
- Waterfall B3 Organ
Delay & Modulation (5)
- Brigade Chorus Pedal
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
- Studio D Chorus
Reverbs & Rooms (4)
Lexicon 224 Digital Reverb
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion
Essentials+ Edition
Included Plug-Ins in Essentials+ Edition
Channel Strips & Preamps (6)
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
Compressors / Limiters (7)
- Fairchild 670 Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- UA 1176LN Legacy
- UA 1176SE Legacy
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
Special Processing (4)
- Auto-Tune Realtime Access
- Oxide Tape Recorder
- Precision Enhancer Hz
- Verve Analog Machines Essentials
Instruments (1)
- PolyMAX Polyphonic Synth
Delay & Modulation (3)
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
Reverbs & Rooms (3)
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion
Apollo X8 | Gen 2
Thunderbolt Audio Interface
Produce music with authentic analog sound.
Our most advanced Apollo x8 is here. For creators and producers running bigger projects who need highest-resolution audio conversion, four Unison™ mic preamps, and realtime UAD processing — which lets you record through plug-ins from Auto-Tune, Neve, API, Manley, and more without latency — Apollo x8 puts legendary UA sound and craftsmanship right in your rack.
Features
- 16 x 22 Thunderbolt audio interface with HEXA Core DSP plug-in processing
- Two Unison™ mic preamps, two Hi-Z instrument inputs, six 1/4" line inputs, two optical Toslink I/O (ADAT S/MUX), RCA coaxial I/O (S/PDIF), word clock I/O (BNC)
- Two 1/4" monitor outs, six 1/4" line outs (ALT / 5.1 surround), two 1/4" TRS headphone outs
- Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
- Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of -127 dB
- Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®*
- Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
- Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
- Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
- Includes up to 50+ UAD plug-ins with Essentials+ or Studio+ Editions
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
- Expandable with Thunderbolt Apollo interfaces or select models over Dante
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
- Computer Connectivity: Thunderbolt 3
- Form Factor: Rackmount
- Simultaneous I/O: 16 x 22
- A/D Resolution: 24-bit/192kHz
- Number of Preamps: 2 x mic, 2 x instrument
- Phantom Power: Yes
- Analog Inputs: 2 x XLR (mic), 2 x 1/4" (Hi-Z), 6 x 1/4" (line)
- Analog Outputs: 2 x 1/4" (monitor), 6 x 1/4" (alt/5.1 surround)
- Digital Inputs: 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
- Digital Outputs: 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
- Headphones: 2 x 1/4"
- Thunderbolt: 2 x USB-C (Thunderbolt 3)
- Clock I/O: In/Out (75 ohm termination switch)
- Rack Spaces: 1U
- Power Supply: 12V DC power supply
Studio+ Edition
Included Plug-Ins in Studio+ Edition
Channel Strips & Preamps (9)
- Avalon VT-737sp Channel Strip
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Manley Reference Microphone Preamp
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
- V76 Preamplifier
Compressors / Limiters (17)
- dbx 160 Compressor / Limiter
- Empirical Labs Distressor
- Fairchild 670 Legacy
- Fairchild 660 Compressor
- Fairchild 670 Compressor
- Teletronix LA-2 Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-3A Classic Audio Leveler
- UA 1176 Rev A Classic Limiter
- UA 1176AE Classic Limiter
- UA 1176LN Rev E Classic Limiter
- UA 1176LN Legacy
- UA 1176SE Legacy
- UA 175B Classic Limiter
- UA 176 Classic Limiter
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
Special Processing (7)
- Auto-Tune Realtime Access
- Auto-Tune Realtime Advanced
- Auto-Tune Realtime X
- Oxide Tape Recorder
- Precision Enhancer Hz
- Studer A800 Multichannel Tape Recorder
- Verve Analog Machines Essentials
Instruments (6)
- Electra 88 Vintage Keyboard Studio
- Moog Minimoog
- Opal Morphing Synth
- PolyMAX Polyphonic Synth
- Ravel Grand Piano
- Waterfall B3 Organ
Delay & Modulation (5)
- Brigade Chorus Pedal
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
- Studio D Chorus
Reverbs & Rooms (4)
Lexicon 224 Digital Reverb
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion
Essentials+ Edition
Included Plug-Ins in Essentials+ Edition
Channel Strips & Preamps (6)
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
Compressors / Limiters (7)
- Fairchild 670 Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- UA 1176LN Legacy
- UA 1176SE Legacy
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
Special Processing (4)
- Auto-Tune Realtime Access
- Oxide Tape Recorder
- Precision Enhancer Hz
- Verve Analog Machines Essentials
Instruments (1)
- PolyMAX Polyphonic Synth
Delay & Modulation (3)
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
Reverbs & Rooms (3)
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion

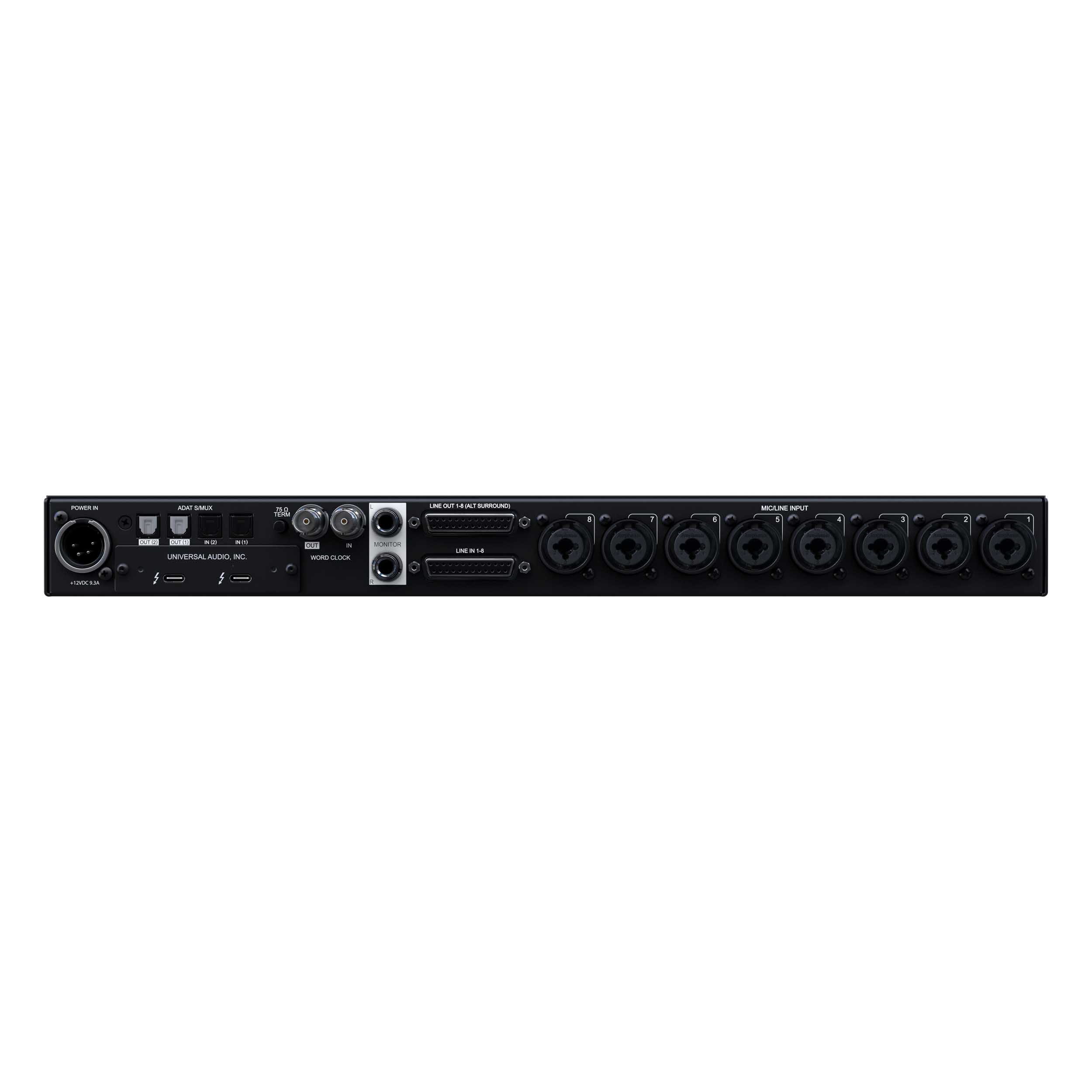

Apollo X8P | Gen 2
Thunderbolt Audio Interface
Record big sessions with authentic analog sound.
Our most advanced Apollo x8p is here. For bands, engineers, and producers who need eight Unison™ mic preamps, highest-resolution audio conversion, and realtime UAD processing — which lets you record through plug-ins from Auto-Tune, Neve, API, Manley, and more without latency — Apollo x8 puts legendary UA sound and craftsmanship right in your rack.
Features
- 16 x 22 Thunderbolt audio interface with HEXA Core DSP plug-in processing
- Eight Unison™ mic preamps, two Hi-Z instrument inputs, DB-25 input (line 1-8), two optical Toslink I/O (ADAT S/MUX or S/PDIF), word clock I/O (BNC)
- Two 1/4" monitor outs, DB-25 output (ALT / 7.1 surround), two 1/4" TRS headphone outs
- Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
- Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of -127 dB
- Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®*
- Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
- Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
- Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
- Includes up to 50+ UAD plug-ins with Essentials+ or Studio+ Editions
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
- Expandable with Thunderbolt Apollo interfaces or select models over Dante
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
- Computer Connectivity: Thunderbolt 3
- Form Factor: Rackmount
- Simultaneous I/O: 16 x 22
- A/D Resolution: 24-bit/192kHz
- Number of Preamps: 8 x mic, 2 x instrument
- Phantom Power: Yes
- Analog Inputs: 8 x XLR-1/4" combo (mic/line), 2 x 1/4" (Hi-Z), 1 x DB-25 (line)
- Analog Outputs: 2 x 1/4" (monitor), 1 x DB-25 (alt/5.1 surround)
- Digital Inputs: 2 x Optical Toslink (ADAT/SMUX)
- Digital Outputs: 2 x Optical Toslink (ADAT/SMUX)
- Headphones: 2 x 1/4"
- Thunderbolt: 2 x USB-C (Thunderbolt 3)
- Clock I/O: In/Out (75 ohm termination switch)
- Rack Spaces: 1U
- Power Supply: 12V DC power supply
Studio+ Edition
Included Plug-Ins in Studio+ Edition
Channel Strips & Preamps (9)
- Avalon VT-737sp Channel Strip
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Manley Reference Microphone Preamp
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
- V76 Preamplifier
Compressors / Limiters (17)
- dbx 160 Compressor / Limiter
- Empirical Labs Distressor
- Fairchild 670 Legacy
- Fairchild 660 Compressor
- Fairchild 670 Compressor
- Teletronix LA-2 Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-3A Classic Audio Leveler
- UA 1176 Rev A Classic Limiter
- UA 1176AE Classic Limiter
- UA 1176LN Rev E Classic Limiter
- UA 1176LN Legacy
- UA 1176SE Legacy
- UA 175B Classic Limiter
- UA 176 Classic Limiter
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
- Special Processing (7)
- Auto-Tune Realtime Access
- Auto-Tune Realtime Advanced
- Auto-Tune Realtime X
- Oxide Tape Recorder
- Precision Enhancer Hz
- Studer A800 Multichannel Tape Recorder
- Verve Analog Machines Essentials
Instruments (6)
- Electra 88 Vintage Keyboard Studio
- Moog Minimoog
- Opal Morphing Synth
- PolyMAX Polyphonic Synth
- Ravel Grand Piano
- Waterfall B3 Organ
Delay & Modulation (5)
- Brigade Chorus Pedal
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
- Studio D Chorus
Reverbs & Rooms (4)
Lexicon 224 Digital Reverb
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion
Essentials+ Edition
Included Plug-Ins in Essentials+ Edition
- Channel Strips & Preamps (6)
- Compressors / Limiters (7)
- Equalizers (6)
- Special Processing (4)
- Instruments (1)
- Delay & Modulation (3)
- Reverbs & Rooms (3)
- Guitar & Bass (3)

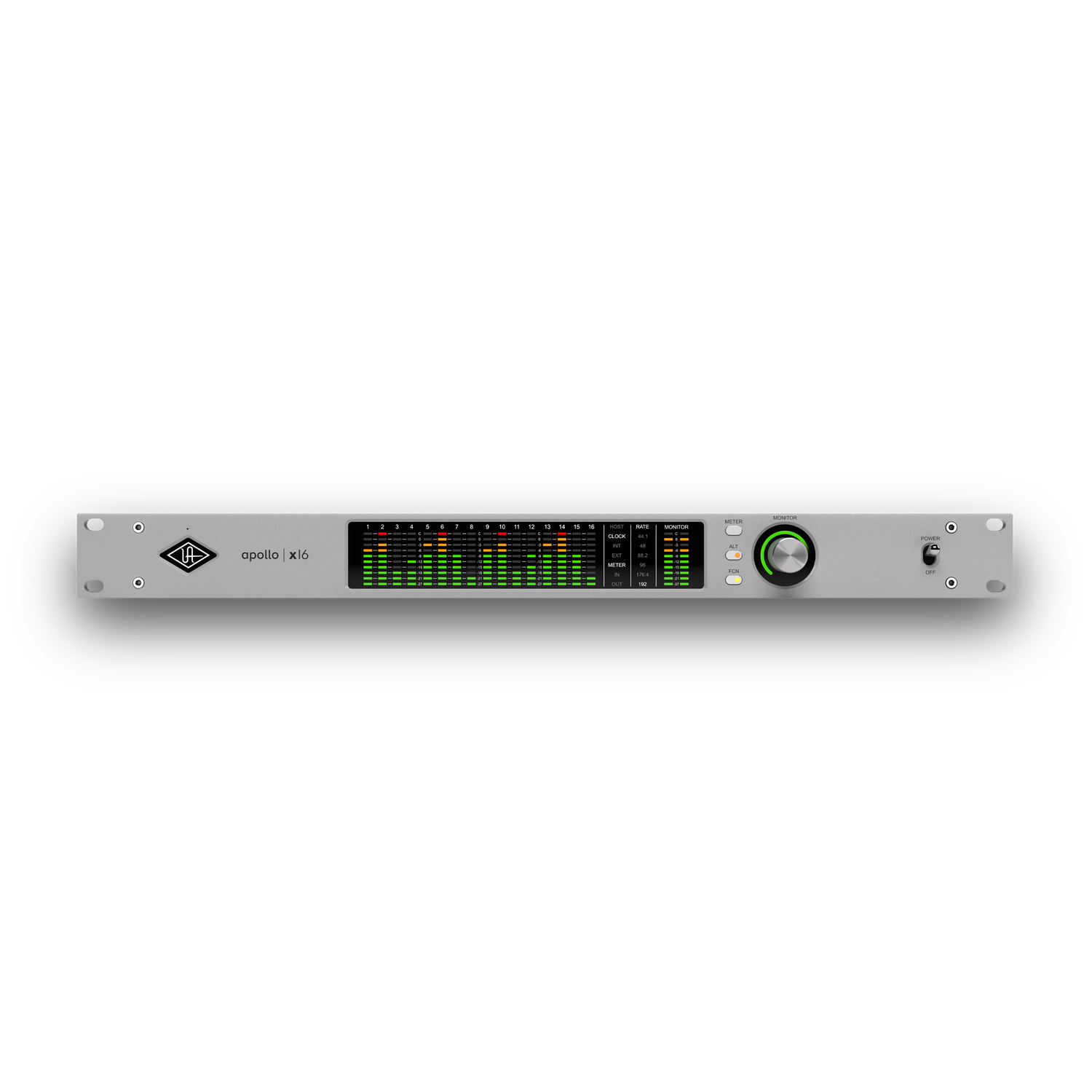

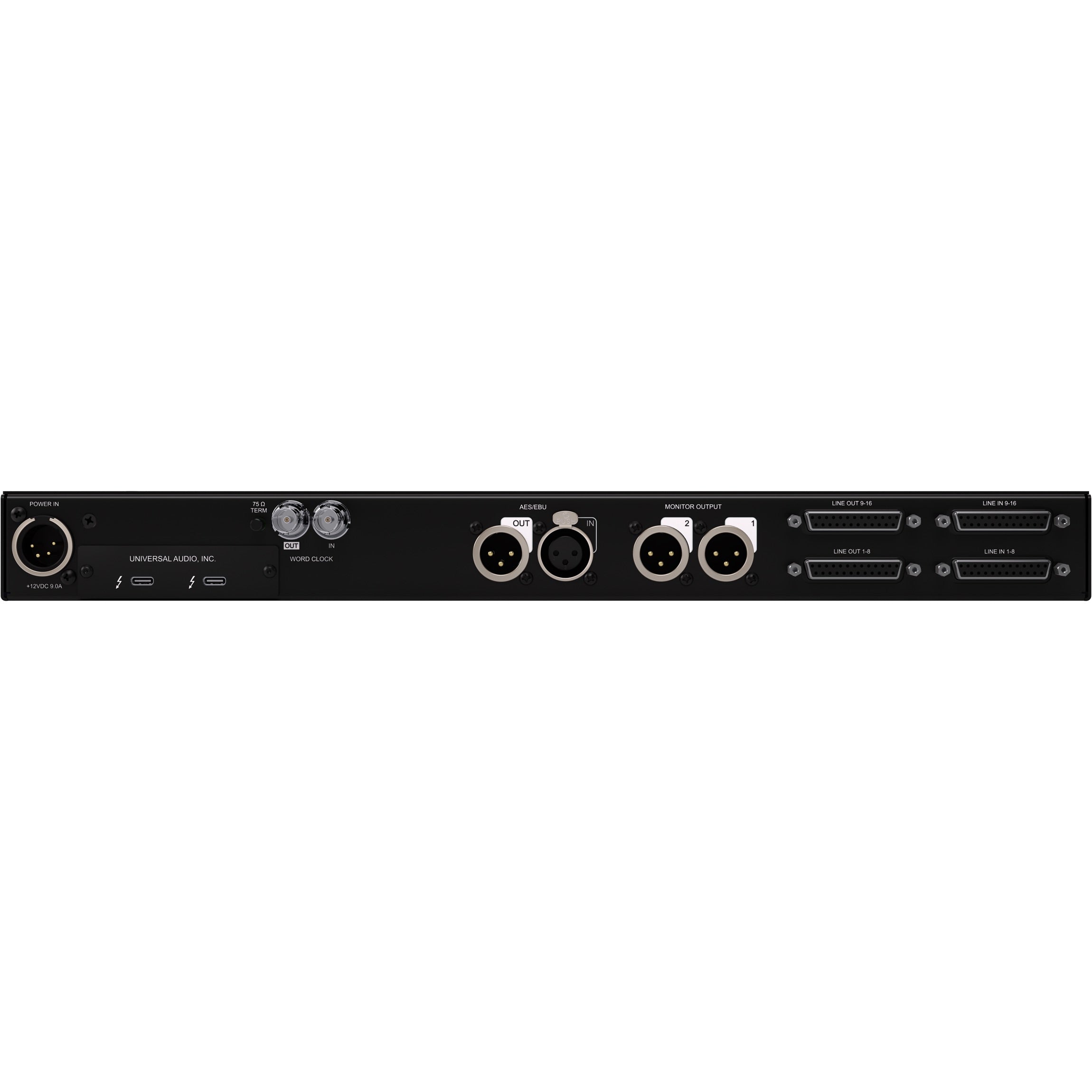

Apollo X16 | Gen 2
Thunderbolt Audio Interface
Experience the gold standard in audio recording.
The next generation of Apollo x16 is here — built for pro studios and serious music producers who need 16 channels of highest-resolution audio conversion and HEXA Core DSP processing for connecting your studio equipment and producing large sessions with UAD plug-ins from Neve, Manley, Avalon, SSL, Auto-Tune, and hundreds more.
Features
- 18 x 20 Thunderbolt audio interface with HEXA Core DSP plug-in processing
- Two DB-25 inputs (line 1-16), stereo AES I/O (XLR), word clock I/O (BNC)
- Two monitor outs (XLR), two DB-25 outputs (line 1-16 or ALT / 9.1.6 surround)
- Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
- Flagship D/A for critical monitoring and playback with 133 dB dynamic range and astonishingly low THD of -129 dB
- Calibrate your main monitor outputs (stereo or immersive) with Apollo Monitor Correction powered by Sonarworks®*
- Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
- ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for immersive)
- Updated UAD Console app featuring Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
- Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
- Includes up to 100+ UAD plug-ins with Essentials+ or Ultimate+ Editions
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
- Expandable with Thunderbolt Apollo interfaces or select models over Dante
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
- Computer Connectivity: Thunderbolt 3
- Form Factor: Rackmount
- Simultaneous I/O: 18 x 20
- A/D Resolution: 24-bit/192kHz
- Phantom Power: No
- Analog Inputs: 2 x DB-25 (line)
- Analog Outputs: 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround)
- Digital Inputs: 1 x XLR (AES/EBU)
- Digital Outputs: 1 x XLR (AES/EBU)
- Thunderbolt: 2 x USB-C (Thunderbolt 3)
- Clock I/O: In/Out (75 ohm termination switch)
- Rack Spaces: 1U
- Power Supply: 12V DC power supply (included)
Essentials+ Edition
Included Plug-Ins in Essentials+ Edition
Channel Strips & Preamps (6)
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
Compressors / Limiters (7)
- Fairchild 670 Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- UA 1176LN Legacy
- UA 1176SE Legacy
Equalizers (6)
- Helios Type 69 Legacy EQ
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec Pro Legacy EQ
Special Processing (4)
- Auto-Tune Realtime Access
- Oxide Tape Recorder
- Precision Enhancer Hz
- Verve Analog Machines Essentials
Instruments (1)
- PolyMAX Polyphonic Synth
Delay & Modulation (3)
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
Reverbs & Rooms (3)
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
- Guitar & Bass (3)
- Ampeg SVT-VR Classic Bass Amplifier
- Marshall Plexi Classic Amplifier
- Raw Distortion
Ultimate+ Edition
Included Plug-Ins in Ultimate+ Edition
Channel Strips & Preamps (19)
- API Preamp
- API Vision Channel Strip
- API Vision Legacy Channel Strip
- Avalon VT-737sp Channel Strip
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- LA-6176 Signature Channel Strip
- Manley Reference Microphone Preamp
- Manley VOXBOX Channel Strip
- Neve 1073 Preamp & EQ
- Neve 88RS Channel Strip
- Neve 88RS Legacy Channel Strip
- Precision Channel Strip
- SSL E Series Channel Strip
- SSL E Series Channel Strip Legacy
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
- V76 Preamplifier
Compressors / Limiters (22)
- API 2500 Stereo Bus Compressor
- dbx 160 Compressor / Limiter
- Empirical Labs Distressor
- Fairchild 660 Compressor
- Fairchild 670 Compressor
- Fairchild 670 Legacy Compressor
- Manley Variable-Mu Limiter Compressor
- Precision Buss Compressor
- SSL G Series Bus Compressor
- SSL G Series Bus Compressor Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-3A Classic Leveler
- UA 1176 Rev A Classic Limiter
- UA 1176AE Classic Limiter
- UA 1176LN Rev E Classic Limiter
- UA 1176LN Legacy Limiting Amplifier
- UA 1176SE Legacy Limiting Amplifier
- UA 175B Classic Limiter
- UA 176 Classic Limiter
Equalizers (17)
- API 550A Parametric EQ
- API 560 Graphic EQ
- Cambridge EQ
- Harrison 32C Channel EQ
- Harrison 32C SE Channel EQ
- Helios Type 69 Legacy EQ
- Hitsville EQ
- Manley Massive Passive EQ
- Neve 1073 Legacy Classic Console EQ
- Neve 1073SE Legacy Classic Console EQ
- Precision Equalizer
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec-Pro Legacy EQ
- Trident A-Range Classic Console EQ
Special Processing (21)
- Auto-Tune Realtime Access
- Auto-Tune Realtime Advanced
- Auto-Tune Realtime X
- Ampex ATR-102 Mastering Tape Recorder
- Empirical Labs FATSO Jr. Tape Sim. & Compressor
- Empirical Labs FATSO Sr. Tape Sim. & Compressor
- Little Labs IBP Phase Alignment Tool
- Little Labs Voice Of God Bass Resonance
- Moog Multimode Filter
- Moog Multimode Filter SE
- Moog Multimode Filter XL
- Oxide Tape Recorder
- Precision De-Esser
- Precision Enhancer Hz
- Precision Enhancer kHz
- Studer A800 Multichannel Tape Recorder
- Thermionic Culture Vulture
- Topline Key Finder
- Topline Vocal Suite
- Verve Analog Machines
- Verve Analog Machines Essentials
Instruments (6)
- Electra 88 Vintage Keyboard Studio
- Moog Minimoog
- Opal Morphing Synth
- PolyMAX Polyphonic Synth
- Ravel Grand Piano
- Waterfall B3 Organ
Delay & Modulation (10)
- Brigade Chorus Pedal
- Cooper Time Cube MkII Delay
- EP-34 Tape Echo
- Galaxy Tape Echo
- KORG SDD-3000 Digital Delay
- MXR Flanger/Doubler
- Precision Delay Modulation
- Precision Delay Modulation Long
- Studio D Chorus
- Waterfall Rotary Speaker
Reverbs & Rooms (13)
- AKG BX 20 Spring Reverb
- Capitol Chambers
- DreamVerb Room Modeler
- EMT 140 Classic Plate Reverb
- EMT 250 Classic Electronic Reverb
- Hitsville Reverb Chambers
- Lexicon 224 Digital Reverb
- Lexicon 480L Digital Reverb and Effects
- Ocean Way Studios
- Precision Reflection Engine
- Pure Plate Reverb
- RealVerb Pro Custom Room Modeler
- UAD Sound City Studios
Mastering (7)
- Capitol Mastering Compressor
- Hitsville Mastering EQ
- Manley Massive Passive Mastering EQ
- Precision K-Stereo Ambience Recovery
- Precision Maximizer
- Precision Multiband
- Precision Limiter
Guitar (9)
Ampeg SVT-VR Classic Bass Amplifier
Bermuda Triangle
Fender ’55 Tweed Deluxe
Marshall Plexi Classic Amplifier
Raw Distortion
TS Overdrive Pedal
UAD Dream '65 Reverb Amplifier
UAD Lion '68 Super Lead Amp
UAD Ruby '63 Top Boost Amplifier
- LUNA Extensions (4)
- LUNA API Summing Extension
- LUNA API Vision Console Emulation Extension
- LUNA Ampex ATR-102 Mastering Tape Extension
- LUNA Studer A800 Multichannel Tape Extension

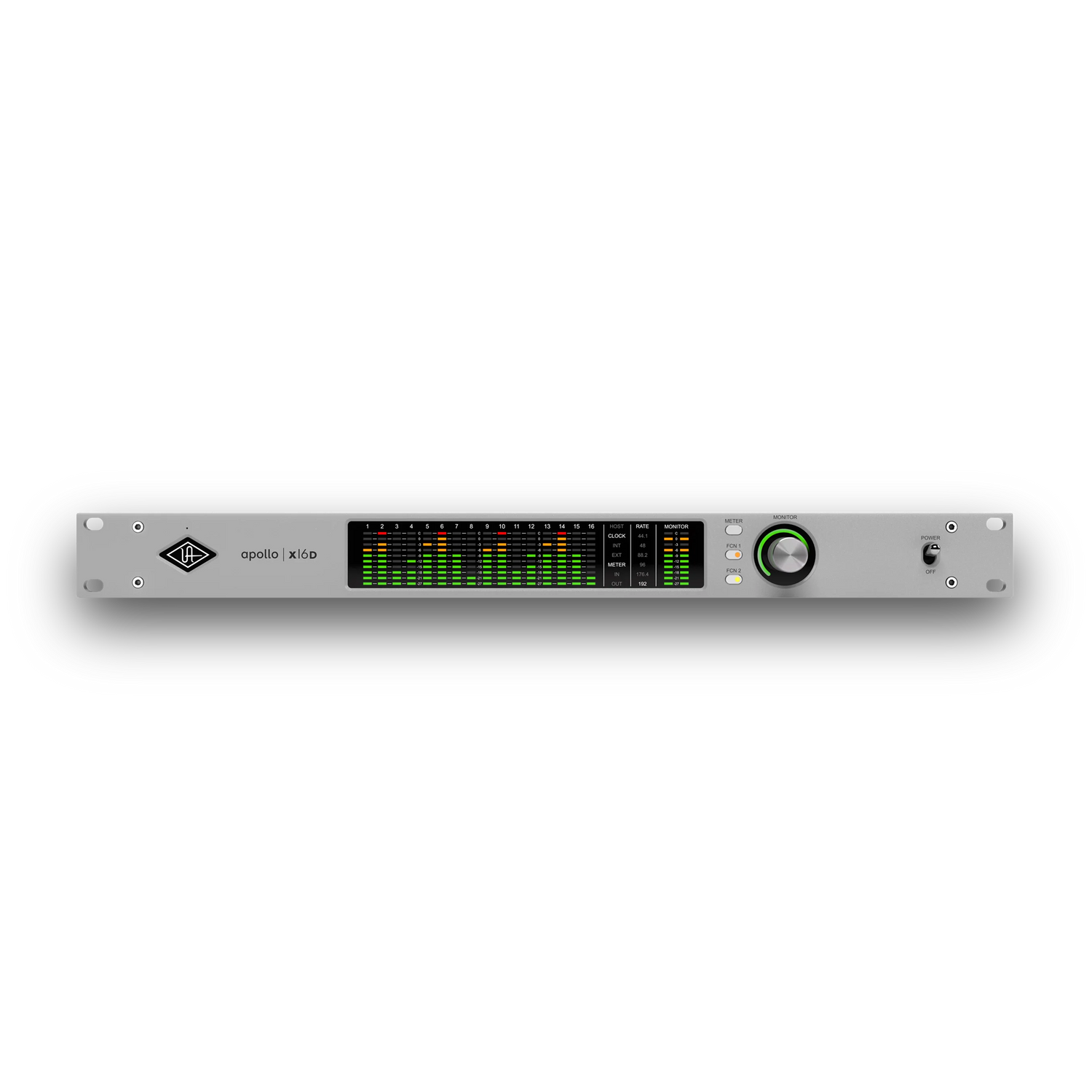

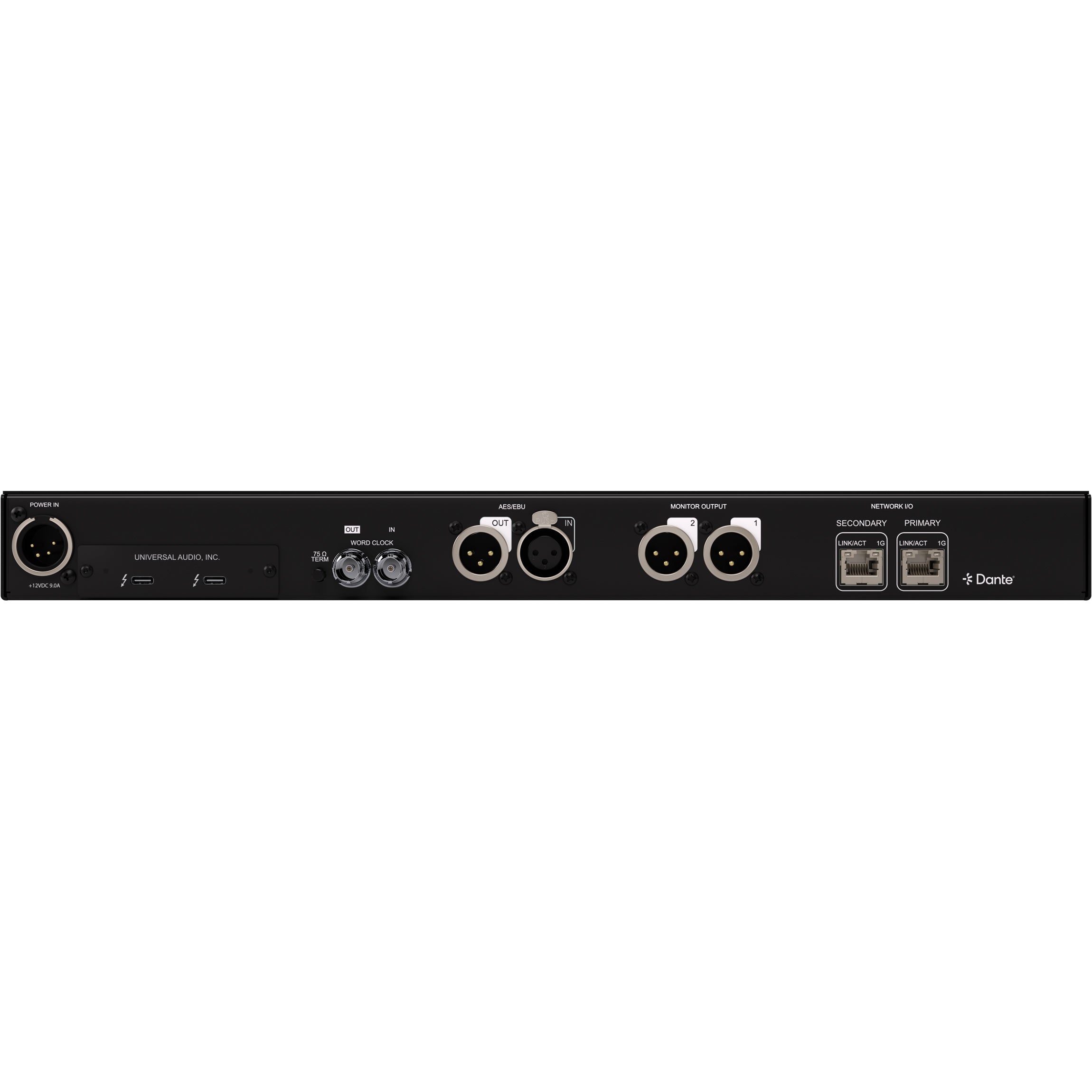

Apollo X16D
Thunderbolt Audio Interface
Perfect for live sound venues or networked recording studios, Apollo x16D gives you elite-class Apollo X sound and realtime UAD plug-in processing over Thunderbolt and Dante. With Apollo x16D, you can mix and record live performances with over 200 UAD plug-ins from Neve, SSL, and Auto-Tune, plus classic LA-2A and 1176 compressors, and more.
Features
- 18 x 20 audio interface featuring Dante I/O (supports AES67 mode @ 48 kHz)
- 24-bit / 192 kHz elite-class Apollo X D/A conversion
- Stereo AES I/O for connection to professional digital outboard hardware
- Includes up to 100+ UAD plug-ins with Ultimate+ or Essentials+ editions
- Recall plug-in settings over MIDI, even in the middle of a performance
- Onboard HEXA Core Processing for mixing with UAD plug-ins at near-zero latency
- Compatible with Thunderbolt Apollo interfaces to expand systems over Dante*
- Create 16-channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and others
- ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for all)
- Free industry-leading technical support from knowledgeable audio engineer
Specifications
- Computer Connectivity: Thunderbolt 3
- Form Factor: Rackmount
- Simultaneous I/O: 18 x 20
- A/D Resolution: Up to 24-bit/192kHz
- Analog Inputs: 2 x XLR
- Analog Outputs: 2 x XLR
- USB: 2 x USB-C
- Thunderbolt: 2 x Thunderbolt 3
- Data I/O: 2 x Ethernet (Dante)
- Network: Dante
- Clock I/O: In/Out
- Power Supply: 12V DC power supply
Essentials+ Edition
Included Plug-Ins in Essentials+ Edition
Channel Strips & Preamps
- Century Tube Channel Strip
- CS-1 Channel Strip
- Helios Type 69 Preamp & EQ
- Helios Type 69 Preamp & EQ Legacy
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
Compressors/Limiters
- Fairchild 670 Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-2A Silver Classic Leveler
- UA 1176LN Legacy
- UA 1176SE Legacy
Special Processing
- Auto-Tune Realtime Access
- Precision Enhancer Hz
Instruments
- PolyMAX Synth
Delay & Modulation
- Galaxy Tape Echo
- Oxide Tape Recorder
- Precision Delay Mod
- Precision Delay Mod L
Reverbs & Rooms
- Precision Reflection Engine
- Pure Plate Reverb
- RealVerb Pro
Equalizers
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec-Pro Legacy EQ
Guitar & Bass
- Raw Distortion
- Ampeg SVT-VR Bass Amplifier
- Marshall Plexi Classic Amplifier
Ultimate+ Edition
Included Plug-Ins in Ultimate+ Edition
Channel Strips & Preamps
- API Preamp
- API Vision Channel Strip
- API Vision Legacy Channel Strip
- Avalon VT-737sp Channel Strip
- Century Tube Channel Strip
- CS-1 Channel Strip Plug-In
- Manley Reference Microphone Preamp
- Manley VOXBOX Channel Strip
- Neve 88RS Channel Strip
- Neve 88RS Legacy Channel Strip
- Neve Preamp
- Precision Channel Strip
- SSL E Series Channel Strip
- SSL E Series Channel Strip Legacy
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
- V76 Preamplifier
Compressors/Limiters
- API 2500 Stereo Bus Compressor
- dbx 160 Compressor / Limiter
- Empirical Labs Distressor
- Fairchild 660 Compressor
- Fairchild 670 Compressor
- Fairchild 670 Legacy Compressor
- Manley Variable Mu Limiter Compressor
- Neve 2254E Compressor
- Neve 2254E Dual Compressor
- Neve 33609 Compressor
- Neve 33609SE Compressor
- Precision Buss Compressor
- SSL G Series Bus Compressor
- SSL G Series Bus Compressor Legacy
- Teletronix LA-2A Classic Leveler
- Teletronix LA-2A Gray Classic Leveler
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-2A Silver Classic Leveler
- Teletronix LA-3A Classic Leveler
- UA 1176AE Classic Limiter
- UA 1176LN Legacy Limiting Amplifier
- UA 1176SE Legacy Limiting Amplifier
- UA 1176 Rev A Classic Limiter
- UA 1176LN Rev E Classic Limiter
- UA 175B Classic Limiter Plug-In
- UA 176 Classic Limiter Plug-In
Special Processing
- Auto-Tune Realtime X
- Auto-Tune Realtime Access
- Ampex ATR-102 Mastering Tape Recorder
- Empirical Labs FATSO Jr. Tape Sim. & Compressor
- Empirical Labs FATSO Sr. Tape Sim. & Compressor
- Little Labs IBP Phase Alignment Tool
- Little Labs Voice Of God Bass Resonance
- Moog Multimode Filter
- Moog Multimode Filter SE
- Moog Multimode Filter XL
- Oxide Tape Recorder
- Precision De-Esser
- Precision Enhancer Hz
- Precision Enhancer kHz
- Studer A800 Multichannel Tape Recorder
- Thermionic Culture Vulture
Instruments
- Electra 88 Vintage Keyboard Studio
- Moog Minimoog
- Opal Morphing Synth
- PolyMAX Polyphonic Synth
- Ravel Grand Piano
- Waterfall B3 Organ
Delay & Modulation
- Brigade Chorus Pedal
- Cooper Time Cube MkII Delay
- EP-34 Tape Echo
- Galaxy Tape Echo
- KORG SDD-3000 Digital Delay
- MXR Flanger/Doubler
- Precision Delay Modulation
- Precision Delay Modulation Long
- Studio D Chorus
- Waterfall Rotary Speaker
Reverbs & Rooms
- AKG BX 20 Spring Reverb
- Capitol Chambers
- DreamVerb Room Modeler
- EMT 140 Classic Plate Reverb
- EMT 250 Electronic Reverb
- Hitsville Reverb Chambers
- Lexicon 224 Digital Reverb
- Lexicon 480L Digital Reverb and Effects
- Ocean Way Studios
- Precision Reflection Engine
- Pure Plate Reverb
- RealVerb Pro Custom Room Modeler
- UAD Sound City Studios Plug-In
Equalizers
- API 550A Parametric EQ
- API 560 Graphic EQ
- Cambridge EQ
- Harrison 32C Channel EQ
- Harrison 32C SE Channel EQ
- Helios Type 69 Legacy EQ
- Helios Type 69 Preamp and EQ
- Hitsville EQ Plug-In
- Manley Massive Passive EQ
- Neve 1073 Preamp & EQ
- Neve 1073 Legacy Classic Console EQ
- Neve 1073SE Legacy Classic Console EQ
- Neve 1084 Preamp & EQ Plug-In
- Precision Equalizer
- Pultec EQP-1A Legacy EQ
- Pultec EQP-1A Passive EQ
- Pultec HLF-3C Passive EQ
- Pultec MEQ-5 Passive EQ
- Pultec-Pro Legacy EQ
- Trident A-Range Classic Console EQ
Mastering
- Capitol Mastering Compressor
- Hitsville Mastering EQ
- Manley Massive Passive Mastering EQ
- Precision K-Stereo Ambience Recovery
- Precision Maximizer
- Precision Multiband
- Precision Limiter
LUNA Extensions
- API Summing
- API Vision Console Emulation Extension
- Ampex ATR-102 Mastering Tape Extension
- Studer A800 Multichannel Tape Extension
Guitar
- Ampeg SVT-VR Classic Bass Amplifier
- Bermuda Triangle
- Fender ’55 Tweed Deluxe
- Marshall Plexi Classic Amplifier
- Raw Distortion
- TS Overdrive Pedal
Shop Apollo Rackmount | Gen 2
-
Universal Audio Apollo x6 | Gen 2 Essentials+ Edition Thunderbolt Interface
Regular price $1,998.88Regular priceUnit price per$2,149.99Sale price $1,998.88Sale -
Universal Audio Apollo x8p | Gen 2 Essentials+ Edition Thunderbolt Interface
Regular price $3,499.00Regular priceUnit price per -
Universal Audio Apollo x16 | Gen 2 Ultimate+ Edition Thunderbolt Audio Interface
Regular price $4,299.00Regular priceUnit price per -
Universal Audio Apollo x16 | Gen 2 Essentials+ Edition Thunderbolt Interface
Regular price $3,999.00Regular priceUnit price per -
Universal Audio Apollo x8p | Gen 2 Studio+ Edition Thunderbolt Audio Interface
Regular price $3,799.00Regular priceUnit price per -
Universal Audio Apollo x8 | Gen 2 Studio+ Edition Thunderbolt Audio Interface
Regular price $3,299.00Regular priceUnit price per -
Universal Audio Apollo x8 | Gen 2 Essentials+ Edition Thunderbolt Interface
Regular price $2,999.00Regular priceUnit price per -
Universal Audio Apollo x6 | Gen 2 Studio+ Edition Thunderbolt Audio Interface
Regular price $2,799.00Regular priceUnit price per
