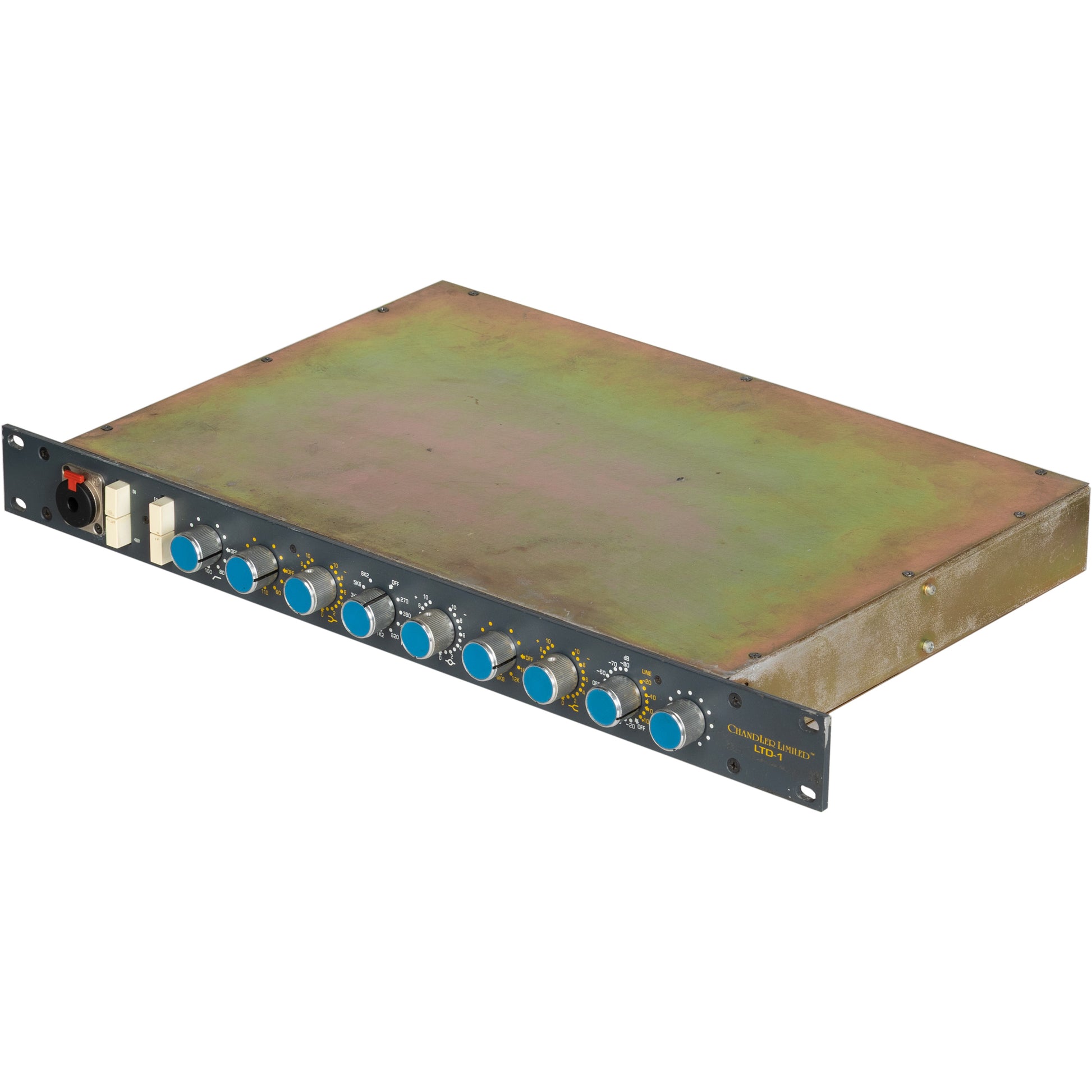

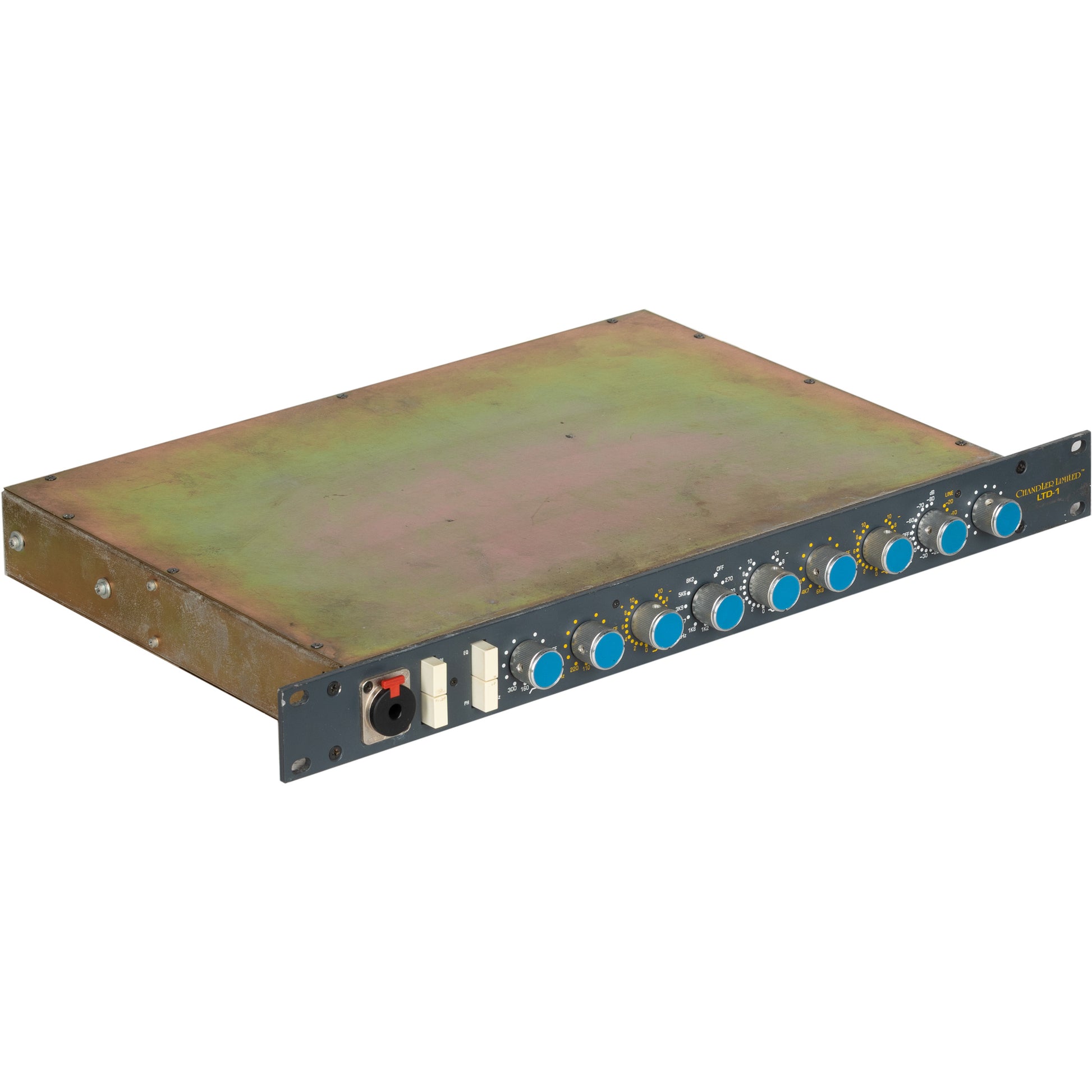

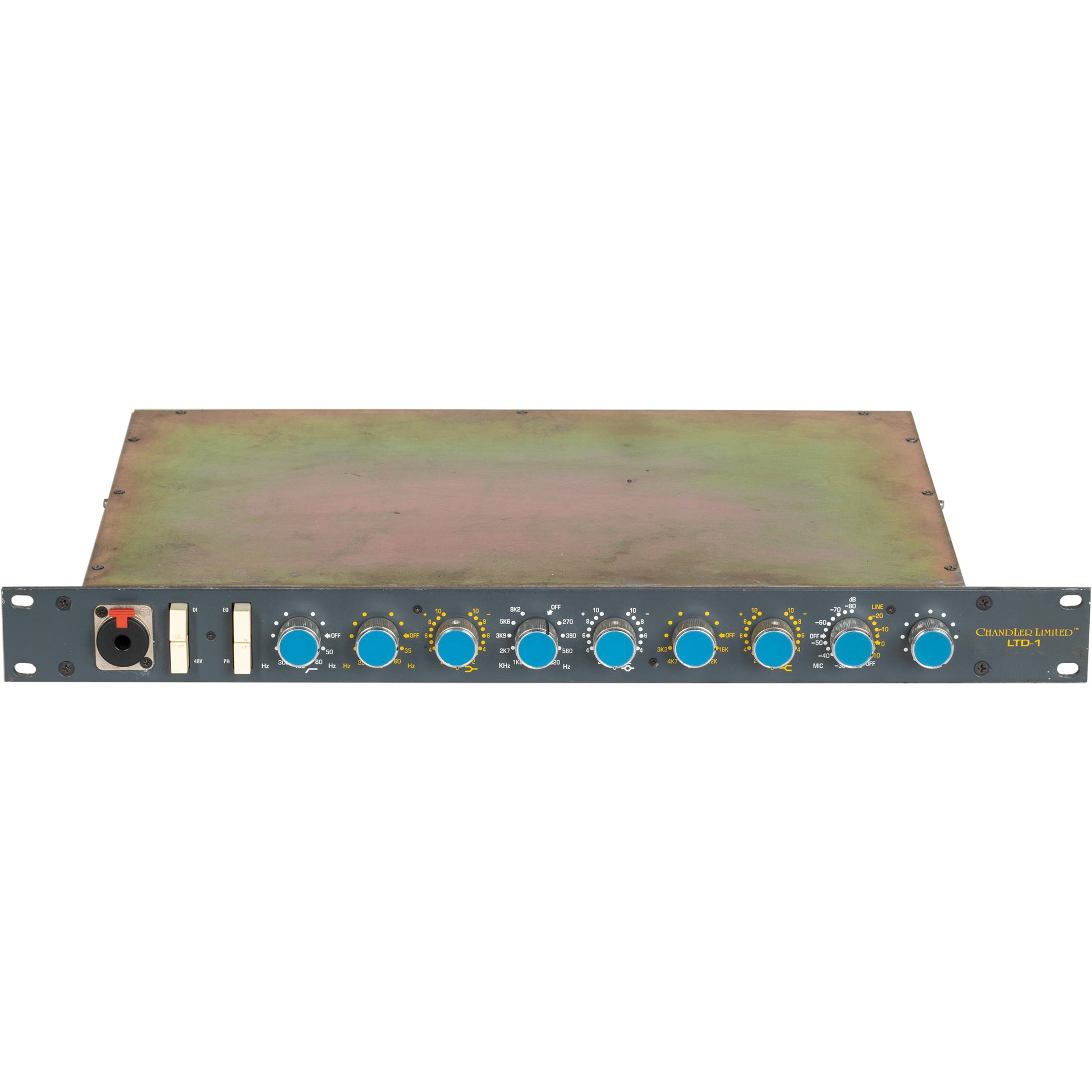

*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product. Power supply not included.
The Chandler Limited LTD-1 is a hand-wired 10-series equalizer and preamp that was built with the same techniques and parts that were used in the original modules. The LTD-1's features include a high-impedance DI input, switchable 48V phantom power, an EQ in/out button, phase reverse, balanced mic and line inputs (all connections on the unit are transformer balanced), and a DI in/out button that mutes the mic input. The Output knob functions like a mixing console fader; you can lower it in order to crank the input and add additional coloration without overloading connected devices.
The EQ section includes low-shelving, mid-peak, and high-shelving bands, plus a high-pass filter. All frequency points are fixed, and Chandler has added additional points to supplement those from the original 10-series units. The LTD-1 is powered by Chandler Limited's PSU-1 power supply, which must be purchased separately.
| Product Name | Chandler Limited LTD-1 Dual Compressor |
|---|---|
| Brand | Chandler Limited |
| Condition | Pre-Owned |
| MPN | LTD-1 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Chandler Limited LTD-1 Dual Compressor
- Hand-wired 10-series-style equalizer and preamp that was constructed with parts and build techniques from the original manufacture of the modules
- High-impedance direct input
- 48V switchable phantom power
- DI in/out switch; also acts as a mute for the mic input
- Low-shelving EQ with four frequency selections
- Peak-EQ with ten frequency selections
- High-shelving EQ with five frequency selections
- High-pass filter with four frequency settings
- Output Control that functions like a fader on a mixing console. Use it to adjust between the 5 dB steps of the input or to run the input hot without distorting your recorder (for extra coloration)

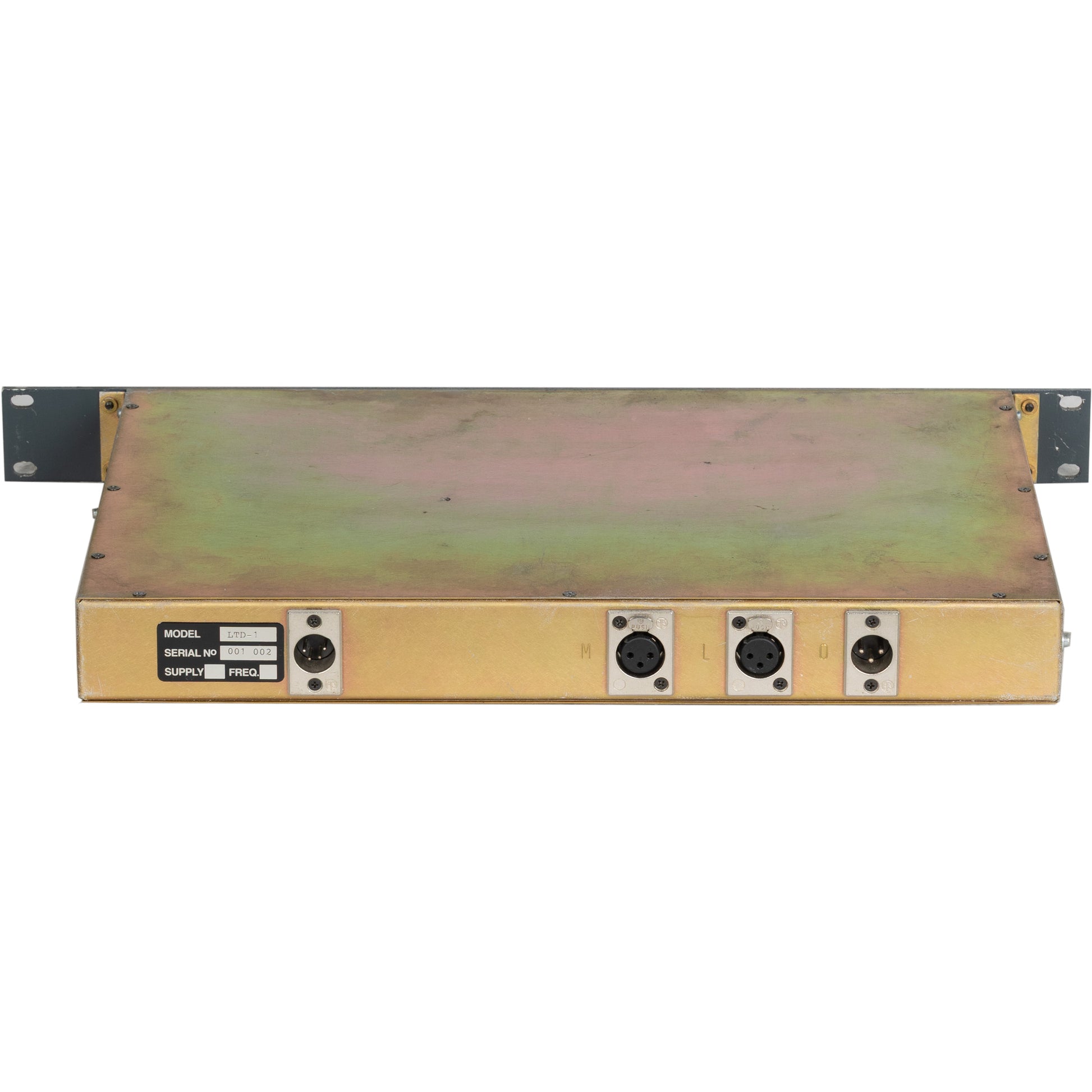

- Balanced XLR input and output jacks on rear panel; 1/4" DI input on front
Specifications |
|
|---|---|
| Number of Channels | Single |
| Inputs | 1 x 1/4" DI (unbalanced) 1 x XLR Mic (balanced) |
| Outputs | 1 x XLR Output (balanced) |
| Frequency Response | Not Published By Manufacturer |
Preamp |
|
| Gain Range | Mic 60 dB, Line 30 dB |
| Input Impedance | Mic 1200Ω Line 10kΩ |
| Phantom Power | 48V |
Equalizer |
|
| Filter Type | High-Pass Low EQ: Low-shelving Mid EQ: Peak High EQ: High-shelving |
| Fixed Frequency Points | Low EQ: 220, 110, 60, 35 Hz Mid EQ: 270, 390, 560, 829 Hz and 1.2, 1.8, 2.7, 3.9, 5.6, 8.2 kHz High EQ: 3.3, 4.7, 6.8, 12, 16 kHz High-Pass Filter: 50, 80, 160, 300 Hz |
Physical |
|
| Controls | 9 x Rotary EQ Controls 1 x EQ Switch 1 x Phase Switch 1 x DI In/Out Switch |
| Dimensions | 19" (48.3 cm) x 1RU |
| Weight | 10 Lbs (4.54 kg) |
Chandler Limited LTD-1 Dual Compressor
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product. Power supply not included.
The Chandler Limited LTD-1 is a hand-wired 10-series equalizer and preamp that was built with the same techniques and parts that were used in the original modules. The LTD-1's features include a high-impedance DI input, switchable 48V phantom power, an EQ in/out button, phase reverse, balanced mic and line inputs (all connections on the unit are transformer balanced), and a DI in/out button that mutes the mic input. The Output knob functions like a mixing console fader; you can lower it in order to crank the input and add additional coloration without overloading connected devices.
The EQ section includes low-shelving, mid-peak, and high-shelving bands, plus a high-pass filter. All frequency points are fixed, and Chandler has added additional points to supplement those from the original 10-series units. The LTD-1 is powered by Chandler Limited's PSU-1 power supply, which must be purchased separately.
| Product Name | Chandler Limited LTD-1 Dual Compressor |
|---|---|
| Brand | Chandler Limited |
| Condition | Pre-Owned |
| MPN | LTD-1 |
What's in the Box?
Chandler Limited LTD-1 Dual Compressor- Hand-wired 10-series-style equalizer and preamp that was constructed with parts and build techniques from the original manufacture of the modules
- High-impedance direct input
- 48V switchable phantom power
- DI in/out switch; also acts as a mute for the mic input
- Low-shelving EQ with four frequency selections
- Peak-EQ with ten frequency selections
- High-shelving EQ with five frequency selections
- High-pass filter with four frequency settings
- Output Control that functions like a fader on a mixing console. Use it to adjust between the 5 dB steps of the input or to run the input hot without distorting your recorder (for extra coloration)
- Balanced XLR input and output jacks on rear panel; 1/4" DI input on front
Specifications |
|
|---|---|
| Number of Channels | Single |
| Inputs | 1 x 1/4" DI (unbalanced) 1 x XLR Mic (balanced) |
| Outputs | 1 x XLR Output (balanced) |
| Frequency Response | Not Published By Manufacturer |
Preamp |
|
| Gain Range | Mic 60 dB, Line 30 dB |
| Input Impedance | Mic 1200Ω Line 10kΩ |
| Phantom Power | 48V |
Equalizer |
|
| Filter Type | High-Pass Low EQ: Low-shelving Mid EQ: Peak High EQ: High-shelving |
| Fixed Frequency Points | Low EQ: 220, 110, 60, 35 Hz Mid EQ: 270, 390, 560, 829 Hz and 1.2, 1.8, 2.7, 3.9, 5.6, 8.2 kHz High EQ: 3.3, 4.7, 6.8, 12, 16 kHz High-Pass Filter: 50, 80, 160, 300 Hz |
Physical |
|
| Controls | 9 x Rotary EQ Controls 1 x EQ Switch 1 x Phase Switch 1 x DI In/Out Switch |
| Dimensions | 19" (48.3 cm) x 1RU |
| Weight | 10 Lbs (4.54 kg) |
