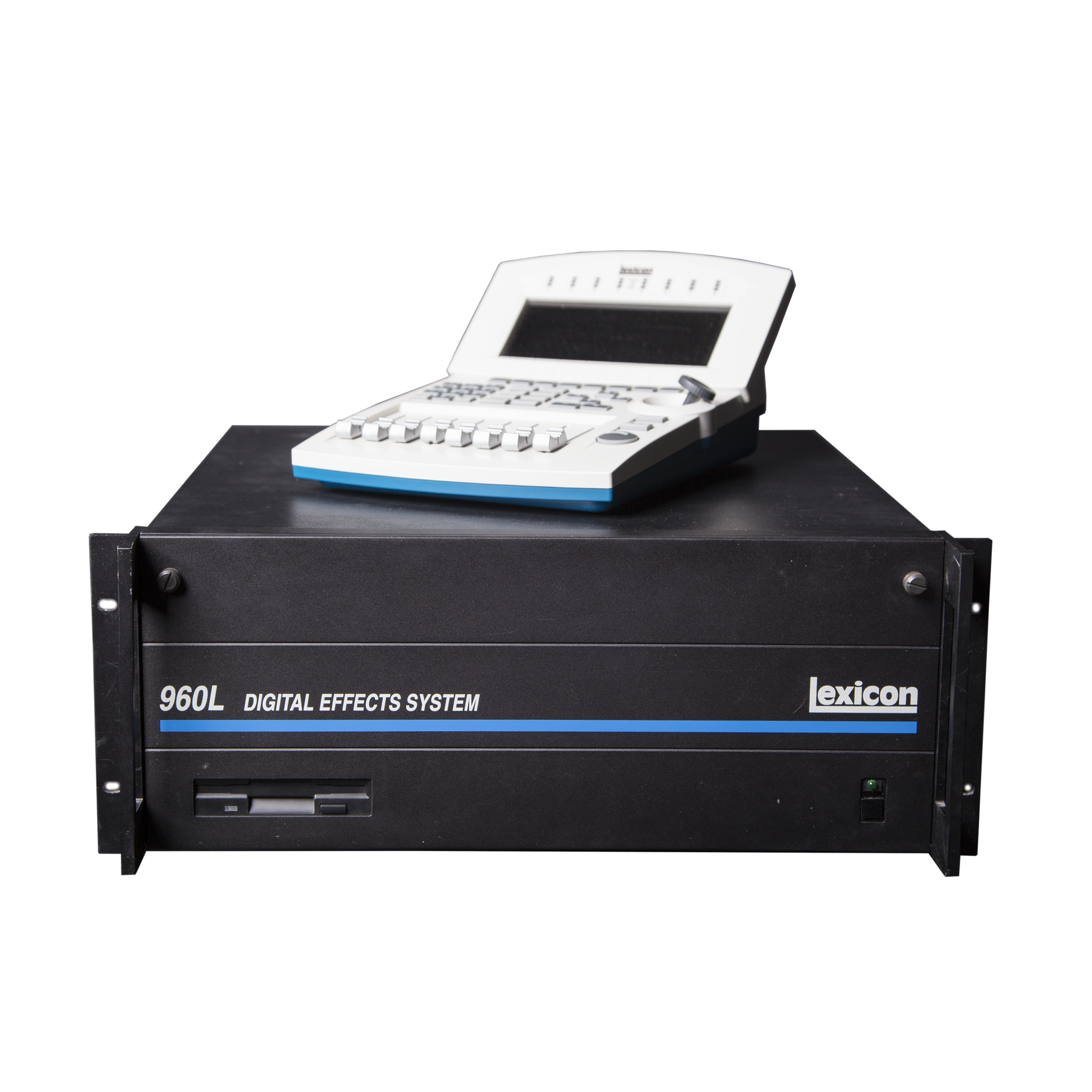

Designed specifically for the professional audio, broadcasting, film, post-production and live sound markets, the 960L utilizes a bold new technology platform. it will redefine world-class reverberation with a totally new paradigm of intelligent software algorithms based upon 3DPM™ Technology (3D Perceptual Modeling). This new breakthrough technology introduces entirely new acoustic environments based upon recent critical research on how the human brain perceives complex sounds. Lexicon's 3DPM not only allows sound designers to create the most realistic sounding acoustic environments ever, it also allows for the creation of new and unheard of spaces.
The 960L is capable of full 24-bit/96kHz performance and the factory standard I/O configuration boasts 8 channels of XLR-balanced analog audio as well as full AES/EBU digital I/O in a 4-unit, rack-mounting CPU mainframe. The all-new Lexicon Alpha-numeric Remote Controller (LARC2) compliments the new 960L mainframe. Multiple DSP configurations include: Stereo, 5.1 Surround, Multiple-Stereo, and Stereo plus 5.1 Surround with 44.1, 48, 88.2 and 96kHz sampling rates.
The extensive sonic palette of factory programs includes such time-proven standards as Halls, Chambers, Rooms, Plates, Ambience, Wild Spaces, Post and more. Up to 500 additional user-definable programs may be stored in the CPU.

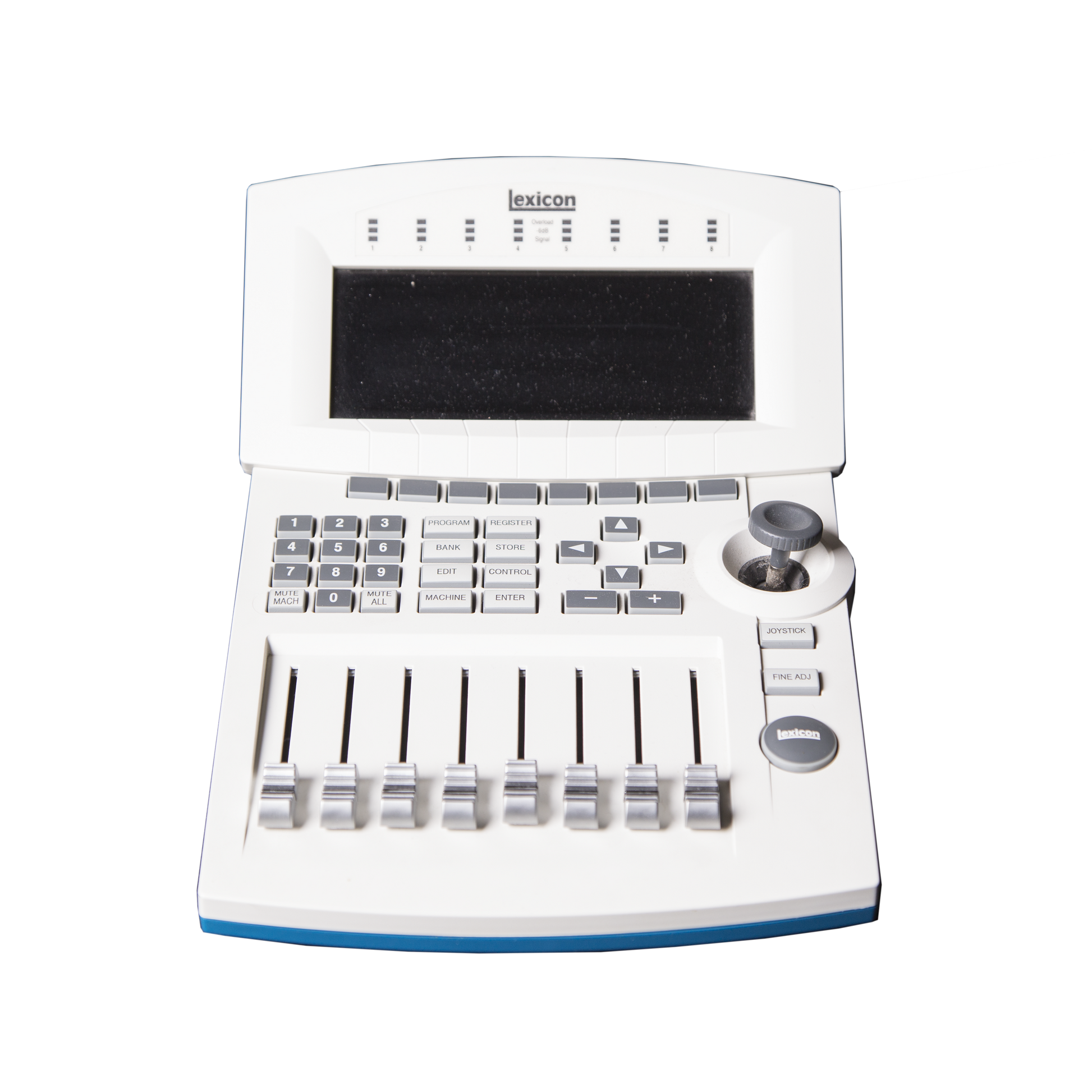

The user interface for the 960L is a totally redesigned and enhanced LARC2 remote controller. Fashioned after the original LARC, which sits atop the leading recording and post-production consoles throughout the world, the new LARC2 provides a simple and intuitive user interface based on the world standard 480L. A variety of input control devices are provided for maximum control and these can be custom tailored for additional flexibility.
Lexicon commissioned an award-winning industrial design company to co-develop the LARC2. Featuring a highly-stylized design with a large, easy-to-read color backlit LCD display, the LARC2 has eight touch-sensitive motorized faders, a two-axis joystick for surround sound panning/placement control, eight soft and twenty-nine dedicated function keys. using this extensive array of controls, the user has instant access to a variety of parameters including machine and system status, fader label/value, soft key, machine setup/select, system control/edit, mute/bypass and joystick control. The LARC2 also features and extremely small footprint (8.0" x 10.5" x 5.5") and may be located several hundred feet from the 960L CPU.
| Product Name | Lexicon 960L with LARC2 (C101506) |
|---|---|
| Brand | Lexicon |
| Condition | Pre-Owned |
| MPN | 960L |
| Shipping Option | Free Shipping to the Continental U.S. |
- Redefines World-class Reverberation
- 24-bit/96kHz Processing
- Lexicon 3DPM™ Algorithms (3-Dimensional Perceptual Modeling)
- True Multi-Channel Surround Sound and Stereo Reverb Processing
- LARC2™ Remote Control: 480L-based Intuitive User Interface
- Flexible Input and Output Mixing Capabilities
- Expandable Audio and Control I/O
- Hardware and Software Expandable DSP
- Extensive Sonic Palette of Factory Programs
- Eight Touch-Sensitive Motorized (auto-nulling) Faders
- Assignable Joystick for Surround Panning and Creative Parameter Control
- Multiple 3DPM DSP Configurations: Stereo, 5.1 Surround, Combined
- Eight 24-bit/96kHz Balanced XLR Analog I/O
- Four Stereo Pairs of 24-bit/96kHz AES/EBU Digital I/O
- MIDI In/Out/Thru
- BNC Word Clock Input/Output/Loopthru
- CD-ROM Drive for Software Upgrades
Analog Input
- Connectors Eight, Female XLR
- Impedance 50k½, balanced
- Level (for 0 dbFS) +24dBu
- Frequency Response @ 48kHz 20Hz-20kHz, ±1dB
- Frequency Response @ 96kHz 20Hz-40kHz, ±1dB
- A/D Conversion 24 bits, 128x oversampled
- A/D Dynamic Range >110dB (20Hz-20kHz)
- THD < .002%
- CMRR >50dB
- Crosstalk @ 1kHz < -100dB
Analog Output
- Connectors Eight, Male XLR
- Impedance 50½, balanced
- Level (for 0 dbFS) +24dBu
- Frequency Response @ 48kHz 20Hz-20kHz, ±1dB
- Frequency Response @ 96kHz 20Hz-40kHz, ±1dB
- D/A Conversion 24 bits<br>8x oversampled @ 44.1/48kHz<br>4x oversampled @ 88.2/96kHz
- D/A Dynamic Range >110dB (20Hz-20kHz)
- THD < .002%
- Crosstalk @ 1kHz < -100dB
A/A Performance
- Frequency Response @ 48kHz 20Hz-20kHz, ±1dB
- Frequency Response @ 96kHz 20Hz-40kHz, ±1dB
- Dynamic Range >107dB (20Hz-20kHz)
- THD < .002%
- Digital Audio I/O
- Connectors Four Male XLR Outputs;<br>Four Female XLR Inputs
- Format AES/EBU
- Word Size 24-bits
Sample Rates
- Internal 44.1/48/88.2/96kHz
- Accuracy Within ±10ppm
- Meets AES 11, Grade 2
- 9 External 44.1/48/88.2/96kHz
- Lock Range ±1.5%
Synchronization
- TTL Word Clock Input 75½, BNC<br>self-terminating loopthru
- TTL Word Clock Output BNC
- Clock Jitter Intrinsic Jitter and Jitter Gain<br>Exceeds AES3, Amendment 1
Control Interfaces
- Remote Control LARC2 ports (2)
- MIDI In/Out/Thru 5-Pin DIN
Reverb Types
- Ambience 48K Stereo and Surround
- Chamber 48K Stereo and Surround
- Plate 48K Stereo and Surround
- Reverse 48K Stereo and Surround
- Random Hall 48/96K Stereo and Surround
- Ambient Chamber 48K Surround
- Reverb Card Configurations
- 44.1/48K Performance Stereo Machines (4)<br>2 In x 5 Out Machines (2)<br>5 In + 2 In x 5 Out Machines
- 88.2/96K Performance Stereo Machines (2)<br>2 In x 5 Out Machines (1)<br>5 In x 5 Out Machines (1)
- Internal Hard Disk Storage
- Factory Programs >200
- User Registers 1,000
- Removable 3.5" Floppy Disk Storage
- User Programs 100
Power
- Requirements 100-120/220-240 VAC,<br>50-60Hz, 300W max
- Connector 3-pin IEC
- Physical Specifications
- Size 19.0"W x 17.4"D x 7.0"H<br>(483mm x 442mm x 178mm)<br>(4 rack units)
- Weight 35 lbs.
Regulatory Approvals
- FCC Class A; CE EN55103-1,
- EN55103-2; UL UL1419;
- C-UL C22.2; TUV EN60065
Environment
- Operating 10¡to 40¡C
- Storage -30¡to 70¡C
- Humidity 95% max, non-condensing
LARC2 Specifications
Display
- Type Passive Matrix LCD
- Resolution 640 x 240 pixels
- Colors 256
- Backlight CCFL (Fluorescent)
- Brightness Software controlled
- Contrast rear panel knob
- LED Meter Bridge
- Configuration 8 channels x 3 levels
- Levels -60dB, -6dB, -0.5dB (overload)
- Control Surface
- Faders Eight, 60mm throw,<br>motorized, touch sensitive
- Joystick Two-axis
- Dedicated Function Keys 29 (12 backlit)
- Soft Function Keys 8
Connectors
- 960L 9-pin D-sub
- Auxiliary PS/2 Keyboard 6-pin Mini-DIN
- External Power Concentric, 2.5mm
- Power
- Requirements 12 VDC, 2 Amps (max)
- Physical Specifications
- Size 12.7"L x 8.25"W x 5.0"H<br>(323mm x 210mm x 127mm)
- Weight 4 lbs.
- Regulatory Approvals
- FCC Class A;
- CE EN55103-1,
- EN55103-2; TUV EN60065
Environment
- Operating 5¡to 40¡C
- Storage -30¡to 70¡C
- Humidity 95% max, non-condensing
- Operating Distance
- Powered from 960 Mainframe Up to 100 feet
- With External Power Up to 1,000 feet
