The ATTY (rhymes with “Patty”) is a no-compromise totally transparent passive two-channel line-level attenuator. ATTY’s
attractive price point and tiny footprint (4-1/2” x 1-1/2” x 3”) makes it a highly versatile and convenient solution for many
applications. Suitable for use in any world-class recording facility, it can also serve as a cost-effective solution to more than
a few problems faced by project studio owners, and is an invaluable addition to just about any live or remote broadcast rig.

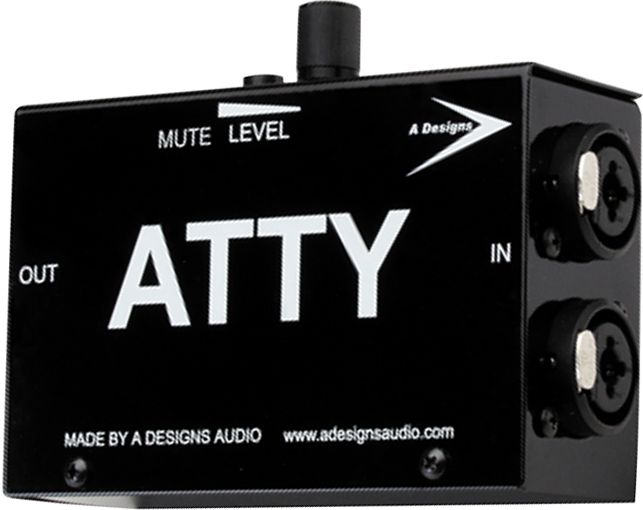

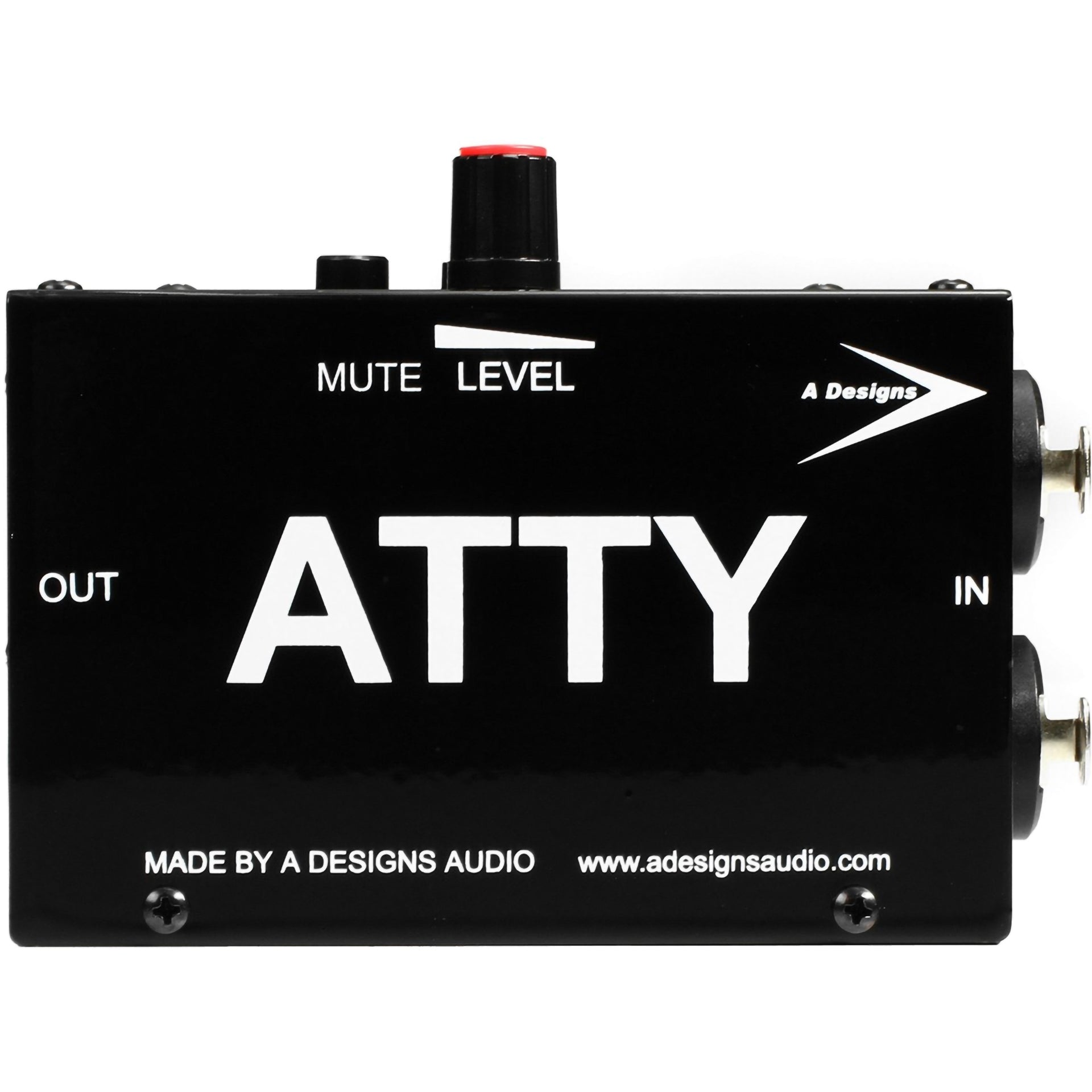

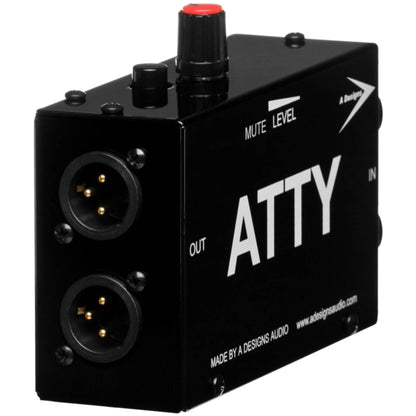

ATTY’s interface is simplicity personified. Housed in a rugged metal enclosure, it has two Neutrik XLR/balanced 1/4” combo
jacks and two balanced XLR outputs that deliver noise-free operation. A single convenient knob controls both output
channels, and a Mute button lets you easily silence your source without having to change a dialed-in level.
ATTY’s passive design allows it to be used in a plethora of applications, the most common being control of any line-level
output device…but wait - there’s more! Say you’re recording kick drum and snare with an API 3124. The input gain is set at
the sweet spot…but, due to the API’s hot output, you need a touch of attenuation to protect your converters from clipping,
and you don’t want to change sound quality by using its pads or record with compression. ATTY is the answer. Another
useful application is wiring an ATTY in line with a stereo tube preamp (such as the A-Designs MP-2A) and exploring different
in/out level combinations without overloading other gear. It’s also a handy device for maintaining level control of powered
monitors that have a separate volume control on each speaker. Once you calibrate your monitors to equal levels, you need
never touch them again
