The Sub10 PRO combines advanced DSP, powerful low-frequency audio reproduction and network-based calibration for stereo and multichannel monitoring systems. Its high-excursion 10” woofer and Class D amplifier deliver plentiful SPLs with minimal distortion thanks to the FEA-optimized bass port.

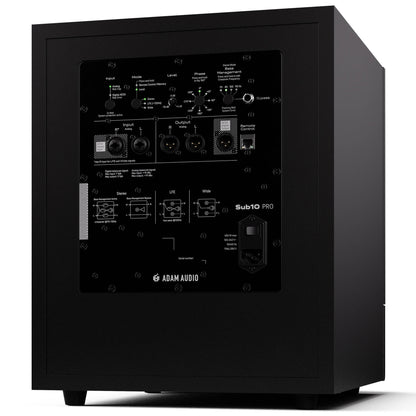

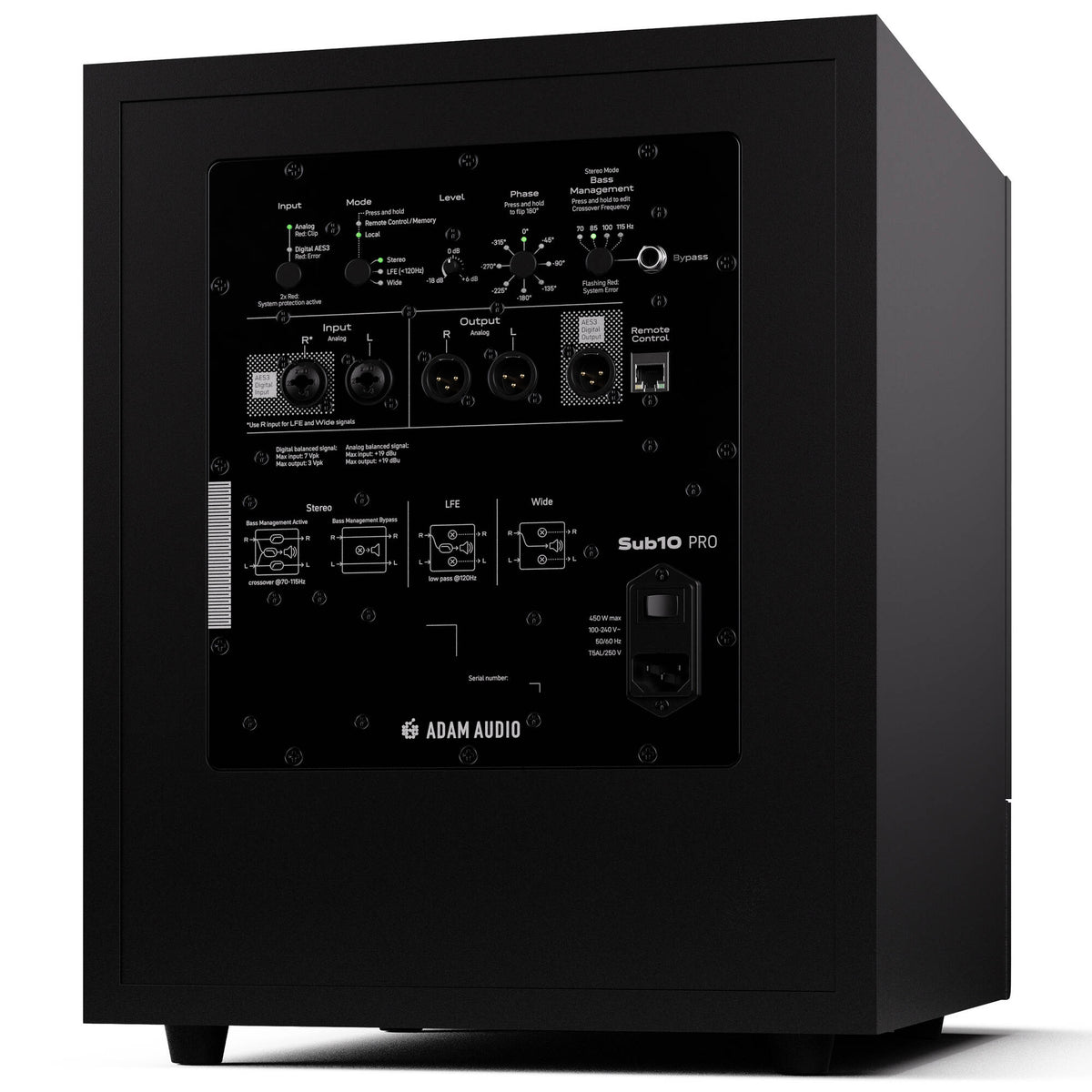

Professional connectivity on the backplate includes AES3 digital, balanced analog XLR and TRS, precise phase and crossover controls, plus a footswitch input for bass management. ADAM Control facilitates manual calibration over 4-bands of parametric EQ, plus the deployment of Sonarworks calibration profiles and firmware updates.
Three operating modes – Stereo, LFE and Wide – support conventional 2.1, immersive, and full-range applications. A robust wooden cabinet and protective metal grille ensure durability that is backed by a 2-year warranty, extendable to 5 years upon product registration.
| Product Name | ADAM Audio SUB10 Pro Subwoofer |
|---|---|
| Brand | ADAM Audio |
| Condition | New |
| MPN | AMS-SUB10-PRO |
| UPC | 4260113135594 |
| Shipping Option | Contact for a shipping quote |
What's in the Box?
- ADAM Audio SUB10 Pro Subwoofer
- IEC Power Cable
- Fiber-reinforced, paper-based 10” Woofer
- Total Peak Amp. Power: 200 W
- Calibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate
- Frequency Response @ -6 dB: 21 - 300 Hz
- Max. SPL at 1 m (Peak): 106 dB SPL
GENERAL DATA |
|
| Cabinet Design | Front Fire and front ported |
| Cabinet Material | Vinyl wrapped MDF and painted MDF front panel |
| Power Consumption (Max, Standby) | 450 W, 2.5 W |
| AC Input Voltage | 100–240 V, 50/60 Hz |
| Power Rating | 450 W max. |
| Operating Conditions | -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing |
| Weight | 22.8 kg (50 lbs 4 oz) |
| Dimensions (Height x Width x Depth) | 450 mm x 360 mm x 450 mm (17 3/4″ x 14 1/8″ x 17 3/4″) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Sub10 PRO subwoofer, power cable, Quick Start Guide |
AUDIO CONNECTORS |
|
| Analog Inputs | 2 x XLR / TRS combi |
| Digital Input | XLR AES3 |
| Analog Input Impedance | 25 kOhm |
| Digital Input Impedance | 110 Ohm |
| Max. Input Level | +19 dBu |
| Analog Outputs | 2 x XLR |
| Digital Outputs | XLR AES3 |
AMPLIFICATION |
|
| Amplifier Type | PWM |
| Peak (10% THD, Limiter Deactivated) | 325 W |
| RMS (1% THD, Limiter Deactivated) | 200 W @ 3 Ohm |
CONTROL OPTIONS (VIA NETWORK) |
|
| Networking Connector | RJ45 |
| Connection Type | Ethernet |
| Communication Protocol | AES70 / TCP |
| Control Software | ADAM Control (Windows and MacOS available) |
| Advanced Room Adaptation | 4-bands QEQ |
| Third-Party Calibration Compatibility | Sonarworks SoundID Reference |
ACOUSTICS |
|
| Frequency Response @ -3 dB | 22–264 Hz |
| Frequency Response @ -6 dB | 21–300 Hz |
| Crossover Frequencies | 70, 85, 100, 115 Hz (variable via ADAM Control) |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 50 Hz to 100 Hz) @ 3% THD (RMS) | 106 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 50 Hz to 100 Hz) @ 3% THD (Peak) | 110 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 25 Hz to 50 Hz) @ 10% THD (RMS) | 102 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 25 Hz to 50 Hz) @ 10% THD (Peak) | 105 dB SPL |
| Max Peak SPL in Full Space at 1 m with IEC-Weighted Noise (Full Range) | 113 dB SPL |
| Max Peak SPL in Full Space at 1 m with IEC-Weighted Noise (85 Hz Bass Managed) | 114 dB SPL |
| Dolby DARDT Max SPL in Full Space (Full Range Bass Managed) | 113 dB SPL |
DRIVER |
|
| Basket Diameter | 10″ |
| Voice Coil Diameter | 1 3/4″ (45 mm) |
| Cone Material | Paper, fiber-reinforced |
SIGNAL PROCESSING |
|
| AD Converter | 24-bit (via XLR/TRS inputs) |
| Internal Sample Rate | 96 kHz |
| Delay Range and Resolution | 0–10 ms, 32-bit |
| Protection | Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protection |
CONTROL OPTIONS (VIA BACKPLATE) |
|
| Input Sensitivity | 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space |
| Level | -18 dB to +6 dB |
| Input Selection | Analog, digital |
| Phase | 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315° |
| Bass Management | 70, 85, 100, 115 Hz |
| Operational Modes | Remote Control, Local / Stereo, LFE (<120Hz), Wide |
| Bypass | Yes, via footswitch (not included) and TRS connection (latched) |
