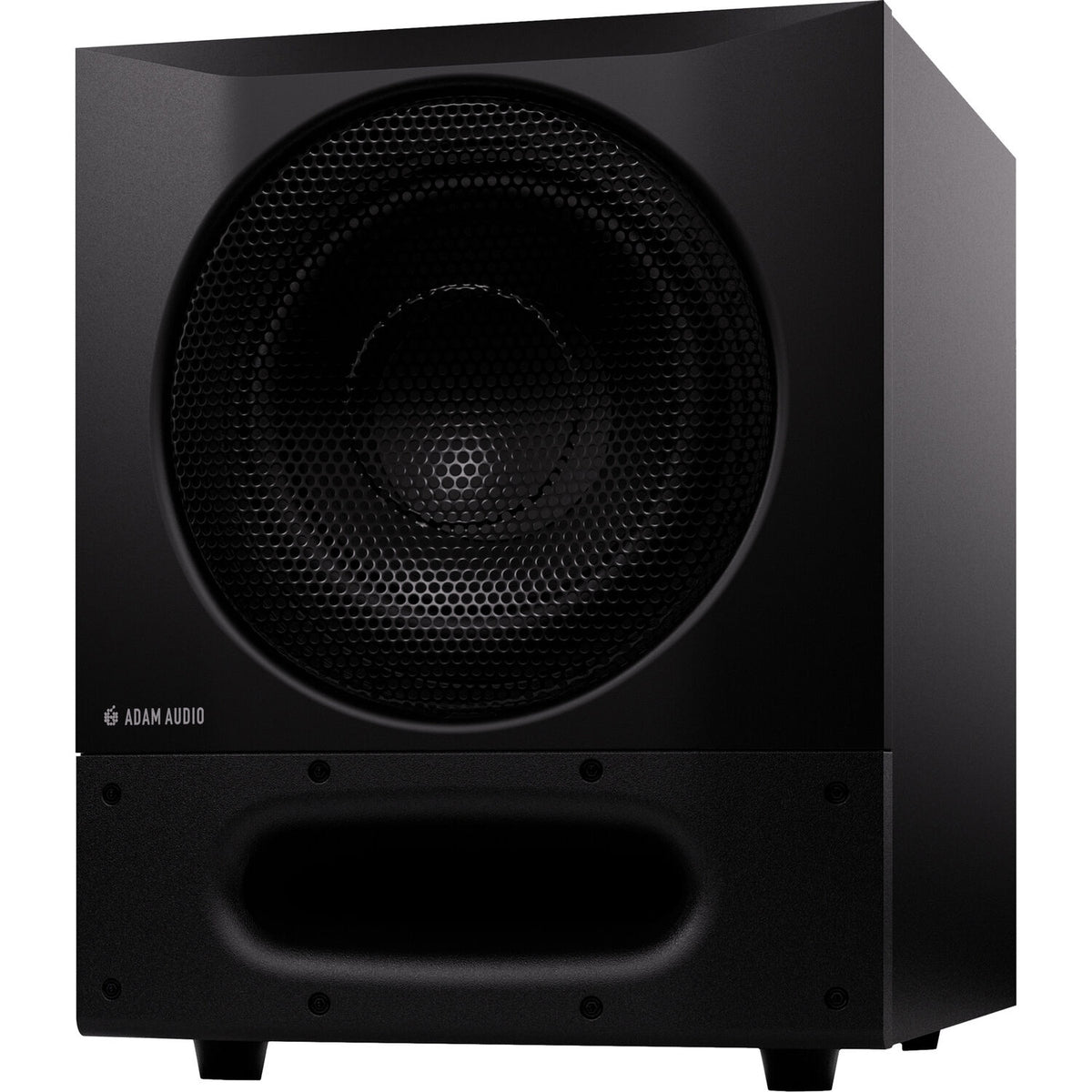

The Sub8 PRO combines advanced DSP technology with outstanding acoustic performance, making it an ideal foundation for compact monitoring systems. This networked subwoofer features a high-excursion 8” woofer, FEA-optimized bass port and powerful Class D amplifier.
An onboard Ethernet connection provides access to ADAM Control and its range of management and calibration tools. Users can manually time-align the subwoofer, apply four bands of parametric EQ and upload Sonarworks calibration profiles. Firmware updates can also be managed through the application, allowing future functionality to be added.
The Sub8 PRO offers Stereo, LFE, and Wide modes for conventional, immersive and full-range applications. Its robust wooden cabinet and protective metal grille ensure durability, with a 5-year warranty available upon product registration.
| Product Name | ADAM Audio SUB8 Pro Subwoofer |
|---|---|
| Brand | ADAM Audio |
| Condition | New |
| MPN | AMS-SUB8-PRO |
| UPC | 4260113135532 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- ADAM Audio SUB8 Pro Subwoofer
- IEC Power Cable
- Fiber-reinforced, paper-based 8” Woofer
- Total Peak Amp. Power: 200 W
- Calibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate
- Frequency Response @ -6 dB: 26 - 300 Hz
- Max. SPL at 1 m (Peak): 105 dB SPL
GENERAL DATA |
|
| Cabinet Design | Front Fire and front ported |
| Cabinet Material | Vinyl wrapped MDF and painted MDF front panel |
| Power Consumption (Max, Standby) | 400 W, 2.5 W |
| AC Input Voltage | 100–240 V, 50/60 Hz |
| Power Rating | 400 W max. |
| Operating Conditions | -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing |
| Weight | 15.3 kg (33 lbs 12 oz) |
| Dimensions (Height x Width x Depth) | 385 mm x 300 mm x 365 mm (15 1/8″ x 11 6/8″ x 14 3/8″) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Sub8 PRO subwoofer, power cable, Quick Start Guide |

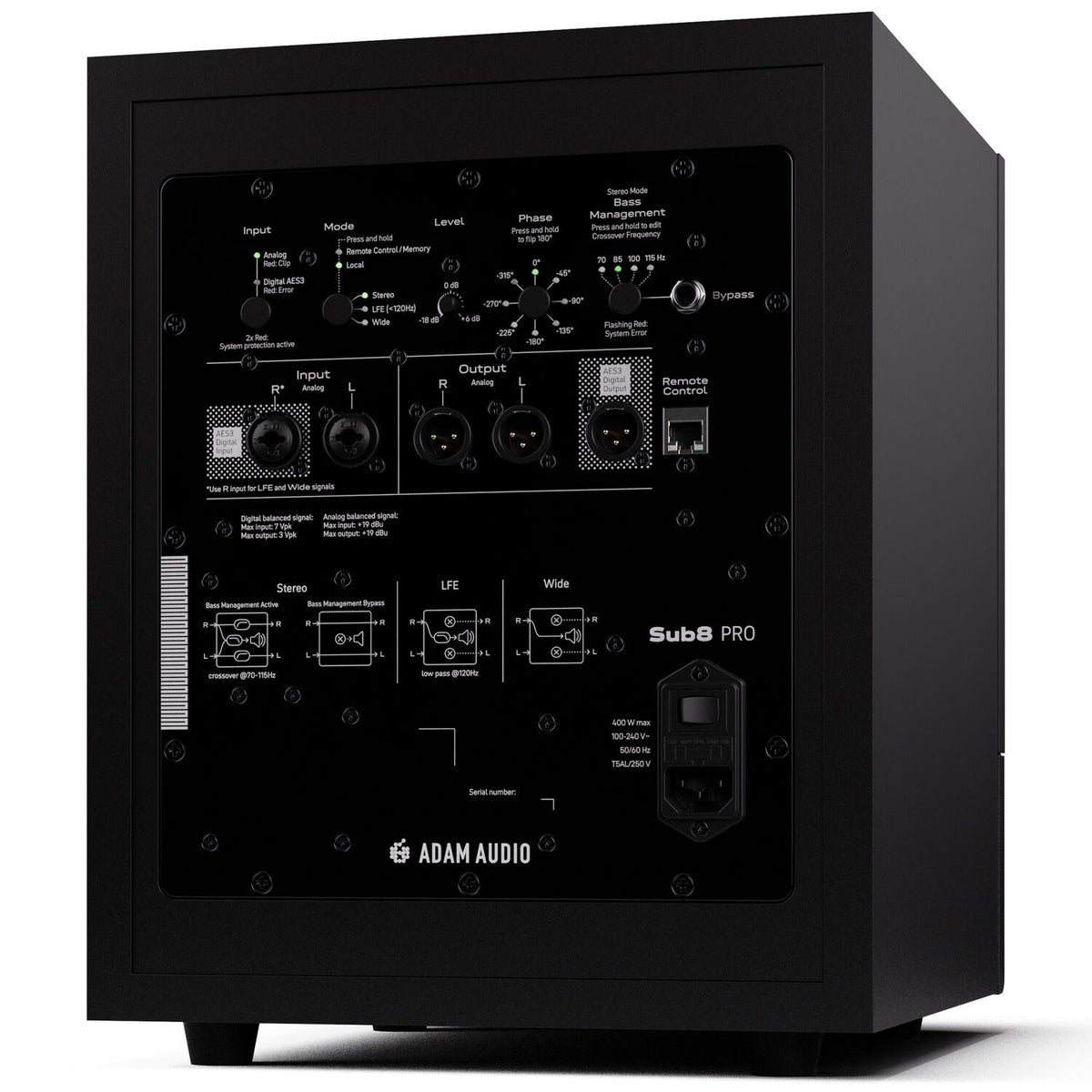

AUDIO CONNECTORS |
|
| Analog Inputs | 2 x XLR / TRS combi |
| Digital Input | XLR AES3 |
| Analog Input Impedance | 25 kOhm |
| Digital Input Impedance | 110 Ohm |
| Max. Input Level | +19 dBu |
| Analog Outputs | 2 x XLR |
| Digital Outputs | XLR AES3 |
AMPLIFICATION |
|
| Amplifier Type | PWM |
| Peak (10% THD, Limiter Deactivated) | 325 W |
| RMS (1% THD, Limiter Deactivated) | 200 W @ 3 Ohm |
CONTROL OPTIONS (VIA NETWORK) |
|
| Networking Connector | RJ45 |
| Connection Type | Ethernet |
| Communication Protocol | AES70 / TCP |
| Control Software | ADAM Control (Windows and MacOS available) |
| Advanced Room Adaptation | 4-bands QEQ |
| Third-Party Calibration Compatibility | Sonarworks SoundID Reference |
ACOUSTICS |
|
| Frequency Response @ -3 dB | 30–228 Hz |
| Frequency Response @ -6 dB | 26–300 Hz |
| Crossover Frequencies | 70, 85, 100, 115 Hz (variable via ADAM Control) |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 50 Hz to 100 Hz) @ 3% THD (RMS) | 105 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 50 Hz to 100 Hz) @ 3% THD (Peak) | 110 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 25 Hz to 50 Hz) @ 10% THD (RMS) | 101 dB SPL |
| Max SPL in Full Space at 1 m with Sine Bursts (Average 25 Hz to 50 Hz) @ 10% THD (Peak) | 104 dB SPL |
| Max Peak SPL in Full Space at 1 m with IEC-Weighted Noise (Full Range) | 112 dB SPL |
| Max Peak SPL in Full Space at 1 m with IEC-Weighted Noise (85 Hz Bass Managed) | 113 dB SPL |
| Dolby DARDT Max SPL in Full Space (Full Range Bass Managed) | 112 dB SPL |
DRIVER |
|
| Basket Diameter | 8″ |
| Voice Coil Diameter | 1 3/8″ (35 mm) |
| Cone Material | Paper, fiber-reinforced |
SIGNAL PROCESSING |
|
| AD Converter | 24-bit (via XLR/TRS inputs) |
| Internal Sample Rate | 96 kHz |
| Delay Range and Resolution | 0–10 ms, 32-bit |
| Protection | Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protection |
CONTROL OPTIONS (VIA BACKPLATE) |
|
| Input Sensitivity | 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space |
| Level | -18 dB to +6 dB |
| Input Selection | Analog, digital |
| Phase | 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315° |
| Bass Management | 70, 85, 100, 115 Hz |
| Operational Modes | Remote Control, Local / Stereo, LFE (<120Hz), Wide |
| Bypass | Yes, via footswitch (not included) and TRS connection (latched) |
