Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity.
All New Hardware.
The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.
Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.
Control
Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.
Reliable Recording and Playback. Anywhere.
Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.

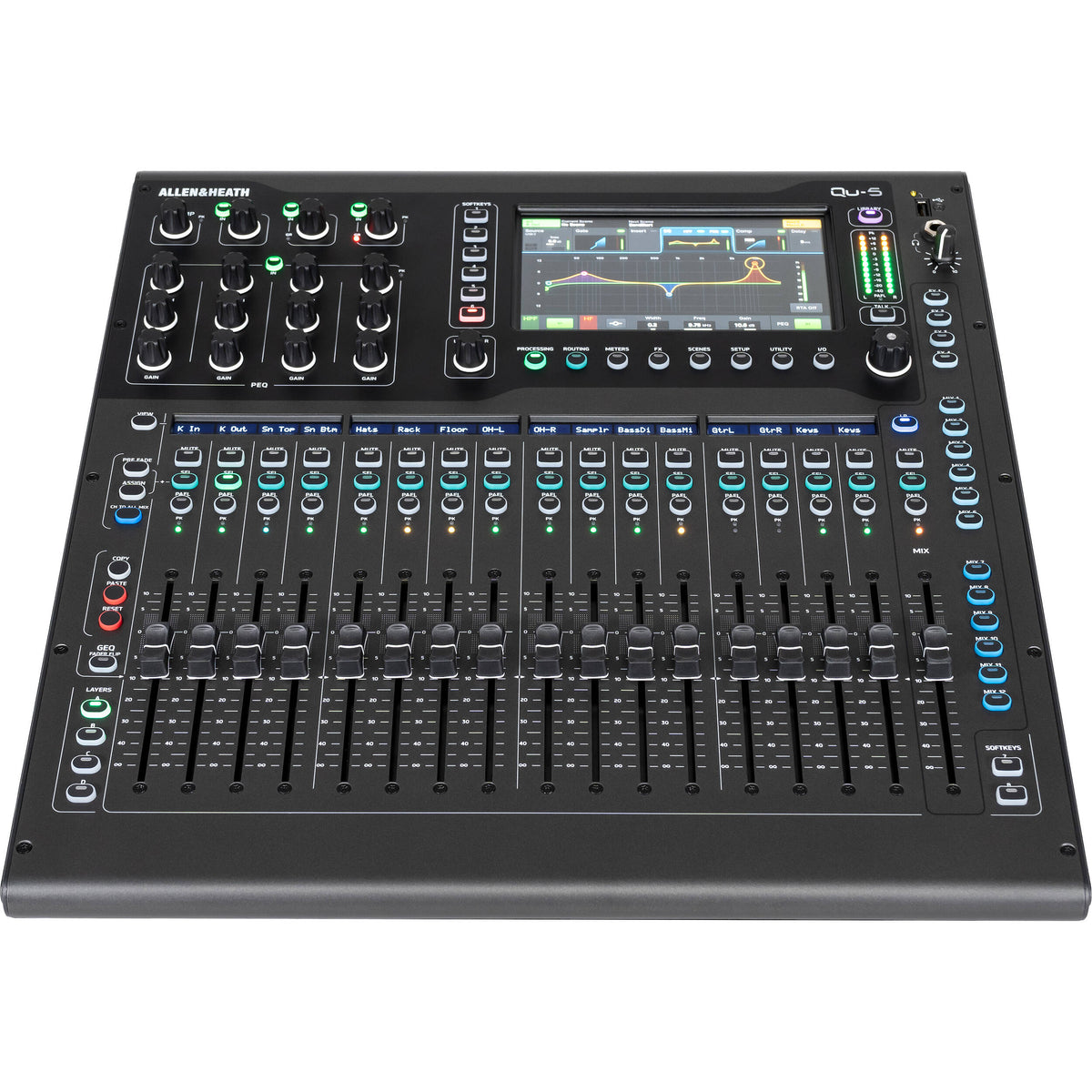

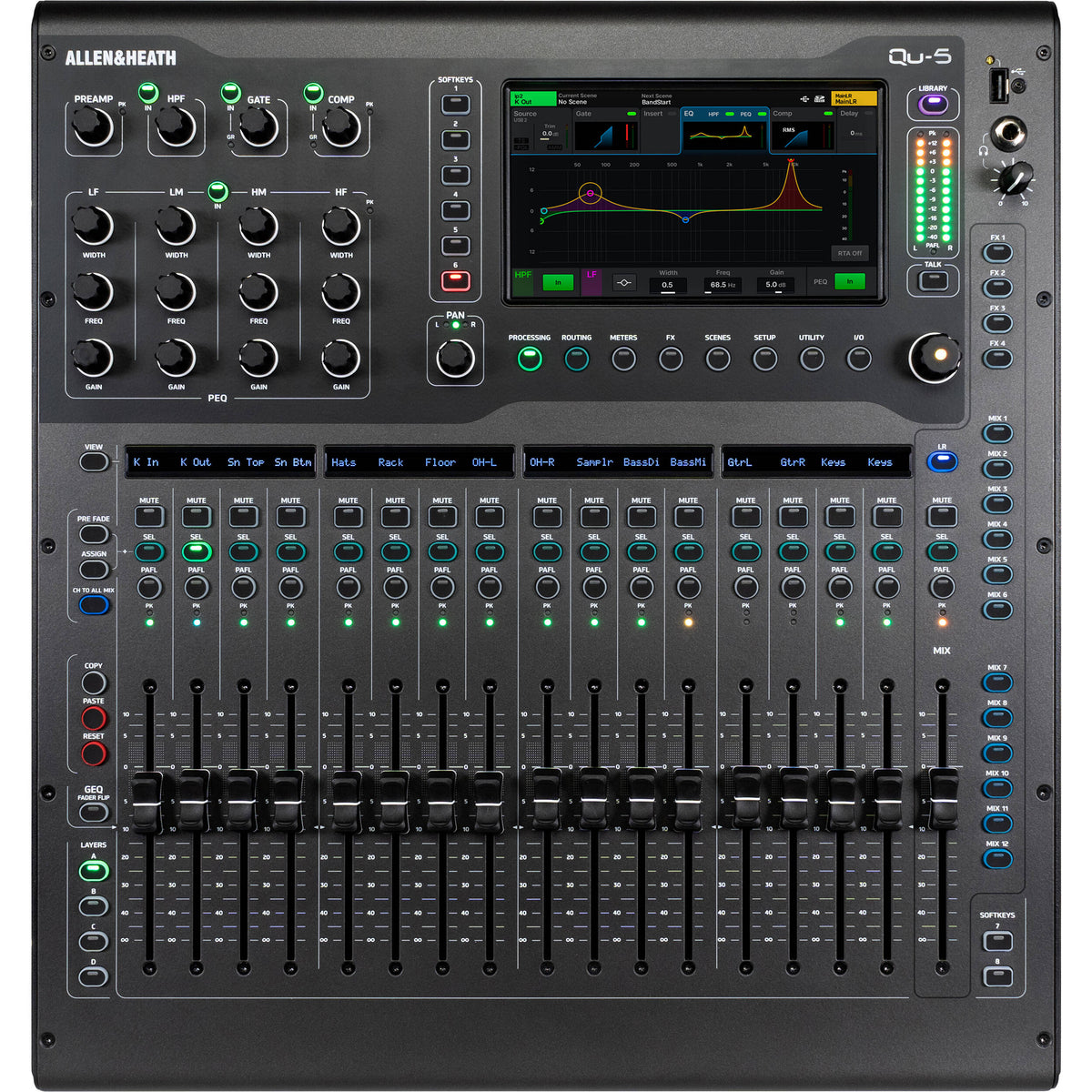

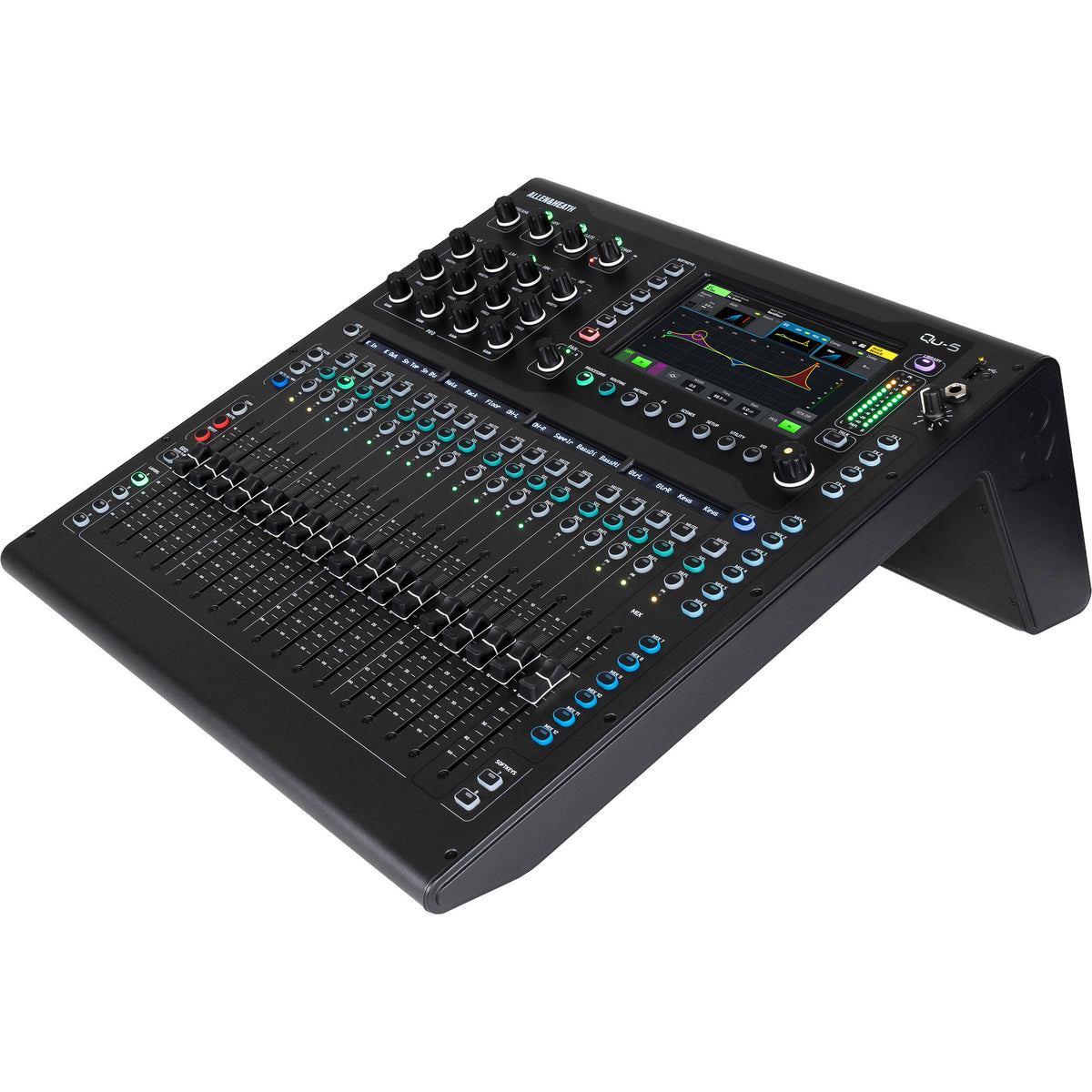

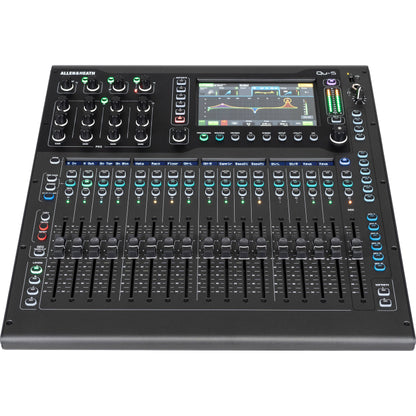

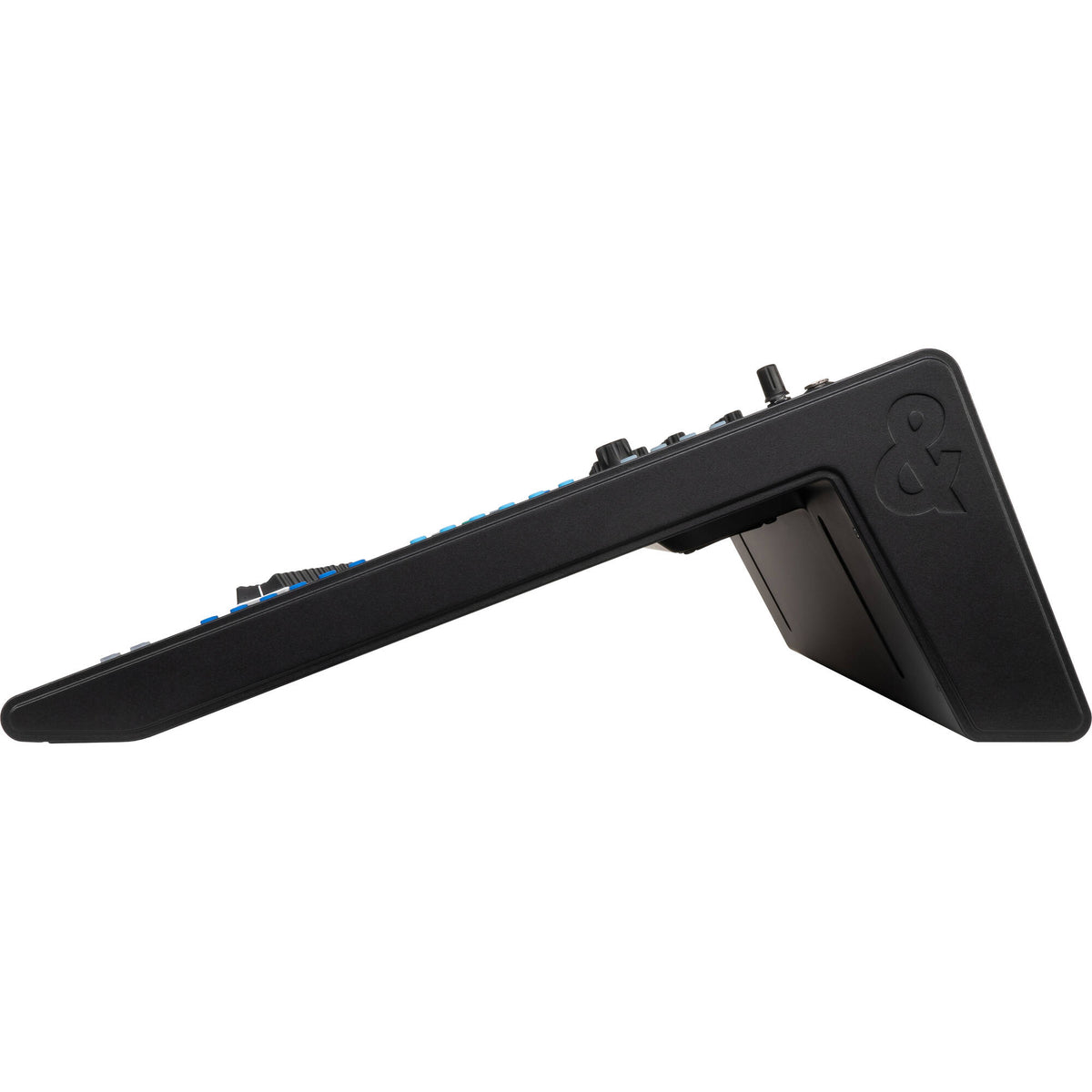

| Product Name | Allen & Heath QU-5 32 Channel Digital Mixer |
|---|---|
| Brand | Allen & Heath |
| Condition | New |
| MPN | AH-QU-5 |
| UPC | 5056756901073 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Allen & Heath QU-5 32 Channel Digital Mixer
- Power Cord
Processing & FX
- 96kHz XCVI Core
- 6 Multi-FX Engines with dedicated Stereo Returns
- DEEP Processing Ready
Mix Architecture
- 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
- 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
- 4 Mono/Linkable Matrix
- Stereo Main LR Output

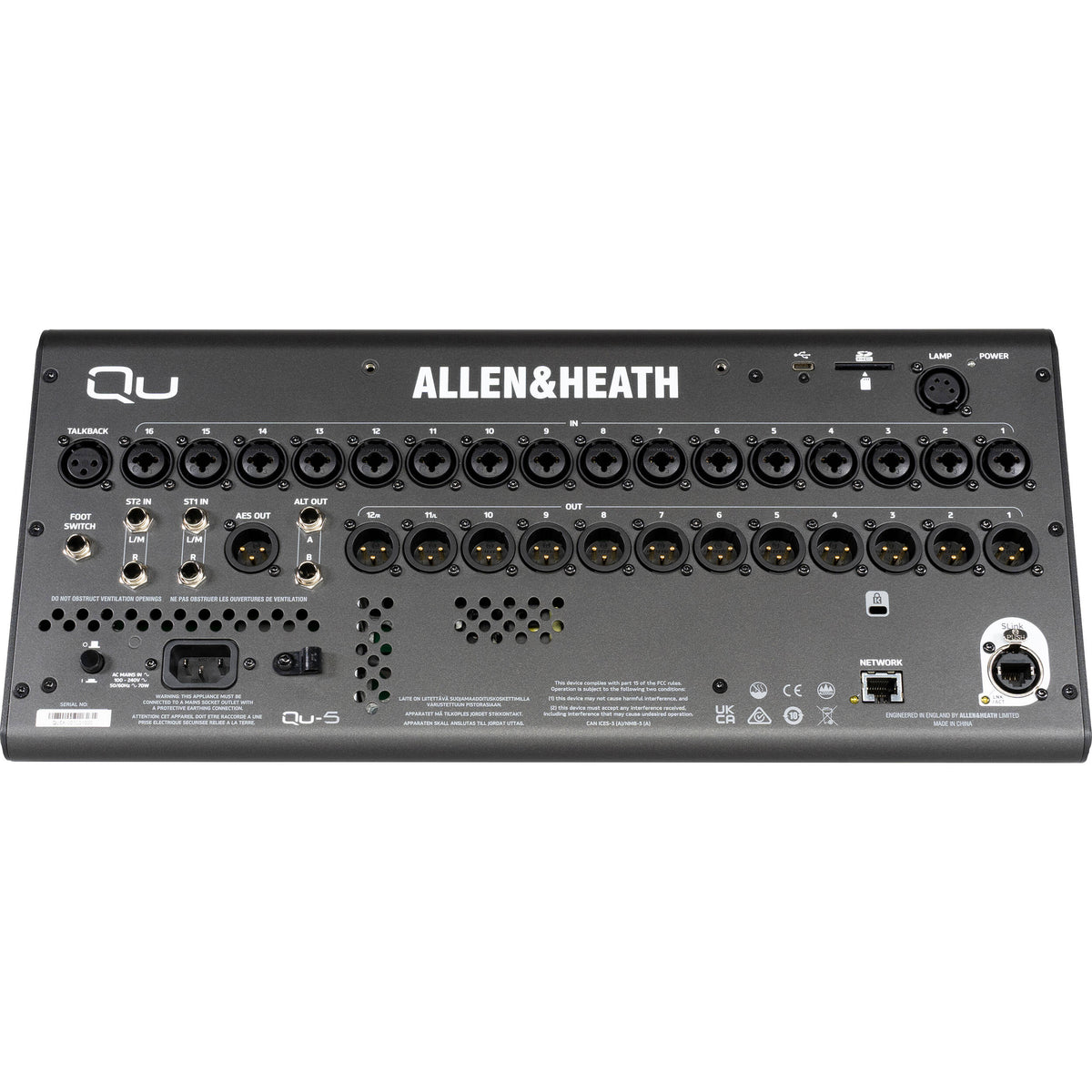

I/O
- 16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
- 2 Stereo Line Input Sockets (each 2x TRS)
- 12 XLR Output Sockets
- 1 XLR Talkback Socket
- 2 TRS Output Sockets
- 1 AES3 Stereo Digital Output Socket
- 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
- 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
- Stereo Headphone Output
Control
- 7” Capacitive Touchscreen
- 17 100mm Motorised Faders
- 4 Channel Strip Layers
- Remote control via free apps – Windows/MacOS/iOS/Android
- 8 SoftKeys
- Configurable single/dual Footswitch Connection
Recording & Playback
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32×32)
- SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
Misc
- 19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
- 12V Lamp Socket
- Configurable Chromatic Channel Meter LED’s
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity.
All New Hardware.
The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.
Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.
Control
Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.
Reliable Recording and Playback. Anywhere.
Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.
| Product Name | Allen & Heath QU-5 32 Channel Digital Mixer |
|---|---|
| Brand | Allen & Heath |
| Condition | New |
| MPN | AH-QU-5 |
| UPC | 5056756901073 |
What's in the Box?
- Allen & Heath QU-5 32 Channel Digital Mixer
- Power Cord
Processing & FX
- 96kHz XCVI Core
- 6 Multi-FX Engines with dedicated Stereo Returns
- DEEP Processing Ready
Mix Architecture
- 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
- 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
- 4 Mono/Linkable Matrix
- Stereo Main LR Output
I/O
- 16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
- 2 Stereo Line Input Sockets (each 2x TRS)
- 12 XLR Output Sockets
- 1 XLR Talkback Socket
- 2 TRS Output Sockets
- 1 AES3 Stereo Digital Output Socket
- 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
- 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
- Stereo Headphone Output
Control
- 7” Capacitive Touchscreen
- 17 100mm Motorised Faders
- 4 Channel Strip Layers
- Remote control via free apps – Windows/MacOS/iOS/Android
- 8 SoftKeys
- Configurable single/dual Footswitch Connection
Recording & Playback
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32×32)
- SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
Misc
- 19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
- 12V Lamp Socket
- Configurable Chromatic Channel Meter LED’s
