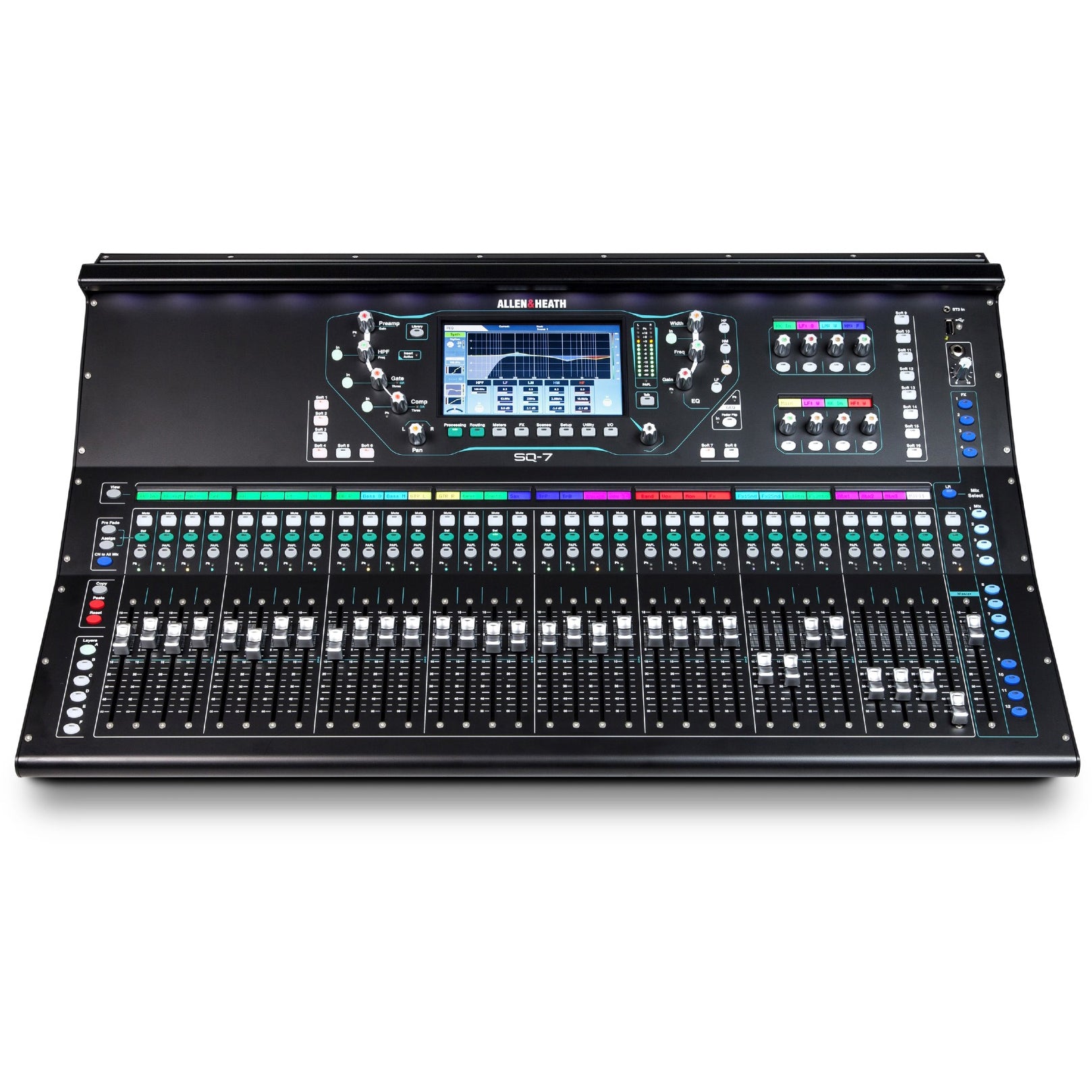

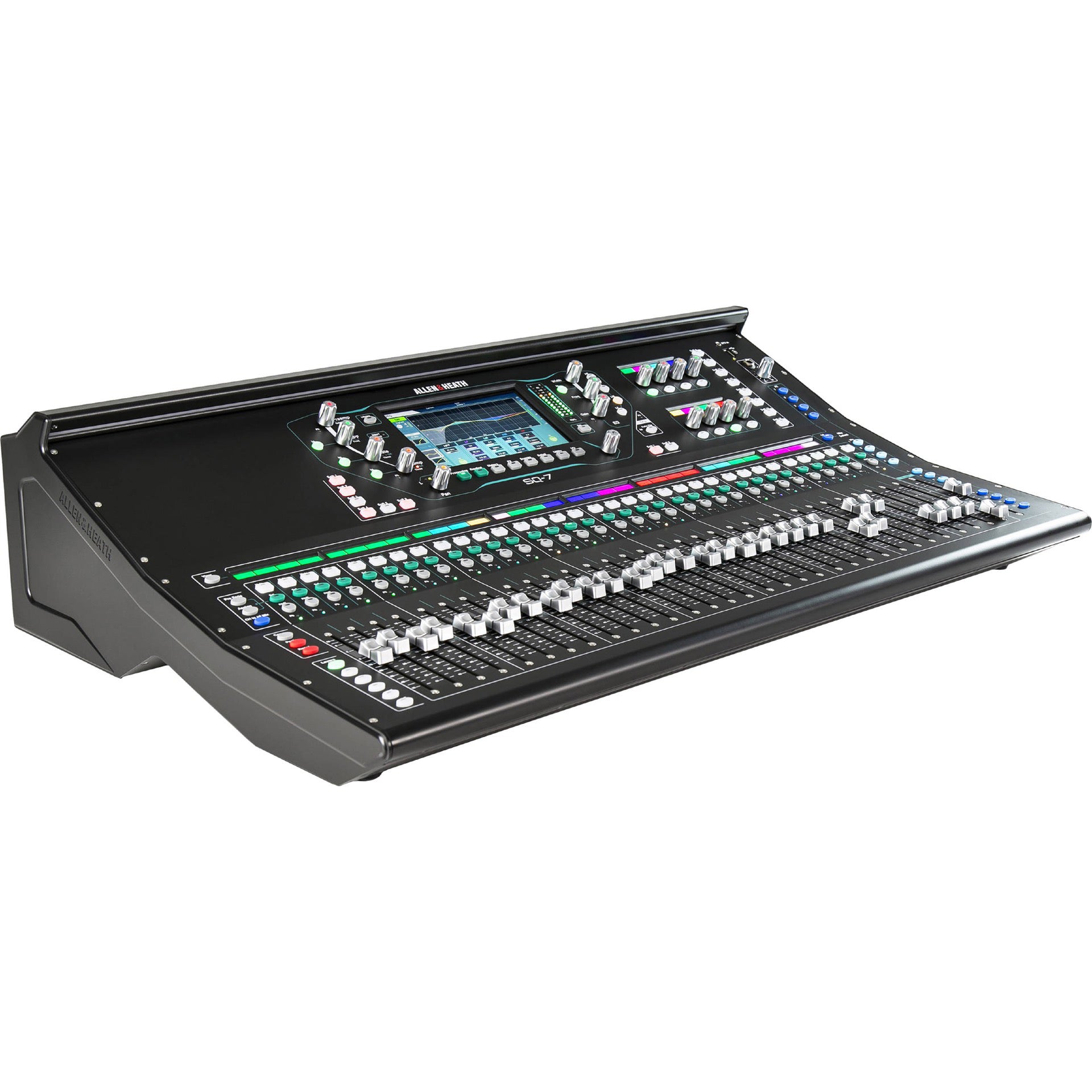

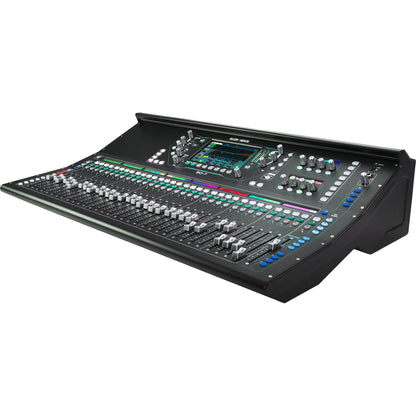

Allen & Heath SQ-7 48-Channel Digital Mixer

Allen & Heath SQ-7 48-Channel Digital Mixer

On order with the manufacturer!

View full details
  • Details
  • Features
  • Reviews

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

Powerful Processing

SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.

RackExtra FX

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

Expandable up to 48 mics

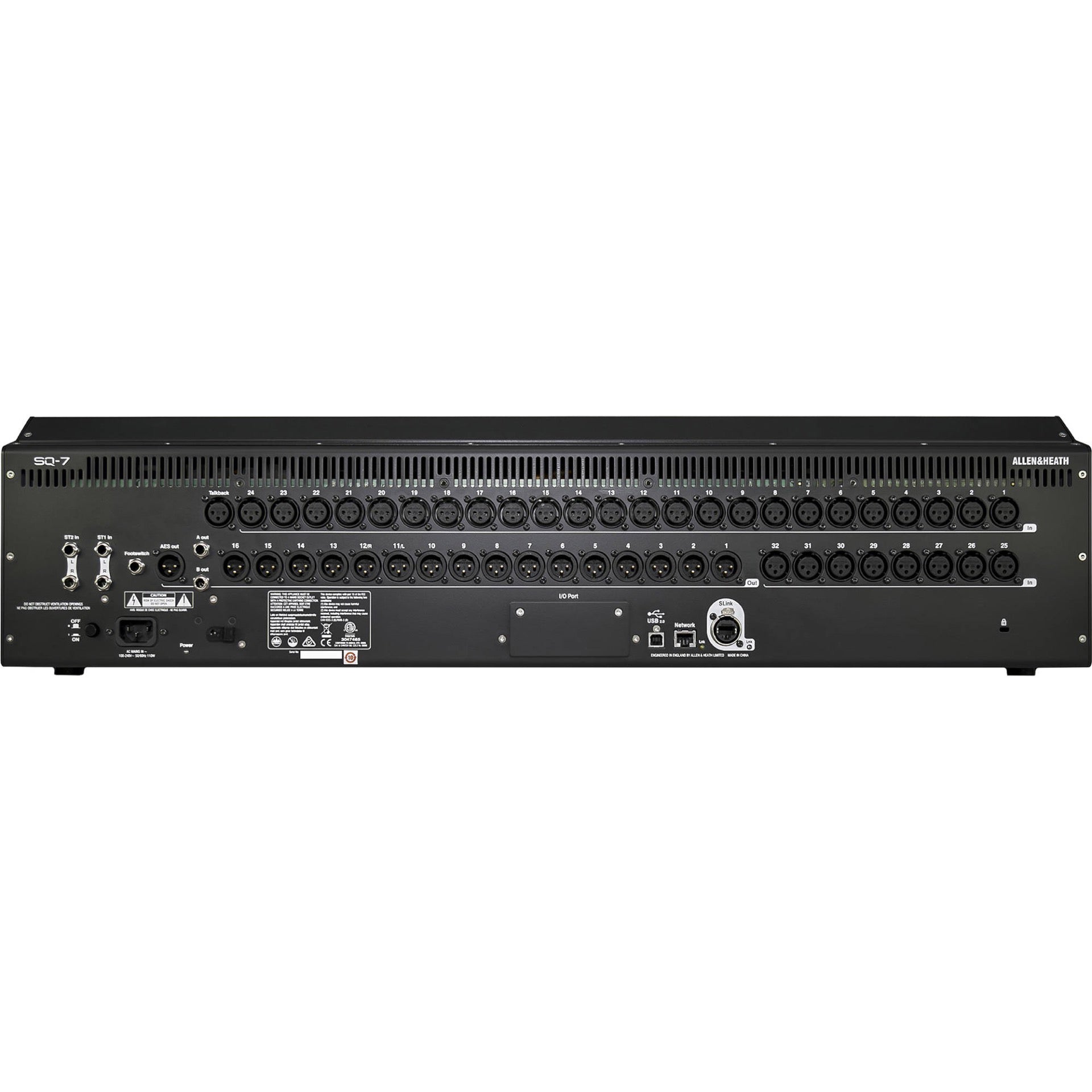

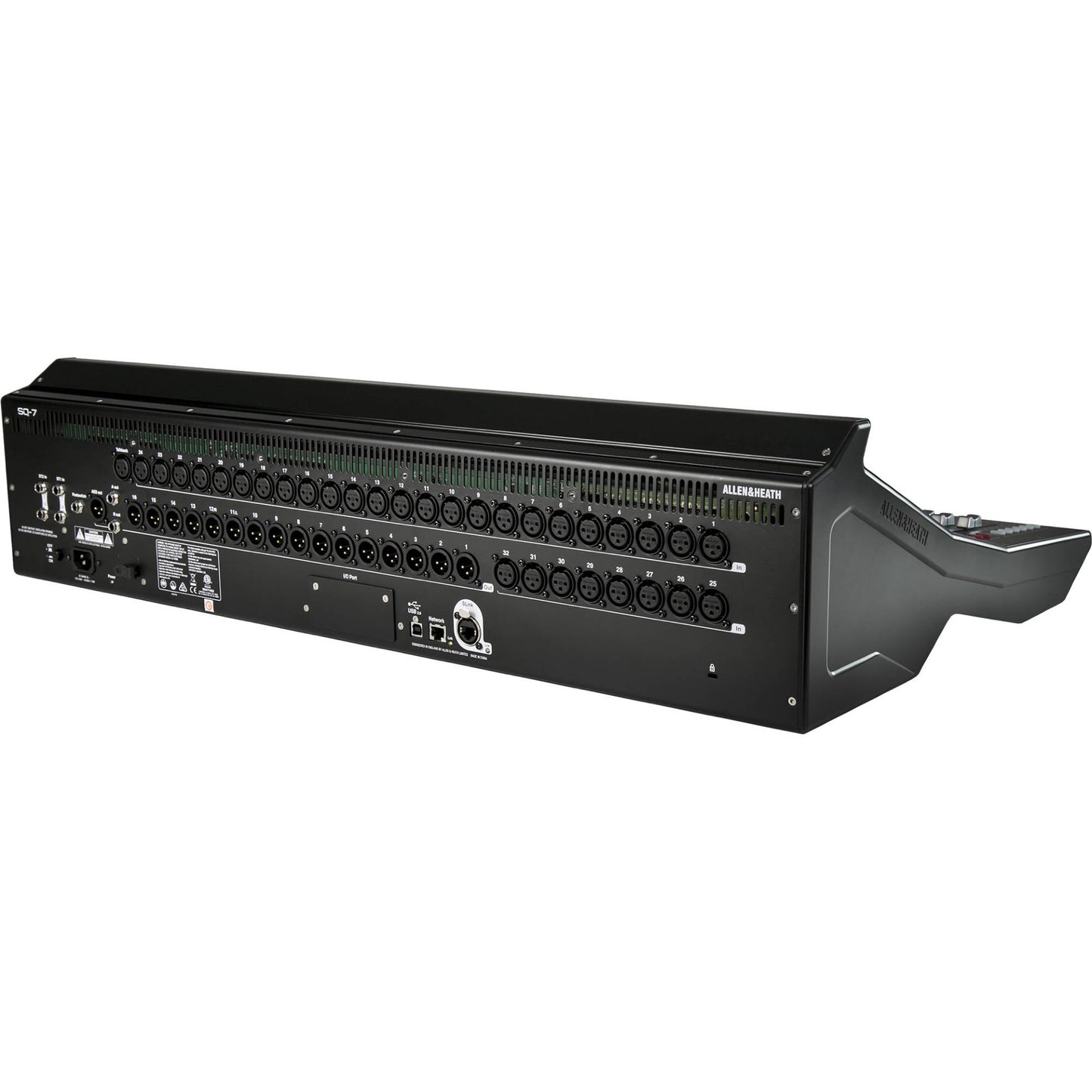

SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

The Mixing Experience

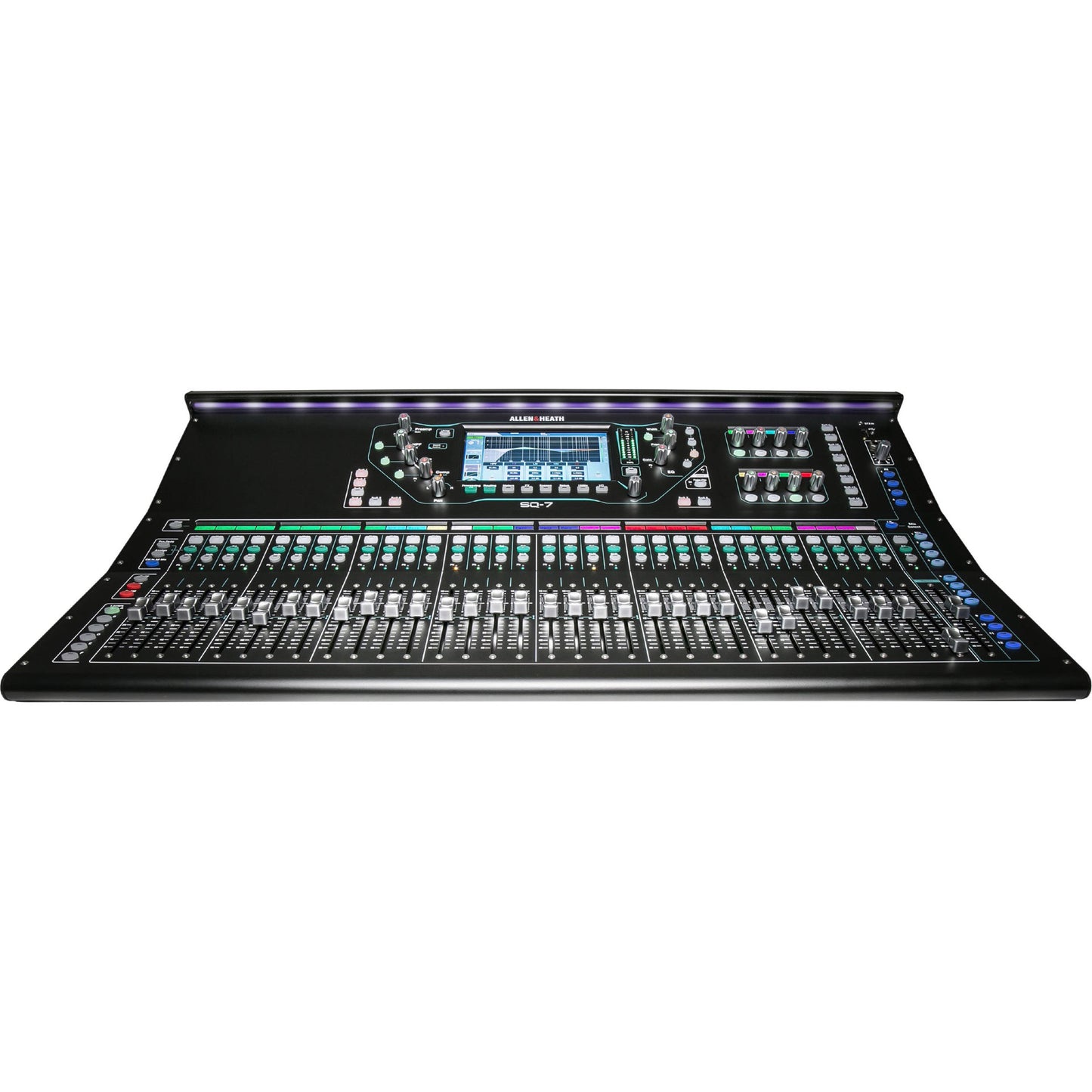

With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high-res 7” capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.

Designed for the pro

We know that the live environment can be tough on gear – that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.

Dante, Waves, MADI and more

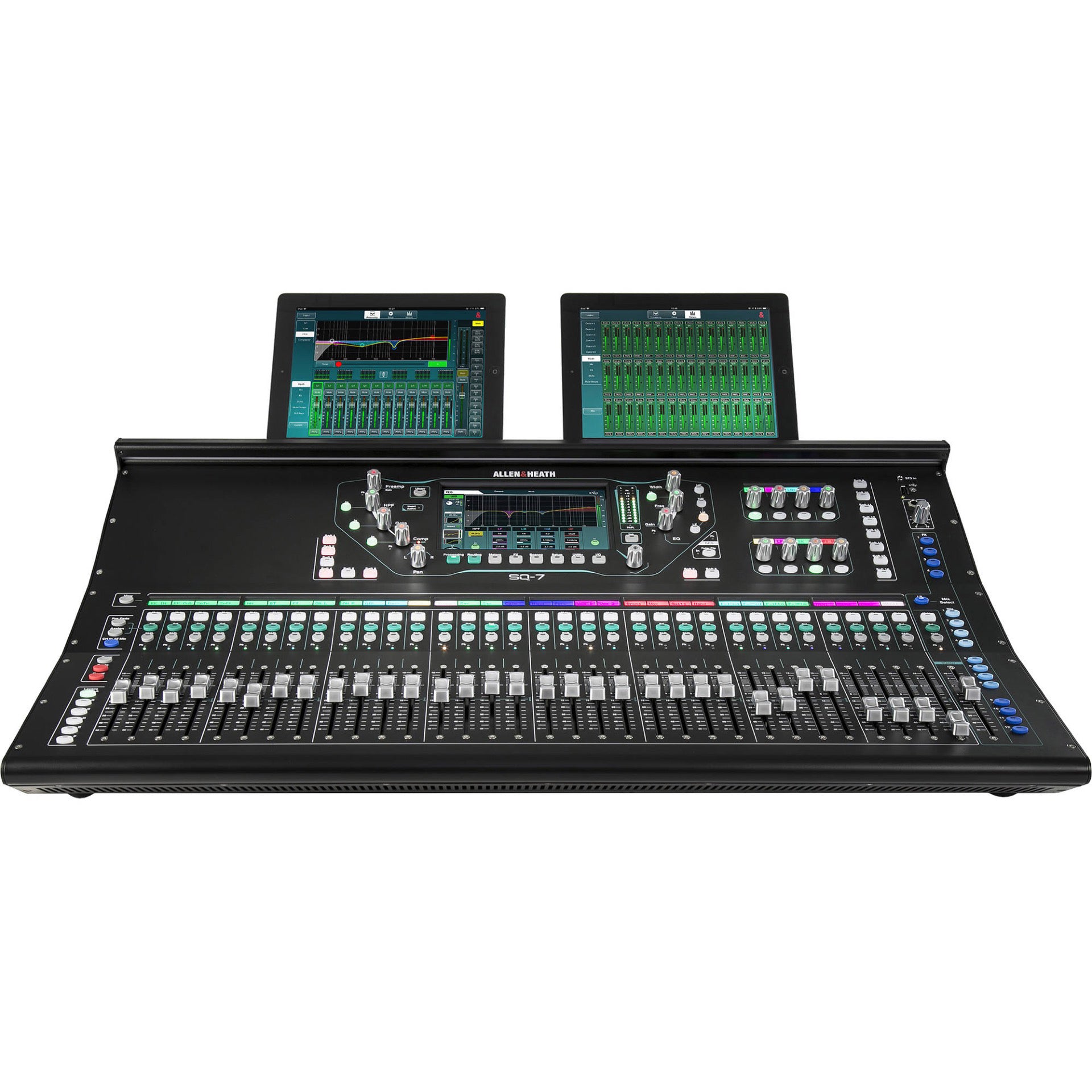

SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too – add an audio networking card such as Dante, MADI or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.

Advanced AMM

SQ’s advanced automatic mic mixers (AMM’s) make it a natural choice for mixing conferences, panel talks and TV shows. They’re fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM’s can be utilised for two zones or combined into a single 48 channel AMM for larger events.

Flexible multitrack recording

The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.

Also provided is a built-in 32×32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIOTM compliant and comes complete with MIDI and DAW control capabilities.

More Information
Product Name Allen & Heath SQ-7 48-Channel Digital Mixer
Shipping Option Free Shipping to the Continental U.S.
  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 33 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated stereo returns
  • 7” capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32×32 USB audio interface
  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Channel LCD displays

Allen & Heath SQ-7 48-Channel Digital Mixer

Details

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

Powerful Processing

SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.

RackExtra FX

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

Expandable up to 48 mics

SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

The Mixing Experience

With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high-res 7” capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.

Designed for the pro

We know that the live environment can be tough on gear – that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.

Dante, Waves, MADI and more

SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too – add an audio networking card such as Dante, MADI or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.

Advanced AMM

SQ’s advanced automatic mic mixers (AMM’s) make it a natural choice for mixing conferences, panel talks and TV shows. They’re fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM’s can be utilised for two zones or combined into a single 48 channel AMM for larger events.

Flexible multitrack recording

The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.

Also provided is a built-in 32×32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIOTM compliant and comes complete with MIDI and DAW control capabilities.

More Information
Product Name Allen & Heath SQ-7 48-Channel Digital Mixer
Shipping Option Free Shipping to the Continental U.S.
Features
  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 33 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated stereo returns
  • 7” capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32×32 USB audio interface
  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Channel LCD displays
