*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

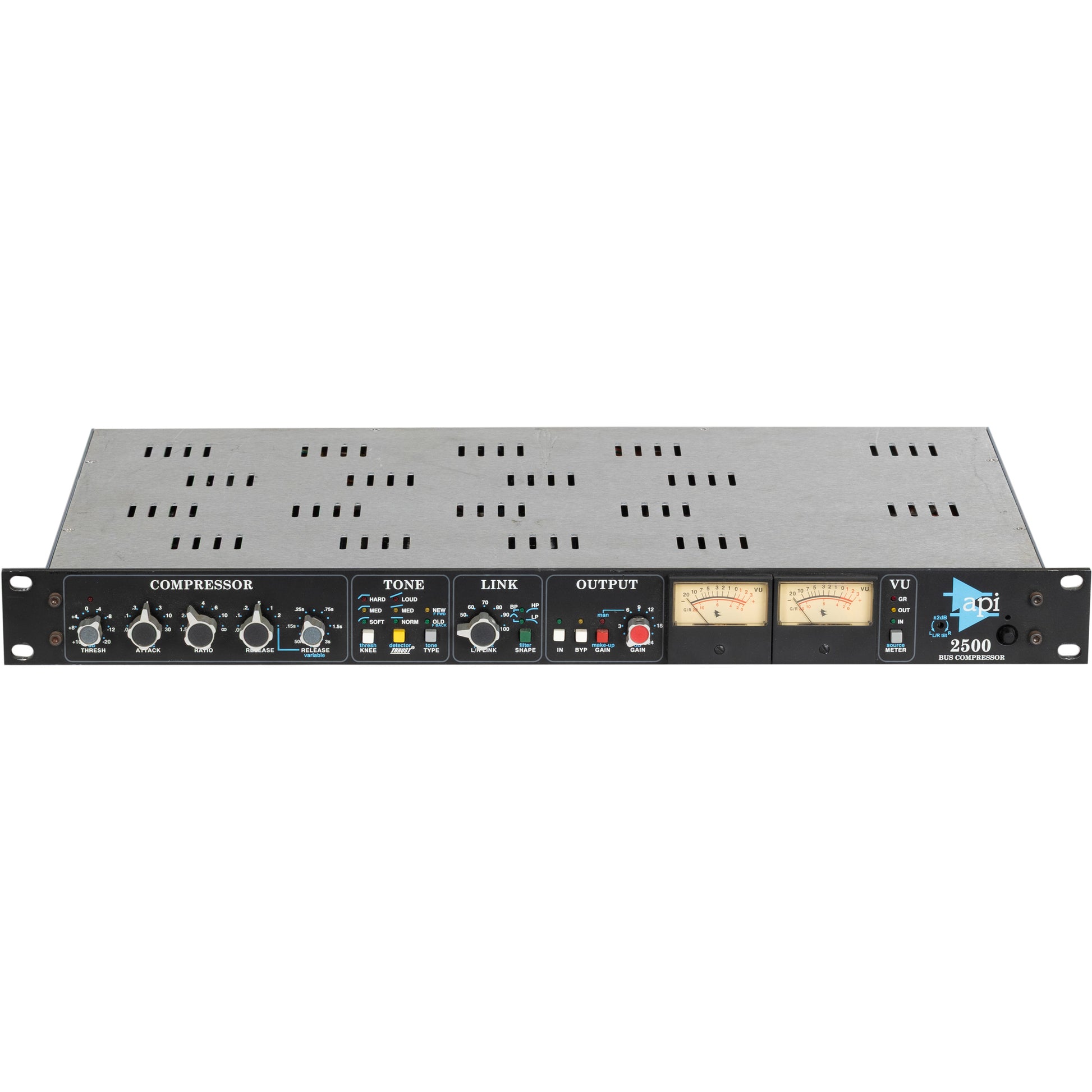

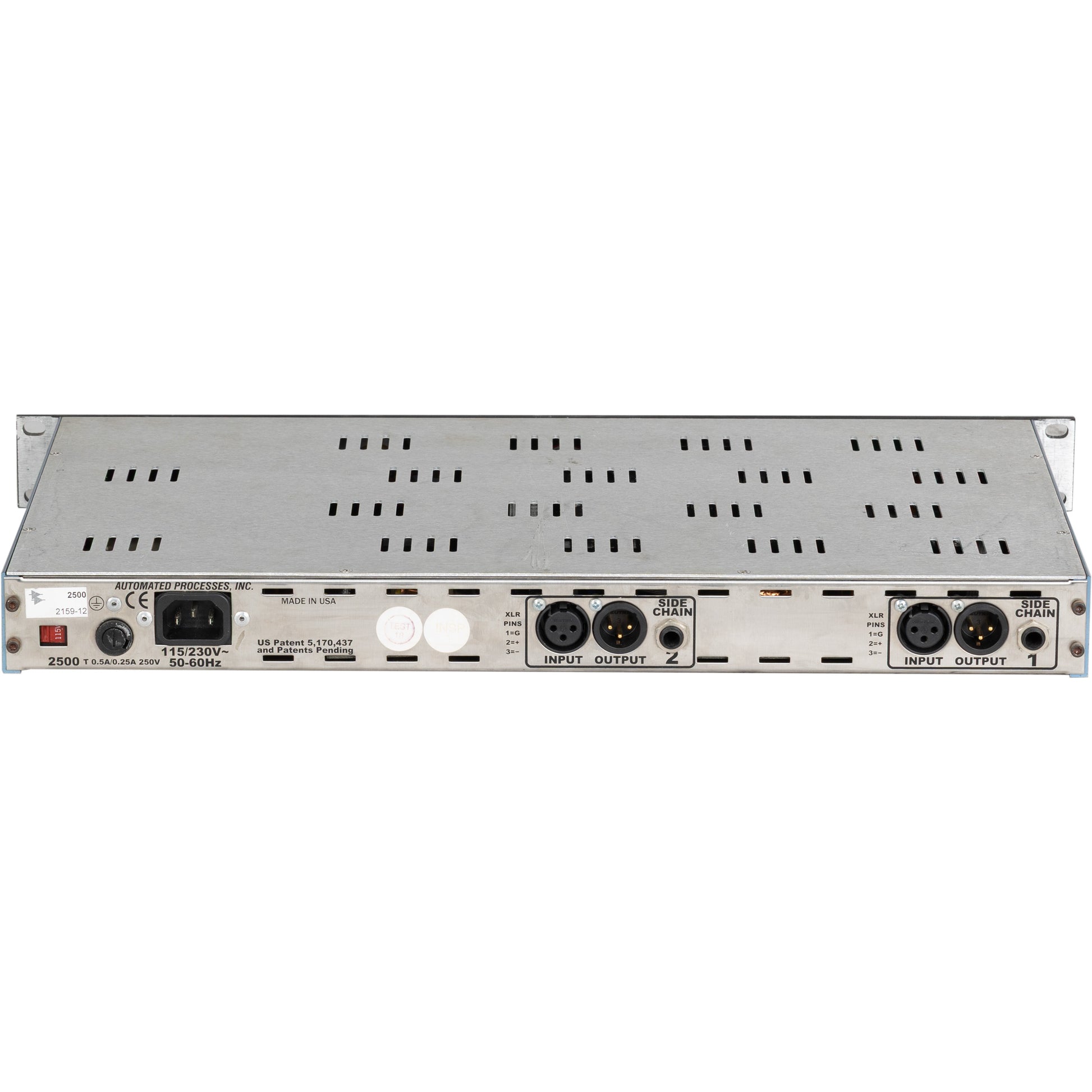

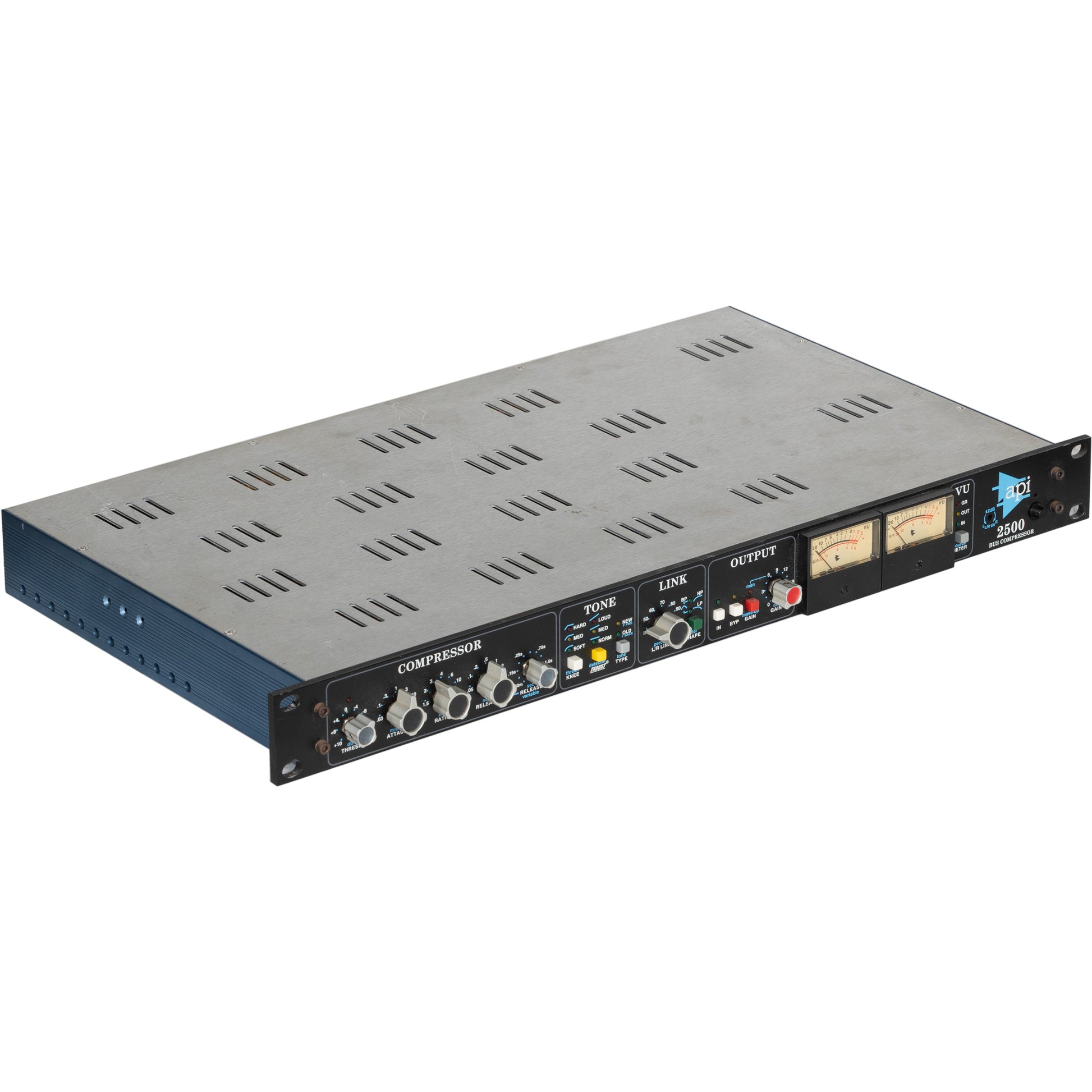

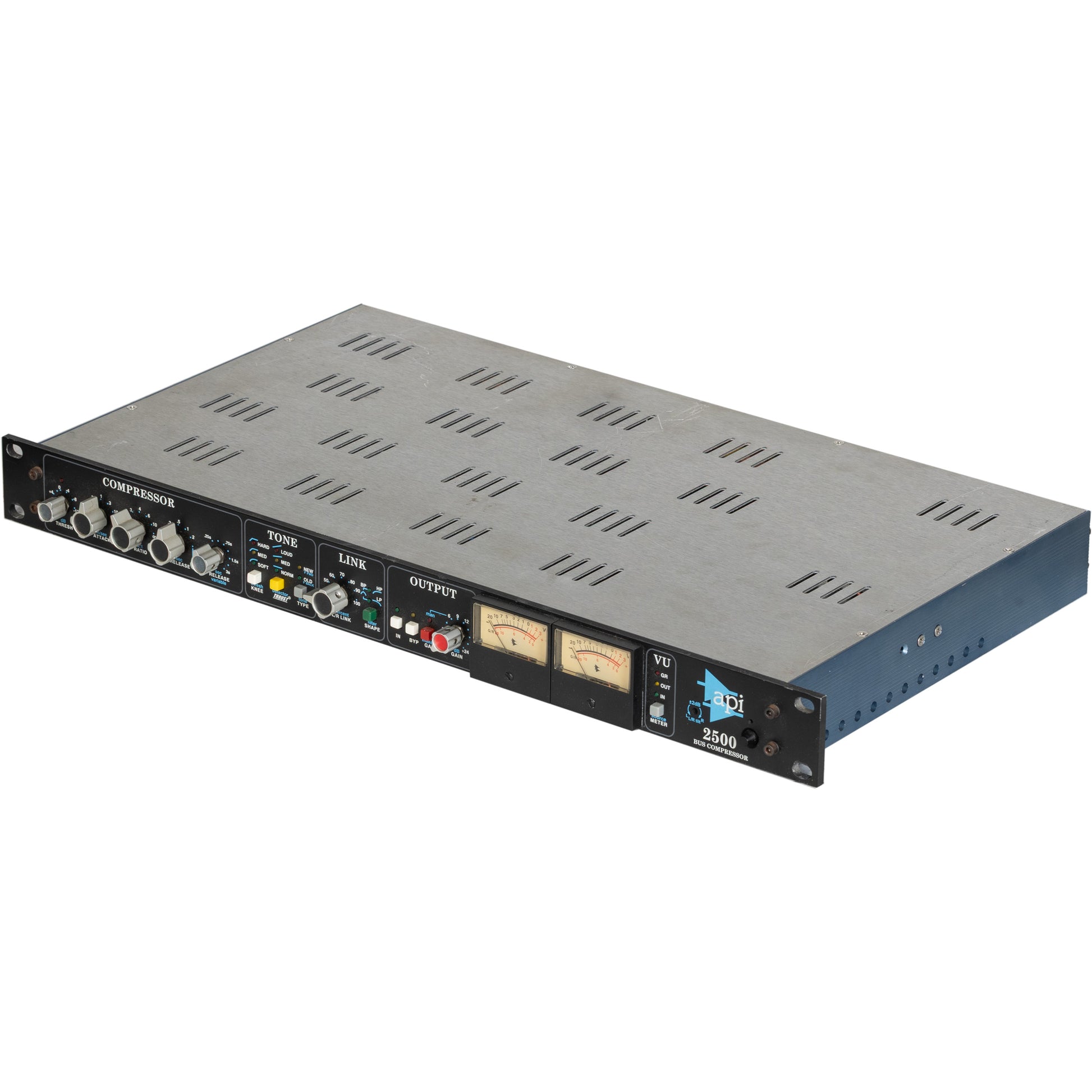

The API 2500 is a dual-channel, rack-mountable stereo bus compressor renowned for adding "glue," punch, and energy to stereo mixes and subgroups. It uniquely features variable L/R channel linking, API's patented Thrust circuit for heavy low-end impact, and selectable "Old" or "New" compression types.
| Product Name | API 2500 Bus Compressor |
|---|---|
| Brand | API |
| Condition | Pre-Owned |
| MPN | 2500 |
| UPC | 612391300685 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- API 2500 Bus Compressor
- API 2520 Op-Amp
- Variable threshold between -20 dBu and +10 dBu
- Selectable ratio, attack and release times
- Patented THRUST selectable high-pass filter before RMS detector
- Variable link between left and right channels
- Old "feedback" or new "feed forward" compression
- Soft, medium or hard knee for easy to sharp compression
- Auto or manual gain make up
- 1/4" balanced side-chain inputs
- Output clips at +28 dBu
Specifications |
|
|---|---|
| Type | VCA Stereo Bus Compressor |
| Number of Channels | 2 (Stereo or Dual-Mono) |
| Frequency Response | ±0.5 dB (20 Hz to 50 kHz) |
| Signal-to-Noise Ratio | 120 dB |
| THD + N | < 0.05% at 1 kHz |
| Maximum Output Level | +32 dBu |
| Input Impedance | 60 kΩ (Balanced) |
| Output Impedance | 75 kΩ (Balanced, Transformer-Coupled) |
| Power Consumption | 28.8 W |
| Form Factor | 19" Rackmount (1U) |
API 2500 Bus Compressor
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The API 2500 is a dual-channel, rack-mountable stereo bus compressor renowned for adding "glue," punch, and energy to stereo mixes and subgroups. It uniquely features variable L/R channel linking, API's patented Thrust circuit for heavy low-end impact, and selectable "Old" or "New" compression types.
| Product Name | API 2500 Bus Compressor |
|---|---|
| Brand | API |
| Condition | Pre-Owned |
| MPN | 2500 |
| UPC | 612391300685 |
What's in the Box?
API 2500 Bus Compressor- API 2520 Op-Amp
- Variable threshold between -20 dBu and +10 dBu
- Selectable ratio, attack and release times
- Patented THRUST selectable high-pass filter before RMS detector
- Variable link between left and right channels
- Old "feedback" or new "feed forward" compression
- Soft, medium or hard knee for easy to sharp compression
- Auto or manual gain make up
- 1/4" balanced side-chain inputs
- Output clips at +28 dBu
Specifications |
|
|---|---|
| Type | VCA Stereo Bus Compressor |
| Number of Channels | 2 (Stereo or Dual-Mono) |
| Frequency Response | ±0.5 dB (20 Hz to 50 kHz) |
| Signal-to-Noise Ratio | 120 dB |
| THD + N | < 0.05% at 1 kHz |
| Maximum Output Level | +32 dBu |
| Input Impedance | 60 kΩ (Balanced) |
| Output Impedance | 75 kΩ (Balanced, Transformer-Coupled) |
| Power Consumption | 28.8 W |
| Form Factor | 19" Rackmount (1U) |
