*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

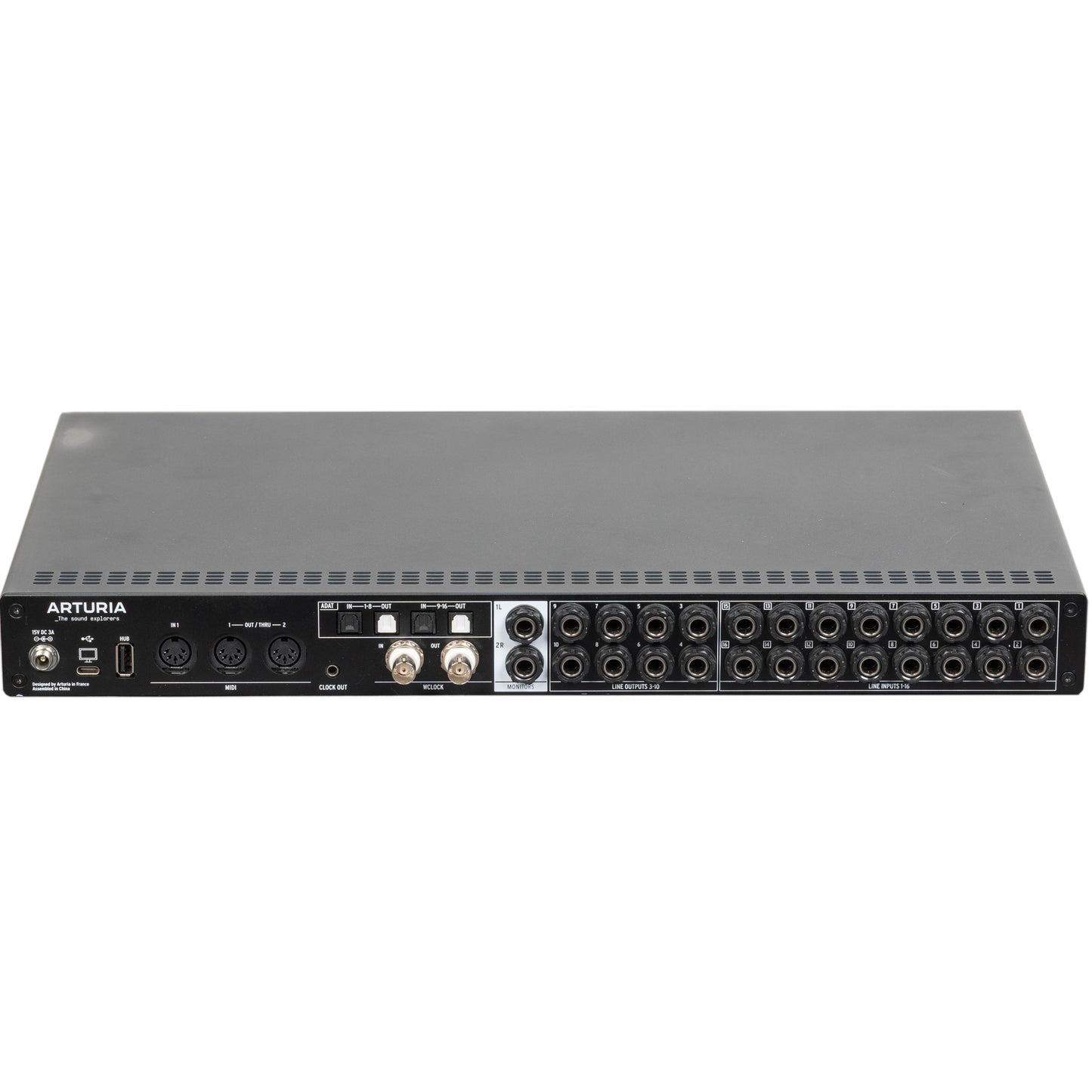

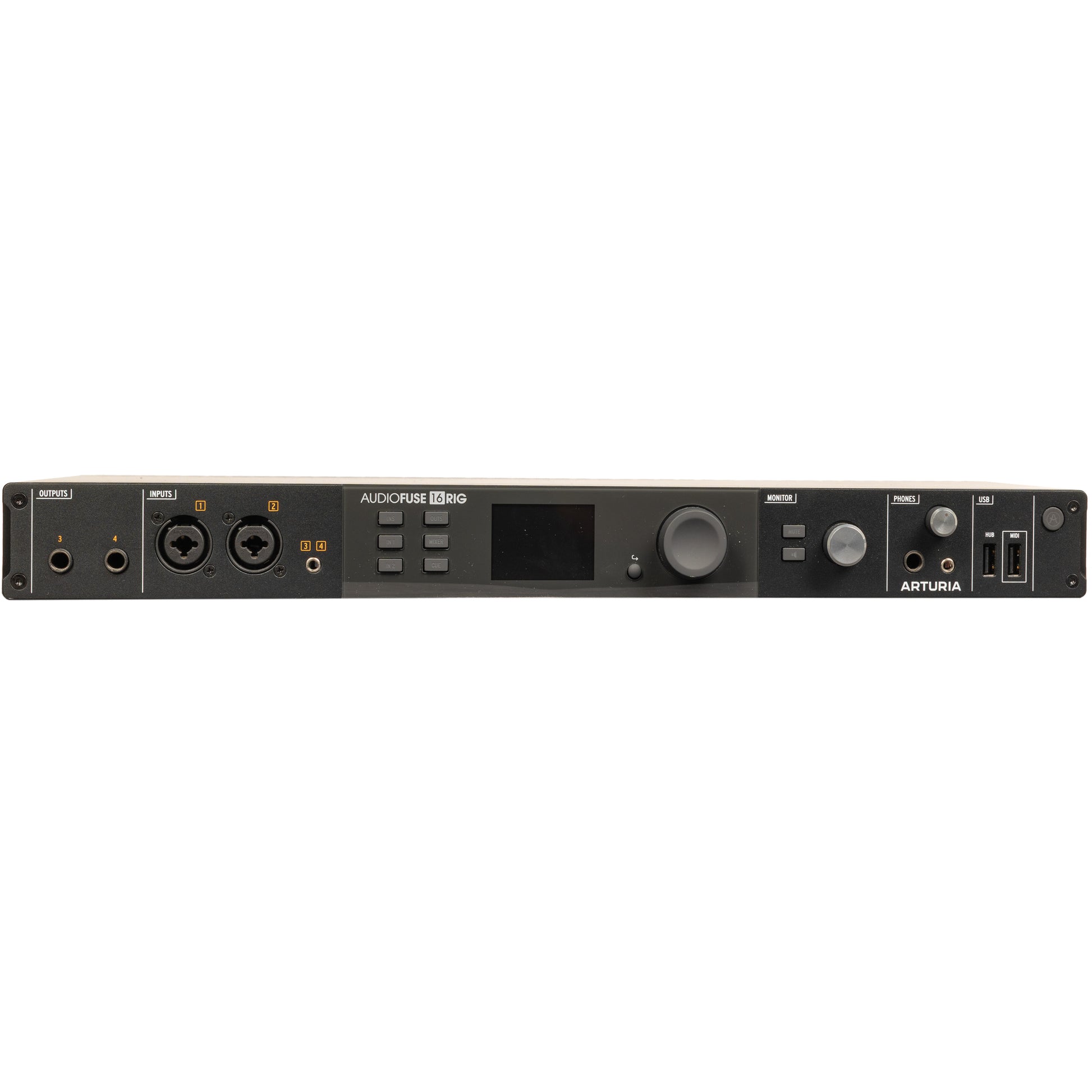

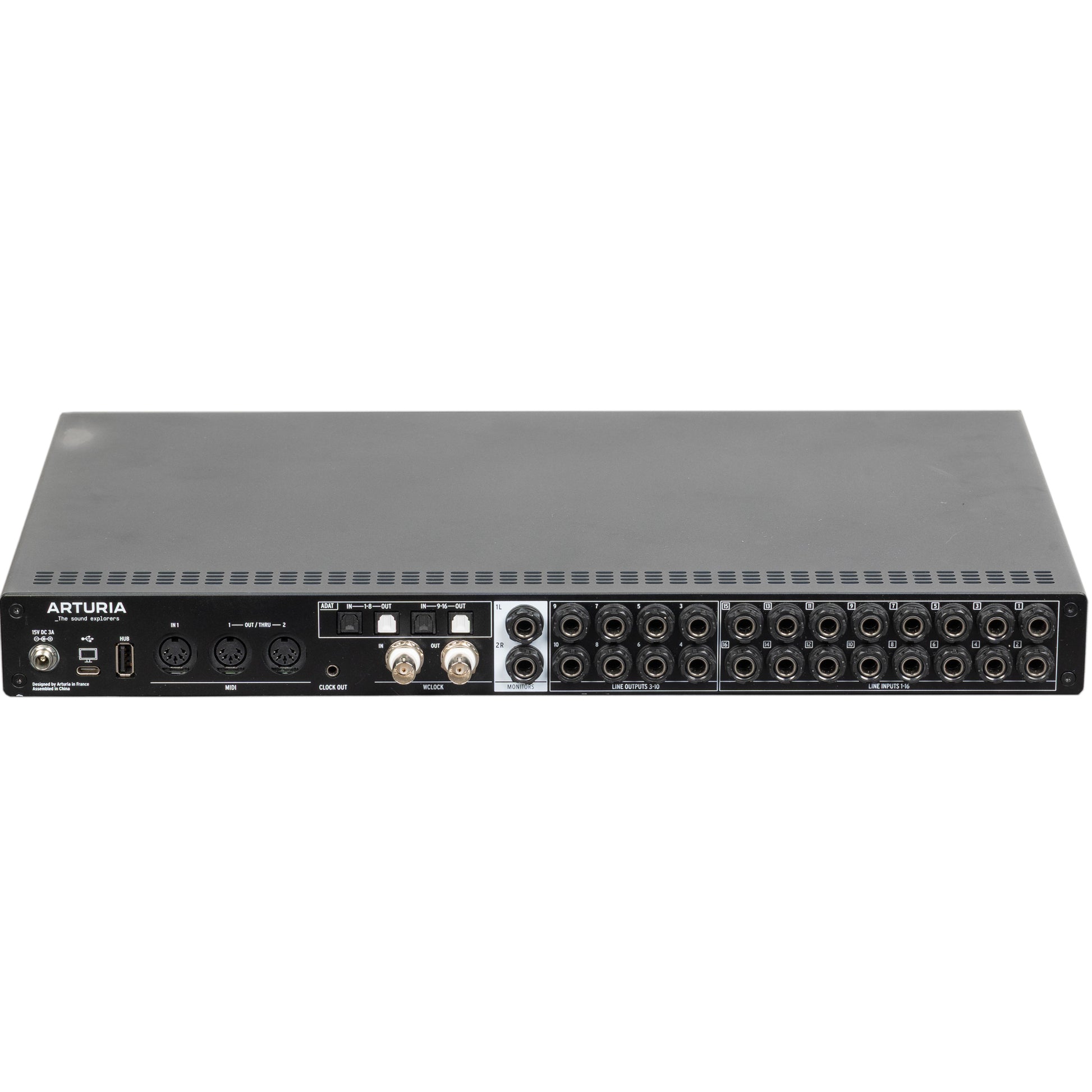

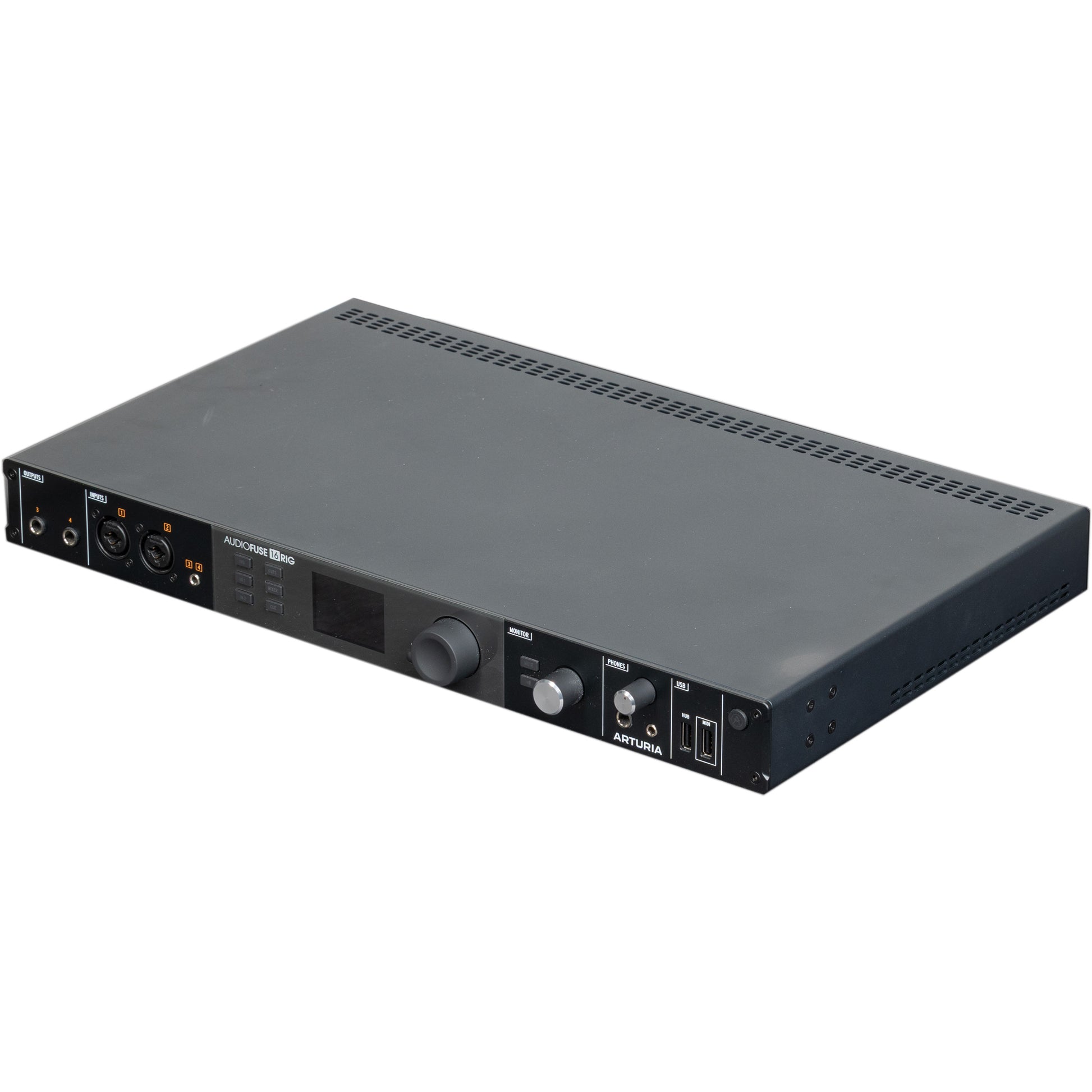

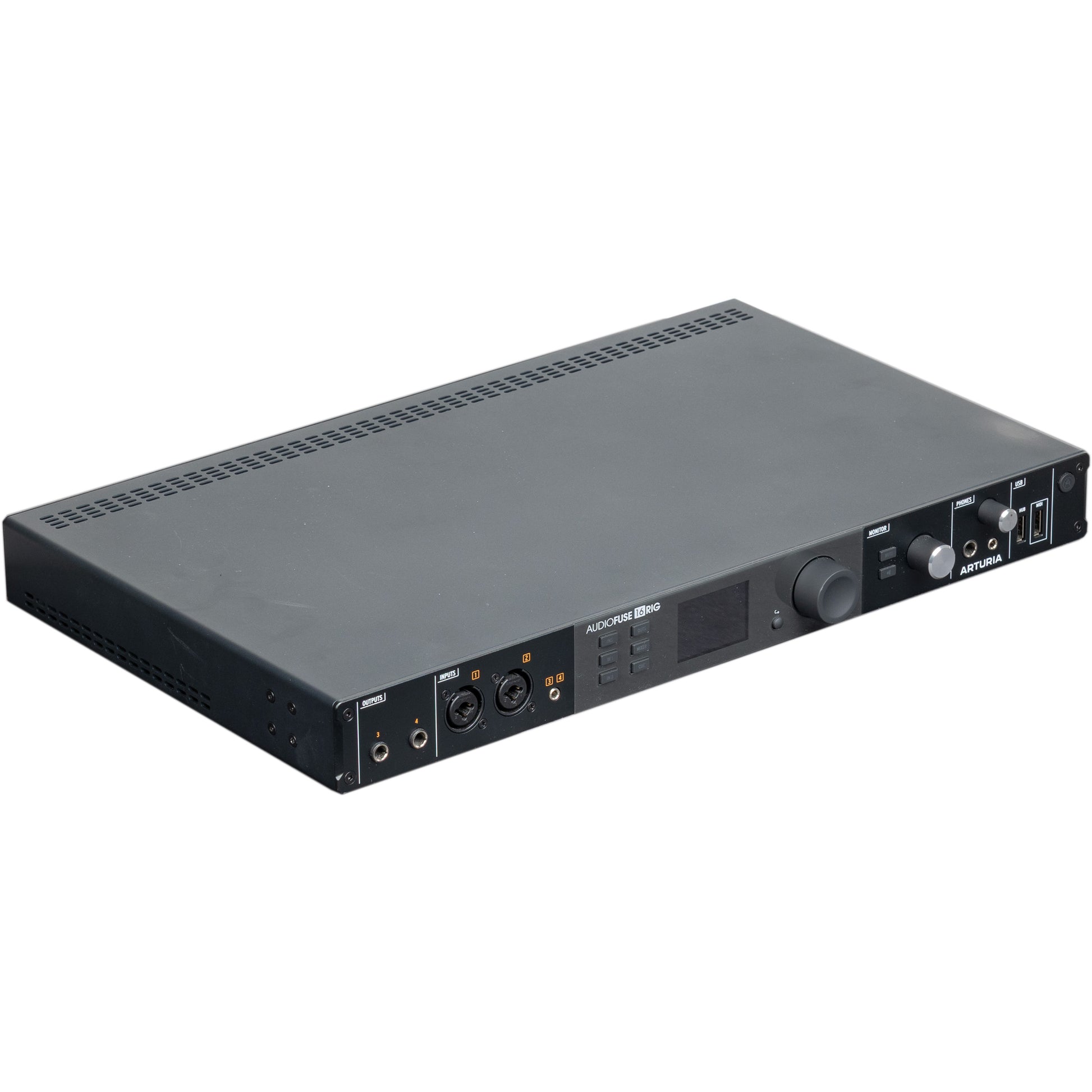

The ultimate studio centerpiece for connecting an entire synth studio, complex live-audio routing, and advanced DAW recording, the Arturia AudioFuse 16Rig is a 32-in / 28-out USB-C audio / MIDI interface that lets you leave everything connected, route anything to anything, and be more creative with your projects. Either rackmounted or on a desktop, the interface provides extensive rear I/O connections for your equipment while leaving the front panel open for additional microphones, instruments, music players, or USB devices. Featuring premium 24-bit / 192 kHz AD/DA converters and Wordclock I/O, AudioFuse 16Rig lets you record synths, guitars, vocals, or a combination of inputs with high-quality audio, and monitor your sound accurately—all perfectly in sync.
Equipped with two, low-latency internal MIDI-controllable DSP mixers, AudioFuse 16Rig can function as a standalone mixer, allowing for DAWless recording, live mixing, and intricate audio routing without the need for a computer. The included AudioFuse Control Center software provides a powerful matrix for quick and flexible configuration of any type of connection to suit any need, including multiple sends/returns, A/B speaker monitoring, and more. Save your configurations and mix settings as presets, control modular synths with DC-coupled outputs, use the Reamp feature for versatile guitar tracking, and connect multiple USB devices with class-compliant connections.
| Product Name | Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface |
|---|---|
| Brand | Arturia |
| Condition | Pre-Owned |
| MPN | 831001 |
| UPC | 3760033531687 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface
- Synth Players, Live Musicians, Producers
- AC Powered, Mac/Windows
- 3 x USB-A Hub Ports
- 2 Mic / Line / Hi-Z Preamps, 16 Line Ins
- 10 Line, 2 Headphone & 2 Monitor Outputs
- 24-Bit / 192 kHz AD/DA Conversion
- Two Internal Standalone Mixers
- 16 ADAT I/O, Wordclock I/O
- MIDI I/O on 5-Pin DIN Jacks
- AudioFuse Control Center App, FX Bundle
General |
|
|---|---|
| Channels of I/O | 32 Inputs / 28 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Display | 1x Color LCD |
| Built-In DSP | Yes |
| Built-In Microphone | No |
| Input Level Adjustment | Knob |
Analog Audio I/O |
|
| Analog Audio I/O | 2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 16x 1/4" TRS Line Input 1x 1/8" / 3.5 mm TRS Line Input 10x 1/4" TRS Line Output 2x 1/4" TRS Line/Headphone/Re-Amp Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Analog Audio I/O (Detailed) | 2x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input (Front Panel) 16x 1/4" TRS Balanced Line Input 1x 1/8" / 3.5 mm TRS Line Input (Front Panel) 10x 1/4" TRS Balanced Line Output 2x 1/4" TRS Balanced/Unbalanced Line/Headphone/Re-Amp Output (Shared with Rear Panel Input) 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
Digital Audio I/O |
|
| Digital Audio I/O | TOSLINK Optical ADAT Input TOSLINK Optical ADAT Output |
| Digital Audio I/O (Detailed) | 2x TOSLINK Optical ADAT Input 2x TOSLINK Optical ADAT Output |
Host Connection & USB |
|
| Host Connection | 1x USB-C (Class-Compliant) |
| Host Connection / USB | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 3x USB-A (External Storage, MIDI I/O) |
Signal Processing |
|
| Pad | Mic: -20 dB (Switchable per Channel) Line: -12 dB (Switchable per Channel) Line: -10 dB (Switchable per Channel) Hi-Z: -10 dB (Switchable per Channel) |
| Solo/Mute | Solo, Mute per Master |
Connectivity |
|
| Phantom Power | 48 V, Selectable On/Off |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x 1/8" / 3.5 mm Clock Output |
| Network I/O | No |
| MIDI I/O | 1x DIN 5-Pin Input 2x DIN 5-Pin Output/Thru |
| Expansion Slots | No |
| Wireless | No |
Performance |
|
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.08 dB Line Inputs: 20 Hz to 20 kHz ±0.06 dB Line Outputs: 20 Hz to 20 kHz ±0.04 dB Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB Monitor Outputs: 20 Hz to 20 kHz ±0.02 dB |
| Maximum Input Level | Mic: 22 dBu Line: +24 dBu (Rear) +22 dBu (Front) Hi-Z: 20 dBu |
| Maximum Output Level | Line: 24 dBu Headphone: 14.4 dBu Monitor: 20 dBu |
| Headphone Output Power | 271 mW into 33 Ohms |
| Impedance | Mic Inputs: 2.7 Kilohms Line Inputs: 20 Kilohm Line Outputs: 240 Ohms (Balanced) 120 Ohms (Unbalanced) Hi-Z Inputs: 1.1 Megohm Headphone Outputs: 5 Ohms Monitor Outputs: 240 Ohms (Balanced) 120 Ohms (Unbalanced) |
| Dynamic Range | Hi-Z Inputs: 114 dBA Line Inputs: 118 dBA Mic Inputs: 117 dBA Headphone Outputs: 109 dBA Line Outputs: 120 dBA Monitor Outputs: 126 dBA |
| THD+N | Line Inputs: -113 dBA Hi-Z Inputs: -105 dBA Mic Inputs: -110 dBA Speaker Outputs: -114 dBA Line Outputs: -106 dBA Headphone Outputs: -103 dBA |
| EIN | -129.5 dBu A-Weighted |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | ADAT, Internal, Word Clock |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS 10.13 or Later / Windows 10 or Later |
| Processor Requirement | Mac: Intel Core i5 Apple M1 |
| RAM Requirements | 4 GB |
| Storage Requirements | 4 GB |
Power |
|
| Power Requirements | AC/DC Power Adapter (Included) |
Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The ultimate studio centerpiece for connecting an entire synth studio, complex live-audio routing, and advanced DAW recording, the Arturia AudioFuse 16Rig is a 32-in / 28-out USB-C audio / MIDI interface that lets you leave everything connected, route anything to anything, and be more creative with your projects. Either rackmounted or on a desktop, the interface provides extensive rear I/O connections for your equipment while leaving the front panel open for additional microphones, instruments, music players, or USB devices. Featuring premium 24-bit / 192 kHz AD/DA converters and Wordclock I/O, AudioFuse 16Rig lets you record synths, guitars, vocals, or a combination of inputs with high-quality audio, and monitor your sound accurately—all perfectly in sync.
Equipped with two, low-latency internal MIDI-controllable DSP mixers, AudioFuse 16Rig can function as a standalone mixer, allowing for DAWless recording, live mixing, and intricate audio routing without the need for a computer. The included AudioFuse Control Center software provides a powerful matrix for quick and flexible configuration of any type of connection to suit any need, including multiple sends/returns, A/B speaker monitoring, and more. Save your configurations and mix settings as presets, control modular synths with DC-coupled outputs, use the Reamp feature for versatile guitar tracking, and connect multiple USB devices with class-compliant connections.
| Product Name | Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface |
|---|---|
| Brand | Arturia |
| Condition | Pre-Owned |
| MPN | 831001 |
| UPC | 3760033531687 |
What's in the Box?
Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface- Synth Players, Live Musicians, Producers
- AC Powered, Mac/Windows
- 3 x USB-A Hub Ports
- 2 Mic / Line / Hi-Z Preamps, 16 Line Ins
- 10 Line, 2 Headphone & 2 Monitor Outputs
- 24-Bit / 192 kHz AD/DA Conversion
- Two Internal Standalone Mixers
- 16 ADAT I/O, Wordclock I/O
- MIDI I/O on 5-Pin DIN Jacks
- AudioFuse Control Center App, FX Bundle
General |
|
|---|---|
| Channels of I/O | 32 Inputs / 28 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Display | 1x Color LCD |
| Built-In DSP | Yes |
| Built-In Microphone | No |
| Input Level Adjustment | Knob |
Analog Audio I/O |
|
| Analog Audio I/O | 2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 16x 1/4" TRS Line Input 1x 1/8" / 3.5 mm TRS Line Input 10x 1/4" TRS Line Output 2x 1/4" TRS Line/Headphone/Re-Amp Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Analog Audio I/O (Detailed) | 2x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input (Front Panel) 16x 1/4" TRS Balanced Line Input 1x 1/8" / 3.5 mm TRS Line Input (Front Panel) 10x 1/4" TRS Balanced Line Output 2x 1/4" TRS Balanced/Unbalanced Line/Headphone/Re-Amp Output (Shared with Rear Panel Input) 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
Digital Audio I/O |
|
| Digital Audio I/O | TOSLINK Optical ADAT Input TOSLINK Optical ADAT Output |
| Digital Audio I/O (Detailed) | 2x TOSLINK Optical ADAT Input 2x TOSLINK Optical ADAT Output |
Host Connection & USB |
|
| Host Connection | 1x USB-C (Class-Compliant) |
| Host Connection / USB | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 3x USB-A (External Storage, MIDI I/O) |
Signal Processing |
|
| Pad | Mic: -20 dB (Switchable per Channel) Line: -12 dB (Switchable per Channel) Line: -10 dB (Switchable per Channel) Hi-Z: -10 dB (Switchable per Channel) |
| Solo/Mute | Solo, Mute per Master |
Connectivity |
|
| Phantom Power | 48 V, Selectable On/Off |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x 1/8" / 3.5 mm Clock Output |
| Network I/O | No |
| MIDI I/O | 1x DIN 5-Pin Input 2x DIN 5-Pin Output/Thru |
| Expansion Slots | No |
| Wireless | No |
Performance |
|
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.08 dB Line Inputs: 20 Hz to 20 kHz ±0.06 dB Line Outputs: 20 Hz to 20 kHz ±0.04 dB Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB Monitor Outputs: 20 Hz to 20 kHz ±0.02 dB |
| Maximum Input Level | Mic: 22 dBu Line: +24 dBu (Rear) +22 dBu (Front) Hi-Z: 20 dBu |
| Maximum Output Level | Line: 24 dBu Headphone: 14.4 dBu Monitor: 20 dBu |
| Headphone Output Power | 271 mW into 33 Ohms |
| Impedance | Mic Inputs: 2.7 Kilohms Line Inputs: 20 Kilohm Line Outputs: 240 Ohms (Balanced) 120 Ohms (Unbalanced) Hi-Z Inputs: 1.1 Megohm Headphone Outputs: 5 Ohms Monitor Outputs: 240 Ohms (Balanced) 120 Ohms (Unbalanced) |
| Dynamic Range | Hi-Z Inputs: 114 dBA Line Inputs: 118 dBA Mic Inputs: 117 dBA Headphone Outputs: 109 dBA Line Outputs: 120 dBA Monitor Outputs: 126 dBA |
| THD+N | Line Inputs: -113 dBA Hi-Z Inputs: -105 dBA Mic Inputs: -110 dBA Speaker Outputs: -114 dBA Line Outputs: -106 dBA Headphone Outputs: -103 dBA |
| EIN | -129.5 dBu A-Weighted |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | ADAT, Internal, Word Clock |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS 10.13 or Later / Windows 10 or Later |
| Processor Requirement | Mac: Intel Core i5 Apple M1 |
| RAM Requirements | 4 GB |
| Storage Requirements | 4 GB |
Power |
|
| Power Requirements | AC/DC Power Adapter (Included) |
