THE PROFESSIONAL QUALITY YOU DESERVE
AudioFuse Studio Rev2 features 4 DiscretePRO® preamps to track your music, and a pristine analog signal path to reveal every nuance of your audio. Each unit comes with its individual measurement certificate, providing a super-low Equivalent Input Noise (EIN) to capture every subtle detail, and a huge 72dB gain to drive even the quietest ribbon mics. Every detail is captured with absolute transparency and faithful accuracy, preserving the true character of your source. Latest-generation 24-bit AD/DA converters running at up to 192kHz carry that signal into your DAW and back out again.
THE ULTIMATE CREATIVE HUB
AudioFuse Studio Rev2 features 8 analog inputs—comprising 4 mic/line/instrument inputs, 4 line inputs including a dedicated Phono input for vinyl—alongside 4 line outputs, 4 analog inserts, and 2 Aux/guitar reamping outputs. Combined with robust digital connectivity (ADAT, SPDIF, Word Clock, MIDI, USB-C), an upgraded Bluetooth® receiver, and advanced monitoring capabilities—including the ability to drive 2 speaker sets and dual independent headphone outputs—, it serves as the ultimate all-in-one hub for any studio configuration.
A COMPLETE PRODUCTION BUNDLE
AudioFuse Studio Rev2 comes bundled with the AudioFuse Creative Suite—a premium, expanding collection of software effects and instruments featuring titles from the acclaimed FX Collection. Preamps, compressors, reverbs, delays and modulation, plus virtual instruments: everything needed to mix, master and finish a record from the moment the box is opened.
| Product Name | Arturia AudioFuse Studio Rev2 USB-C Audio Interface |
|---|---|
| Brand | Arturia |
| Condition | New |
| MPN | 830102 |
| UPC | 3760033532592 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Arturia AudioFuse Studio Rev2 USB-C Audio Interface
- 2 x 3.5mm to MIDI DIN Adapter
- Power Adapter
Four optimized DiscretePRO® preamps
- Four analog insert points
- Individual performance certificate included
8 analog inputs
- Four mic/line/instrument inputs
- Four additional line inputs
- Inputs 5–6 switchable to the integrated phono/RIAA preamp
Flexible outputs and monitoring
- Four line outputs and two Aux/reamping outputs
- Speaker A/B switching, with support for speakers with digital input
- Two independently controlled headphone outputs
- Integrated talkback and ultra-low-latency direct monitoring
ADAT and digital synchronization
- 8-channel ADAT input and output at up to 96 kHz
- S/PDIF input/output or Word Clock input/output/thru
- Updated clocking system for refined stability
Flexible routing and software control
- Expanded source options for Aux and ADAT outputs
- Comprehensive routing and configuration through AudioFuse Control Center
Bluetooth® streaming
- Supports AAC, aptX™ as well as aptX™ HD and aptX™ Low Latency for AudioFuse Studio rev.2
- Stream, monitor and record audio directly from compatible devices
USB-C, MIDI and USB hub
- Low-latency USB-C connection
- MIDI input and output
- Integrated three-port USB 2 hub
AudioFuse Creative Suite included
- 11 software titles, including Analog Lab Intro and the newly added Comp DIODE-609
Studio-ready construction
- Robust metal desktop chassis
- 24-bit AD/DA conversion at up to 192 kHz
Line Inputs |
|
| Input Impedance | 20kΩ (symmetric), 10kΩ (asymmetric) |
| Maximum Input Level | +24dBu |
| Gain Range | 45 dB typical |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,01 dB |
| Dynamic Range | 119dB (A-weighted) |
| THD+N | -112dB (A-weighted) |
Line Aux |
|
| Input Impedance | 20kΩ (symmetric), 10kΩ (asymmetric) |
| Maximum Input Level | +24dBu |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,02 dB |
| Dynamic Range | 120dB (A-weighted) |
| THD+N | -108dB (A-weighted) |
Speakers / Aux Outputs |
|
| Output Impedance | 240Ω bal, 120Ω unbal |
| Maximum Output Level | +24dBu |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,07 dB |
| Dynamic Range | 121dB (A-weighted) |
| THD+N | -108dB (A-weighted) |
Instrument Input |
|
| Input Impedance | 1.1MΩ asymmetric |
| Maximum Input Level | +18dBu |
| Gain Range | from 45 dB typical |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,01 dB |
| Dynamic Range | 119dB (A-weighted) |
| THD+N | -112dB (A-weighted) |
Microphone Preamps |
|
| Input Impedance | 3.4kΩ |
| Maximum Input Level | from +11dBu (rev 1) to +18dBu (rev2) |
| Gain Range | from 71dB typical (rev 1) to 78dB (rev 2) |
| Boost Mode | from +10dB (rev 1) to +17dB (rev2) |
| Frequency Response 20Hz to 20kHz | >+/- 0,09 dB |
| Equivalent Input Noise (EIN) | -129dBu typical (un-weighted) |
| Dynamic Range | 118dB (A-weighted) |
| THD+N | -107dB (A-weighted) |
Phones |
|
| Designed For | Phones impedance from 32 Ohms to 600 Ohms |
| Maximum Output Level | +13dBu on 6.35mm TRS, +10dBu on 3.5mm TRS |
| Dynamic Range | 103dB (A-weighted) |
| THD+N | -92dB (A-weighted) |

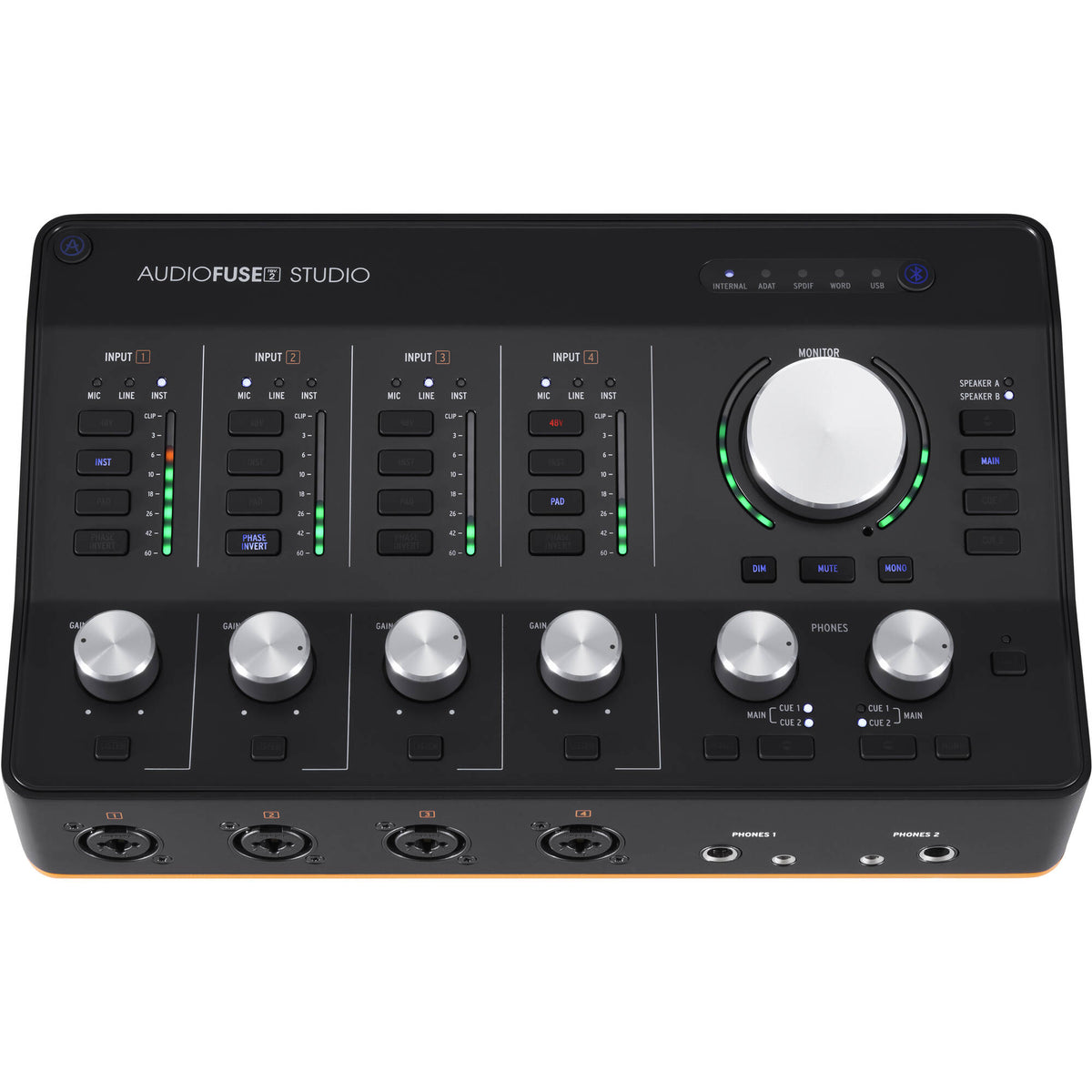

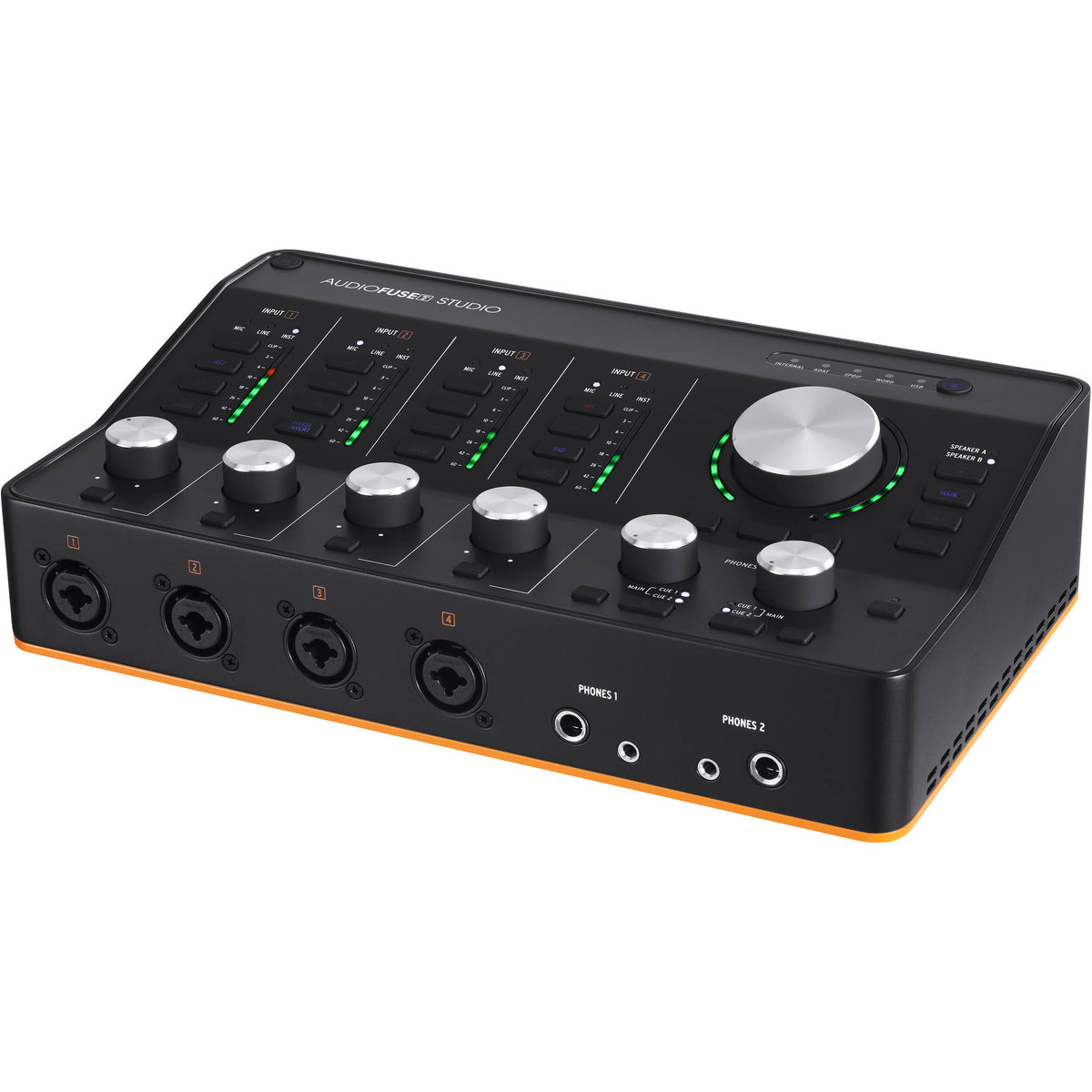

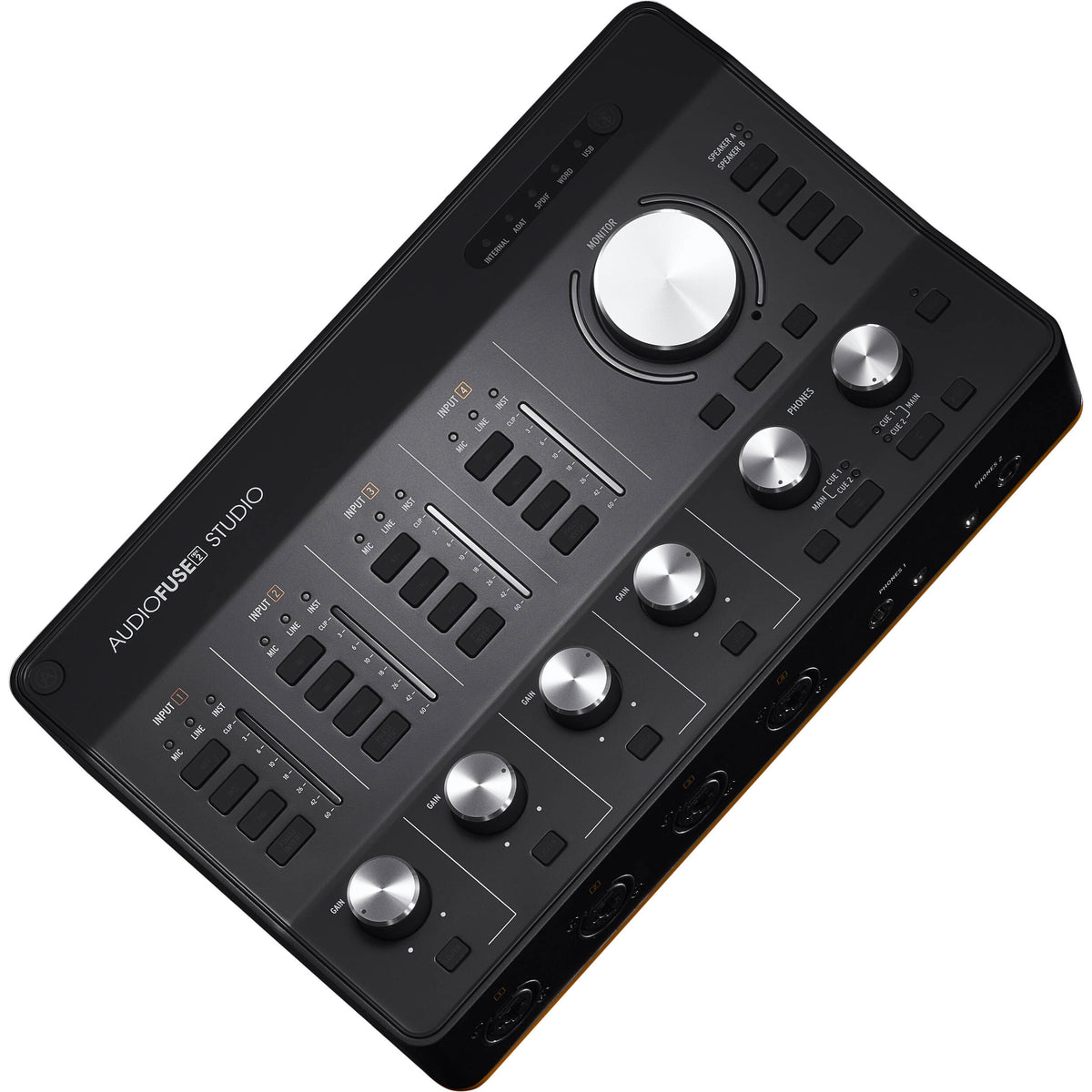

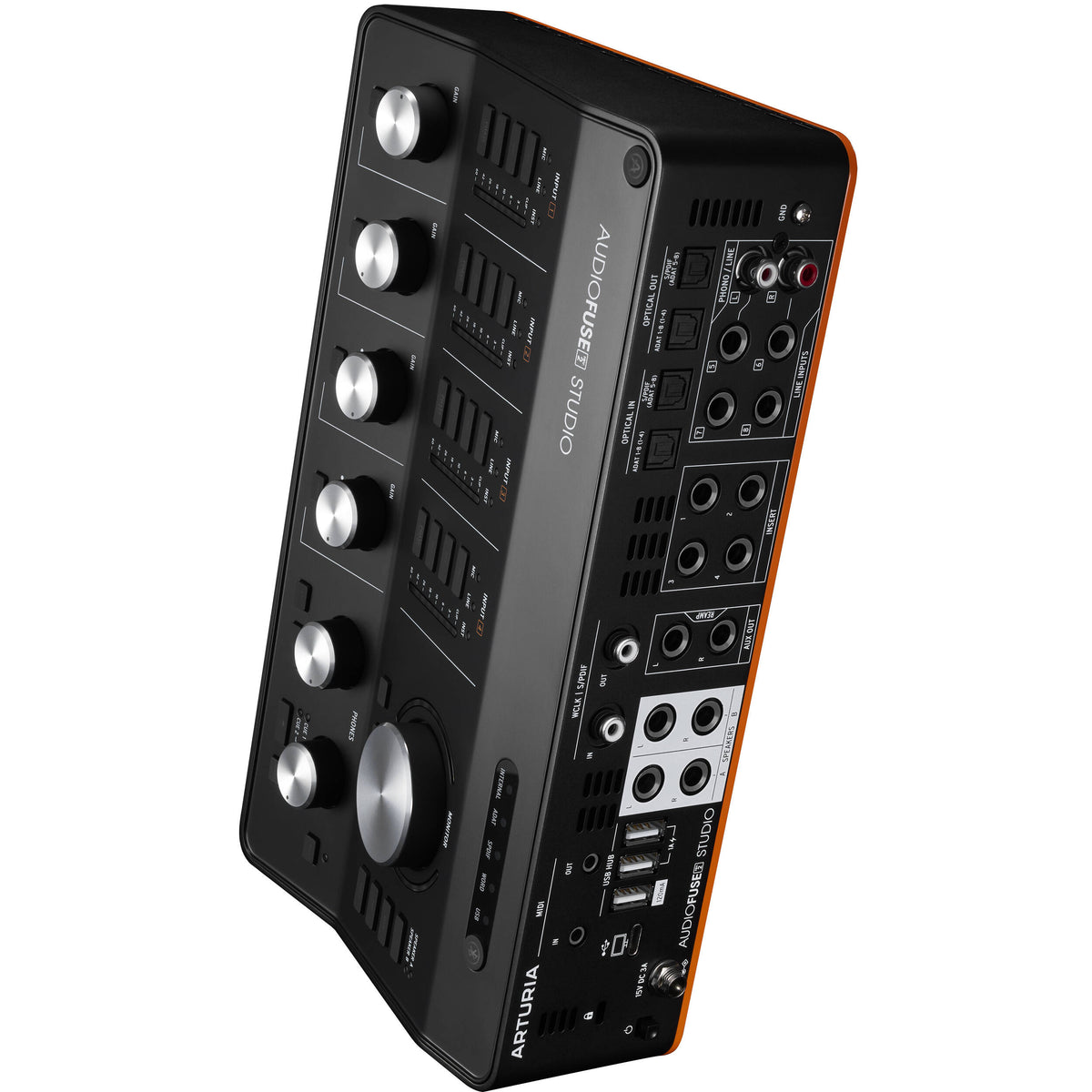

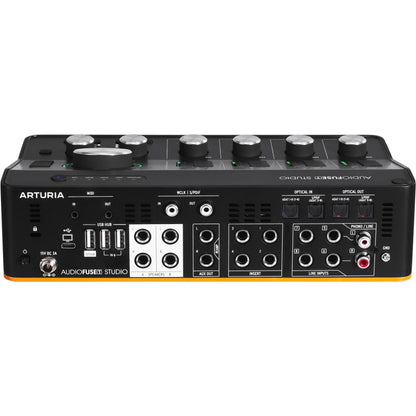

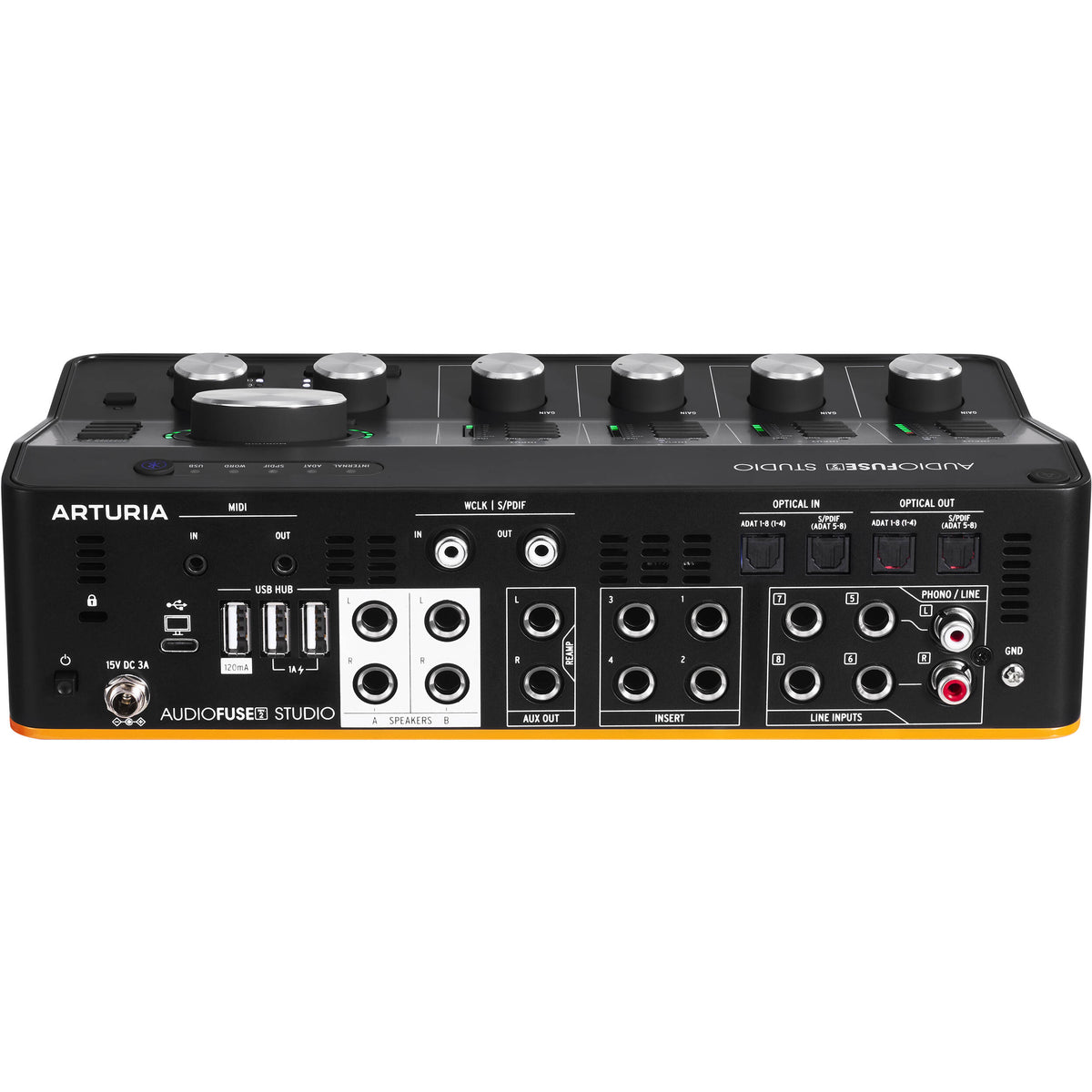

Arturia AudioFuse Studio Rev2 USB-C Audio Interface
THE PROFESSIONAL QUALITY YOU DESERVE
AudioFuse Studio Rev2 features 4 DiscretePRO® preamps to track your music, and a pristine analog signal path to reveal every nuance of your audio. Each unit comes with its individual measurement certificate, providing a super-low Equivalent Input Noise (EIN) to capture every subtle detail, and a huge 72dB gain to drive even the quietest ribbon mics. Every detail is captured with absolute transparency and faithful accuracy, preserving the true character of your source. Latest-generation 24-bit AD/DA converters running at up to 192kHz carry that signal into your DAW and back out again.
THE ULTIMATE CREATIVE HUB
AudioFuse Studio Rev2 features 8 analog inputs—comprising 4 mic/line/instrument inputs, 4 line inputs including a dedicated Phono input for vinyl—alongside 4 line outputs, 4 analog inserts, and 2 Aux/guitar reamping outputs. Combined with robust digital connectivity (ADAT, SPDIF, Word Clock, MIDI, USB-C), an upgraded Bluetooth® receiver, and advanced monitoring capabilities—including the ability to drive 2 speaker sets and dual independent headphone outputs—, it serves as the ultimate all-in-one hub for any studio configuration.
A COMPLETE PRODUCTION BUNDLE
AudioFuse Studio Rev2 comes bundled with the AudioFuse Creative Suite—a premium, expanding collection of software effects and instruments featuring titles from the acclaimed FX Collection. Preamps, compressors, reverbs, delays and modulation, plus virtual instruments: everything needed to mix, master and finish a record from the moment the box is opened.
| Product Name | Arturia AudioFuse Studio Rev2 USB-C Audio Interface |
|---|---|
| Brand | Arturia |
| Condition | New |
| MPN | 830102 |
| UPC | 3760033532592 |
What's in the Box?
- Arturia AudioFuse Studio Rev2 USB-C Audio Interface
- 2 x 3.5mm to MIDI DIN Adapter
- Power Adapter
Four optimized DiscretePRO® preamps
- Four analog insert points
- Individual performance certificate included
8 analog inputs
- Four mic/line/instrument inputs
- Four additional line inputs
- Inputs 5–6 switchable to the integrated phono/RIAA preamp
Flexible outputs and monitoring
- Four line outputs and two Aux/reamping outputs
- Speaker A/B switching, with support for speakers with digital input
- Two independently controlled headphone outputs
- Integrated talkback and ultra-low-latency direct monitoring
ADAT and digital synchronization
- 8-channel ADAT input and output at up to 96 kHz
- S/PDIF input/output or Word Clock input/output/thru
- Updated clocking system for refined stability
Flexible routing and software control
- Expanded source options for Aux and ADAT outputs
- Comprehensive routing and configuration through AudioFuse Control Center
Bluetooth® streaming
- Supports AAC, aptX™ as well as aptX™ HD and aptX™ Low Latency for AudioFuse Studio rev.2
- Stream, monitor and record audio directly from compatible devices
USB-C, MIDI and USB hub
- Low-latency USB-C connection
- MIDI input and output
- Integrated three-port USB 2 hub
AudioFuse Creative Suite included
- 11 software titles, including Analog Lab Intro and the newly added Comp DIODE-609
Studio-ready construction
- Robust metal desktop chassis
- 24-bit AD/DA conversion at up to 192 kHz
Line Inputs |
|
| Input Impedance | 20kΩ (symmetric), 10kΩ (asymmetric) |
| Maximum Input Level | +24dBu |
| Gain Range | 45 dB typical |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,01 dB |
| Dynamic Range | 119dB (A-weighted) |
| THD+N | -112dB (A-weighted) |
Line Aux |
|
| Input Impedance | 20kΩ (symmetric), 10kΩ (asymmetric) |
| Maximum Input Level | +24dBu |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,02 dB |
| Dynamic Range | 120dB (A-weighted) |
| THD+N | -108dB (A-weighted) |
Speakers / Aux Outputs |
|
| Output Impedance | 240Ω bal, 120Ω unbal |
| Maximum Output Level | +24dBu |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,07 dB |
| Dynamic Range | 121dB (A-weighted) |
| THD+N | -108dB (A-weighted) |
Instrument Input |
|
| Input Impedance | 1.1MΩ asymmetric |
| Maximum Input Level | +18dBu |
| Gain Range | from 45 dB typical |
| Pad Mode | -20dB |
| Frequency Response 20Hz to 20kHz | >+/- 0,01 dB |
| Dynamic Range | 119dB (A-weighted) |
| THD+N | -112dB (A-weighted) |
Microphone Preamps |
|
| Input Impedance | 3.4kΩ |
| Maximum Input Level | from +11dBu (rev 1) to +18dBu (rev2) |
| Gain Range | from 71dB typical (rev 1) to 78dB (rev 2) |
| Boost Mode | from +10dB (rev 1) to +17dB (rev2) |
| Frequency Response 20Hz to 20kHz | >+/- 0,09 dB |
| Equivalent Input Noise (EIN) | -129dBu typical (un-weighted) |
| Dynamic Range | 118dB (A-weighted) |
| THD+N | -107dB (A-weighted) |
Phones |
|
| Designed For | Phones impedance from 32 Ohms to 600 Ohms |
| Maximum Output Level | +13dBu on 6.35mm TRS, +10dBu on 3.5mm TRS |
| Dynamic Range | 103dB (A-weighted) |
| THD+N | -92dB (A-weighted) |
