ATC SCM150ASL Pro 15 In 3-Way Active Pair

ATC SCM150ASL Pro 15 In 3-Way Active Pair

$22,990.00
$22,990.00
Sale Sold out

On order with the manufacturer!
Farfield Monitor w/ Active Filtering, Wide Dispersion, Overload Protection, & Balanced XLR Input
View full details
  • Details
  • Tech Specs
  • Reviews

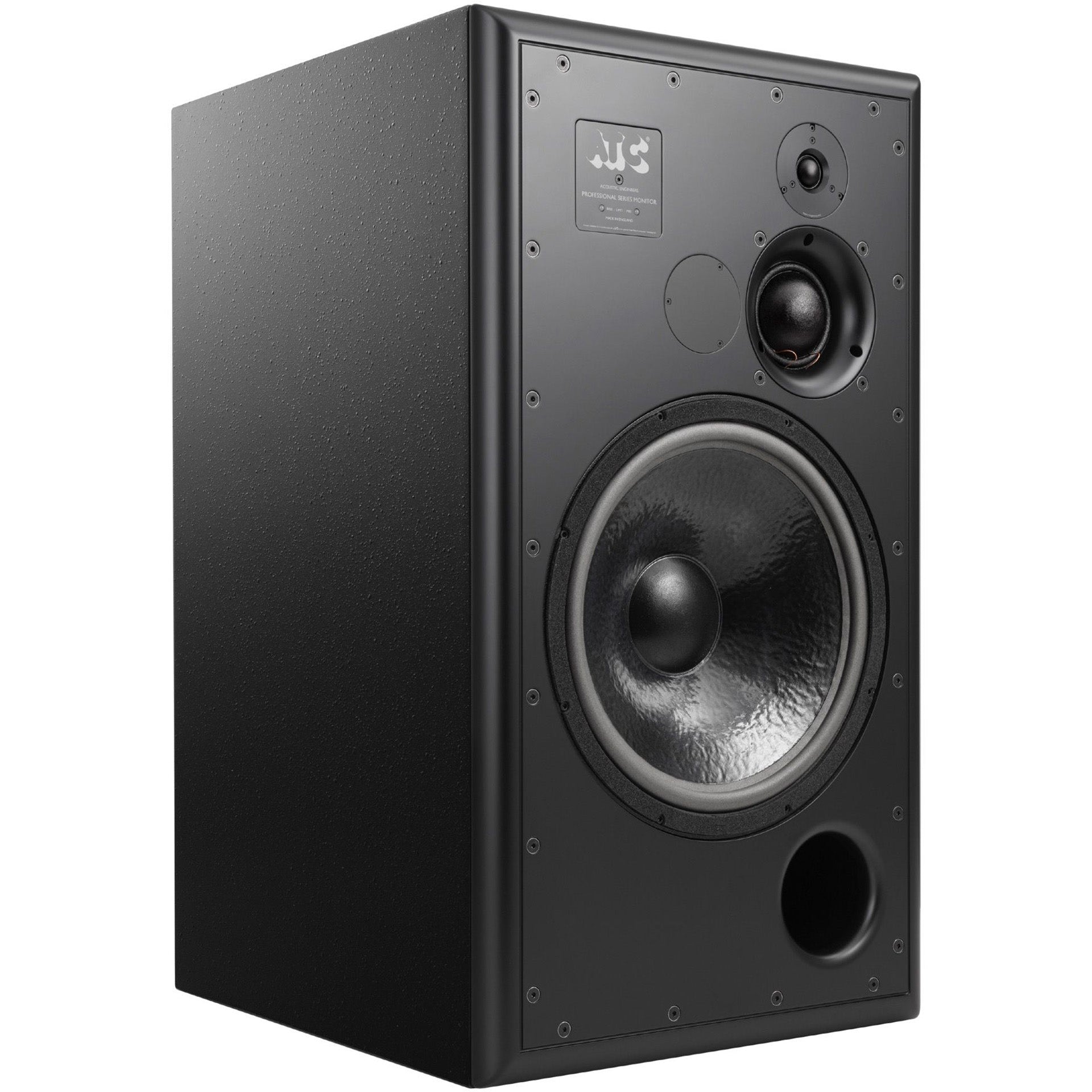

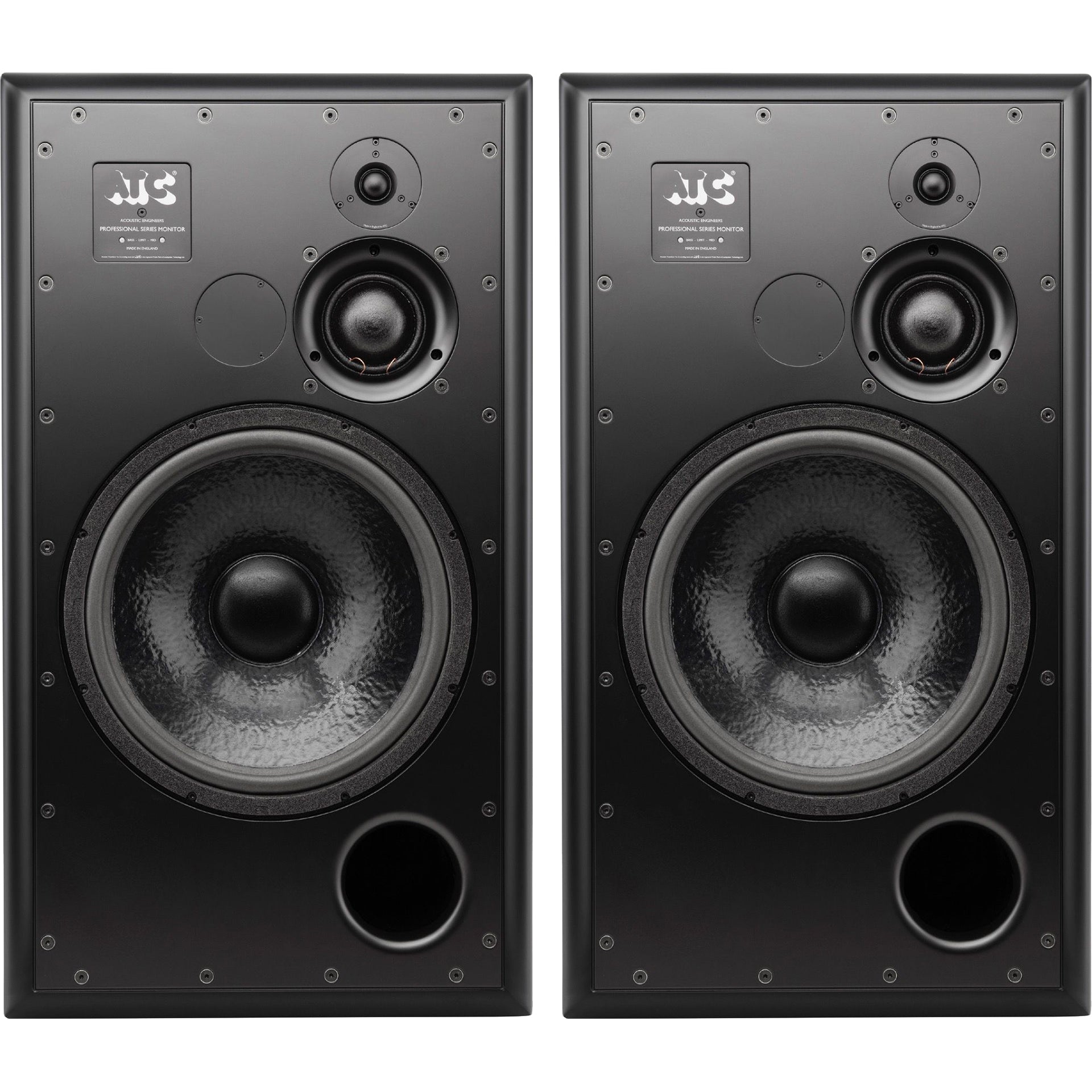

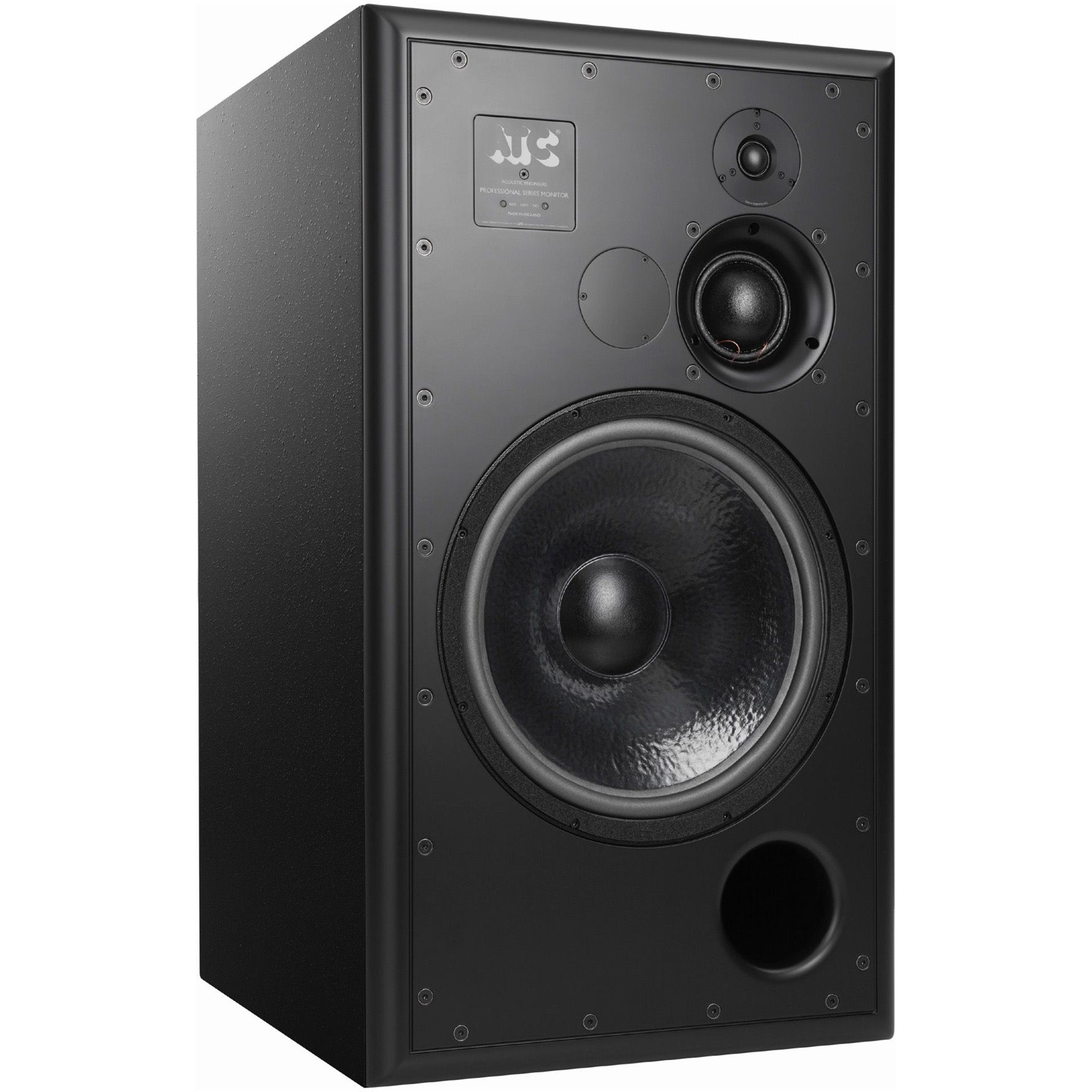

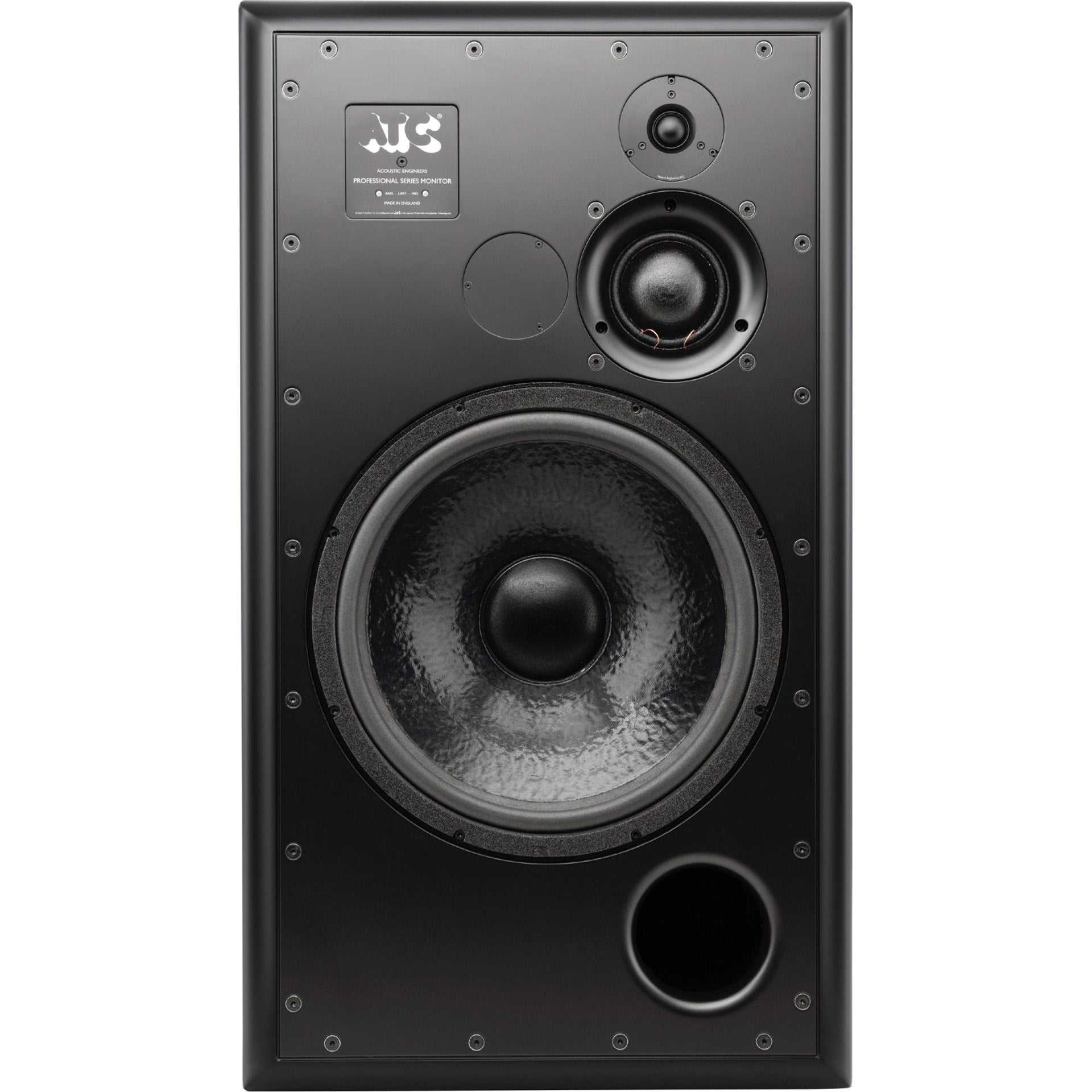

ATC SCM150 15 in 3 Way Active Pair:

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Full “SL” spec 15˝/375mm bass driver.
  • ATC 75mm “Super Dome” mid driver.

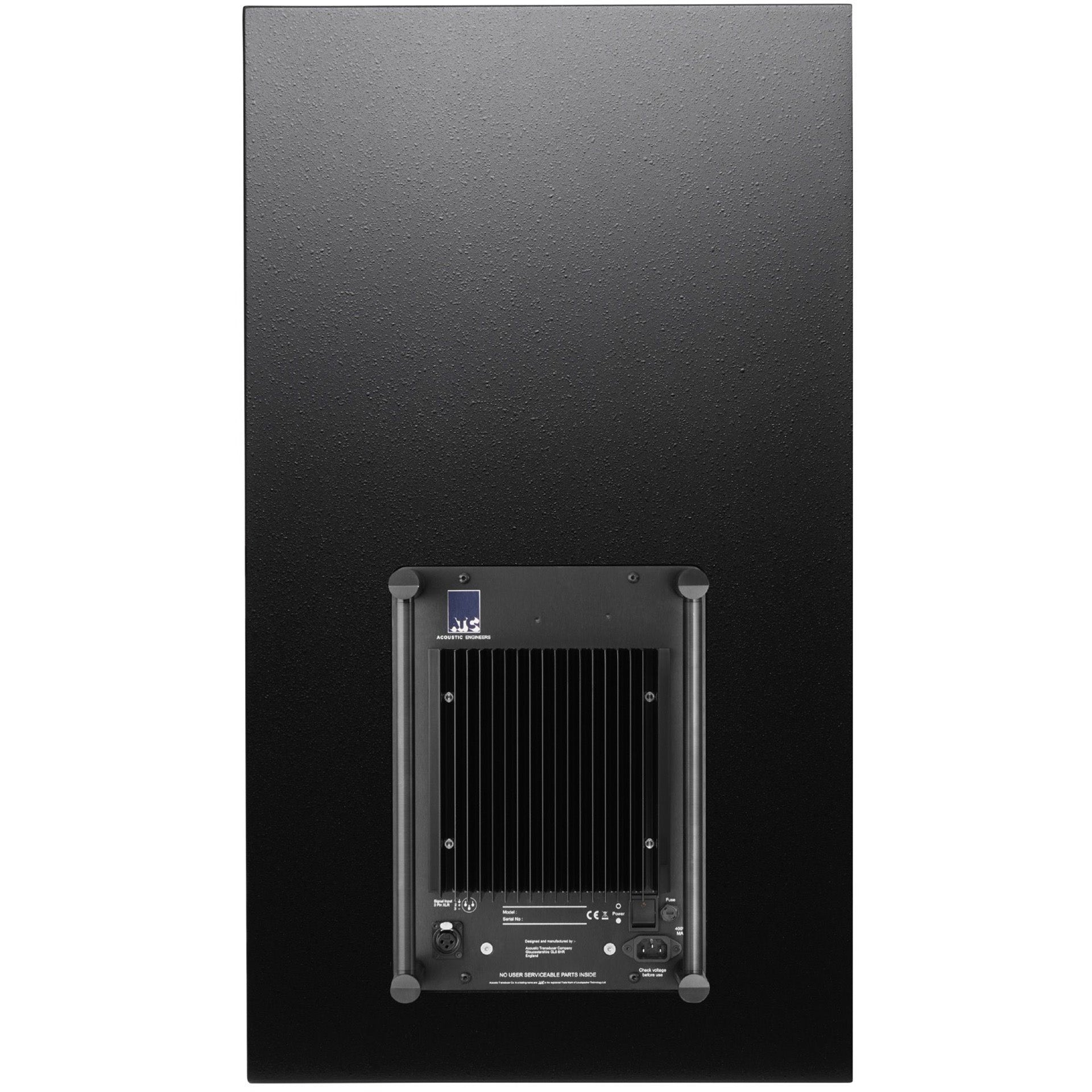

  • On board ATC grounded source 350W Tri-Amp Pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.
More Information
Product Name ATC SCM150ASL Pro 15 In 3-Way Active Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping on orders over $94.72

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 15″/375mm
Amplitude Linearity (±2dB): 60Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 25Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 117dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 884 x 498 x 568mm (34.8˝ x 19.6˝ x 25.5˝) Depth with amplifier at rear adds 3˝
Weight: 75kg / 165lbs

ATC SCM150ASL Pro 15 In 3-Way Active Pair
Details

ATC SCM150 15 in 3 Way Active Pair:

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Full “SL” spec 15˝/375mm bass driver.
  • ATC 75mm “Super Dome” mid driver.
  • On board ATC grounded source 350W Tri-Amp Pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.
More Information
Product Name ATC SCM150ASL Pro 15 In 3-Way Active Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping on orders over $94.72
Tech Specs

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 15″/375mm
Amplitude Linearity (±2dB): 60Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 25Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 117dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 884 x 498 x 568mm (34.8˝ x 19.6˝ x 25.5˝) Depth with amplifier at rear adds 3˝
Weight: 75kg / 165lbs
