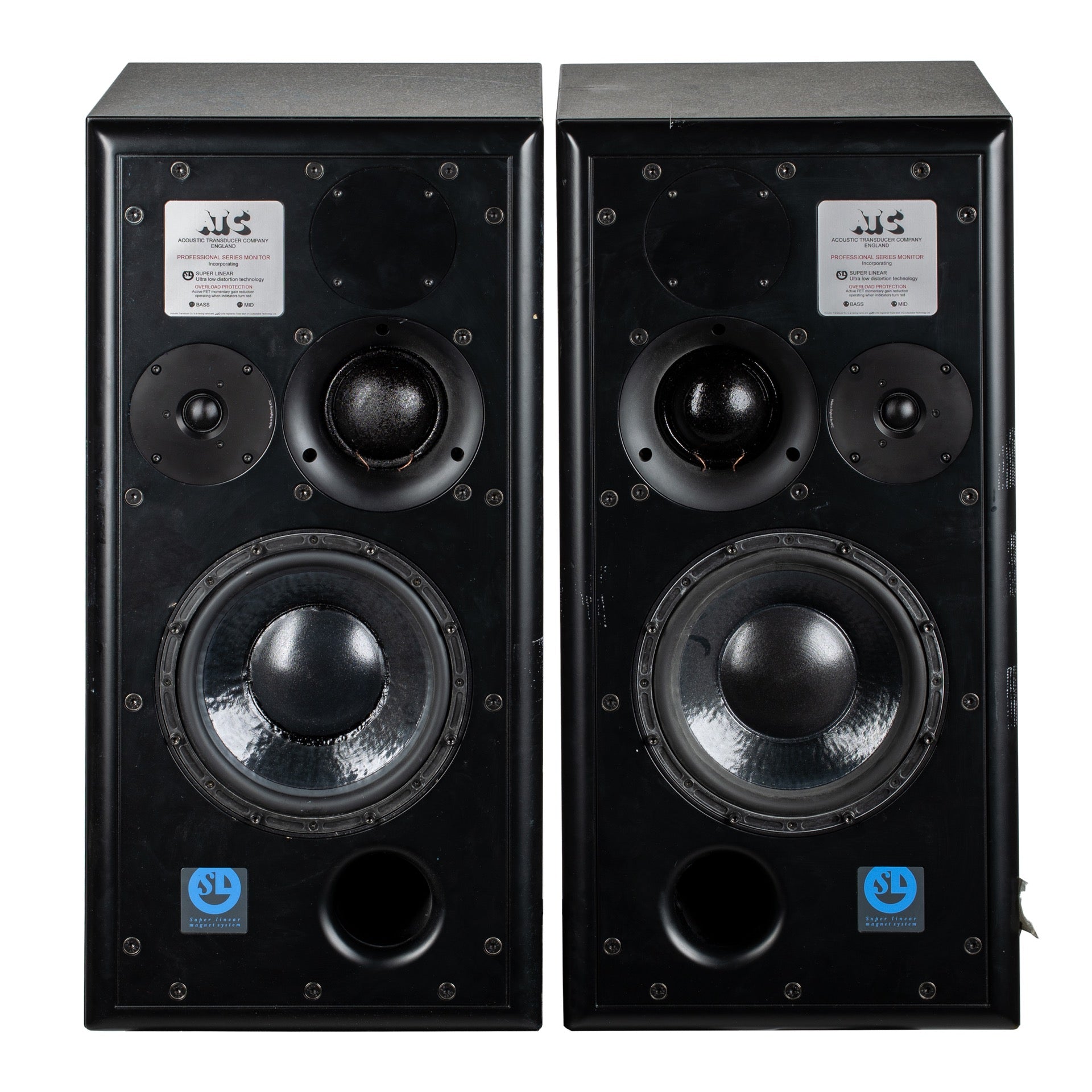

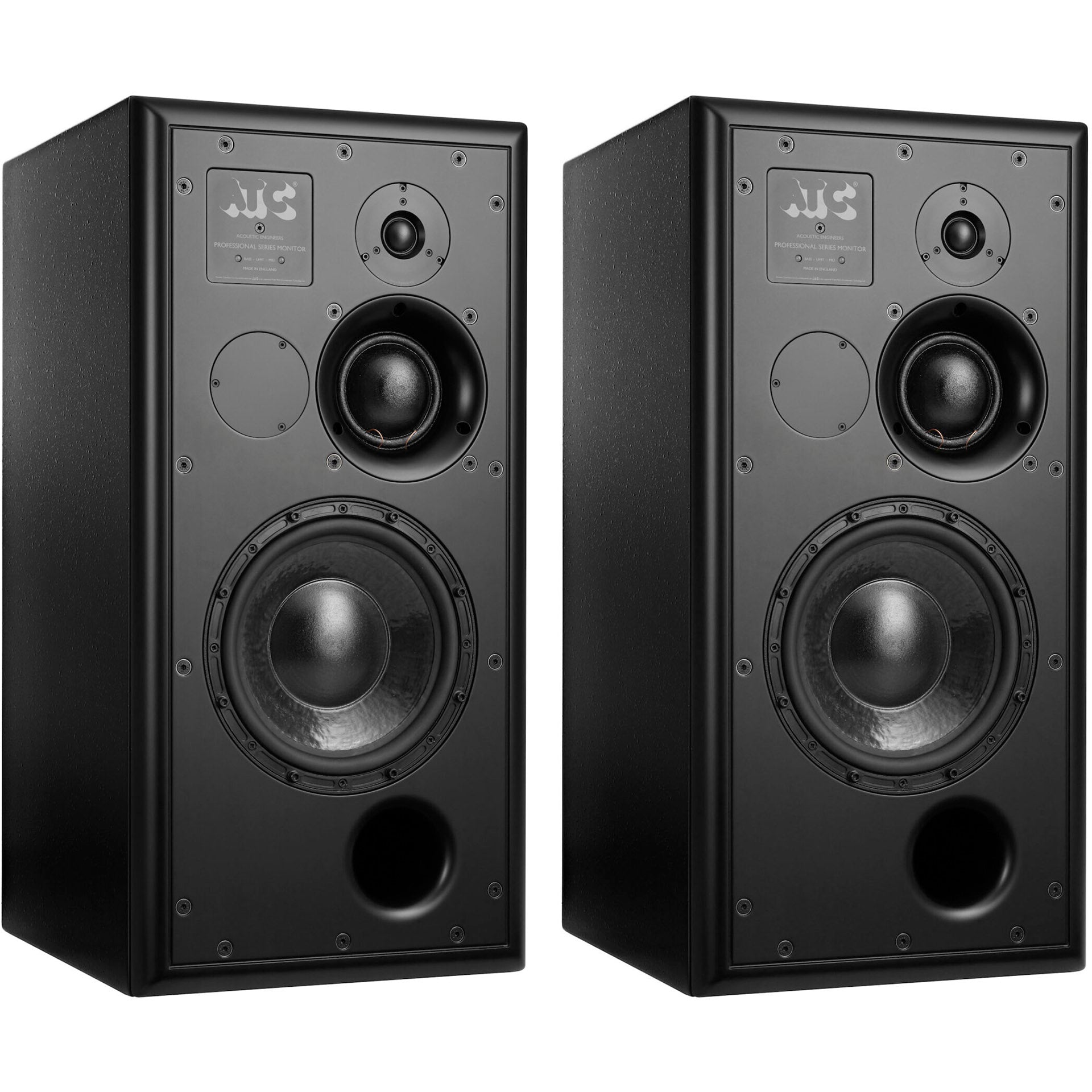

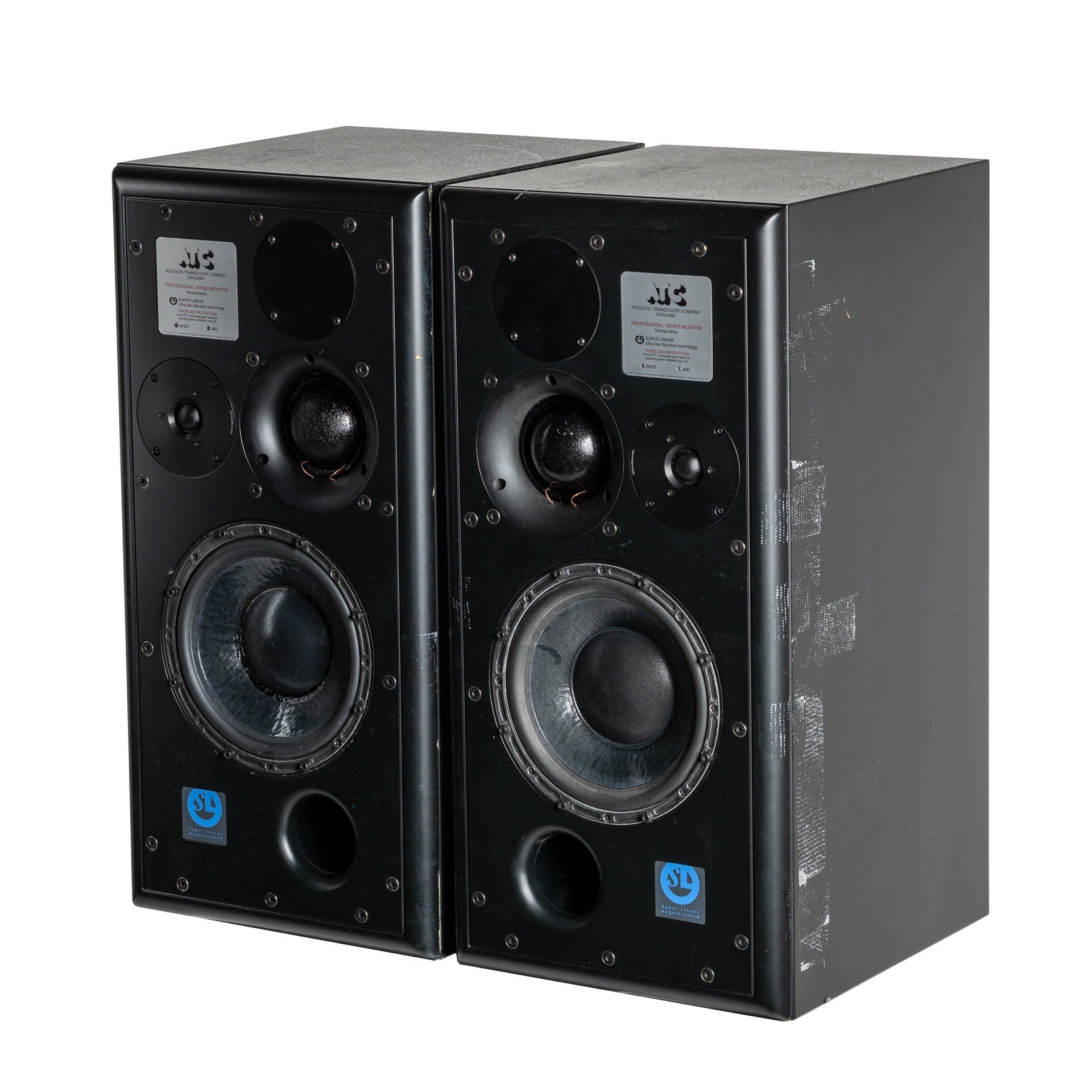

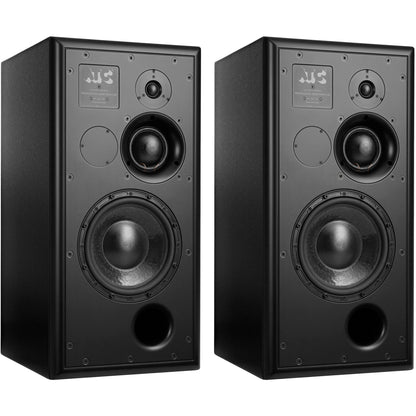

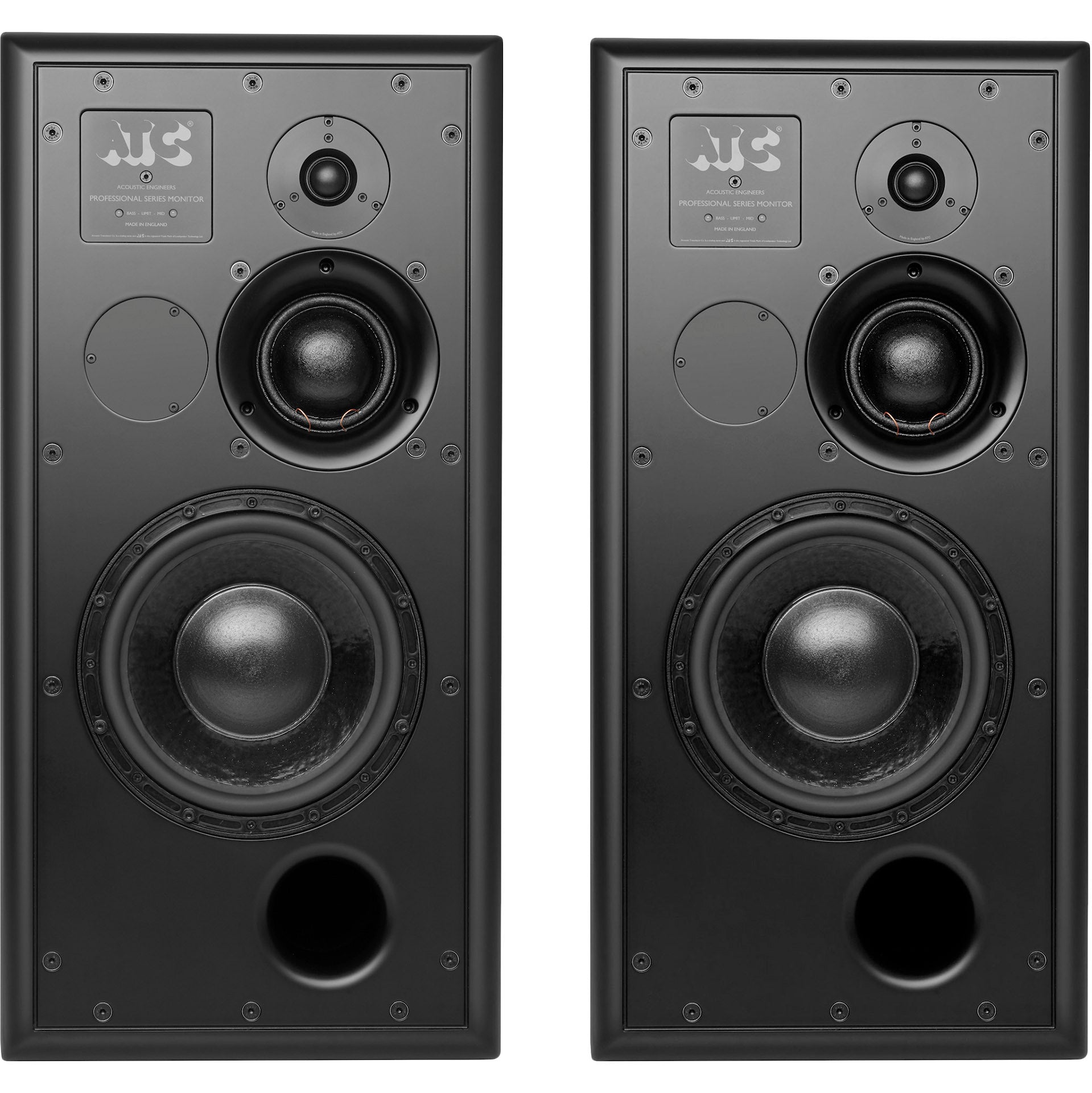

ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair

ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair

$17,490.00
$17,490.00
Sale Sold out

+ Free Shipping

On order with the manufacturer!
View full details
  • Details
  • Tech Specs
  • Reviews

ATC SCM50ASL Pro Active 9 in 3 Way Monitor Speakers Pair:

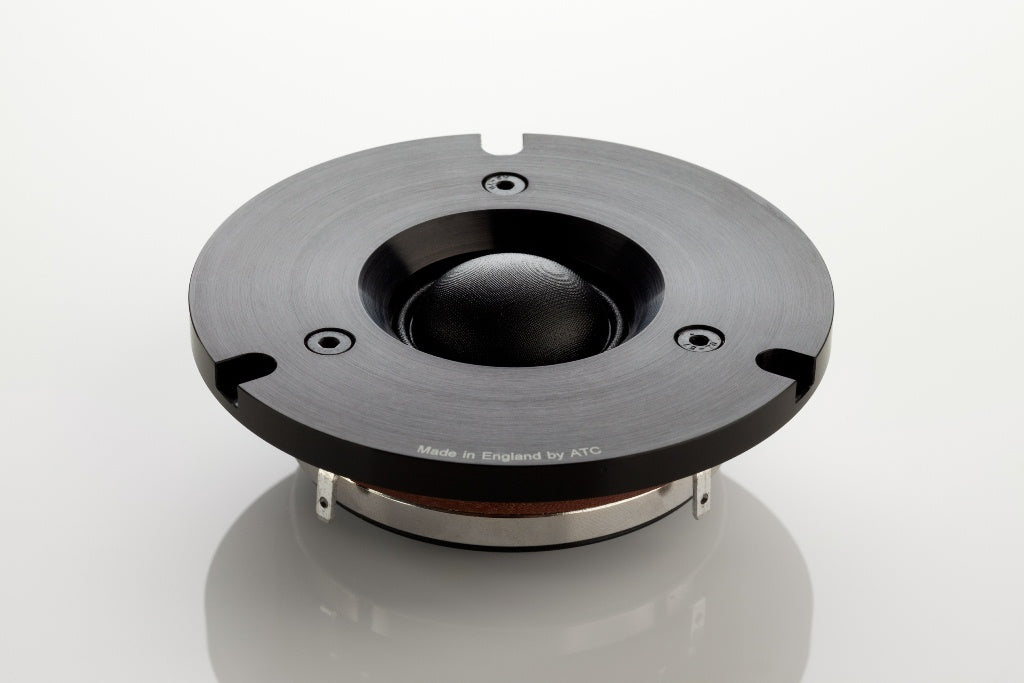

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.

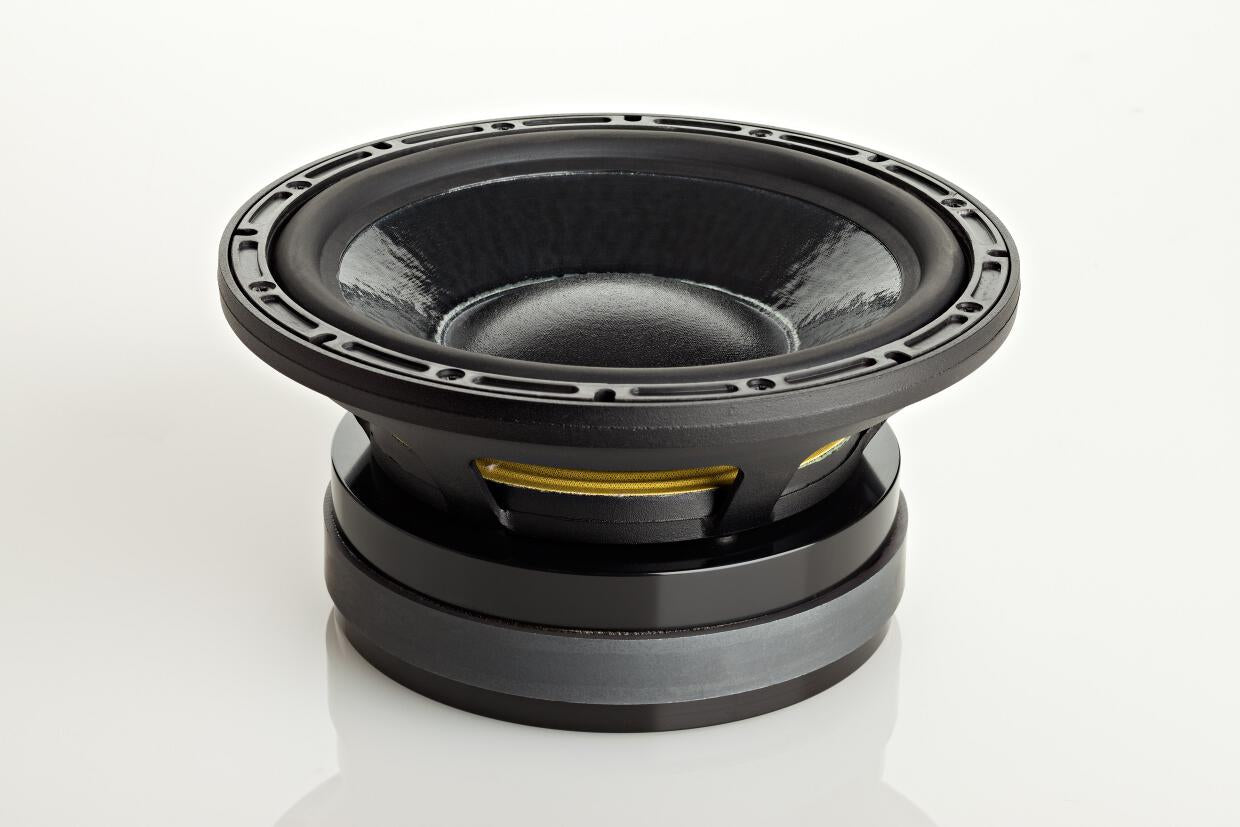

  • Full “SL” spec 9˝/234mm bass driver.

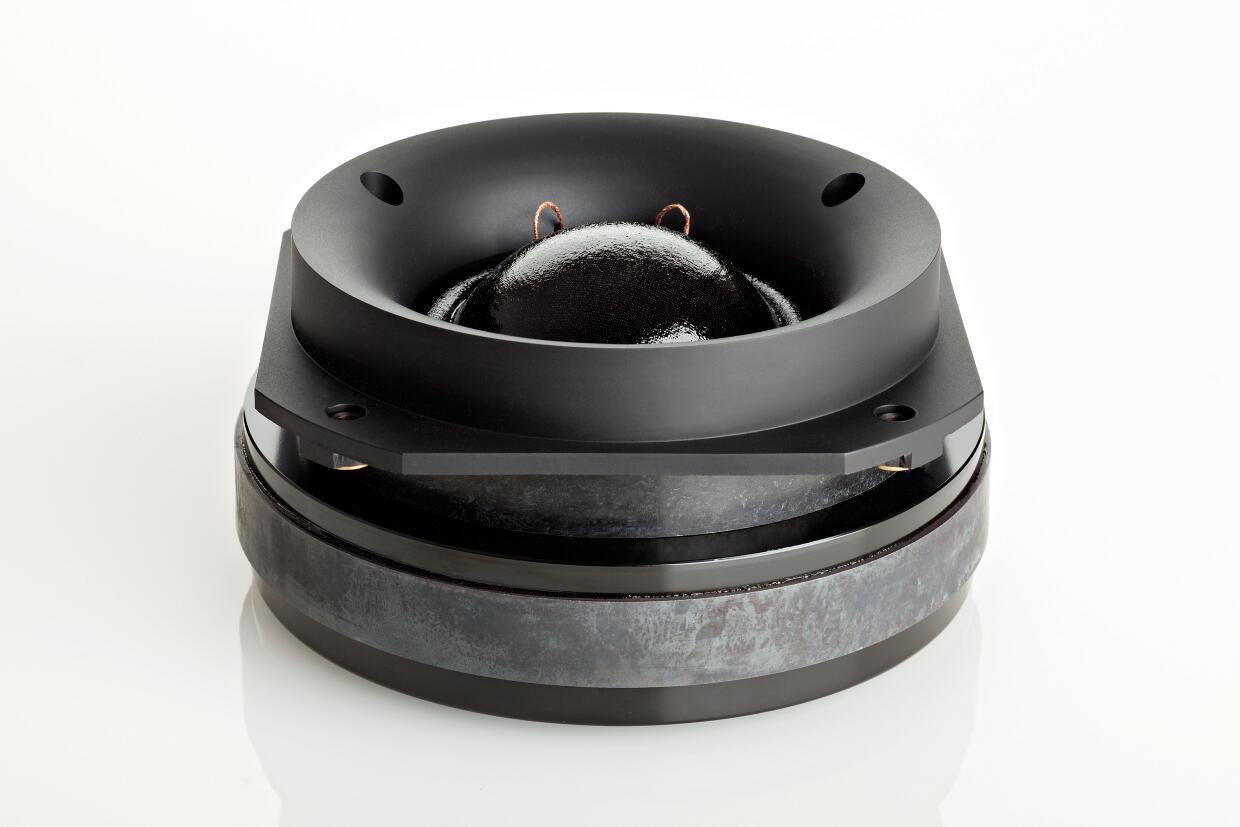

  • ATC 75mm Super Dome” mid driver.
  • On board grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.
More Information
Product Name ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping to the Continental U.S.

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

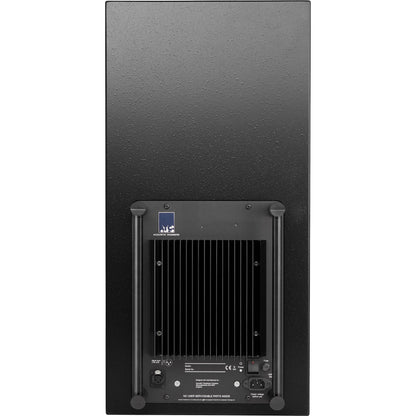

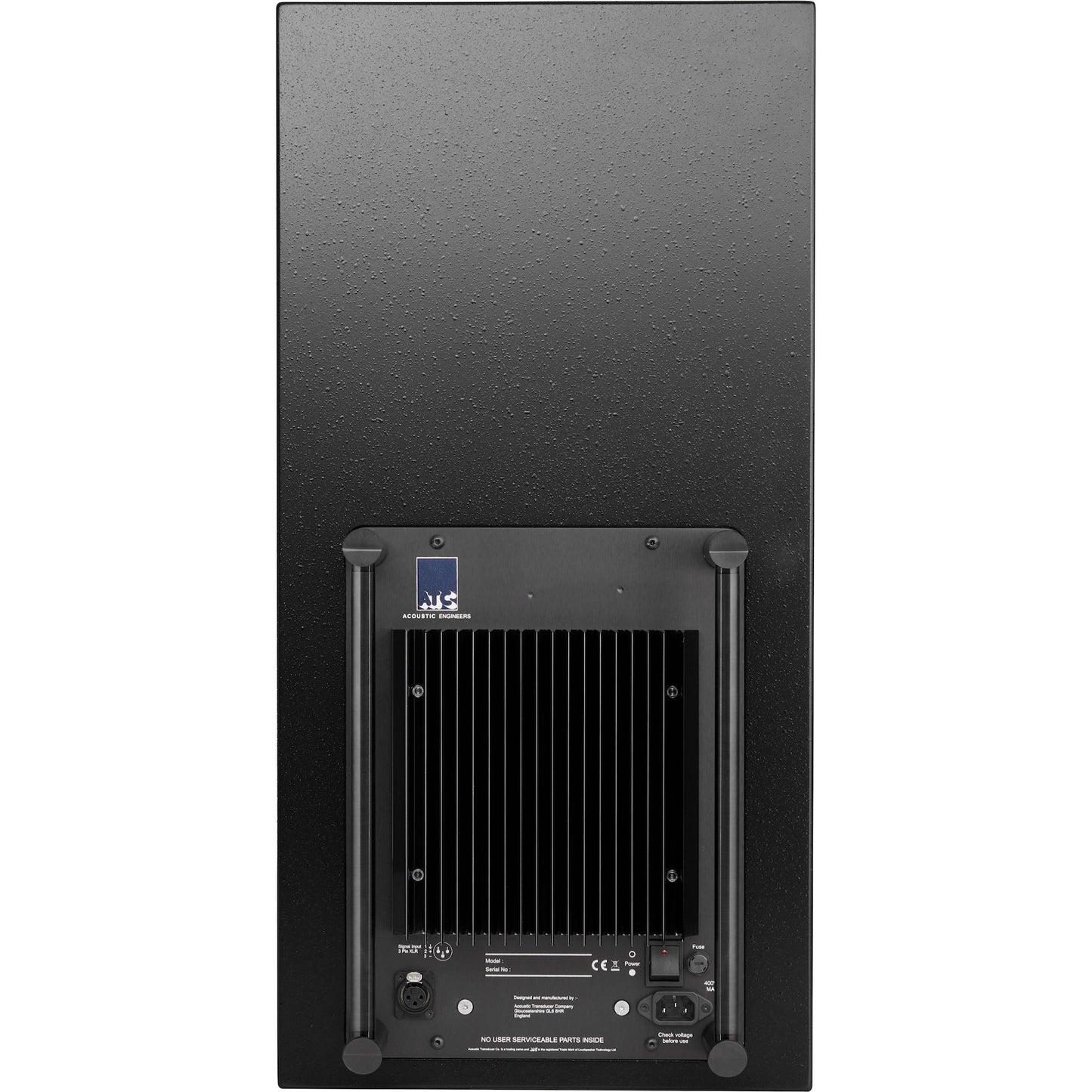

Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs

ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair
Details

ATC SCM50ASL Pro Active 9 in 3 Way Monitor Speakers Pair:

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Full “SL” spec 9˝/234mm bass driver.
  • ATC 75mm Super Dome” mid driver.
  • On board grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.
More Information
Product Name ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping to the Continental U.S.
Tech Specs

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs
