Welcome to the New Standard

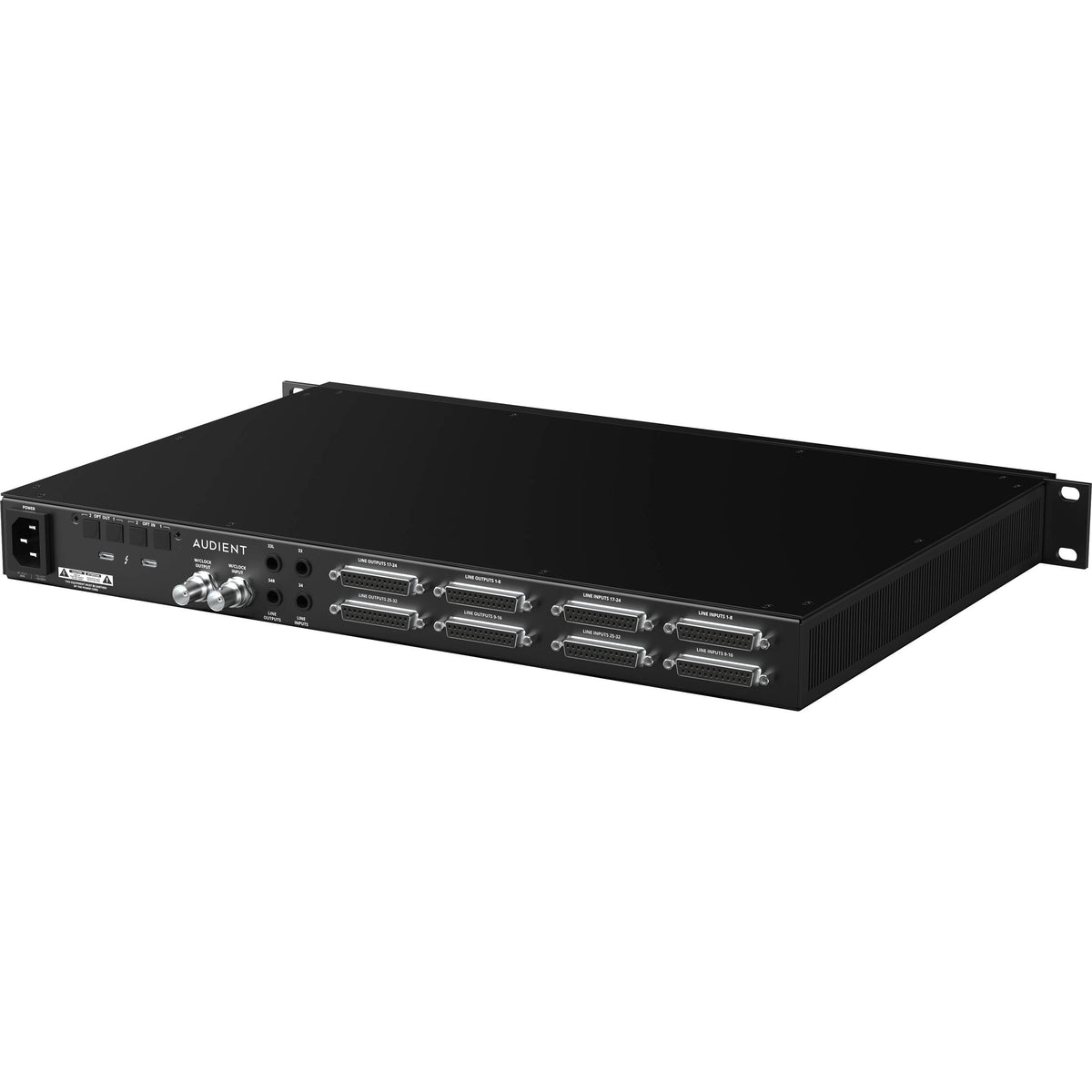

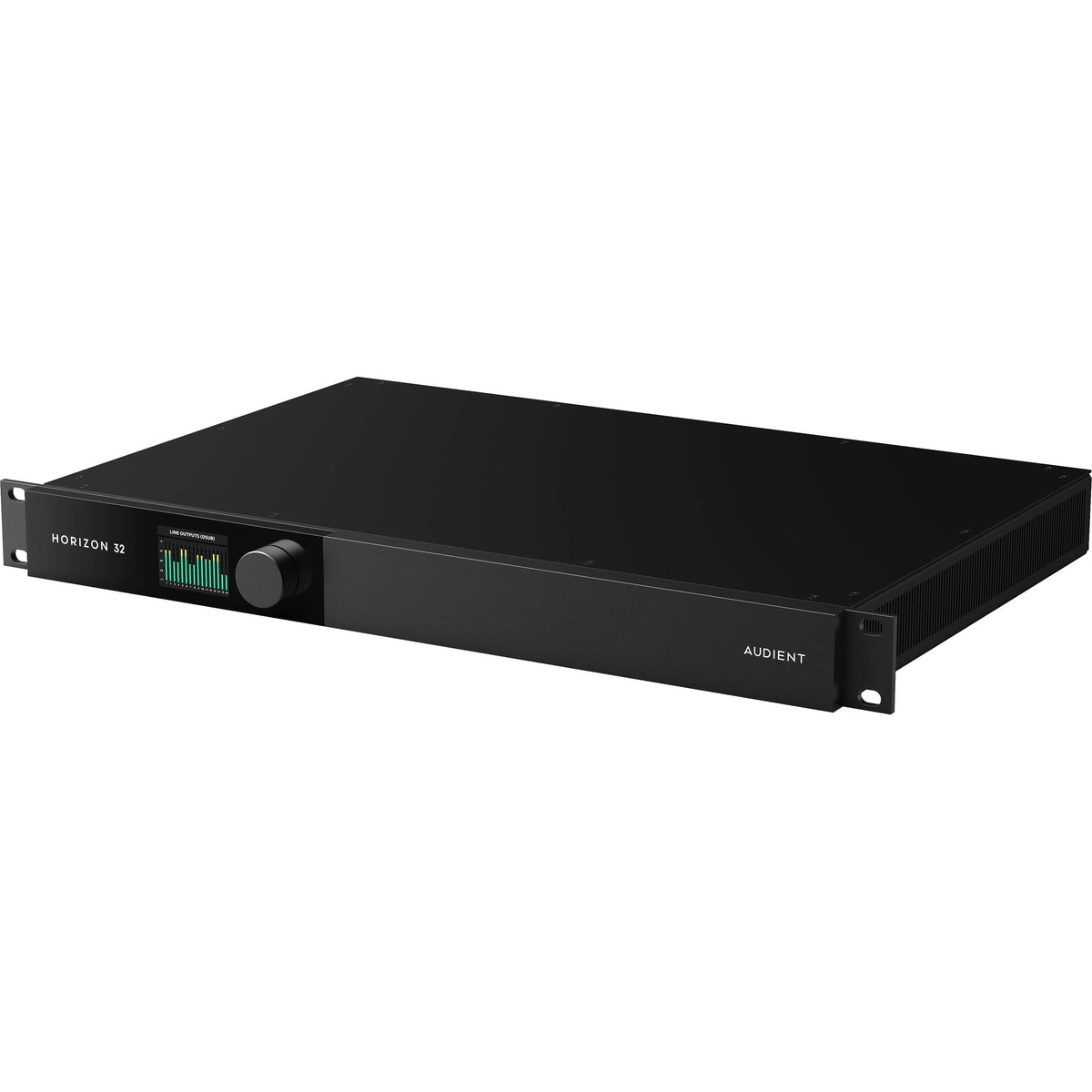

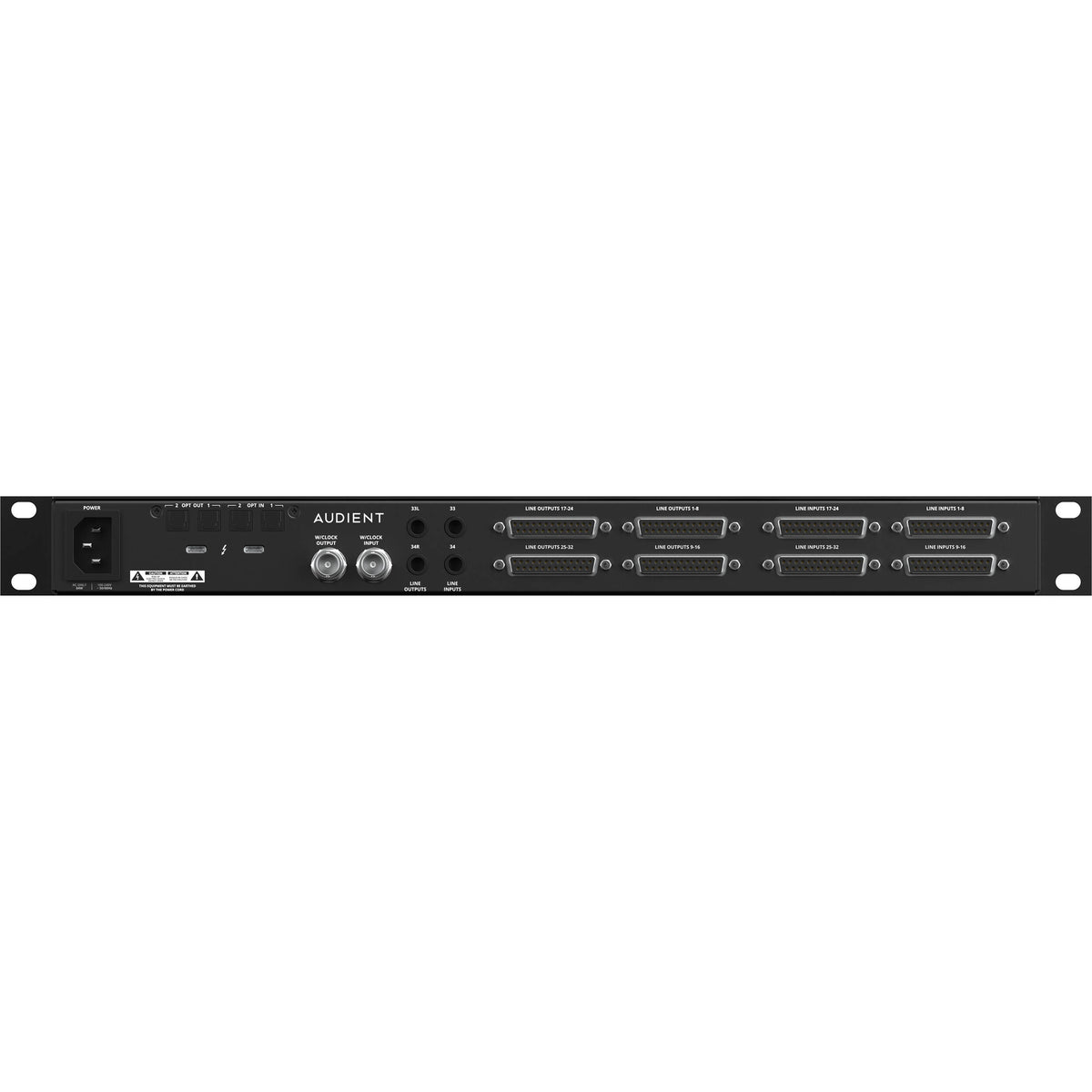

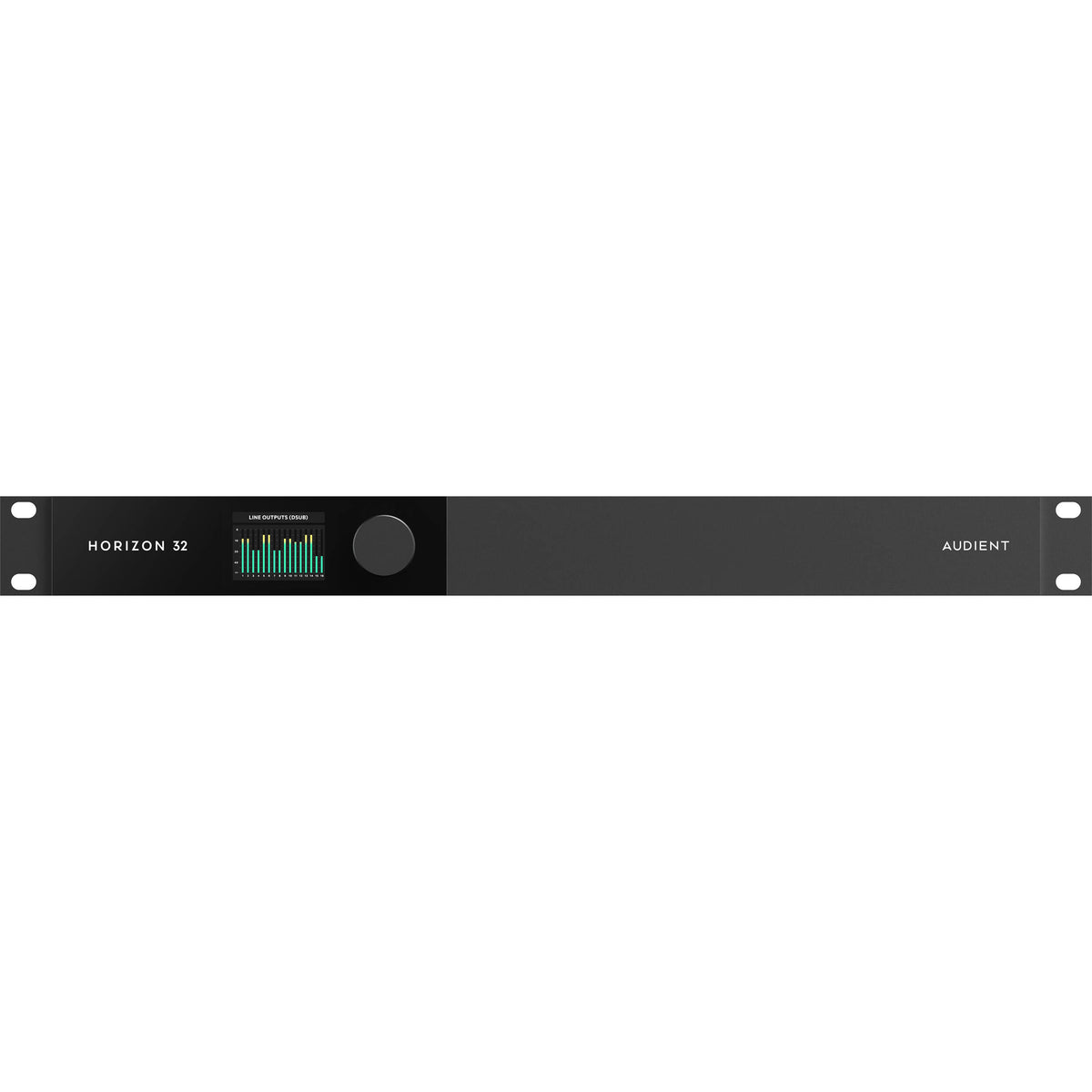

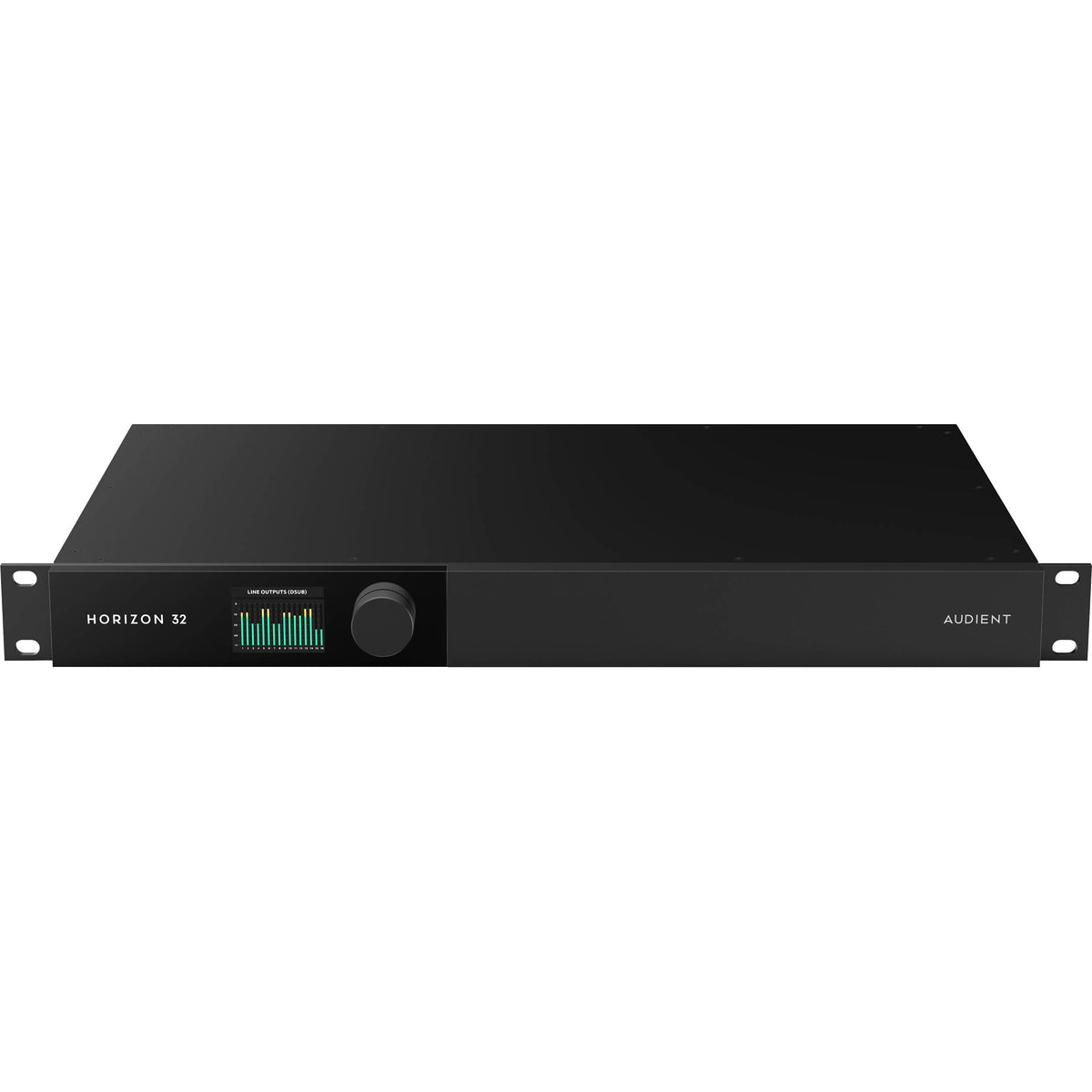

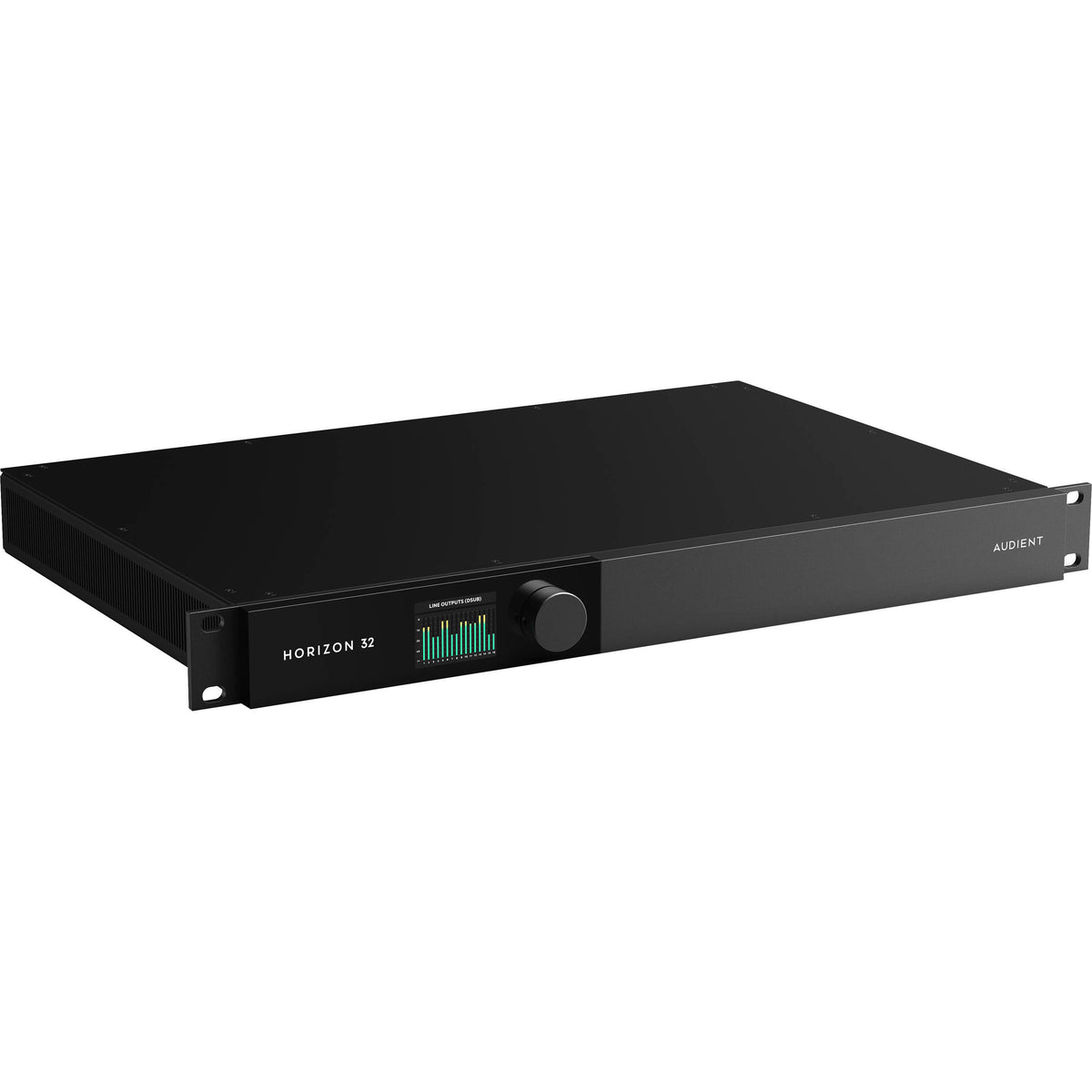

The Horizon 32 is the definitive 50-in / 50-out Thunderbolt™ 3 Interface for the professional project studio. It delivers 32×32 channels of primary analogue I/O via eight industry-standard DB25 connectors, providing a transparent bridge for boutique outboard racks, consoles and summing workflows.
With 0.99ms round-trip latency and Elite 32-bit Mastering-Grade Converters, Horizon 32 eliminates technical friction, ensuring only the uncoloured character of your analogue chain remains. Welcome to the new standard of conversion.
| Product Name | Audient Horizon 32 - 50 In 50 Out Thunderbolt Audio Interface |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | HORIZON32 |
| UPC | 5060374260689 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Audient Horizon 32 - 50 In 50 Out Thunderbolt Audio Interface
- 50-in / 50-out connectivity over Thunderbolt™ 3
- 32-in / 32-out primary line I/O over eight DB25 connectors
- Dedicated stereo mix-bus inputs for printing your master
- Dedicated stereo monitor outputs for independent reference listening
- 32-bit / 192kHz conversion, 133dB dynamic range
- 0.99ms round-trip latency (192kHz, 64-sample buffer)
- Dual ADAT I/O – 16 channels of digital expansion
- Horizon Control software – virtual patch bay, custom monitoring, and extensive metering
- Advanced monitor control – mono, polarity, dim and reference level
- Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
- Scalable architecture – daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
- 1U all-metal chassis, three-year warranty
- macOS, up to 192kHz
ADC Input |
|
| Maximum Input Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -117dB, 0.00014% |
| Dynamic Range | 127dB A-Weighted |
| Frequency Response | ±0.2dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
Line Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -122dB, 0.00008% |
| Dynamic Range | 132dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Monitor Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -120dB, 0.00008% |
| Dynamic Range | 133dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Digital Features |
|
| Inputs | Optical Input SPDIF/ADAT x2 |
| Outputs | Optical Output SPDIF/ADAT x2 |
| Word Clock | Input and Output, ±10ppm accuracy |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
DSP Mixer Roundtrip Latency |
|
| Buffer Size | All figures at 64 sample buffer size |
| 44.1kHz | 4.286ms |
| 48kHz | 3.938ms |
| 88.2kHz | 2.143ms |
| 96kHz | 1.969ms |
| 176.4kHz | 1.077ms |
| 192kHz | 0.99ms |
Connectivity |
|
| Thunderbolt 3 | Thunderbolt 3 |
Power Requirements |
|
| Input Voltage | 85 – 264 VAC |
| Input Frequency | 47 – 63Hz |
Audient Horizon 32 - 50 In 50 Out Thunderbolt Audio Interface
Welcome to the New Standard
The Horizon 32 is the definitive 50-in / 50-out Thunderbolt™ 3 Interface for the professional project studio. It delivers 32×32 channels of primary analogue I/O via eight industry-standard DB25 connectors, providing a transparent bridge for boutique outboard racks, consoles and summing workflows.
With 0.99ms round-trip latency and Elite 32-bit Mastering-Grade Converters, Horizon 32 eliminates technical friction, ensuring only the uncoloured character of your analogue chain remains. Welcome to the new standard of conversion.
| Product Name | Audient Horizon 32 - 50 In 50 Out Thunderbolt Audio Interface |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | HORIZON32 |
| UPC | 5060374260689 |
What's in the Box?
Audient Horizon 32 - 50 In 50 Out Thunderbolt Audio Interface- 50-in / 50-out connectivity over Thunderbolt™ 3
- 32-in / 32-out primary line I/O over eight DB25 connectors
- Dedicated stereo mix-bus inputs for printing your master
- Dedicated stereo monitor outputs for independent reference listening
- 32-bit / 192kHz conversion, 133dB dynamic range
- 0.99ms round-trip latency (192kHz, 64-sample buffer)
- Dual ADAT I/O – 16 channels of digital expansion
- Horizon Control software – virtual patch bay, custom monitoring, and extensive metering
- Advanced monitor control – mono, polarity, dim and reference level
- Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
- Scalable architecture – daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
- 1U all-metal chassis, three-year warranty
- macOS, up to 192kHz
ADC Input |
|
| Maximum Input Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -117dB, 0.00014% |
| Dynamic Range | 127dB A-Weighted |
| Frequency Response | ±0.2dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
Line Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -122dB, 0.00008% |
| Dynamic Range | 132dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Monitor Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -120dB, 0.00008% |
| Dynamic Range | 133dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Digital Features |
|
| Inputs | Optical Input SPDIF/ADAT x2 |
| Outputs | Optical Output SPDIF/ADAT x2 |
| Word Clock | Input and Output, ±10ppm accuracy |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
DSP Mixer Roundtrip Latency |
|
| Buffer Size | All figures at 64 sample buffer size |
| 44.1kHz | 4.286ms |
| 48kHz | 3.938ms |
| 88.2kHz | 2.143ms |
| 96kHz | 1.969ms |
| 176.4kHz | 1.077ms |
| 192kHz | 0.99ms |
Connectivity |
|
| Thunderbolt 3 | Thunderbolt 3 |
Power Requirements |
|
| Input Voltage | 85 – 264 VAC |
| Input Frequency | 47 – 63Hz |
