Welcome to the New Standard

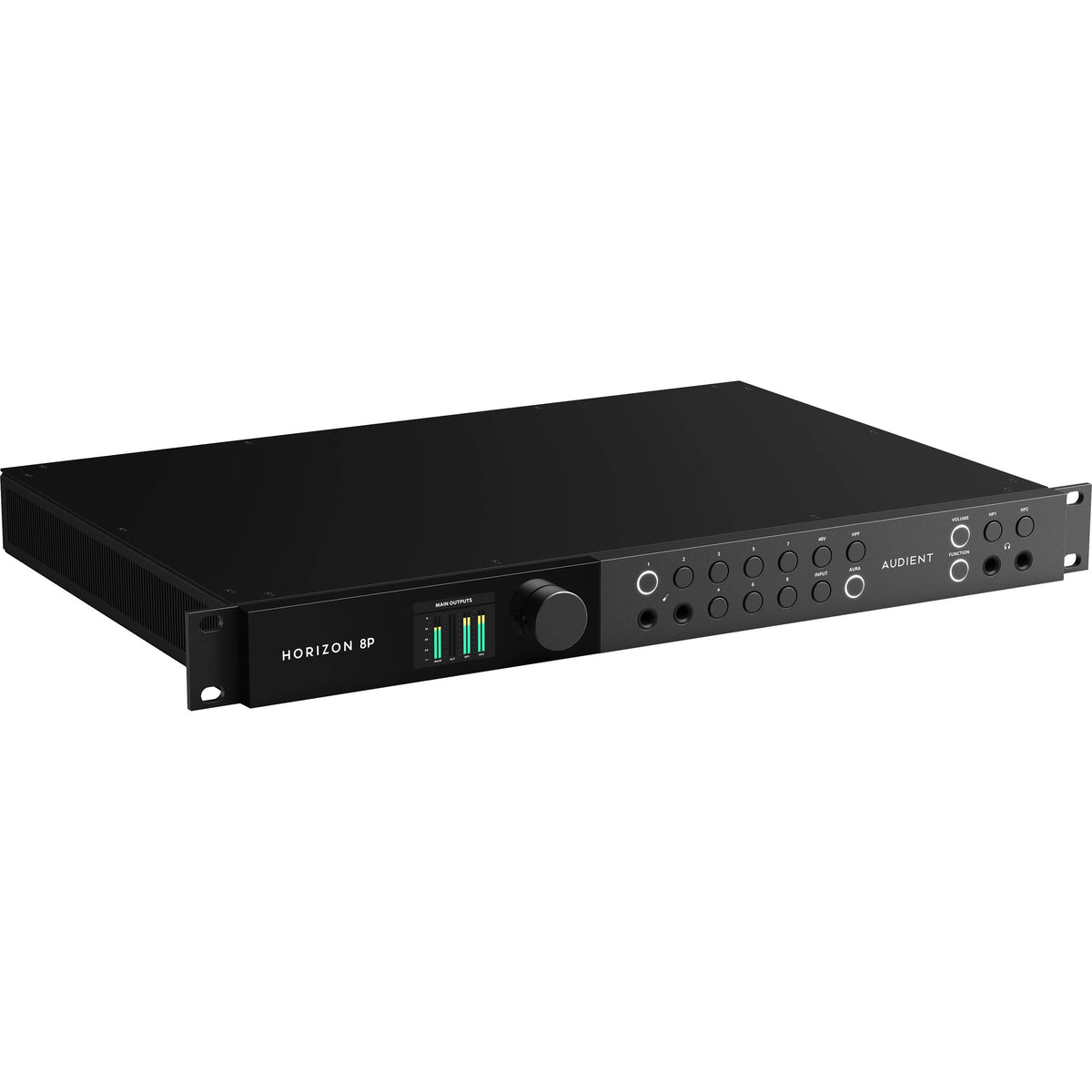

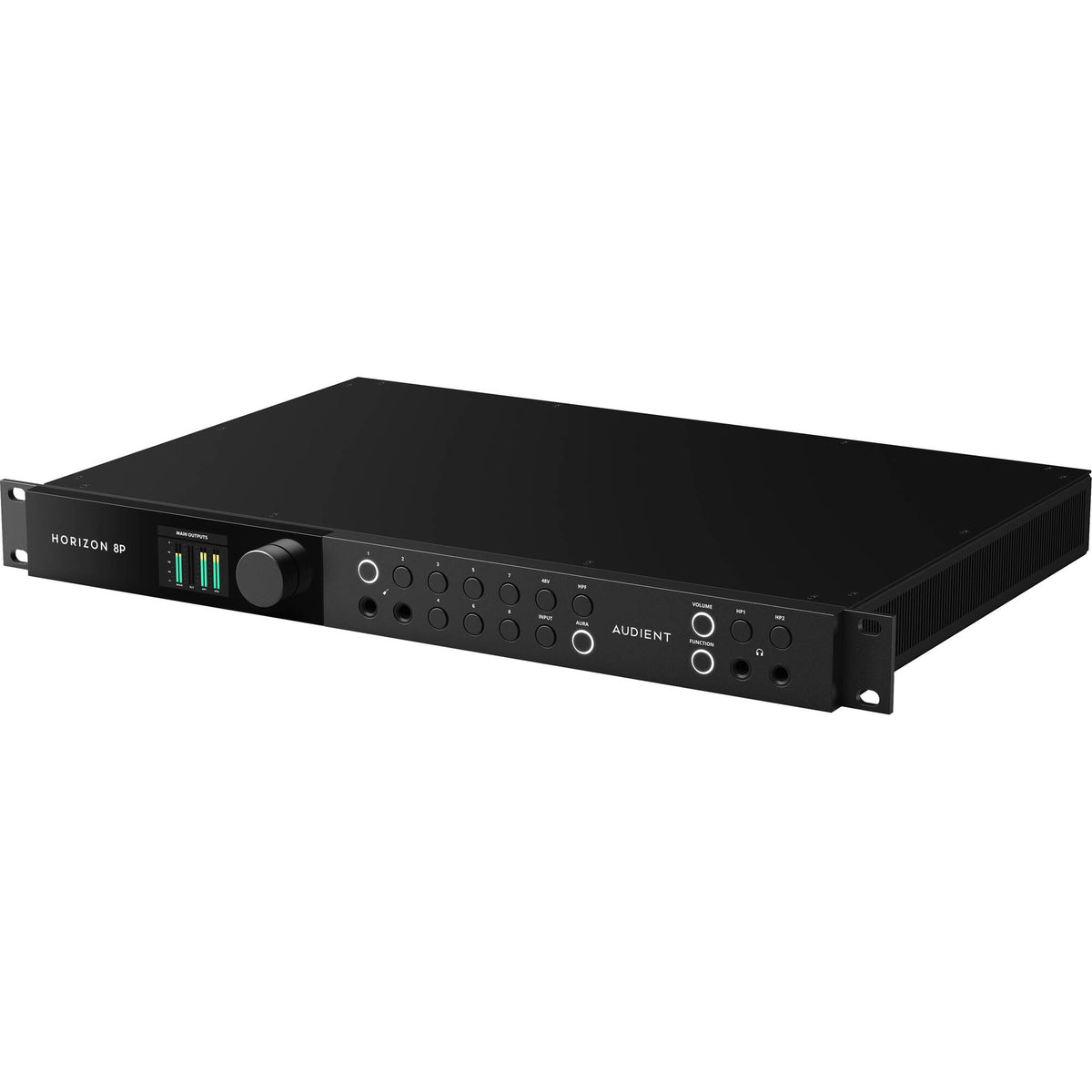

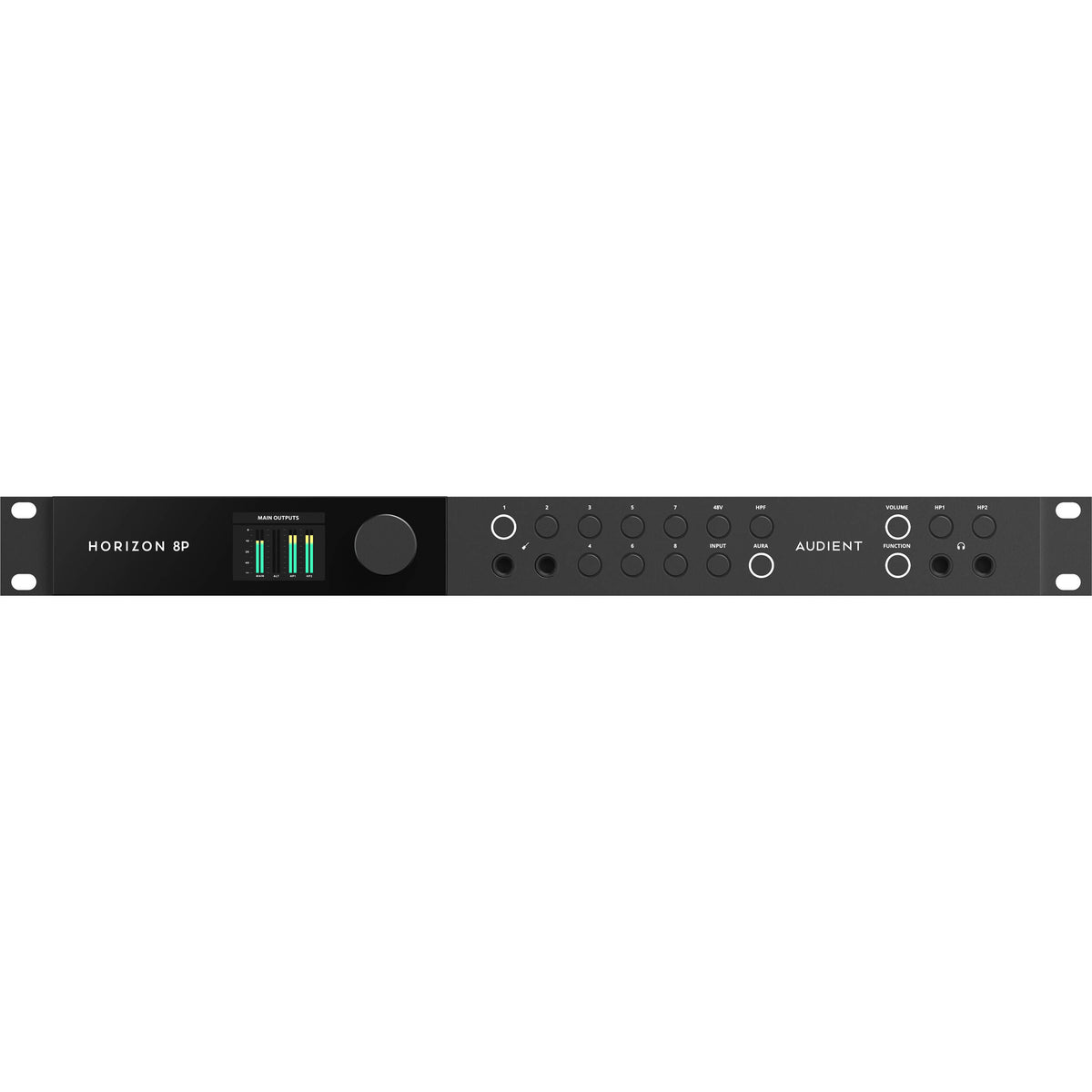

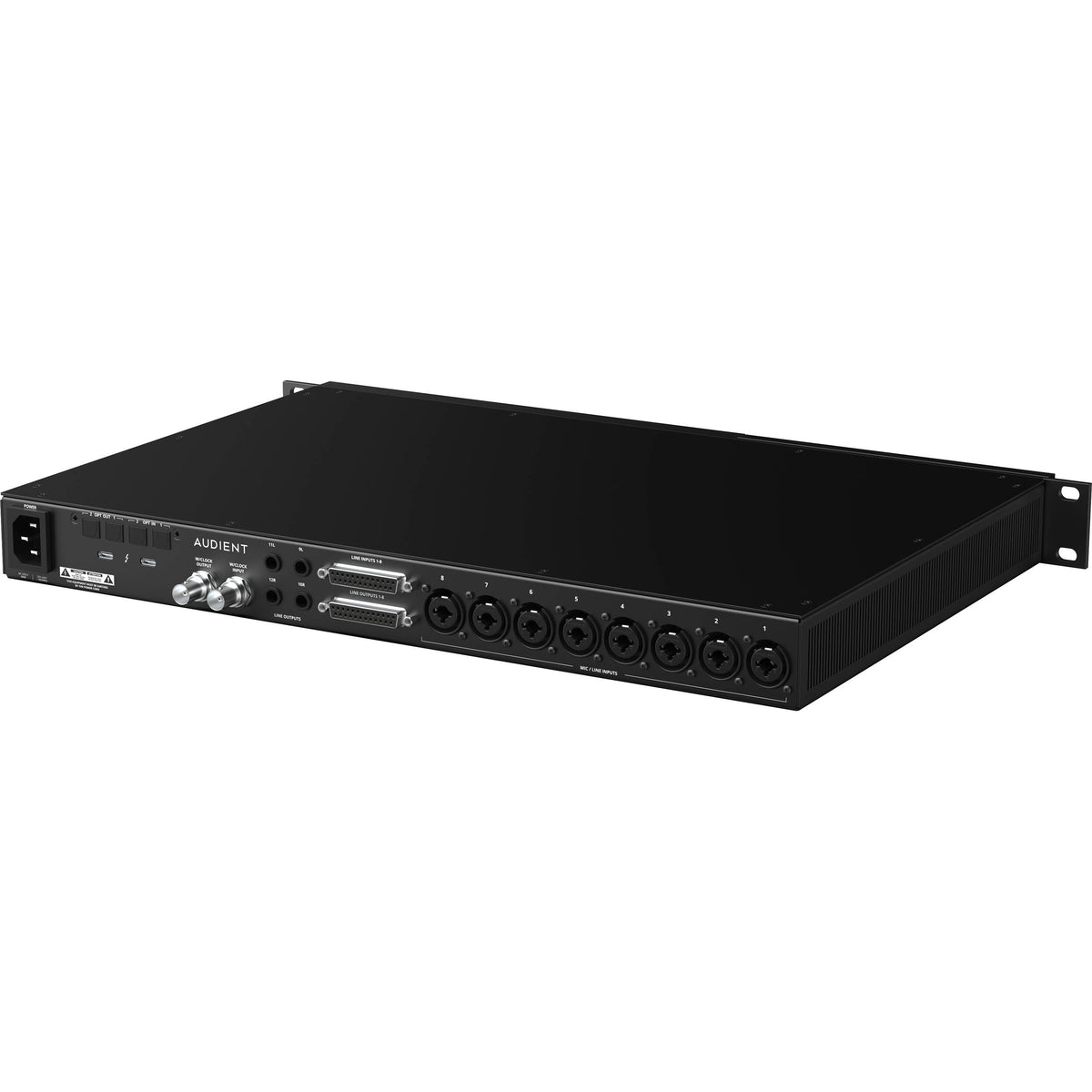

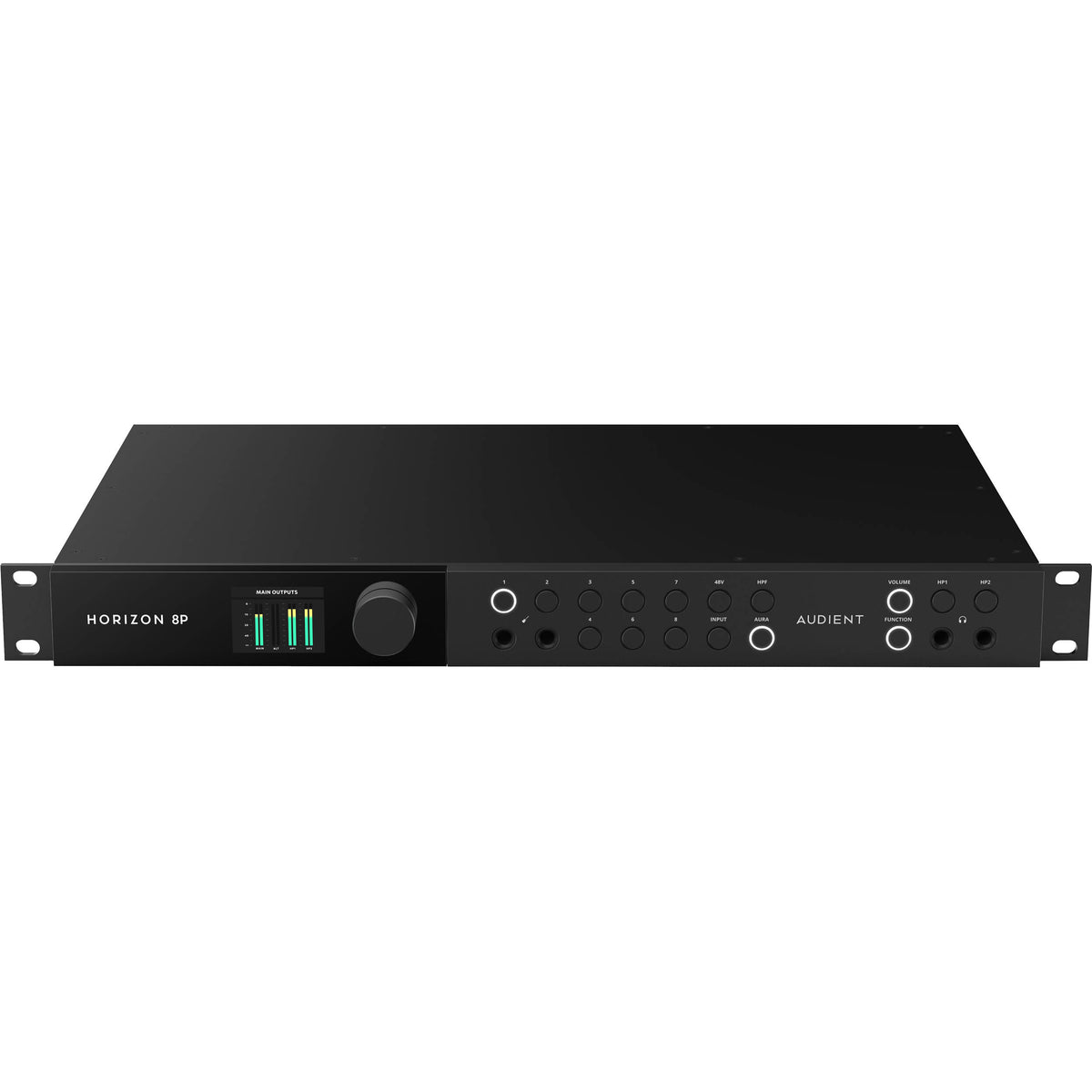

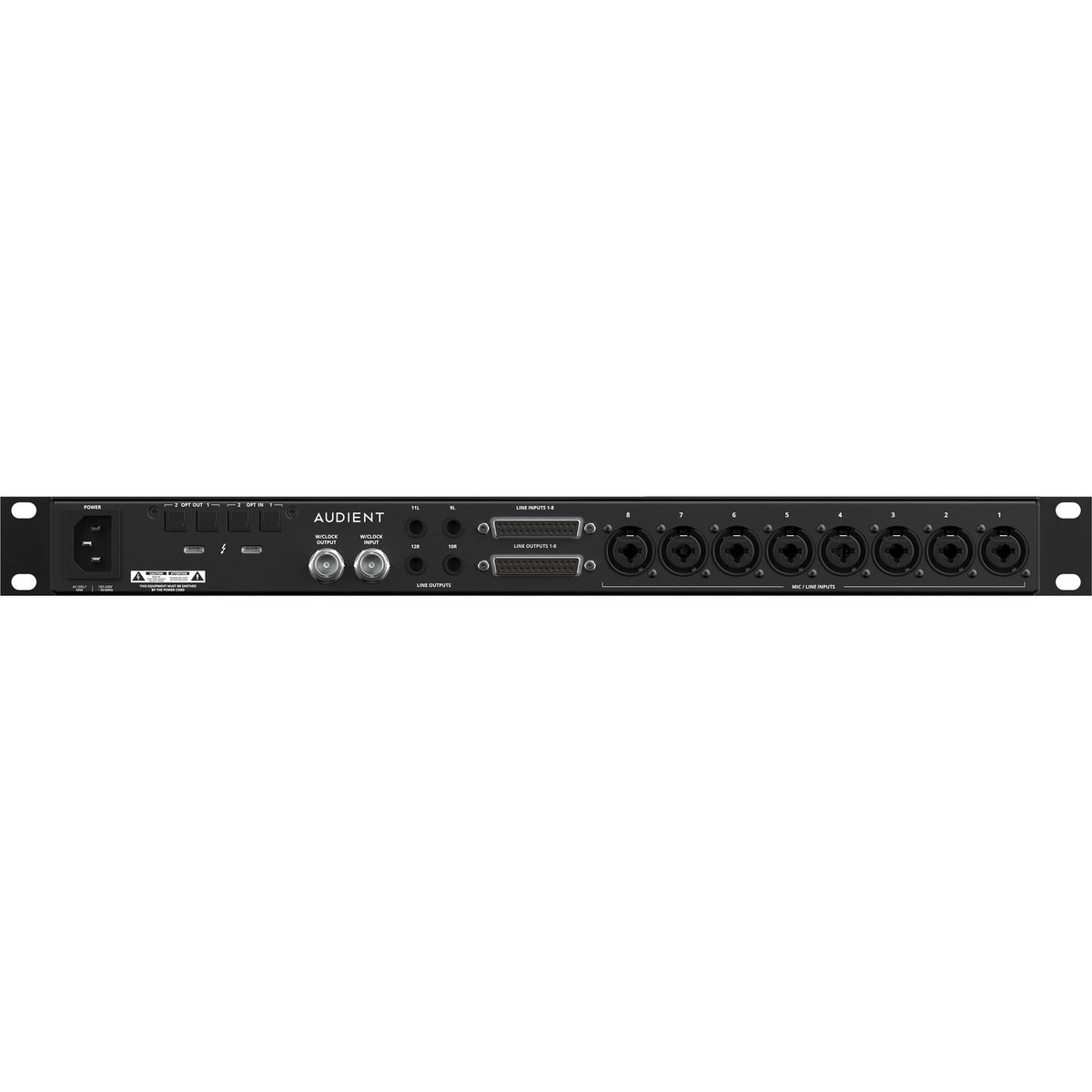

The Horizon 8P is a flagship 24-input, 32-output Thunderbolt 3 audio interface built for the mission-critical studio. Featuring eight Audient console preamps with ORBIT Control and Elite 32-bit mastering-grade conversion, Horizon bridges the gap between classic analogue character and the stability of a direct PCIe-speed connection.
Uncompromising quality. Unrivalled performance. The first step into a frictionless, scalable studio foundation. Welcome to the new standard.
| Product Name | Audient Horizon 8P 24 In 32 Out Thunderbolt Audio Interface |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | HORIZON8P |
| UPC | 5060374260672 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Audient Horizon 8P 24 In 32 Out Thunderbolt Audio Interface
- 24-in / 32-out connectivity over Thunderbolt™ 3
- 8 × Audient Console Preamps with 75dB gain and digital recall
- ORBIT Control variable impedance with three selectable voicings (high, mid, low)
- 2 × JFET instrument inputs on channels 1 and 2
- 8 × line I/O over DB25 for outboard and hybrid mixing
- 32-bit / 192kHz conversion, 133dB dynamic range
- 0.99ms round-trip latency (192kHz, 64-sample buffer)
- Dual ADAT I/O – 16 channels of digital expansion
- Dual speaker outputs for A/B monitoring, plus dual headphone outputs
- Hardware monitor control – mono, polarity, dim, talkback and reference level
- Horizon Control software – routing matrix, custom monitoring, and four cue mixes
- Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
- Scalable architecture – daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
- 1U all-metal chassis, three-year warranty
- macOS, up to 192kHz
Mic Pre Input |
|
| Maximum Input Level | 18dBu |
| THD+N @ 0dBu | -98dB, 0.0011% |
| Gain | 0 to 75dB |
| SNR | 101dB A-Weighted |
| EIN | -129dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to 80kHz |
| CMRR | >75dB |
| Crosstalk @ 1kHz and 10kHz | <100dB |
| Input Impedance | 3kΩ |
Line Input |
|
| Maximum Input Level | 28dBu |
| THD+N @ 10dBu | -98dB, 0.0011% |
| Gain | -10 to 65dB |
| Input Impedance | 10kΩ |
DI Input |
|
| Maximum Input Level | 12dBu |
| THD+N @ 0dBu | -75dB, 0.018% |
| Gain | 0 to 75dB |
| SNR | 101dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to 40kHz |
| Input Impedance | 500kΩ |
Additional Mic Pre Features |
|
| Phantom Power | +48V DC, 10mA per channel |
| ORBIT | ORBIT |
| 10dB PAD | 10dB PAD |
| HPF | HPF |
ADC Input |
|
| Maximum Input Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -118dB, 0.00012% |
| Dynamic Range | 127dB A-Weighted |
| Frequency Response | ±0.2dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
Line Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -122dB, 0.00008% |
| Dynamic Range | 132dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Headphone Outputs |
|
| Maximum Output Level | 15dBu = 0dBFS |
| THD+N @ -1dBFS | -116dB, 0.00015% |
| Dynamic Range | 124dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <120dB |
| Impedance | 10Ω |
| Maximum Output Level and Power into 30R | 5.55V Peak, 1.03W |
| Maximum Output Level and Power into 60R | 6.44V Peak, 691mW |
| Maximum Output Level and Power into 600R | 6.55V Peak, 71mW |
Digital Features |
|
| Inputs | Optical Input SPDIF/ADAT x2 |
| Outputs | Optical Output SPDIF/ADAT x2 |
| Word Clock | Input and Output, ±10ppm accuracy |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
DSP Mixer Roundtrip Latency |
|
| Buffer Size | All figures at 64 sample buffer size |
| 44.1kHz | 4.286ms |
| 48kHz | 3.938ms |
| 88.2kHz | 2.143ms |
| 96kHz | 1.969ms |
| 176.4kHz | 1.077ms |
| 192kHz | 0.99ms |
Connectivity |
|
| Thunderbolt 3 | Thunderbolt 3 |
Power Requirements |
|
| Input Voltage | 85 – 264 VAC |
| Input Frequency | 47 – 63Hz |
Audient Horizon 8P 24 In 32 Out Thunderbolt Audio Interface
Details
Welcome to the New Standard
The Horizon 8P is a flagship 24-input, 32-output Thunderbolt 3 audio interface built for the mission-critical studio. Featuring eight Audient console preamps with ORBIT Control and Elite 32-bit mastering-grade conversion, Horizon bridges the gap between classic analogue character and the stability of a direct PCIe-speed connection.
Uncompromising quality. Unrivalled performance. The first step into a frictionless, scalable studio foundation. Welcome to the new standard.
| Product Name | Audient Horizon 8P 24 In 32 Out Thunderbolt Audio Interface |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | HORIZON8P |
| UPC | 5060374260672 |
What's in the Box?
Audient Horizon 8P 24 In 32 Out Thunderbolt Audio Interface
Features
- 24-in / 32-out connectivity over Thunderbolt™ 3
- 8 × Audient Console Preamps with 75dB gain and digital recall
- ORBIT Control variable impedance with three selectable voicings (high, mid, low)
- 2 × JFET instrument inputs on channels 1 and 2
- 8 × line I/O over DB25 for outboard and hybrid mixing
- 32-bit / 192kHz conversion, 133dB dynamic range
- 0.99ms round-trip latency (192kHz, 64-sample buffer)
- Dual ADAT I/O – 16 channels of digital expansion
- Dual speaker outputs for A/B monitoring, plus dual headphone outputs
- Hardware monitor control – mono, polarity, dim, talkback and reference level
- Horizon Control software – routing matrix, custom monitoring, and four cue mixes
- Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
- Scalable architecture – daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
- 1U all-metal chassis, three-year warranty
- macOS, up to 192kHz
Tech Specs
Mic Pre Input |
|
| Maximum Input Level | 18dBu |
| THD+N @ 0dBu | -98dB, 0.0011% |
| Gain | 0 to 75dB |
| SNR | 101dB A-Weighted |
| EIN | -129dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to 80kHz |
| CMRR | >75dB |
| Crosstalk @ 1kHz and 10kHz | <100dB |
| Input Impedance | 3kΩ |
Line Input |
|
| Maximum Input Level | 28dBu |
| THD+N @ 10dBu | -98dB, 0.0011% |
| Gain | -10 to 65dB |
| Input Impedance | 10kΩ |
DI Input |
|
| Maximum Input Level | 12dBu |
| THD+N @ 0dBu | -75dB, 0.018% |
| Gain | 0 to 75dB |
| SNR | 101dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to 40kHz |
| Input Impedance | 500kΩ |
Additional Mic Pre Features |
|
| Phantom Power | +48V DC, 10mA per channel |
| ORBIT | ORBIT |
| 10dB PAD | 10dB PAD |
| HPF | HPF |
ADC Input |
|
| Maximum Input Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -118dB, 0.00012% |
| Dynamic Range | 127dB A-Weighted |
| Frequency Response | ±0.2dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
Line Outputs |
|
| Maximum Output Level | 24dBu = 0dBFS |
| THD+N @ -1dBFS | -122dB, 0.00008% |
| Dynamic Range | 132dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <130dB |
| Impedance | 47Ω |
Headphone Outputs |
|
| Maximum Output Level | 15dBu = 0dBFS |
| THD+N @ -1dBFS | -116dB, 0.00015% |
| Dynamic Range | 124dB A-Weighted |
| Frequency Response | ±0.5dB 10Hz to Fs/2 (Nyquist) |
| Crosstalk | <120dB |
| Impedance | 10Ω |
| Maximum Output Level and Power into 30R | 5.55V Peak, 1.03W |
| Maximum Output Level and Power into 60R | 6.44V Peak, 691mW |
| Maximum Output Level and Power into 600R | 6.55V Peak, 71mW |
Digital Features |
|
| Inputs | Optical Input SPDIF/ADAT x2 |
| Outputs | Optical Output SPDIF/ADAT x2 |
| Word Clock | Input and Output, ±10ppm accuracy |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
DSP Mixer Roundtrip Latency |
|
| Buffer Size | All figures at 64 sample buffer size |
| 44.1kHz | 4.286ms |
| 48kHz | 3.938ms |
| 88.2kHz | 2.143ms |
| 96kHz | 1.969ms |
| 176.4kHz | 1.077ms |
| 192kHz | 0.99ms |
Connectivity |
|
| Thunderbolt 3 | Thunderbolt 3 |
Power Requirements |
|
| Input Voltage | 85 – 264 VAC |
| Input Frequency | 47 – 63Hz |
