*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

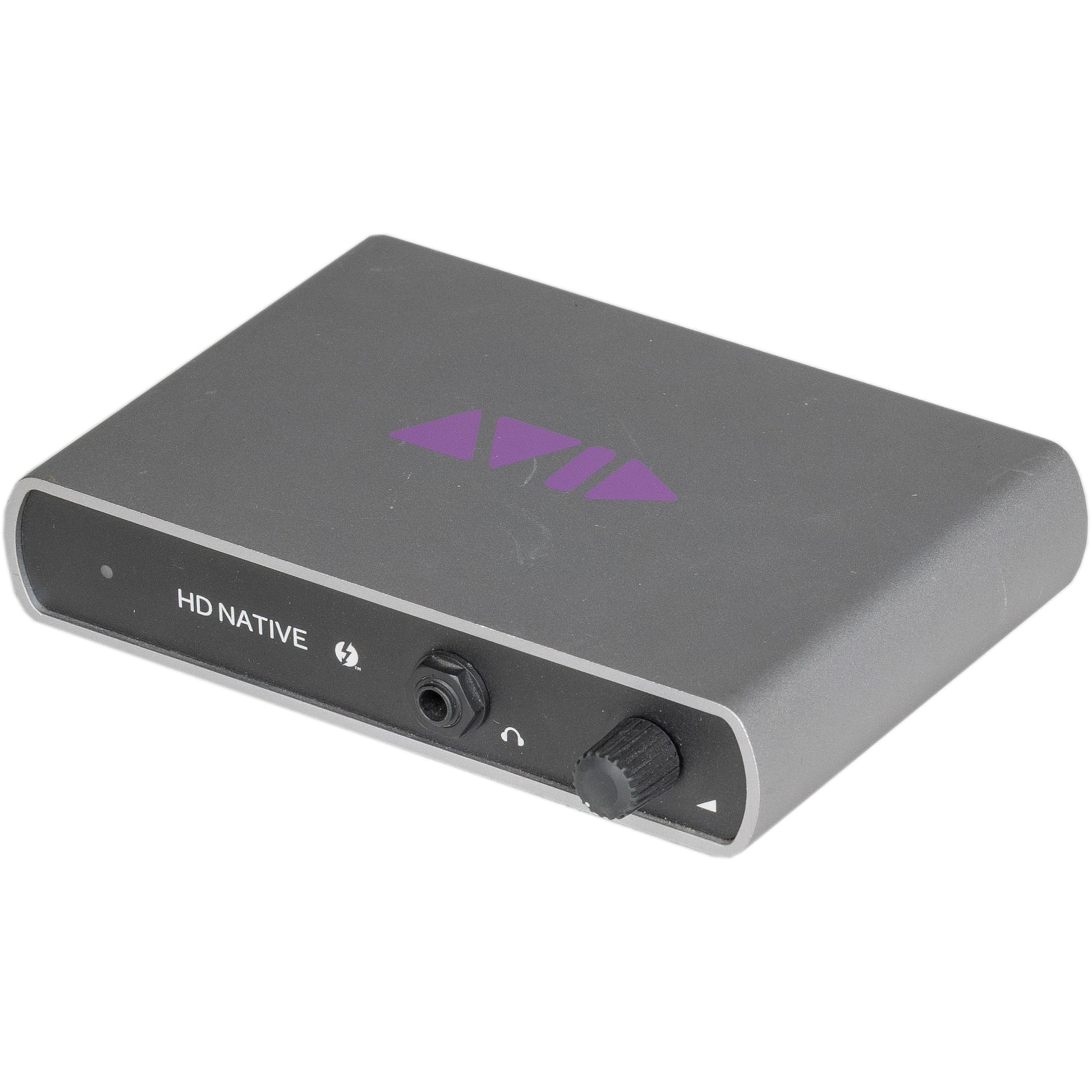

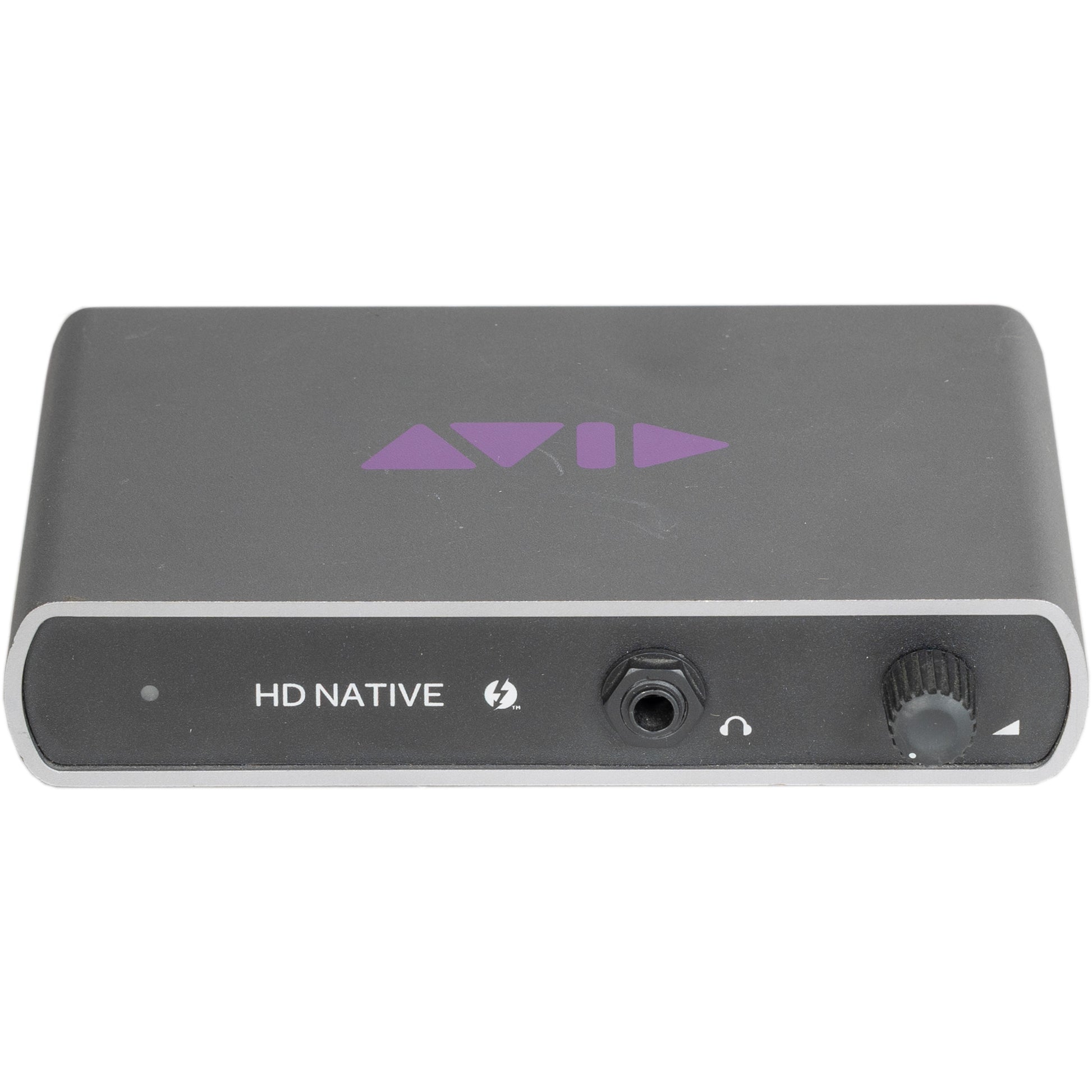

The Avid Technologies Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software includes a Pro Tools | HD Native Thunderbolt interface and a full, perpetual license version of Pro Tools | HD, offered as a download.
Designed for on-the-go music creation, the Pro Tools | HD Native Thunderbolt interface brings high-speed Thunderbolt connectivity to your Pro Tools | HD system to nearly eliminate latency, and provide 64 channels of simultaneous I/O at 24-bit / 192 kHz. The card easily connects to your existing laptop or compact computer and significantly reduces that distracting delay you hear while recording, leading to a more comfortable experience when performing in the studio.
To get a full 64 channels of I/O, the Pro Tools | HD Native Thunderbolt interface allows you to connect up to four, 16-channel Pro Tools | HD audio interfaces. Two of the interfaces connect directly to DigiLink Mini ports 1 and 2, and the other two interfaces connect to the expansion ports on those Pro Tools | HD audio interfaces.
| Product Name | Avid HD Native Thunderbolt Interface |
|---|---|
| Brand | Avid |
| Condition | Pre-Owned |
| MPN | 99356530702 |
| UPC | 888680705923 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Avid HD Native Thunderbolt Interface
- Thunderbolt interface can be connected to a laptop or compact computer for on-the-go music creation (Mac, Windows)
- Monitoring with near-zero latency
- Includes two DigiLink Mini ports for connecting two audio interfaces
- One DigiSerial port for connecting a SYNC peripheral
- Supports up to 64 channels of I/O for direct-to-disk recording and playback
- Supports up to 192 tracks with Pro Tools | HD software
- Sessions up to 24-bit and up to 192 kHz
- On-board FPGA processor provides dedicated signal routing for headphone monitoring
- Headphone monitoring with 1/4" output jack and a volume/mute control knob
- Output to the headphone jack mirrors channel outputs 1 and 2 on your primary audio interface
| Channels of I/O | 16 Input / 16 Output |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Digital Audio I/O | 1x AES3 Input 1x AES3 Output 1x ADAT / S/PDIF Input 1x ADAT / S/PDIF Output 1x S/PDIF Input 1x S/PDIF Output Show More |
| Host Connection | 2x DigiLink Mini |
| Power Requirements | AC/DC Power Adapter |
General |
|
|---|---|
| Display | 32x Multi-Segment LED Meter |
| Channels of I/O | 16 Input / 16 Output |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
Signal Processing |
|
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
Connectivity |
|
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Phantom Power | No |
| Digital Audio I/O | 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 2x DigiLink Mini |
| Host Connection Protocol | Avid Proprietary |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x BNC Loop Sync Input 1x BNC Loop Sync Output |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Other I/O | 1x DB-9 Expansion In/Out |
| Wireless | No |
Performance |
|
| Frequency Response | A/D Converters: 20 Hz to 20 kHz ±0.03 dB D/A Converters: 20 Hz to 20 kHz ±0.15 dB |
| Dynamic Range | A/D Converters: 122 dB D/A Converters: 125 dB |
| THD+N | A/D Converters: -114 dB / 0.0002% D/A Converters: -110 dB / 0.00032% |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | DB-25, Ethernet |
| Clocking | Internal: |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | No |
| Required Hardware | DigiLink Mini Port |
Power |
|
| Power Requirements | AC/DC Power Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical |
|
| Rackmount Size | 2 U |
| Weight | 25.0 lb / 11.3 kg |
Avid HD Native Thunderbolt Interface
*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The Avid Technologies Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software includes a Pro Tools | HD Native Thunderbolt interface and a full, perpetual license version of Pro Tools | HD, offered as a download.
Designed for on-the-go music creation, the Pro Tools | HD Native Thunderbolt interface brings high-speed Thunderbolt connectivity to your Pro Tools | HD system to nearly eliminate latency, and provide 64 channels of simultaneous I/O at 24-bit / 192 kHz. The card easily connects to your existing laptop or compact computer and significantly reduces that distracting delay you hear while recording, leading to a more comfortable experience when performing in the studio.
To get a full 64 channels of I/O, the Pro Tools | HD Native Thunderbolt interface allows you to connect up to four, 16-channel Pro Tools | HD audio interfaces. Two of the interfaces connect directly to DigiLink Mini ports 1 and 2, and the other two interfaces connect to the expansion ports on those Pro Tools | HD audio interfaces.
| Product Name | Avid HD Native Thunderbolt Interface |
|---|---|
| Brand | Avid |
| Condition | Pre-Owned |
| MPN | 99356530702 |
| UPC | 888680705923 |
What's in the Box?
Avid HD Native Thunderbolt Interface- Thunderbolt interface can be connected to a laptop or compact computer for on-the-go music creation (Mac, Windows)
- Monitoring with near-zero latency
- Includes two DigiLink Mini ports for connecting two audio interfaces
- One DigiSerial port for connecting a SYNC peripheral
- Supports up to 64 channels of I/O for direct-to-disk recording and playback
- Supports up to 192 tracks with Pro Tools | HD software
- Sessions up to 24-bit and up to 192 kHz
- On-board FPGA processor provides dedicated signal routing for headphone monitoring
- Headphone monitoring with 1/4" output jack and a volume/mute control knob
- Output to the headphone jack mirrors channel outputs 1 and 2 on your primary audio interface
| Channels of I/O | 16 Input / 16 Output |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Digital Audio I/O | 1x AES3 Input 1x AES3 Output 1x ADAT / S/PDIF Input 1x ADAT / S/PDIF Output 1x S/PDIF Input 1x S/PDIF Output Show More |
| Host Connection | 2x DigiLink Mini |
| Power Requirements | AC/DC Power Adapter |
General |
|
|---|---|
| Display | 32x Multi-Segment LED Meter |
| Channels of I/O | 16 Input / 16 Output |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
Signal Processing |
|
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
Connectivity |
|
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Phantom Power | No |
| Digital Audio I/O | 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 2x DigiLink Mini |
| Host Connection Protocol | Avid Proprietary |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x BNC Loop Sync Input 1x BNC Loop Sync Output |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Other I/O | 1x DB-9 Expansion In/Out |
| Wireless | No |
Performance |
|
| Frequency Response | A/D Converters: 20 Hz to 20 kHz ±0.03 dB D/A Converters: 20 Hz to 20 kHz ±0.15 dB |
| Dynamic Range | A/D Converters: 122 dB D/A Converters: 125 dB |
| THD+N | A/D Converters: -114 dB / 0.0002% D/A Converters: -110 dB / 0.00032% |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | DB-25, Ethernet |
| Clocking | Internal: |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | No |
| Required Hardware | DigiLink Mini Port |
Power |
|
| Power Requirements | AC/DC Power Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical |
|
| Rackmount Size | 2 U |
| Weight | 25.0 lb / 11.3 kg |
