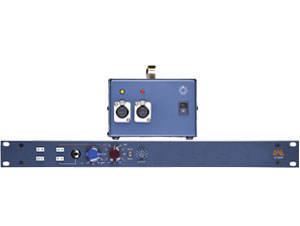

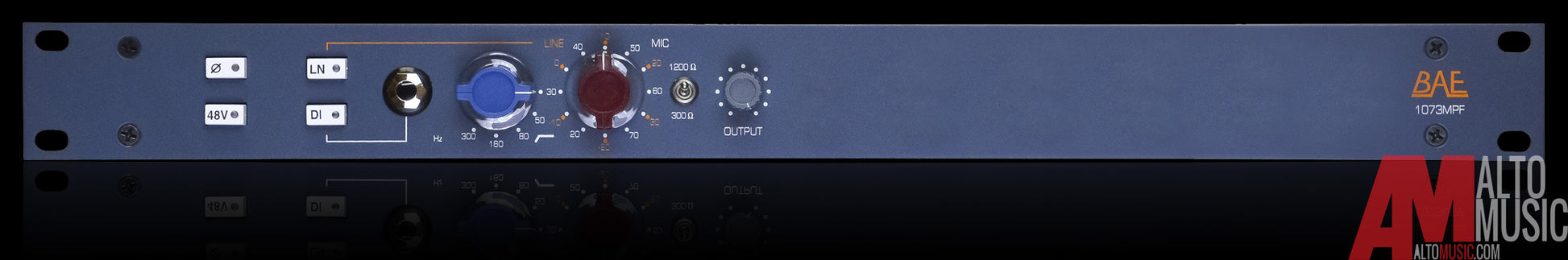

BAE 1073MPF Single Channel with Filter and Power Supply Microphone Preamp
The BAE (formerly Brent Averill Enterprises) 1073MPF is basically a deluxe 1073MP. lt has all the same qualities as the 1073MP with one added feature, a high pass filter. We integrated the same inductor based high pass filter that's in the 1073 and added it here to the 1073MPF.
Phase reverse button
Impedance select between 1200 and 300 ohms
Direct input switch
Balanced line input
48v phantom power
Same 283 amp card as 1073
Same transformers as the 1073
Same hand-wired modular construction that BAE is known for
Two Class A preamps with direct inputs in a single rack space with an external power supply
High Impedance direct input for guitar and synthesizer
Output level control serves as gain trim between the 5 dB steps on gain switch
Balanced mic input and balanced +4 dB output are on XLR connectors off the rear of the module.
Balanced line input is achieved through the LN switch on the front.
Mic input impedance toggle switch between 1200 ohm and 300 ohm
Similar Class A preamp as Neve™* 1073 equalizer/preamp modules
Pad is an integral part of the gain switch same as Neve™* 1073 equalizer/preamp modules
Has integrated phantom power with a lighted switch on the front panel
Oversize remote power supply can operate up to four channels of preamp
10 day satisfaction guarantee
The 1073MPF preamp yields a really fat sound. It seems to add subharmonics to the low end which makes the bottom end sound huge. It smoothes the top end, giving the highs a silky sheen. The BAE 1073 slightly compresses transients, as well. It is a smooth, fat, larger than life sound. An added bonus is to use the front-panel DI inputs to fatten samples and synths and instruments. Balanced line-level inputs on the rear allow for fattening and punching up entire mixes, or in a signal chain with other +4 gear.
Set the gain knob (red Marconi) around 20 on the dial and set the output (grey knob) fully clockwise. This gives you the highest headroom and cleanest signal path. Every click is in 5db increments so if one click is too hot, attenuate the output to get inbetween the 5db steps.
Another trick people like to do is to put the final mix through the balanced line inputs on the back to get that harmonic distortion. To get even more of that Class A output stage is to come out of channel 1 and into channel 2 then you have an accumulative effect of that classic output stage.
