Modular Synthesis
The original 2600 came out in the '70s and was a mainly all discrete transistor design with some op-amps. The discrete circuitry gave the 2600 a very distinctive sound and were used by artists like Jean Michel Jarre, Depeche Mode, Stevie Wonder and so many more. The 2600-VCO is a compact and versatile module, giving you a VCO featuring four simultaneous waveforms with the ability to control a wide frequency band for amazing flexibility. Modular synths were a landmark development in electronic music and today, it’s about to get better.

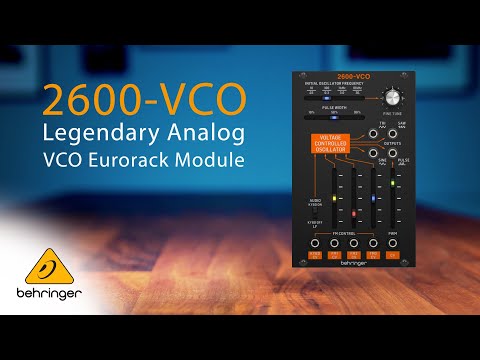

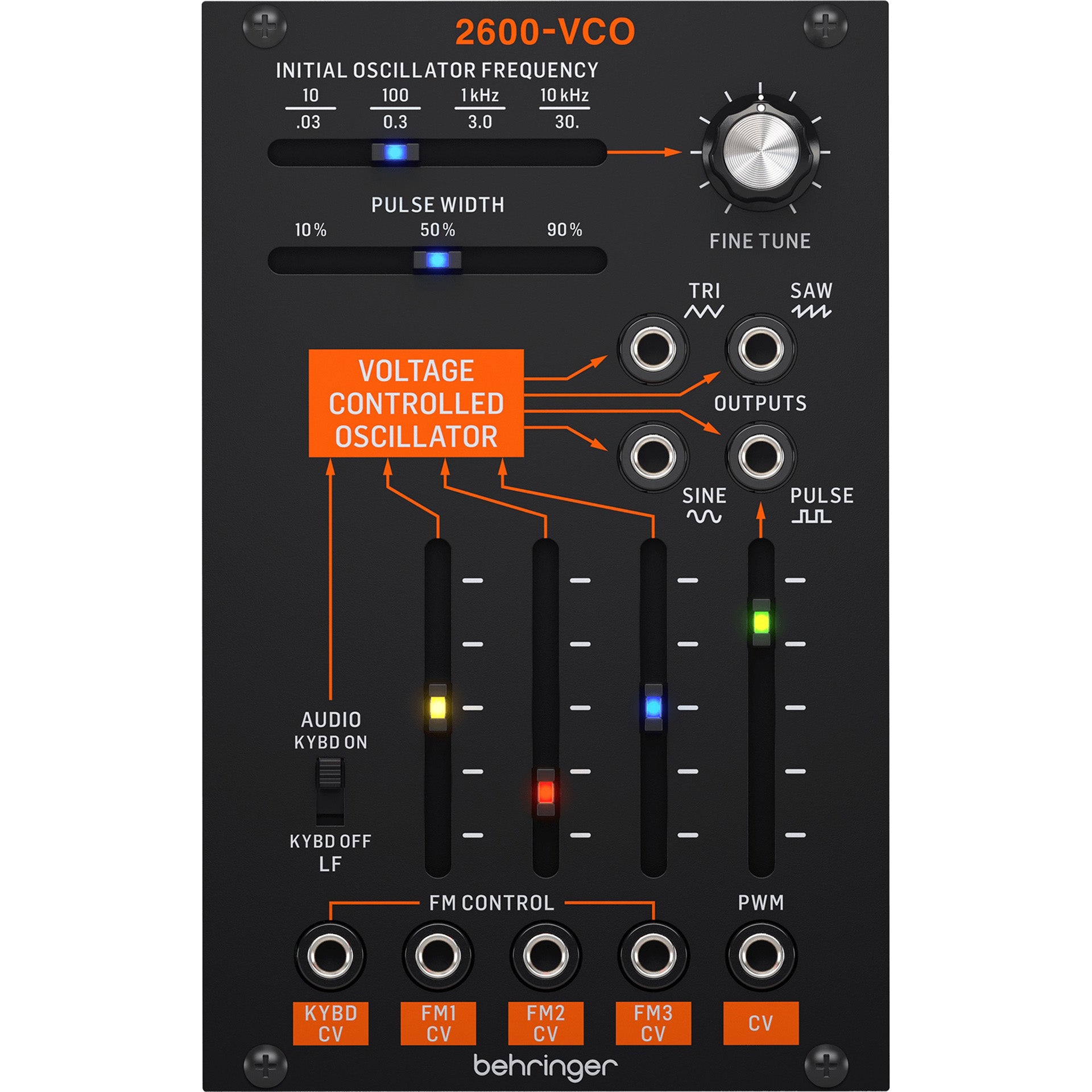

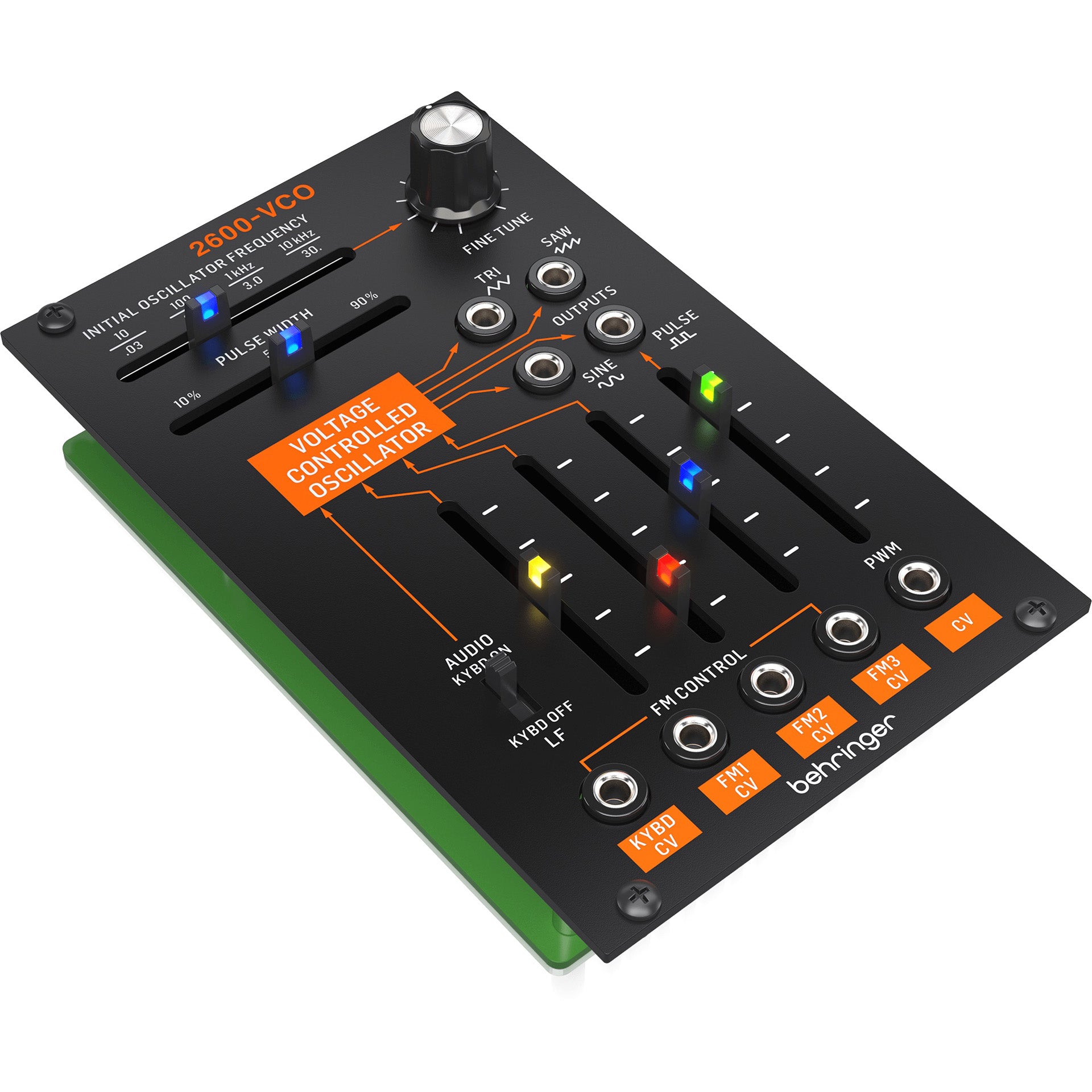

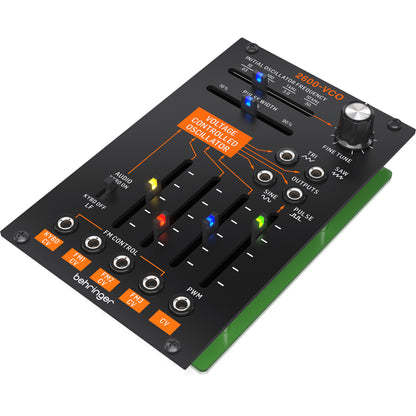

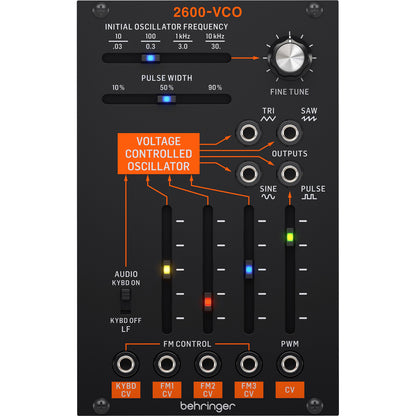

2600-VCO
This is the Behringer 2600-VCO. An analog VCO module and an authentic reproduction of the original ARP 2600 circuitry that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 2600-VCO in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
Mix It Up
The 2600-VCO is a feature rich module with four simultaneous waveforms: sine, triangle, saw and pulse which allow for an awe-inspiring palette of tonal possibilities. You can even control the oscillators frequency which ranges from 10 Hz to 10 kHz and from 0.03 Hz to 30 Hz when the 2600-VCO is switched to LF mode. The VCO can also be tuned to other instruments or VCOs with the Fine Tune knob. Adjust the pulse width range anywhere from 10% to 90% and you’ll be ready to rock whether you’re in a band or integrating the 2600-VCO into your monstrous setup!
Ins and Outs
The 2600-VCO comes with an array of FM and CV inputs. Each FM input comes with their own attenuator to control the level of modulation. A separate PWM input can be used if you want to control or modulate the Pulse waveform. The 2600-VCO even accepts control voltages from a keyboard or MIDI/CV converter which you can turn on or off with the Keyboard On/Off switch, which also switches the VCO to low frequency mode.
Eurorack Ready
Installing the 2600-VCO is easy as it is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and screw in the module using the included screws. This allows the 2600-VCO to be mixed with other synth modules for a truly unique set up.
Amazing Gear at an Affordable Price
Whether you’re just getting into modular synths or looking to complete your collection, the 2600-VCO from Behringer is a great tool to have when creating amazing music.
| Product Name | Behringer 2600 VCO Analog Voltage Controlled Oscillator Module for Eurorack |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | 2600VCO |
| UPC | 787790550150 |
- Amazing sounding VCO module from the ’70s
- Authentic reproduction of original ARP 2600 circuitry
- VCO features 4 simultaneous waveforms: sine, triangle, saw and pulse
- VCO offers wide frequency control from 10 Hz to 10 kHz or 0.03 Hz to 30 Hz in LF mode
- PWM can be simultaneously controlled manually and via external CV input
- Switchable between LF (keyboard off) and Audio (keyboard on)
- Separate outputs for each waveform and 5 CV inputs for pitch control and PWM
- 8 controls and switches give you real-time access to all important parameters
- Eurorack specs: 16 HP, 140 mA +12 V, 5 mA -12 V
Inputs |
|
| Keyboard CV Type |
1 x 3.5 mm TS jack, DC coupled |
| Impedance |
100 kΩ, unbalanced |
| CV range |
10 V, 1 V/oct. |
| FM1 / 2 / 3 CV Type |
3 x 3.5 mm TS jacks, DC coupled |
| Impedance |
50 kΩ, unbalanced |
| CV range |
10 V, 1 V/octave |
| PWM CV Type |
1 x 3.5 mm TS jack, DC coupled |
| Impedance |
75 kΩ, unbalanced |
| CV range |
10 V, typically 1 V/10% |
Outputs |
|
| TRI/SINE/SAW/PULSE Type |
4 x 3.5 mm TS jacks, DC coupled |
| Impedance |
1 kΩ, unbalanced |
| TRI level |
±5 V |
| SINE level |
±5 V |
| SAW level |
0 V / +10 V |
| PULSE level |
0 V / +10 V |
Controls |
|
| Initial oscillator frequency fader |
Sets oscillator frequency (10 oct. range) |
| Fine tune knob |
Oscillator fine tune adjustment (±0.4 oct.) |
| Audio (Kybd on) / LF (Kybd off) slide switch |
Select audio band (10 Hz to 10 kHz) or LFO (0.03 Hz to 30 Hz) |
| FM 1 / 2 /3 faders |
Attenuate FM inputs (-∞ to unity gain) |
| Pulse width fader |
Pulse width adjustment (10% to 90%) |
| PWM fader |
Pulse width modulation attenuator (-∞ to unity gain) |
Power |
|
| Power supply |
Eurorack |
| Current draw |
140 mA (+12 V), 5 mA (-12 V) |
Physical |
|
| Dimensions (H x W x D) |
129 x 81 x 42 mm (5.08 x 3.19 x 1.65") |
| Rack units |
16 HP |
| Weight |
0.15 kg (0.33 lbs) |
Behringer 2600 VCO Analog Voltage Controlled Oscillator Module for Eurorack
