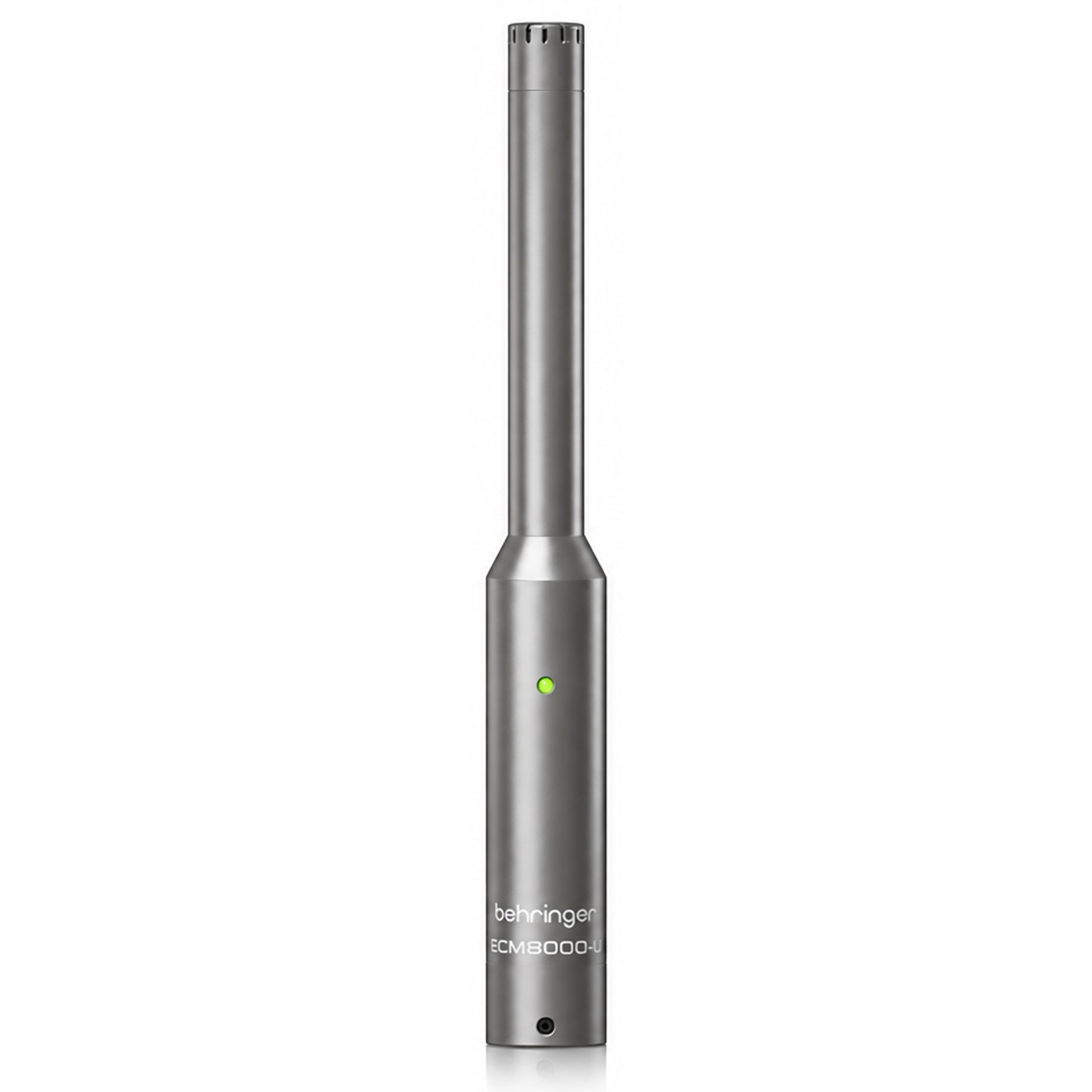

Plug & Play USB Calibrated Microphone for Studio-Grade Sound Accuracy
ECM8000-U — PLUG-AND-PLAY ROOM CALIBRATION
Studio monitors. Live PA. Car audio. Home theatre. Every one of these benefits from measurement — and every measurement starts with a calibrated microphone. The ECM8000-U makes that workflow USB-simple. Plug into a laptop, launch your measurement software, and start sweeping. No interface required, no phantom-power supply to wrangle, no analogue signal chain to worry about.
The omnidirectional 6 mm electret capsule delivers a ruler-flat 20 Hz–20 kHz response with deviations of less than 2 dB across the audible band — the precision that makes room EQ correction actually correct, not approximate. Ideal for REW, FuzzMeasure, Smaart, Dirac Live setup, monitor alignment, and live-sound PA tuning.
| Product Name | Behringer ECM8000-U Plug & Play USB Microphone |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | 0506-ABU86-001 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Behringer ECM8000-U Plug & Play USB Microphone
- Ultra-linear USB microphone for precision measurements and studio calibration
- Ideal for room, live, car acoustics calibration, and monitor alignment applications
- Exceptionally linear frequency response and ultra-high sound resolution
- True omnidirectional pattern for accurate sound capture
- USB plug-n-play interface for Windows, Mac & Linux, with included microphone clamp and zipper case for easy mounting and protection
General |
|
|---|---|
| Weight | 0.287 lbs (130 g) |
| Capsule Type | Precision 6 mm electret |
| Polar Pattern | omnidirectional |
Audio Specifications |
|
| Freq.Response | 20 Hz - 20 kHz |
| Max SPL for 1% THD @ 1kHz | 134 dB SPL @ -14 dB gain setting |
| Sensitivity | -6 dB FS/Pa @ +20 dB gain setting |
| SNR | 65 dB (A-weighted) |
| Sample Rate | 48 kHz |
| Bit Depth | 24-bit |
Connectivity |
|
| Output Connection | USB Type-C connector |
System Requirements |
|
| OS Requirements | Windows/MacOS/Android.etc |
Power |
|
| Current consumption | 18 mA |
| Power Requirements | USB Powered(5V) Green LED indicates unit under Power |
Dimensions |
|
| Dimensions | 0.807" (20.5 mm) Diameter x 7.087" (180 mm) Length |
Behringer ECM8000-U Plug & Play USB Microphone
Plug & Play USB Calibrated Microphone for Studio-Grade Sound Accuracy
ECM8000-U — PLUG-AND-PLAY ROOM CALIBRATION
Studio monitors. Live PA. Car audio. Home theatre. Every one of these benefits from measurement — and every measurement starts with a calibrated microphone. The ECM8000-U makes that workflow USB-simple. Plug into a laptop, launch your measurement software, and start sweeping. No interface required, no phantom-power supply to wrangle, no analogue signal chain to worry about.
The omnidirectional 6 mm electret capsule delivers a ruler-flat 20 Hz–20 kHz response with deviations of less than 2 dB across the audible band — the precision that makes room EQ correction actually correct, not approximate. Ideal for REW, FuzzMeasure, Smaart, Dirac Live setup, monitor alignment, and live-sound PA tuning.
| Product Name | Behringer ECM8000-U Plug & Play USB Microphone |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | 0506-ABU86-001 |
What's in the Box?
Behringer ECM8000-U Plug & Play USB Microphone- Ultra-linear USB microphone for precision measurements and studio calibration
- Ideal for room, live, car acoustics calibration, and monitor alignment applications
- Exceptionally linear frequency response and ultra-high sound resolution
- True omnidirectional pattern for accurate sound capture
- USB plug-n-play interface for Windows, Mac & Linux, with included microphone clamp and zipper case for easy mounting and protection
General |
|
|---|---|
| Weight | 0.287 lbs (130 g) |
| Capsule Type | Precision 6 mm electret |
| Polar Pattern | omnidirectional |
Audio Specifications |
|
| Freq.Response | 20 Hz - 20 kHz |
| Max SPL for 1% THD @ 1kHz | 134 dB SPL @ -14 dB gain setting |
| Sensitivity | -6 dB FS/Pa @ +20 dB gain setting |
| SNR | 65 dB (A-weighted) |
| Sample Rate | 48 kHz |
| Bit Depth | 24-bit |
Connectivity |
|
| Output Connection | USB Type-C connector |
System Requirements |
|
| OS Requirements | Windows/MacOS/Android.etc |
Power |
|
| Current consumption | 18 mA |
| Power Requirements | USB Powered(5V) Green LED indicates unit under Power |
Dimensions |
|
| Dimensions | 0.807" (20.5 mm) Diameter x 7.087" (180 mm) Length |
