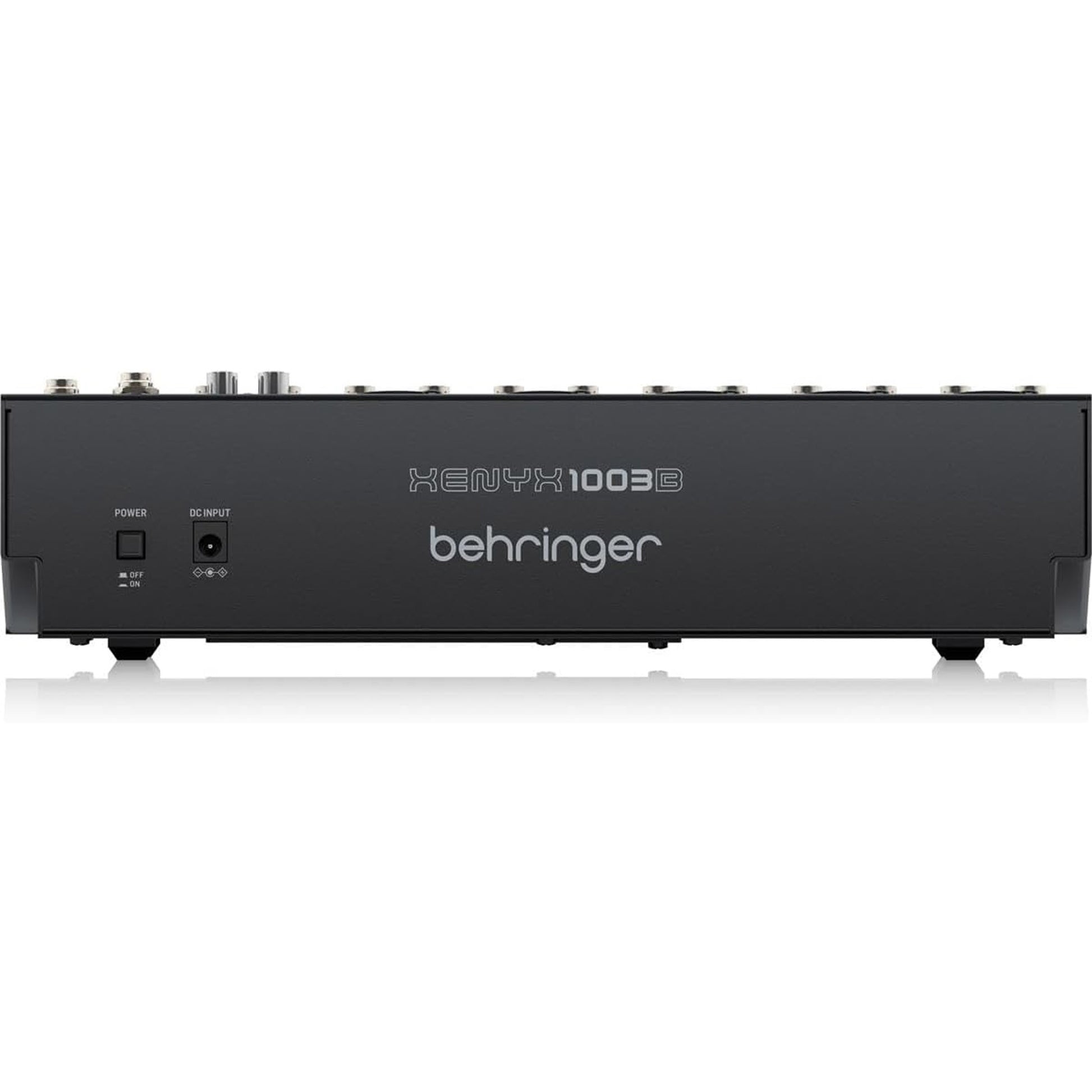

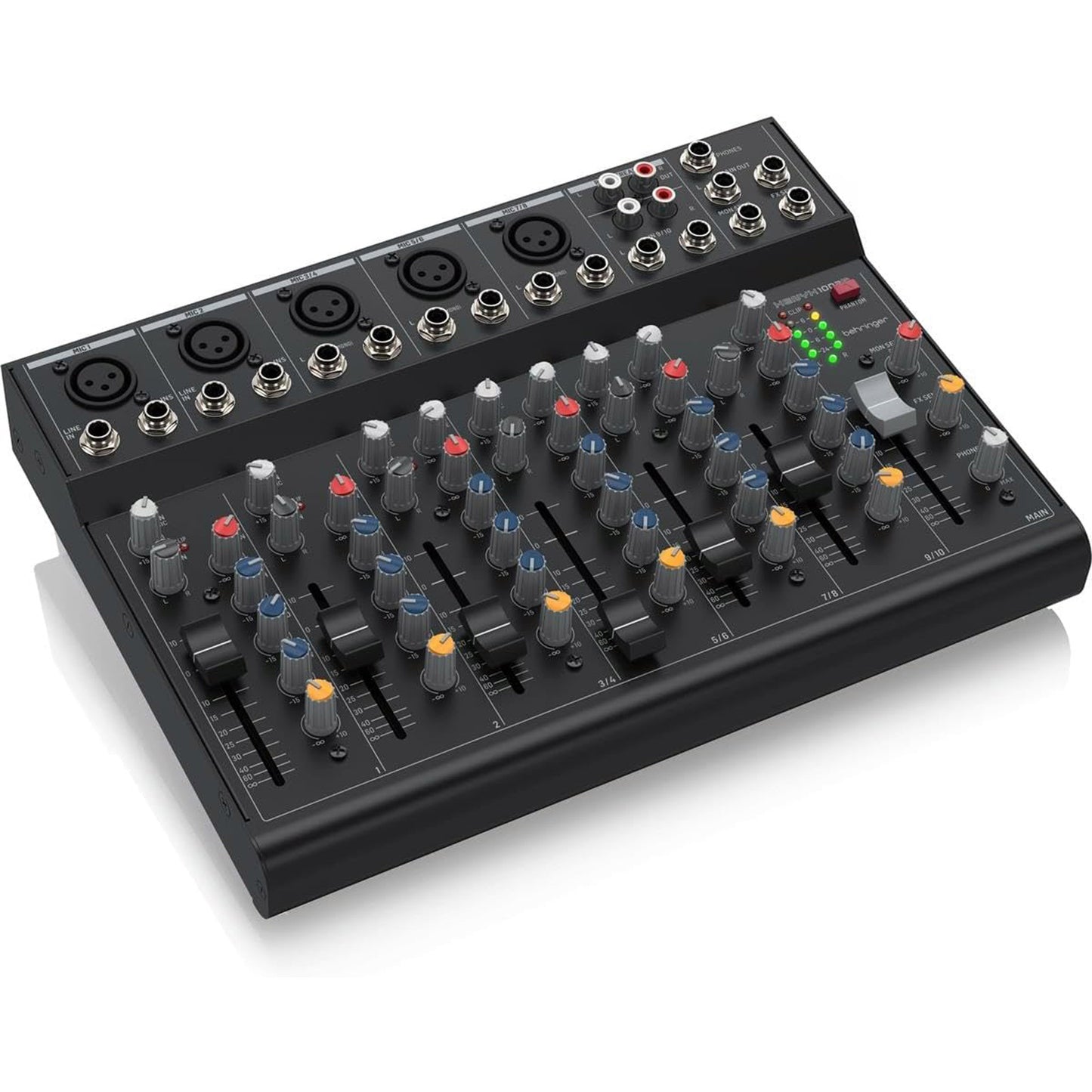

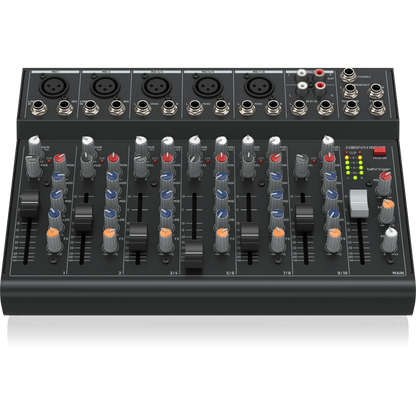

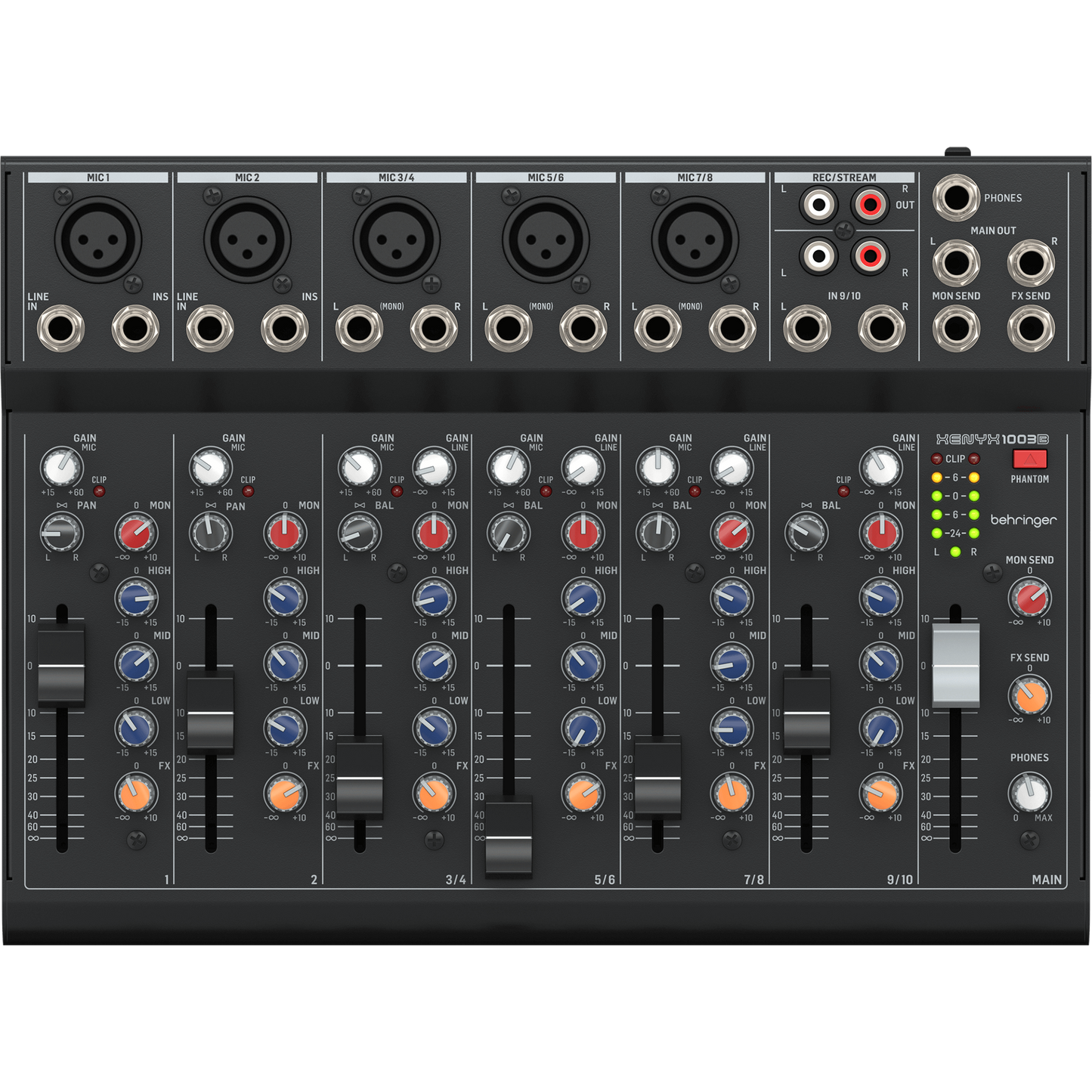

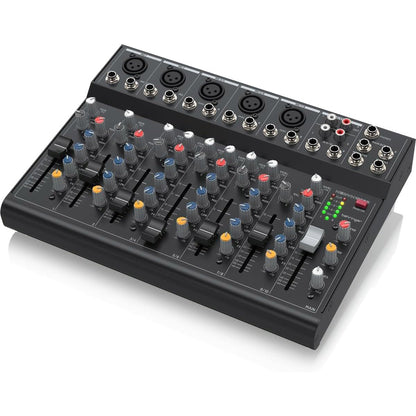

Behringer Xenyx 1003B Premium Analog Mixer with 5 Mic Preamps

Behringer Xenyx 1003B Premium Analog Mixer with 5 Mic Preamps

Ready to ship immediately!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Portable and feature-packed, the XENYX series 1003b Analog mixer/mic pre can handle up to 10 channels of audio input in a small yet versatile package. Lightweight and under 12” wide, the 1003b easily fits on your desktop or anywhere on the go-- Power up with a 16v DC adaptor (included) or work anywhere the action is, running on 9v battery power.

Enjoy up to 10 simultaneous channels of high-quality/low-noise audio reproduction, thanks to 5 XENYX mic preamps (3 with internal processing inputs, 2 with stereo line inputs). Each clear and warm-sounding input is equipped with phantom power for professional results with any combination of dynamic and studio condenser microphones. Easily regulate each input with an independent 60mm fader, 3 band E.Q. post-fader effects, and pre-E.Q monitor control for outstanding versatility in a very affordable and convenient package.

More Information
Product Name Behringer Xenyx 1003B Premium Analog Mixer with 5 Mic Preamps
Brand Behringer
Condition New
MPN XENYX1003B
UPC 4033653072298
Shipping Option Free Shipping to the Continental U.S.

Inputs:

  • (5) XLR 1/4”
  • Line inputs: 10 1/4”
  • RCA: 2 Stereo pairs

Outputs:

  • Mains: 2 1/4"
  • (2) pairs RCA
  • (1) Variable 1/8” headphone out

Send/return:

  • (1) 1/4" Monitor send
  • (1) 1/4" FX send

Mono Inputs

Microphone Input Balanced XLR, discrete input circuit
Mic EIN (22 Hz-22 kHz) 50 Ω source Typ. -128 dB A-weighted
Frequency response Gain +15 dB (-3 dB) 10 Hz - 80 kHz
Frequency response Gain +60 dB (-3 dB) 20 Hz - 60 kHz
Gain range +15 dB to +60 dB
Max input level +6 dBu @ +15 dB Gain
Input Impedance 1.8 kΩ balanced
Distortion (THD+N) Gain 15 dB 0.006 % @ 1 kHz -5 dBu
Mono Line Inputs 1/4" TRS connector balanced
Impedance 18 kΩ balanced

Stereo Inputs

Line Input 1/4" TRS connector unbalanced
Gain range -∞ to +15 dB
Max input level +20 dBu @ Gain 12O'clock

EQUALISER

Low 80 Hz/±15 dB
Mid 2.5 kHz/±15 dB
High 12 kHz/±15 dB

Behringer Xenyx 1003B Premium Analog Mixer with 5 Mic Preamps

Details

Portable and feature-packed, the XENYX series 1003b Analog mixer/mic pre can handle up to 10 channels of audio input in a small yet versatile package. Lightweight and under 12” wide, the 1003b easily fits on your desktop or anywhere on the go-- Power up with a 16v DC adaptor (included) or work anywhere the action is, running on 9v battery power.

Enjoy up to 10 simultaneous channels of high-quality/low-noise audio reproduction, thanks to 5 XENYX mic preamps (3 with internal processing inputs, 2 with stereo line inputs). Each clear and warm-sounding input is equipped with phantom power for professional results with any combination of dynamic and studio condenser microphones. Easily regulate each input with an independent 60mm fader, 3 band E.Q. post-fader effects, and pre-E.Q monitor control for outstanding versatility in a very affordable and convenient package.

More Information
Product Name Behringer Xenyx 1003B Premium Analog Mixer with 5 Mic Preamps
Brand Behringer
Condition New
MPN XENYX1003B
UPC 4033653072298
Shipping Option Free Shipping to the Continental U.S.
Features

Inputs:

  • (5) XLR 1/4”
  • Line inputs: 10 1/4”
  • RCA: 2 Stereo pairs

Outputs:

  • Mains: 2 1/4"
  • (2) pairs RCA
  • (1) Variable 1/8” headphone out

Send/return:

  • (1) 1/4" Monitor send
  • (1) 1/4" FX send
Tech Specs

Mono Inputs

Microphone Input Balanced XLR, discrete input circuit
Mic EIN (22 Hz-22 kHz) 50 Ω source Typ. -128 dB A-weighted
Frequency response Gain +15 dB (-3 dB) 10 Hz - 80 kHz
Frequency response Gain +60 dB (-3 dB) 20 Hz - 60 kHz
Gain range +15 dB to +60 dB
Max input level +6 dBu @ +15 dB Gain
Input Impedance 1.8 kΩ balanced
Distortion (THD+N) Gain 15 dB 0.006 % @ 1 kHz -5 dBu
Mono Line Inputs 1/4" TRS connector balanced
Impedance 18 kΩ balanced

Stereo Inputs

Line Input 1/4" TRS connector unbalanced
Gain range -∞ to +15 dB
Max input level +20 dBu @ Gain 12O'clock

EQUALISER

Low 80 Hz/±15 dB
Mid 2.5 kHz/±15 dB
High 12 kHz/±15 dB
