Unlimited Sonic Possibilities

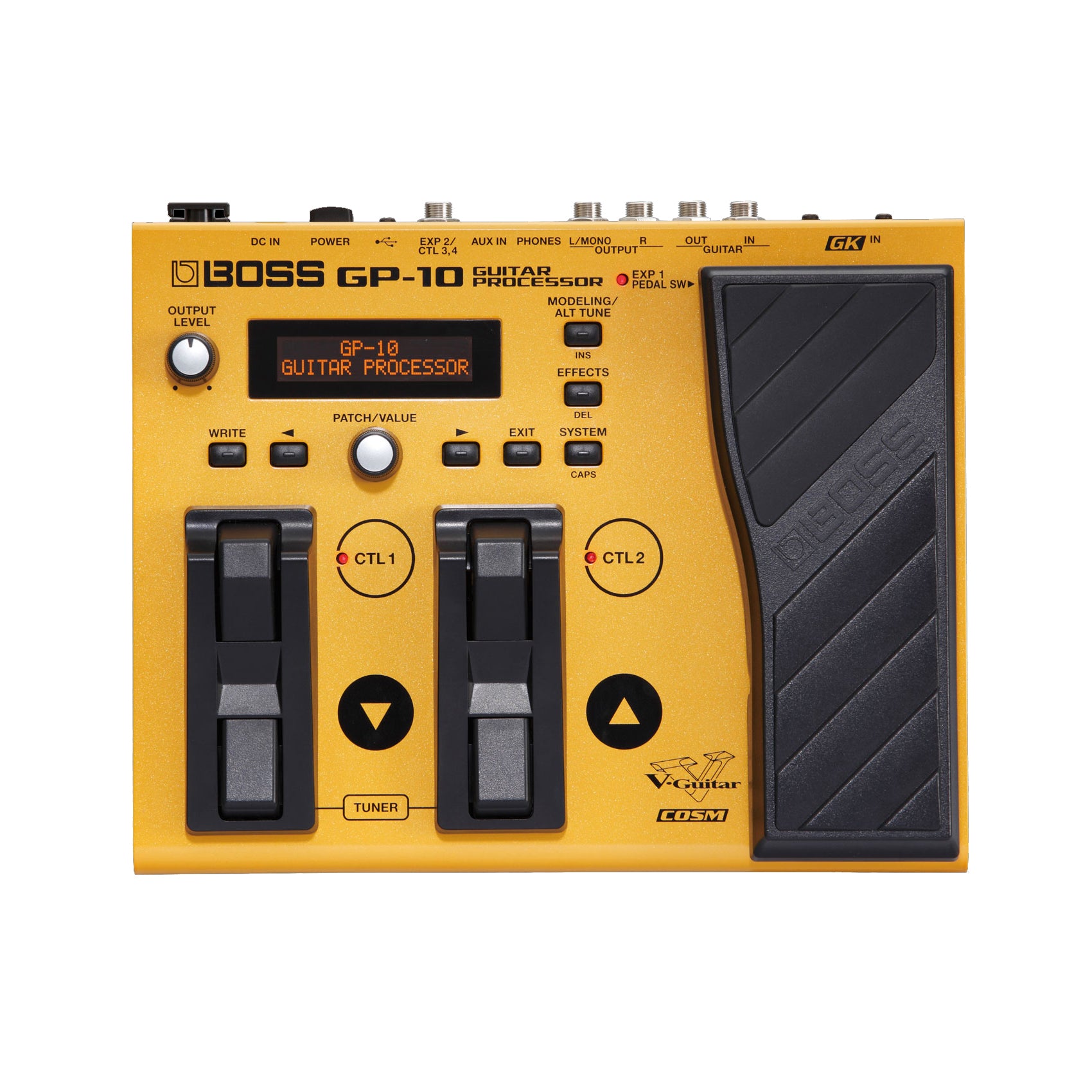

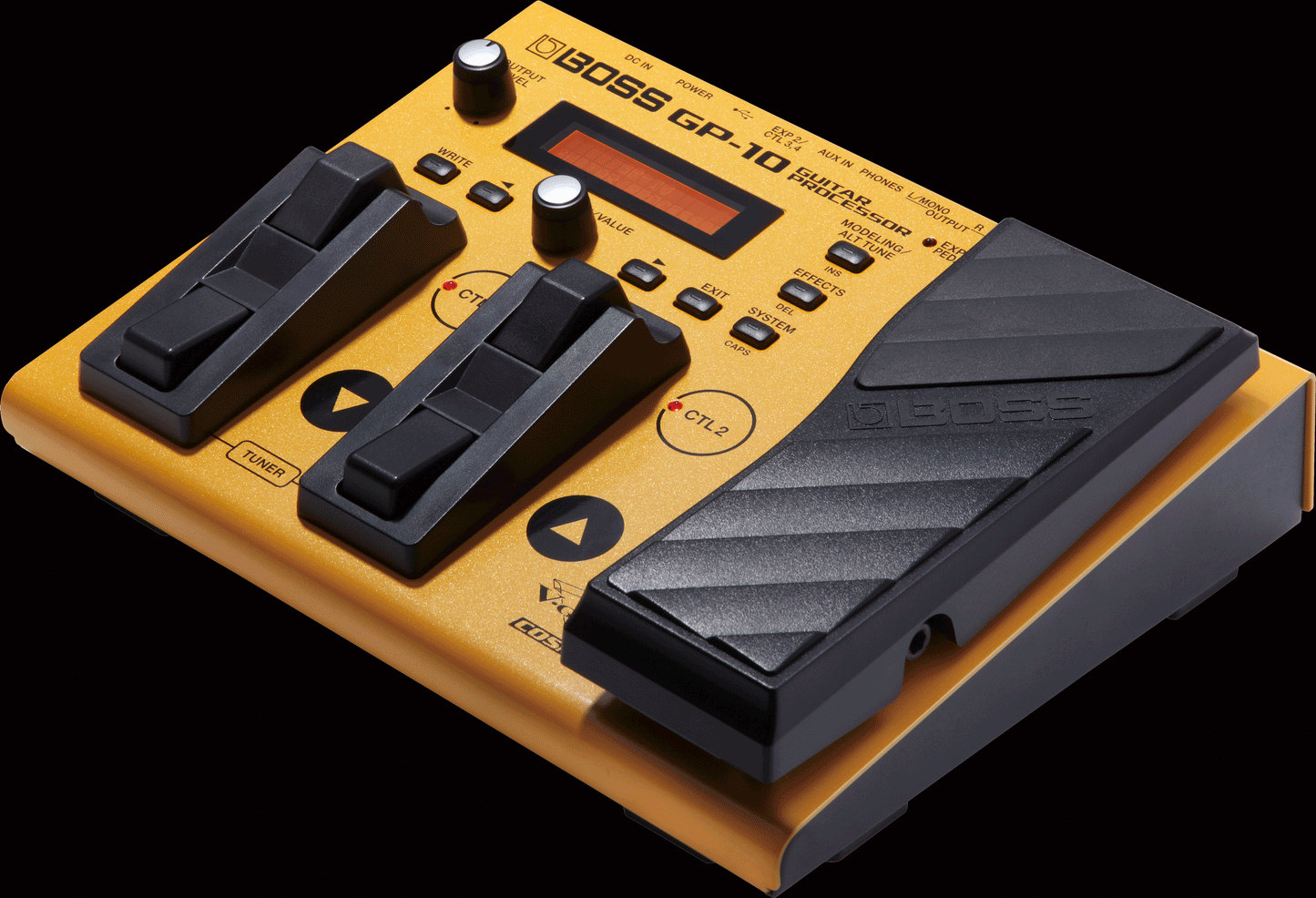

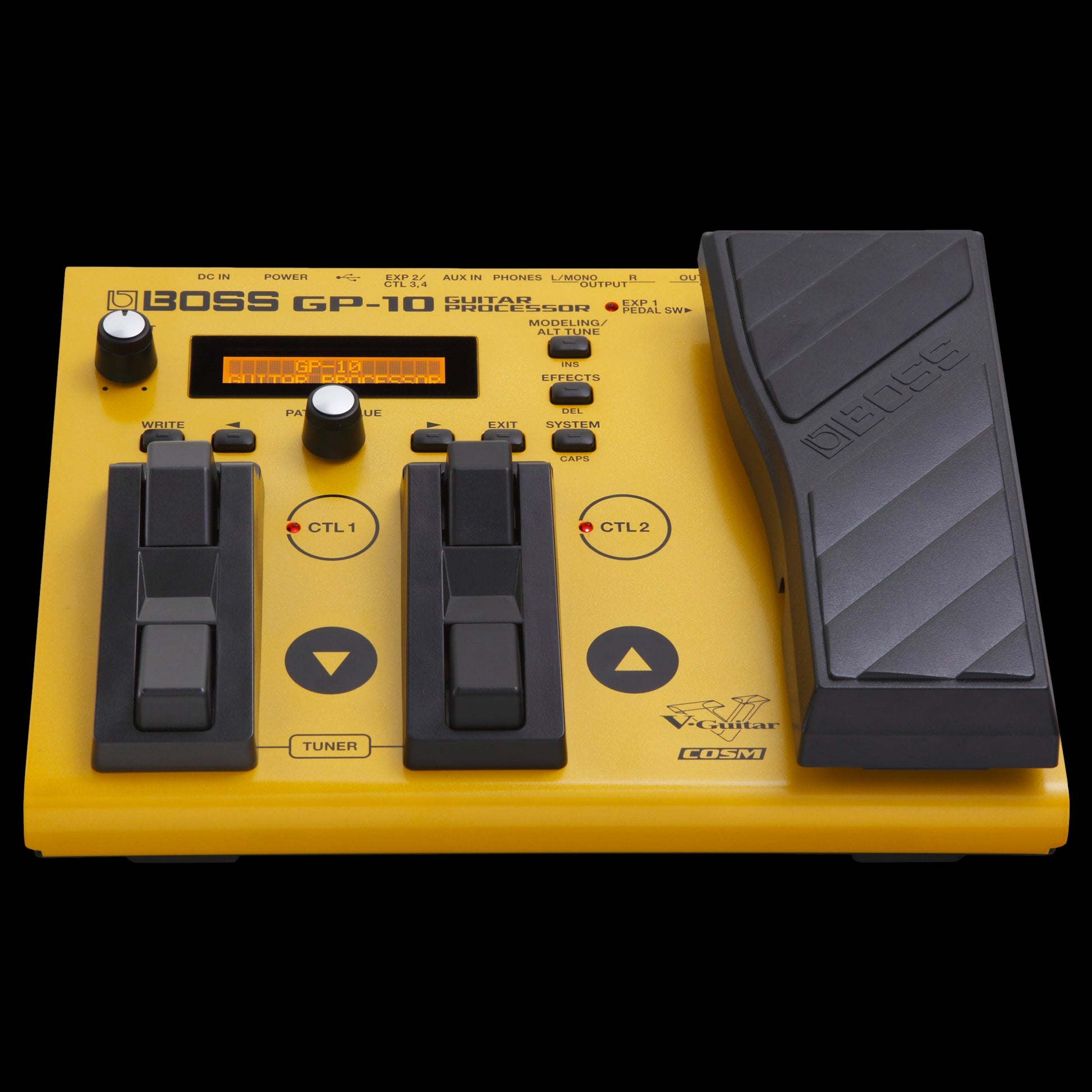

The new GP-10 puts a universe of amazing tones and tunings at your command, all in one compact processor that’s affordable and easy to use. With a Roland GK-compatible pickup on your guitar, the GP-10 lets you transform your sound into numerous classic electric and acoustic guitar types, basses, and even analog-modeled synths, including the legendary Roland GR-300. Not stopping there, you have access to instant altered tunings, including popular open tunings, 12-string tones, and “down” tunings that are essential for today’s ultra-heavy rock styles. The versatile GP-10 also functions as a full-featured multi-effects processor for both GK and normal pickups, giving you a huge selection of COSM® amps and effects for live playing and studio recording. In addition, USB connectivity lets you capture GP-10 tones directly into your DAW, and you can even play computer-based soft synths from your axe with the GP-10’s guitar-to-MIDI convertor!

Instant access to down tunings, open tunings, 12-string sounds, and your own custom tunings

Instrument modeling powered by COSM technology, including conventional electric, acoustic, and bass guitars, plus sitar, banjo, fretless guitar, and others

Analog guitar synthesizer modeling driven by real-time DSP allows you to play expressive, ultra-responsive synth tones

Create totally new sounds by blending modeled and normal guitar tones together

High-quality COSM amps and multi-effects derived from the GT-100

13-pin input for guitars equipped with a Roland GK-3 Divided Pickup or other GK-compatible pickup

Standard 1/4-inch guitar input allows for use of amps and effects with any guitar

USB audio/MIDI interface for multi-channel audio recording (including individual string output) and guitar-to-MIDI conversion with GK pickup

BOSS TONE STUDIO editor/librarian for Mac/Windows and custom patches available at bosstonecentral.com

Available with or without a GK-3 Divided Pickup

Play the GP-10 and another 13-pin GK device at the same time using the GKP-2 Parallel Cable (optional)

Unlimited Sonic Possibilities

Modeling

Electric guitar: 12 types

Acoustic: 9 types

Bass: 3 types

Guitar synthesizer: 3 types

Poly FX: 5 types

Alternate Tuning

OPEN: D, E, G, A

DROP: D to A

D-MODAL

NASHVILLE

SHIFT: -12 to +12

USER

12-string guitar function

Effects

Preamp: 30 types

FX: 16 types (including OD/DS)

OD/DS: 21 types

Wah: 6 types

Chorus: 3 types

Delay: 10 types

Reverb: 7 types

EQ: 1 type

Noise Suppressor(NS): 1 type

Patch Memory

99

AD Conversion

GK Pickup: 24 bits

GUITAR IN: 24 bits + AF method

DA Conversion

24 bits

Sampling Frequency

44.1 kHz

Nominal Input Level

GUITAR INPUT: -10 dBu

AUX IN: -20 dBu

Input Impedance

GUITAR INPUT: 1 M ohm

AUX IN: 27 k ohms

Nominal Output Level

OUTPUT L/MONO, R: -10 dBu

GUITAR OUT: -10 dBu

PHONES: -10 dBu

Output Impedance

OUTPUT L/MONO, R: 2 k ohms

GUITAR OUT: 2 k ohms

PHONES: 44 ohms

Recommended Load Impedance

OUTPUT L/MONO, R: 20 k ohms or greater

GUITAR OUT: 20 k ohms or greater

PHONES: 16 ohms or greater

Pedals

Pedal switch x 4

Expression pedal x 1

Display

16 characters, 2 lines (backlit LCD)

Connectors

GK IN connector: 13-pin DIN type

GUITAR IN jack: 1/4-inch phone type

GUITAR OUT jack: 1/4-inch phone type

OUTPUT (L/MONO, R) jacks: 1/4-inch phone type

PHONES jack: Stereo miniature phone type

AUX IN jack: Stereo miniature phone type

EXP 2/CTL 3, 4: 1/4-inch TRS phone type

USB port: USB type B

DC IN jack

Power Supply

AC adaptor

Current Draw

350 mA

Accessories

AC adaptor

Owner's manual

Leaflet "USING THE UNIT SAFELY"

Divided pickup (Roland GK-3) (only for GK included model)

GK cable (3 m, 10 feet) (only for GK included model)

Options (sold separately)

Divided pickup: Roland GK-3

GK cable: Roland GKC-5 (5 m), GKC-10 (10 m)

GK parallel cable (GK pickup <--> GK connector x 2): Roland GKP-2

Unit selector: Roland US-20

Footswitch: FS-5U

Dual footswitch: FS-6

Expression pedal: Roland EV-5, FV-500L/500H

Size and Weight

Width

251 mm

9-15/16 inches

Depth

207 mm

8-3/16 inches

Height

71 mm

2-13/16 inches

Weight

1.9 kg

4 lbs. 4 oz.

Size and Weight (Maximum height:)

Width

251 mm

9-15/16 inches

Depth

207 mm

8-3/16 inches

Height

93 mm

3-11/16 inches

Weight

1.9 kg

4 lbs. 4 oz.

* 0 dBu = 0.775 Vrms
