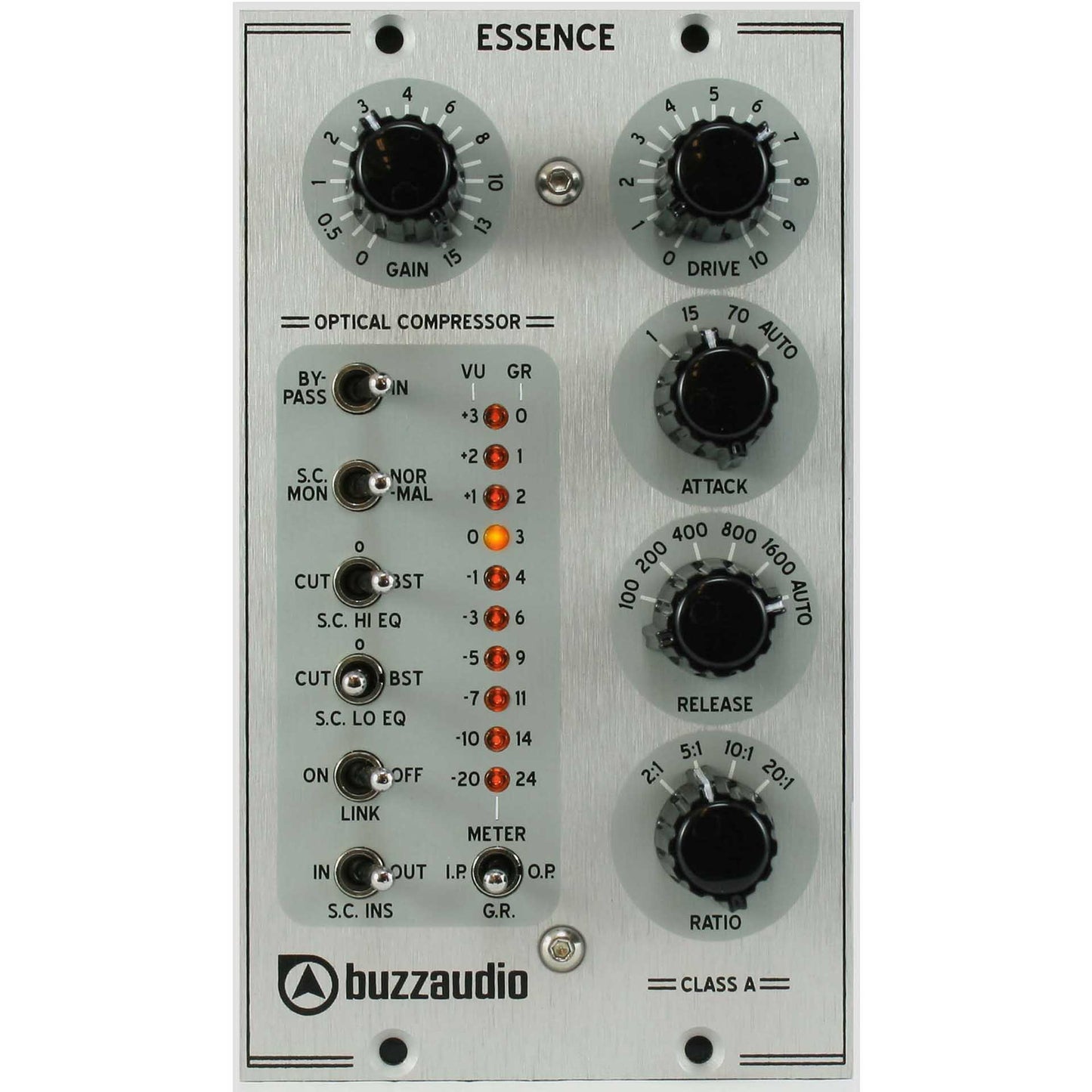

Buzz Audio Essence 500-Series Compressor

Buzz Audio Essence 500-Series Compressor

On order with the manufacturer!

A versatile mono compressor for 500 series frames that takes optical compression to the next level for all forms of music production. Indulge yourself in it's smooth and creamy sound!
View full details
  • Details
  • Tech Specs
  • Reviews

control genius

The Essence attack & release settings have been carefully selected for a varied dynamic palette and the intelligent auto modes allow for really smooth "set and forget" operation. But unlike the slow LA designs, this compressor can also be fast! The soft knee opto action is perfect for smoothing the dynamics of vocals and a stereo pair will find immediate use to glue together stems, synths and the mix buss.

audio path quality

The audio input is coupled directly to our custom made LDR gain reduction element via a Lundahl LL1540 input transformer. This is followed by a discrete signal path using our class-a BE40 amplifier and BE50 high current line driver that excites the Lundahl LL1517 output transformer. All this creates a very warm low end sound along with a creamy top end finish.

creative versatility

The Essence is the only 500 series compressor (that we know of) to feature a side chain insert point so you can apply equalisation to the compression characteristic to control certain parts of the audio spectrum. The insert can also be used to "key" the compressor from another sound for all sorts of creative pumping effects. In addition, there is on board side chain eq allowing you to quickly adjust the compressor sensitivity at high and low frequencies.

More Information
Product Name Buzz Audio Essence 500-Series Compressor
Brand Buzz Audio
Condition New
MPN essence
Shipping Option Free Shipping to the Continental U.S.
  • Frequency Response with no gain reduction; 14Hz to 107kHz, +/- 1.5dB
  • Maximum Input Level; +25dBu
  • Maximum Output Level; +27dBu
  • Side chain Max Input/Output Levels;+22dBu
  • Total Harmonic Distortion
    • Measured at 0dBu input, no gain reduction, make up Gain 0dB; 100Hz = 0.1%, 1kHz = 0.015%, 10kHz = 0.002%
    • Measured at +10dBu input, 20dB gain reduction, make up Gain +15dB, Attack AUTO, Release 16; 100Hz 0.1%, 1kHz = 0.015%, 10kHz = 0.005%
  • Residual Noise; -95dB A wtg, 150ohm source Z, make up Gain 0dB
  • Make up Gain Range; 0dB to +15dB
  • Maximum Available Gain Reduction = 25dB
  • S/C HI EQ Boost/Cut; 8dB @ 10kHz
  • S/C LO EQ Boost/Cut; 8dB @ 100Hz
  • Main Audio Input Impedance; 20k ohms, bal or unbal
  • Main Output Impedance; 100 ohms bal or unbal
  • Sidechain Send Output Impedance; 100 ohms unbal
  • Sidechain Return Input Impedance; 44k ohms bal or unbal
  • Size; (3"Wx5.25"H). Fits 2 spaces in API* 500VPR Series rack format
  • Power requirements; 120mA +/- 15-18 volts DC, as supplied by rack power supply.

Buzz Audio Essence 500-Series Compressor

Details

control genius

The Essence attack & release settings have been carefully selected for a varied dynamic palette and the intelligent auto modes allow for really smooth "set and forget" operation. But unlike the slow LA designs, this compressor can also be fast! The soft knee opto action is perfect for smoothing the dynamics of vocals and a stereo pair will find immediate use to glue together stems, synths and the mix buss.

audio path quality

The audio input is coupled directly to our custom made LDR gain reduction element via a Lundahl LL1540 input transformer. This is followed by a discrete signal path using our class-a BE40 amplifier and BE50 high current line driver that excites the Lundahl LL1517 output transformer. All this creates a very warm low end sound along with a creamy top end finish.

creative versatility

The Essence is the only 500 series compressor (that we know of) to feature a side chain insert point so you can apply equalisation to the compression characteristic to control certain parts of the audio spectrum. The insert can also be used to "key" the compressor from another sound for all sorts of creative pumping effects. In addition, there is on board side chain eq allowing you to quickly adjust the compressor sensitivity at high and low frequencies.

More Information
Product Name Buzz Audio Essence 500-Series Compressor
Brand Buzz Audio
Condition New
MPN essence
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Frequency Response with no gain reduction; 14Hz to 107kHz, +/- 1.5dB
  • Maximum Input Level; +25dBu
  • Maximum Output Level; +27dBu
  • Side chain Max Input/Output Levels;+22dBu
  • Total Harmonic Distortion
    • Measured at 0dBu input, no gain reduction, make up Gain 0dB; 100Hz = 0.1%, 1kHz = 0.015%, 10kHz = 0.002%
    • Measured at +10dBu input, 20dB gain reduction, make up Gain +15dB, Attack AUTO, Release 16; 100Hz 0.1%, 1kHz = 0.015%, 10kHz = 0.005%
  • Residual Noise; -95dB A wtg, 150ohm source Z, make up Gain 0dB
  • Make up Gain Range; 0dB to +15dB
  • Maximum Available Gain Reduction = 25dB
  • S/C HI EQ Boost/Cut; 8dB @ 10kHz
  • S/C LO EQ Boost/Cut; 8dB @ 100Hz
  • Main Audio Input Impedance; 20k ohms, bal or unbal
  • Main Output Impedance; 100 ohms bal or unbal
  • Sidechain Send Output Impedance; 100 ohms unbal
  • Sidechain Return Input Impedance; 44k ohms bal or unbal
  • Size; (3"Wx5.25"H). Fits 2 spaces in API* 500VPR Series rack format
  • Power requirements; 120mA +/- 15-18 volts DC, as supplied by rack power supply.
