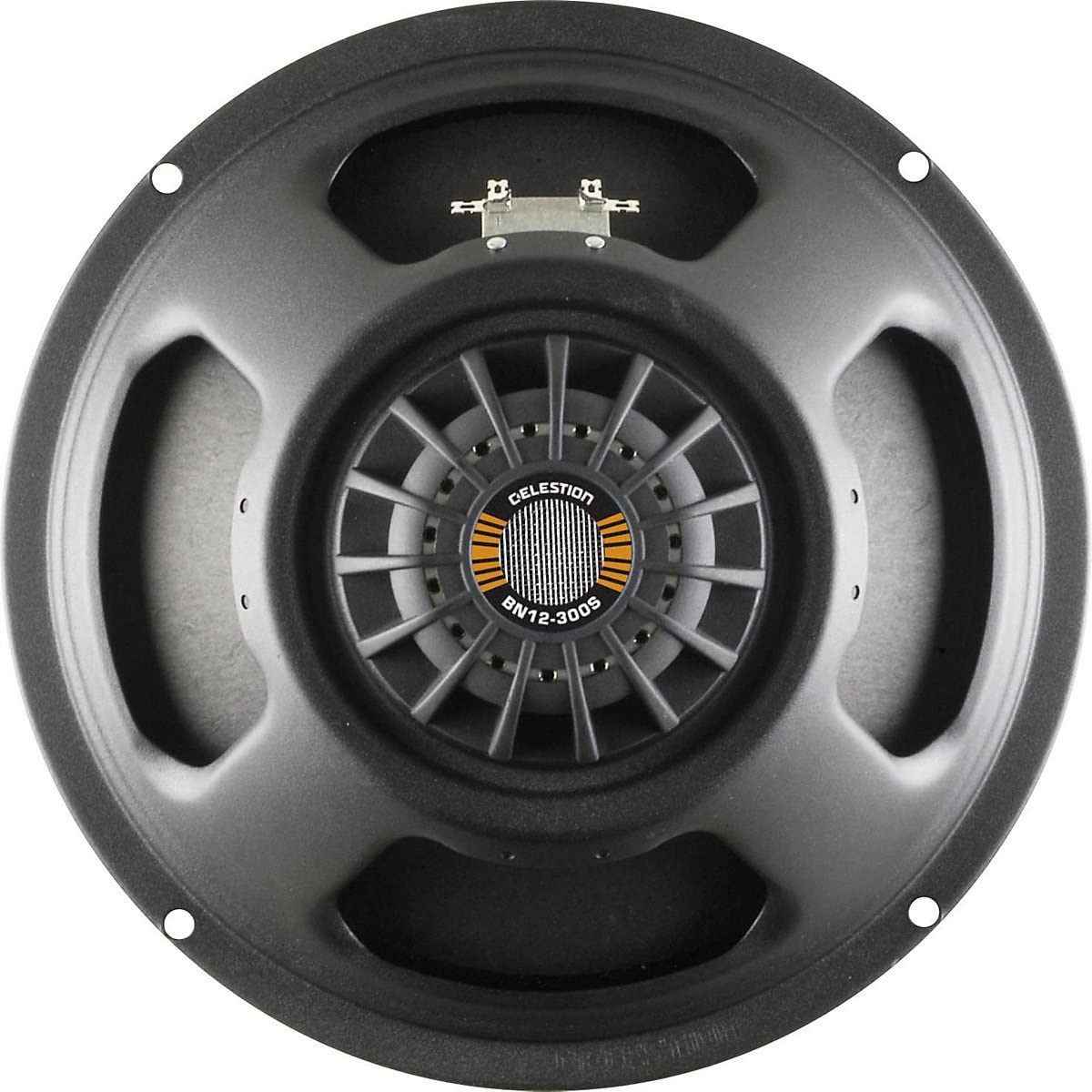

Celestion BN12-300S 12" 300W Neodymium Bass Guitar Speaker 8 Ohm Celestion builds the BN12-300S using unrivalled knowledge of neodymium motor structures. The BN12-300S delivers a three-dimensional musical quality that is the heart and soul of the Celestion's bass guitar speakers.
The Celestion Orange Label guitar speakers are extremely efficient with extended response, making them ideal for clean and crisp percussive playing styles. These professional drivers feature an enhanced mid-range punch to achieve those solid lows.
| Product Name | Celestion BN12-300S - 12” 4 Ohm Bass Speaker |
|---|---|
| Brand | Celestion |
| Condition | New |
| MPN | T5483 |
| UPC | 739894548359 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Celestion BN12-300S - 12” 4 Ohm Bass Speaker
Specifications |
|
|---|---|
| Nominal Diameter | 304.8mm / 12in |
| Power Rating | 300W |
| Rated Impedance | 4Ω |
| Sensitivity | 99dB |
| Magnet Type | Neodymium |
| Voice Coil Diameter | 2.5in / 63.5mm |
| Voice Coil Material | Copper |
| Former Material | Polyimide |
| Cone Material | Kevlar loaded paper |
| Surround Material | Cloth-sealed |
| Frequency Range | 50-4000Hz |
| Gap Height (Hg) | 8mm / 0.31in |
| VC Winding Height (Hvc) | 13mm / 0.51in |
| Sd | 530.9cm2 / 82.29in2 |
| Fs | 51.4Hz |
| Mms | 48.31g / 1.7oz |
| Qms | 3.64 |
| Qes | 0.395 |
| Qts | 0.356 |
| Re | 2.72Ω |
| Vas | 80.6l / 2.85ft3 |
| BI | 10.37Tm |
| Cms | 0.198mm/N |
| Rms | 4.296kg/s |
| Le (at 1kHz) | 0.26mH |
Dimensions |
|
| Cut-Out Diameter | 283mm / 11.1in |
| Diameter | 309mm / 12.2in |
| Mounting Hole Dimensions | 7.9mm / 0.31in Ø |
| Mounting Hole PCD | 297mm / 11.7in |
| Number of Mounting Holes | 4 |
| Chassis Depth (inc Gasket) | 96mm / 3.76in |
| Magnet Depth | 37mm / 1.44in |
| Overall Depth | 132mm / 5.2in |
| Unit Weight | 2.0kg / 4.4lb |
Celestion BN12-300S - 12” 4 Ohm Bass Speaker
Celestion BN12-300S 12" 300W Neodymium Bass Guitar Speaker 8 Ohm Celestion builds the BN12-300S using unrivalled knowledge of neodymium motor structures. The BN12-300S delivers a three-dimensional musical quality that is the heart and soul of the Celestion's bass guitar speakers.
The Celestion Orange Label guitar speakers are extremely efficient with extended response, making them ideal for clean and crisp percussive playing styles. These professional drivers feature an enhanced mid-range punch to achieve those solid lows.
| Product Name | Celestion BN12-300S - 12” 4 Ohm Bass Speaker |
|---|---|
| Brand | Celestion |
| Condition | New |
| MPN | T5483 |
| UPC | 739894548359 |
What's in the Box?
Celestion BN12-300S - 12” 4 Ohm Bass Speaker
Specifications |
|
|---|---|
| Nominal Diameter | 304.8mm / 12in |
| Power Rating | 300W |
| Rated Impedance | 4Ω |
| Sensitivity | 99dB |
| Magnet Type | Neodymium |
| Voice Coil Diameter | 2.5in / 63.5mm |
| Voice Coil Material | Copper |
| Former Material | Polyimide |
| Cone Material | Kevlar loaded paper |
| Surround Material | Cloth-sealed |
| Frequency Range | 50-4000Hz |
| Gap Height (Hg) | 8mm / 0.31in |
| VC Winding Height (Hvc) | 13mm / 0.51in |
| Sd | 530.9cm2 / 82.29in2 |
| Fs | 51.4Hz |
| Mms | 48.31g / 1.7oz |
| Qms | 3.64 |
| Qes | 0.395 |
| Qts | 0.356 |
| Re | 2.72Ω |
| Vas | 80.6l / 2.85ft3 |
| BI | 10.37Tm |
| Cms | 0.198mm/N |
| Rms | 4.296kg/s |
| Le (at 1kHz) | 0.26mH |
Dimensions |
|
| Cut-Out Diameter | 283mm / 11.1in |
| Diameter | 309mm / 12.2in |
| Mounting Hole Dimensions | 7.9mm / 0.31in Ø |
| Mounting Hole PCD | 297mm / 11.7in |
| Number of Mounting Holes | 4 |
| Chassis Depth (inc Gasket) | 96mm / 3.76in |
| Magnet Depth | 37mm / 1.44in |
| Overall Depth | 132mm / 5.2in |
| Unit Weight | 2.0kg / 4.4lb |
