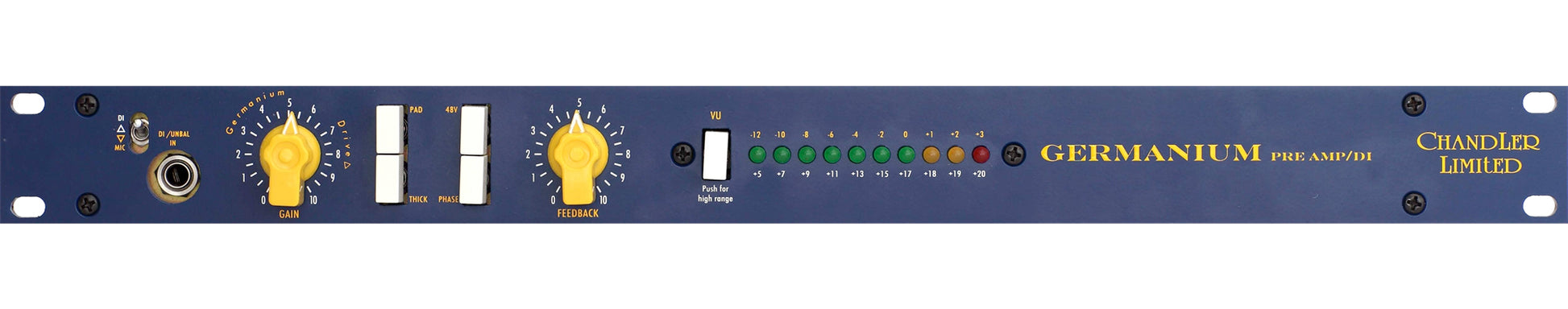

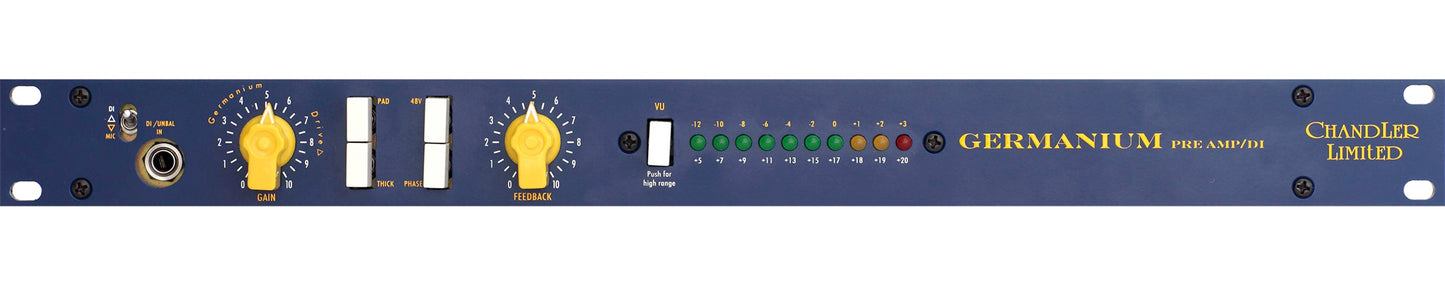

Chandler Limited Germanium Mono Mic Pre

Chandler Limited Germanium Mono Mic Pre

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Chandler Limited Germanium

The Chandler Limited Germanium Pre Amp/DI is a completely new microphone pre-amplifier design by Chandler Limited designer Wade Goeke that uses classic germanium transistors in an all class A, transformer balanced circuit.

The use of germanium devices opens a whole new sound palate not found in any pro audio equipment currently manufactured.

These incredibly smooth sounding transistors were the basis of the earliest transistor designs by Neve (1053, 1055, 1057), EMI (TG12345 MKI), Telefunken, and Fairchild. Those familiar with these units can attest to the special sound of the germanium transistor. The GERMANIUM series runs on +40 volt power, high current, and has a huge +34 output before clipping. The sound is warm and smooth, as with many vintage style circuits, but you’ll find a whole new world of smooth here, as well as a sound that settles in perfectly to your tracks without fighting. The Germanium uses Chandler’s new custom wound transformers that combine the best parts of our favorite St Ives and Gardners input and output transformers.

All Germanium units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).

*Does not include the Chandler Limited PSU-1 MKII power supply

More Information
Product Name Chandler Limited Germanium Mono Mic Pre
  • I/O: XLR
  • DI - Unbalanced jack with 100k input impedance
  • Germanium Drive controls the input gain of the Germanium amp
  • Pad and Thick Switches
  • Feedback Control to adjust the amount of signal fed from the amplifier output back to the input
  • 10-segment LED VU meter
  • Note: this unit requires the Chandler Limited Power Supply

*Requires the Chandler Limited PSU-1 MKII power supply

  • CHANNELS: Mono
  • CIRCUIT: Discrete, Transistor
  • Gain: -5 to +65 db
  • Mic Input Impedance: 1200 to 300 Ohm
  • CONNECTIONS
    • I/O: XLR, Transformer Balanced, Pin 2 Hot
    • DI, 1/4″ Unbalanced, 100k input impedance
  • POWER
    • Phantom Power: +48v
    • Power: +/-28v

Chandler Limited Germanium Mono Mic Pre

Details

Chandler Limited Germanium

The Chandler Limited Germanium Pre Amp/DI is a completely new microphone pre-amplifier design by Chandler Limited designer Wade Goeke that uses classic germanium transistors in an all class A, transformer balanced circuit.

The use of germanium devices opens a whole new sound palate not found in any pro audio equipment currently manufactured.

These incredibly smooth sounding transistors were the basis of the earliest transistor designs by Neve (1053, 1055, 1057), EMI (TG12345 MKI), Telefunken, and Fairchild. Those familiar with these units can attest to the special sound of the germanium transistor. The GERMANIUM series runs on +40 volt power, high current, and has a huge +34 output before clipping. The sound is warm and smooth, as with many vintage style circuits, but you’ll find a whole new world of smooth here, as well as a sound that settles in perfectly to your tracks without fighting. The Germanium uses Chandler’s new custom wound transformers that combine the best parts of our favorite St Ives and Gardners input and output transformers.

All Germanium units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).

*Does not include the Chandler Limited PSU-1 MKII power supply

More Information
Product Name Chandler Limited Germanium Mono Mic Pre
Features
  • I/O: XLR
  • DI - Unbalanced jack with 100k input impedance
  • Germanium Drive controls the input gain of the Germanium amp
  • Pad and Thick Switches
  • Feedback Control to adjust the amount of signal fed from the amplifier output back to the input
  • 10-segment LED VU meter
  • Note: this unit requires the Chandler Limited Power Supply
Tech Specs

*Requires the Chandler Limited PSU-1 MKII power supply

  • CHANNELS: Mono
  • CIRCUIT: Discrete, Transistor
  • Gain: -5 to +65 db
  • Mic Input Impedance: 1200 to 300 Ohm
  • CONNECTIONS
    • I/O: XLR, Transformer Balanced, Pin 2 Hot
    • DI, 1/4″ Unbalanced, 100k input impedance
  • POWER
    • Phantom Power: +48v
    • Power: +/-28v
