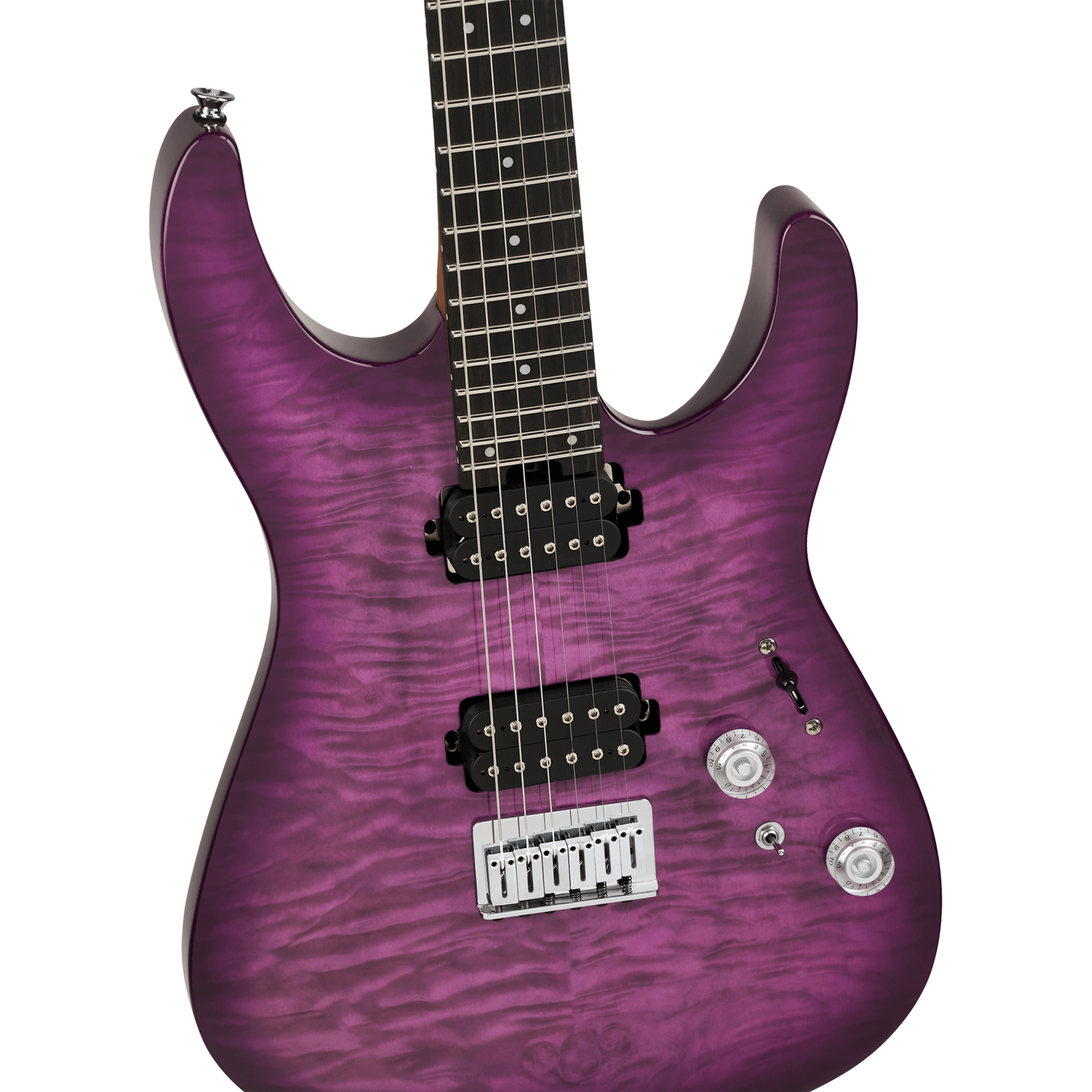

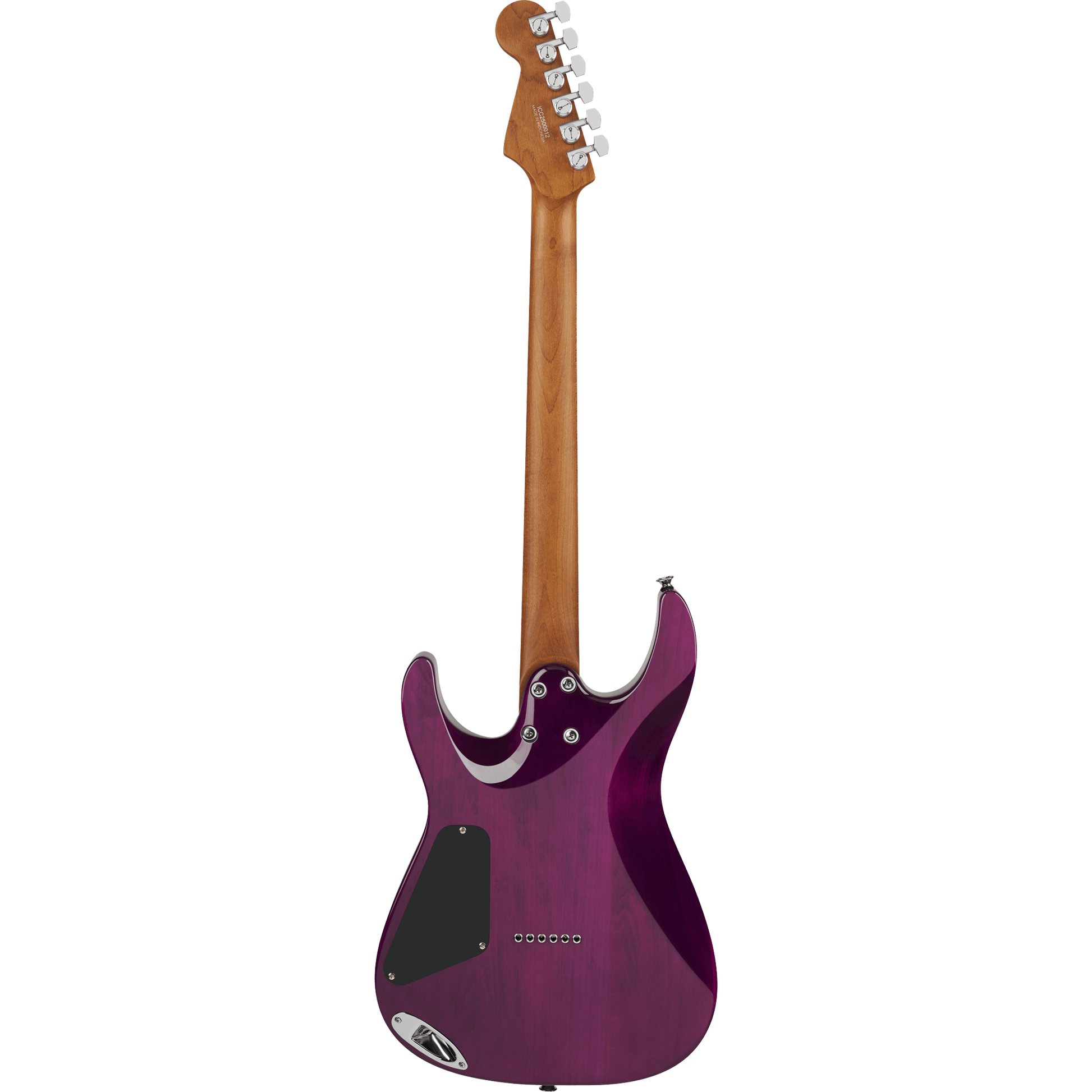

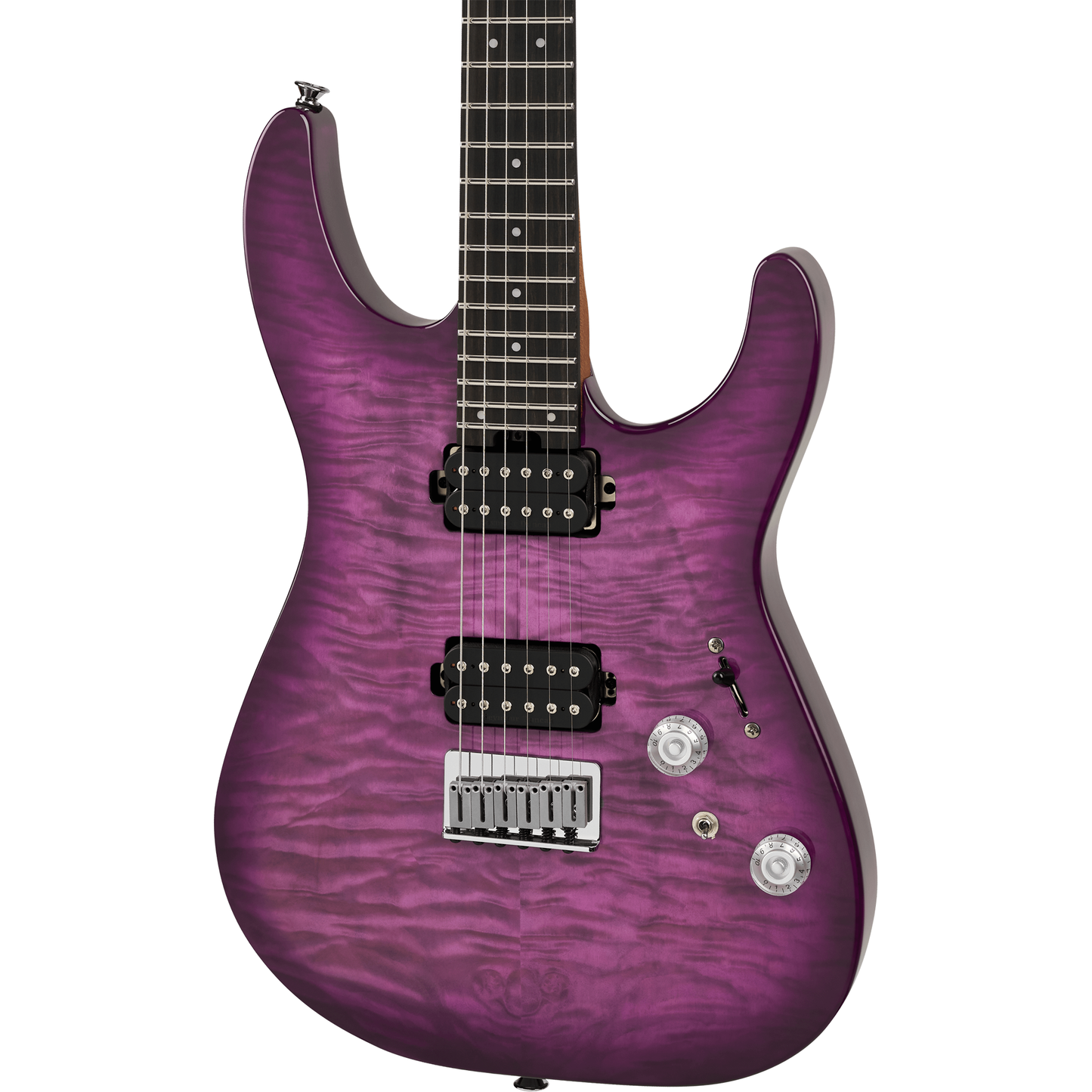

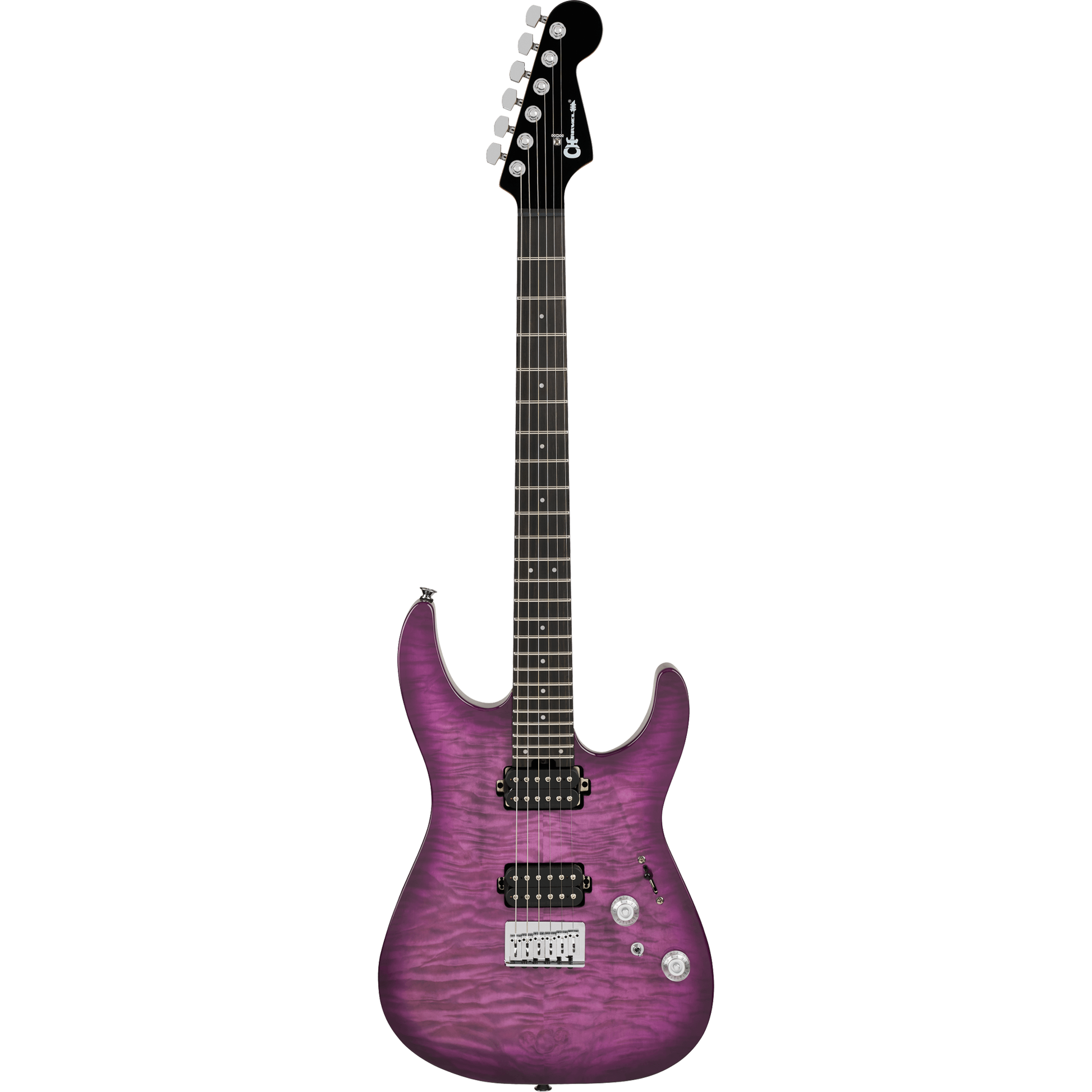

Charvel Pro-Mod Plus DK24 HH HT EB QM Electric Guitar - Violet Radiance

Charvel Pro-Mod Plus DK24 HH HT EB QM Electric Guitar - Violet Radiance

Limited quantities available!

View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 HT model features a sleek Dinky® body constructed from basswood with a quilt maple top, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount Seymour Duncan® Alnico Pro II™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Charvel® HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 HT HH E delivers premium performance and modern features.

More Information
Product Name Charvel Pro-Mod Plus DK24 HH HT EB QM Electric Guitar - Violet Radiance
Brand Charvel
Condition New
MPN 2979861592
UPC 885978982943
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Charvel Pro-Mod Plus DK24 HH HT EB QM Electric Guitar - Ebony Fingerboard, Violet Radiance
  • Deluxe Gig Bag
  • 25.5" scale length
  • Basswood Dinky® body with quilt maple top
  • Scalloped lower back bout
  • Bolt-on maple neck with graphite reinforcement
  • Sculpted shredder's cut heel
  • 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
  • Heel-mount truss rod adjustment wheel
  • Direct mount Seymour Duncan® Full Shred™ TB-10 humbucking bridge and Seymour Duncan Alnico II Pro™ APH-1N humbucking neck pickups
  • Five-way blade switch, volume control and no-load tone control
  • Charvel® HT6 string-through-body hardtail bridge
  • Charvel-branded die-cast locking tuners
  • Included deluxe gig bag

Neck

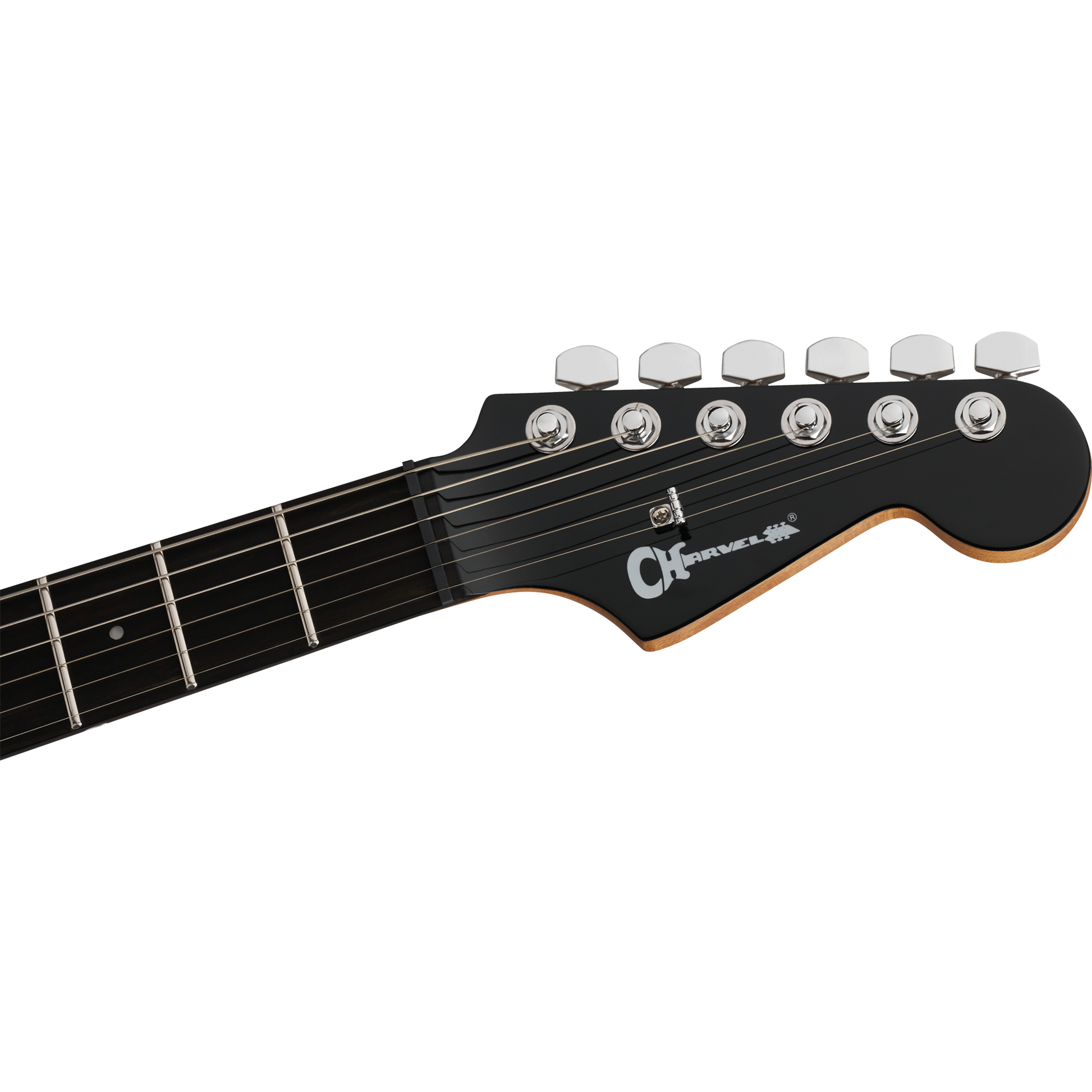

Headstock Licensed Fender® Stratocaster®
Neck Material Caramelized Maple
Neck Finish Natural Satin
Neck Shape Speed Neck with Rolled Fingerboard Edges
Neck Construction Bolt-On with Graphite Reinforcement
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Ebony
Position Inlays 4mm Pearloid Dot
Side Dots Luminlay®
Number of Frets 24
Truss Rod Dual-Action with Wheel
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Nut Graph Tech TUSQ XL
Nut Width 1.6875" (42.86 mm)
Nut Material Graph Tech TUSQ XL
Fret Size Jumbo Stainless Steel
Scale Length 25.5" (648 mm)

Body

Body Basswood
Body Finish Gloss
Body Shape Dinky®
Body Top Quilt Maple
Body Style Solid Body
Body Material Basswood

Hardware

Bridge Charvel® HT6 String-Through-Body Hardtail
Pickguard None
Pickup Covers Black
Control Knobs Speed Knob
Switch Tip Black
Hardware Finish Chrome

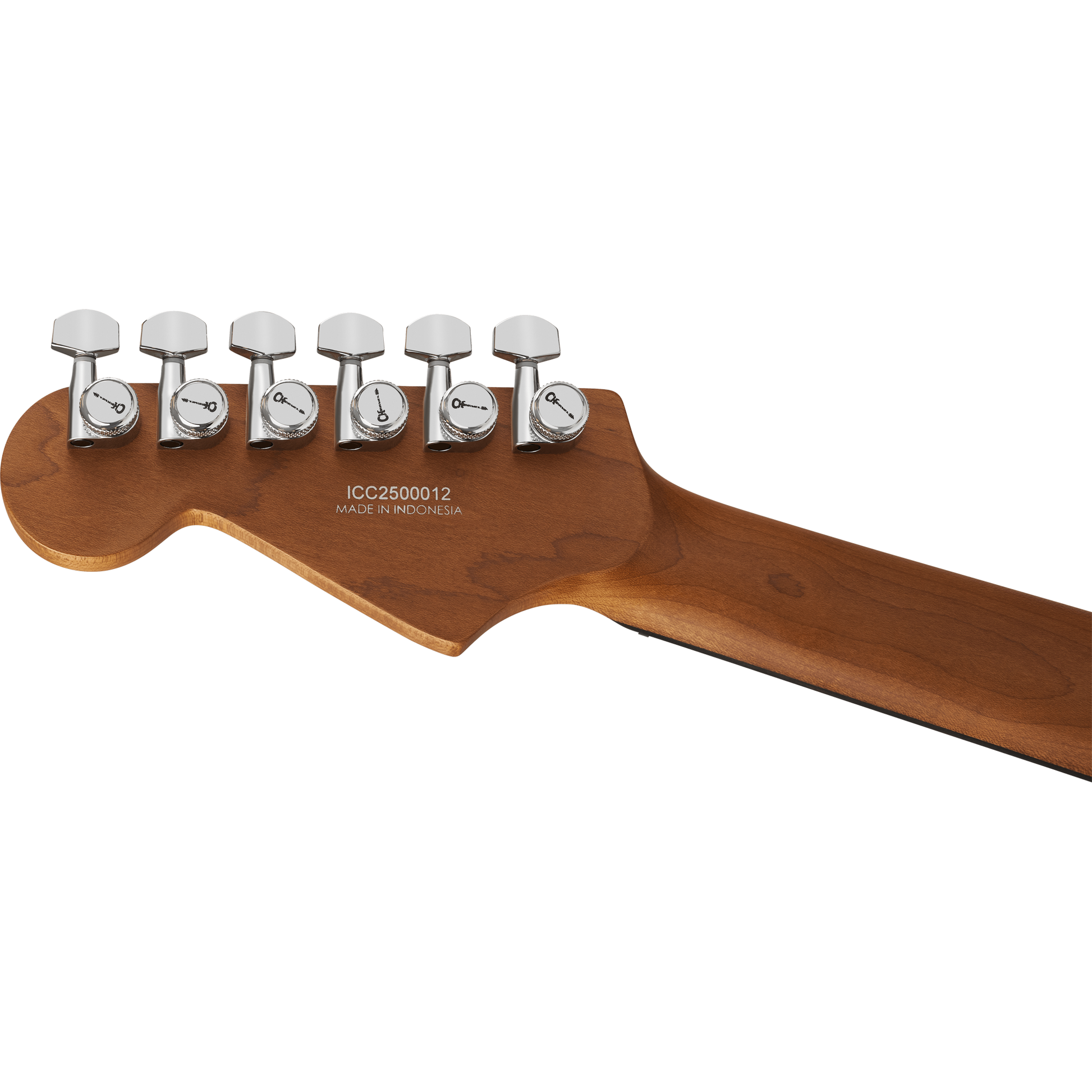

Tuning Machines Charvel®-Branded Die-Cast Locking
String Trees Fender® Standard String Guide
Strings Nickel Plated Steel (.009-.042 Gauges)
Neck Plate None - 4-Bolt Sculpted Heel
Strap Buttons Standard

Electronics

Bridge Pickup Seymour Duncan® Full Shred™ TB-10
Neck Pickup Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Configuration HH
Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
Auxiliary Switching 2-Position Mini Toggle: Down/All Series, Up/All Parallel
