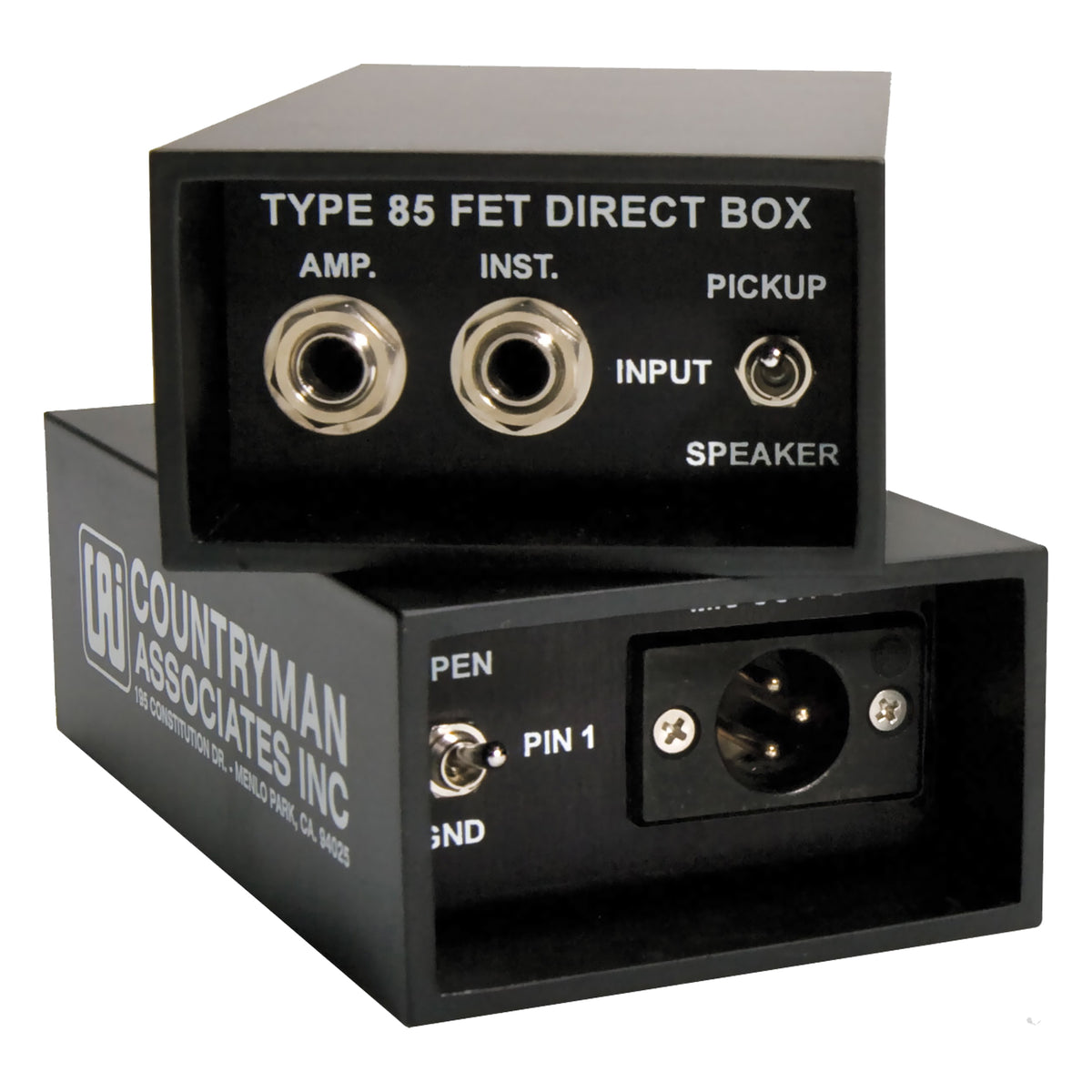

Countryman Type 85 Direct Interface Box

Countryman Type 85 Direct Interface Box

$159.00
$159.00

Sale Sold out
Choose Condition:

Out of Stock

Founded in 1966

The Countryman Type 85 Direct Interface Box utilizes the best engineering and highest quality materials to provide you the purest, warmest and most natural signal at the console- a must have for every musician!

View full details Liquid error (sections/main-product line 929): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Tech Specs
  • Reviews

Why You Need The Countryman Type 85 Direct Interface Box

  •  Quality engineered with the highest quality materials
  • Connects high-impedance instruments (including piano) to an XLR mic input
  • Runs off phantom power or off the internal battery for up to 400 hour
  • Strong, clean signal without added noise or distortion
  • Isolates ground buzz between console and amp
  • Small and compact size, nearly invisible on stage!
  • Virtually indestructible
  • Internal components protected from electrical damage
  • Input circuit withstands 220V AC all day long and withstands spikes up to 20,000 volts
  • Comes complete with 5 year manufacturer warranty
More Information
Product Name Countryman Type 85 Direct Interface Box
Brand Countryman
Condition New
MPN DT85
UPC 410000151105
Shipping Option Free Shipping to the Continental U.S.
Frequency Response 20 Hz to 20 kHz (+/- 1 dB)
Noise (shorted input): 0.63 uVrms (-122 dBVrms)
Distortion (1 Vpp in):

THD (1 kHz): < 0.018%

IMD (10 kHz/60 Hz, 4:1): < 0.08%
Power Options:

48 V Phantom (0.4 mA)

9 V Battery (400 hours on a typical alkaline)
Input Protection: 220 Vrms and 20,000 V static discharges
Voltage Gain:

Pickup mode: -10 dB

Speaker mode: -46 dB
RF Filtering:

Input: 250 kHz low-pass filter

Output: 30 kHz low-pass filter
Maximum Input Level (1% THD):

Pickup mode: 5 Vpp

Speaker mode: 300 Vpp

(Equal to 2,800 Watts into 4 Ohms)
Input Resistance:

Pickup mode: 10 MOhm (10 times the input impedance of a typical guitar amplifier)
Input Capacitance: 160 pF (equal to 2 ft of low-capacitance guitar cable)
Dimensions: 5" x 3" x 1.75" (127 mm x 77 mm x 45 mm)
Weight: 18.5 oz (0.52 kg)
Details

Why You Need The Countryman Type 85 Direct Interface Box

  •  Quality engineered with the highest quality materials
  • Connects high-impedance instruments (including piano) to an XLR mic input
  • Runs off phantom power or off the internal battery for up to 400 hour
  • Strong, clean signal without added noise or distortion
  • Isolates ground buzz between console and amp
  • Small and compact size, nearly invisible on stage!
  • Virtually indestructible
  • Internal components protected from electrical damage
  • Input circuit withstands 220V AC all day long and withstands spikes up to 20,000 volts
  • Comes complete with 5 year manufacturer warranty
More Information
Product Name Countryman Type 85 Direct Interface Box
Brand Countryman
Condition New
MPN DT85
UPC 410000151105
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
Frequency Response 20 Hz to 20 kHz (+/- 1 dB)
Noise (shorted input): 0.63 uVrms (-122 dBVrms)
Distortion (1 Vpp in):

THD (1 kHz): < 0.018%

IMD (10 kHz/60 Hz, 4:1): < 0.08%
Power Options:

48 V Phantom (0.4 mA)

9 V Battery (400 hours on a typical alkaline)
Input Protection: 220 Vrms and 20,000 V static discharges
Voltage Gain:

Pickup mode: -10 dB

Speaker mode: -46 dB
RF Filtering:

Input: 250 kHz low-pass filter

Output: 30 kHz low-pass filter
Maximum Input Level (1% THD):

Pickup mode: 5 Vpp

Speaker mode: 300 Vpp

(Equal to 2,800 Watts into 4 Ohms)
Input Resistance:

Pickup mode: 10 MOhm (10 times the input impedance of a typical guitar amplifier)
Input Capacitance: 160 pF (equal to 2 ft of low-capacitance guitar cable)
Dimensions: 5" x 3" x 1.75" (127 mm x 77 mm x 45 mm)
Weight: 18.5 oz (0.52 kg)
