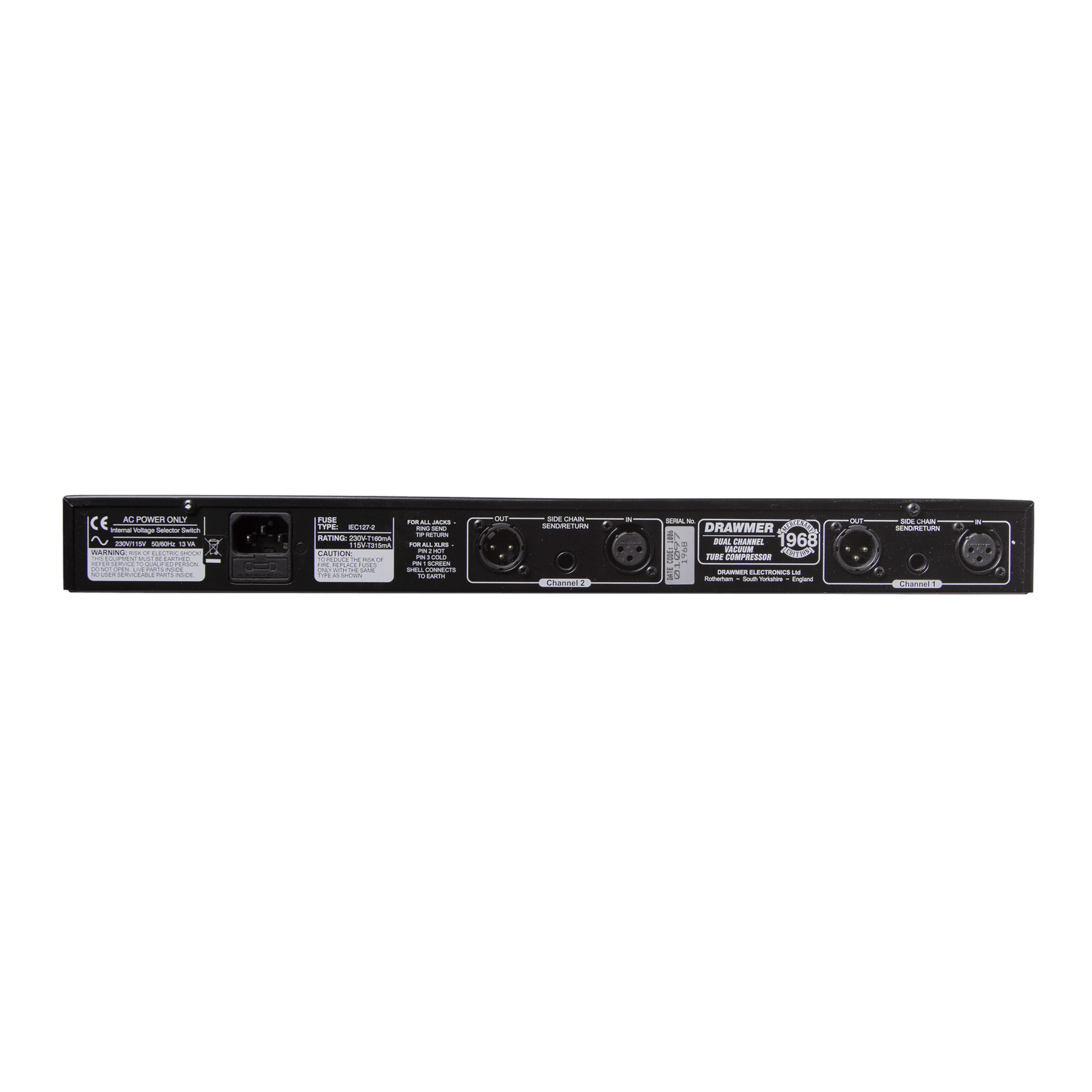

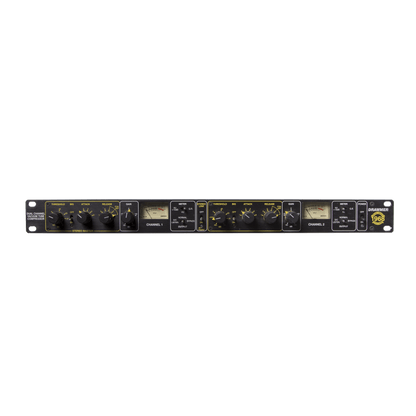

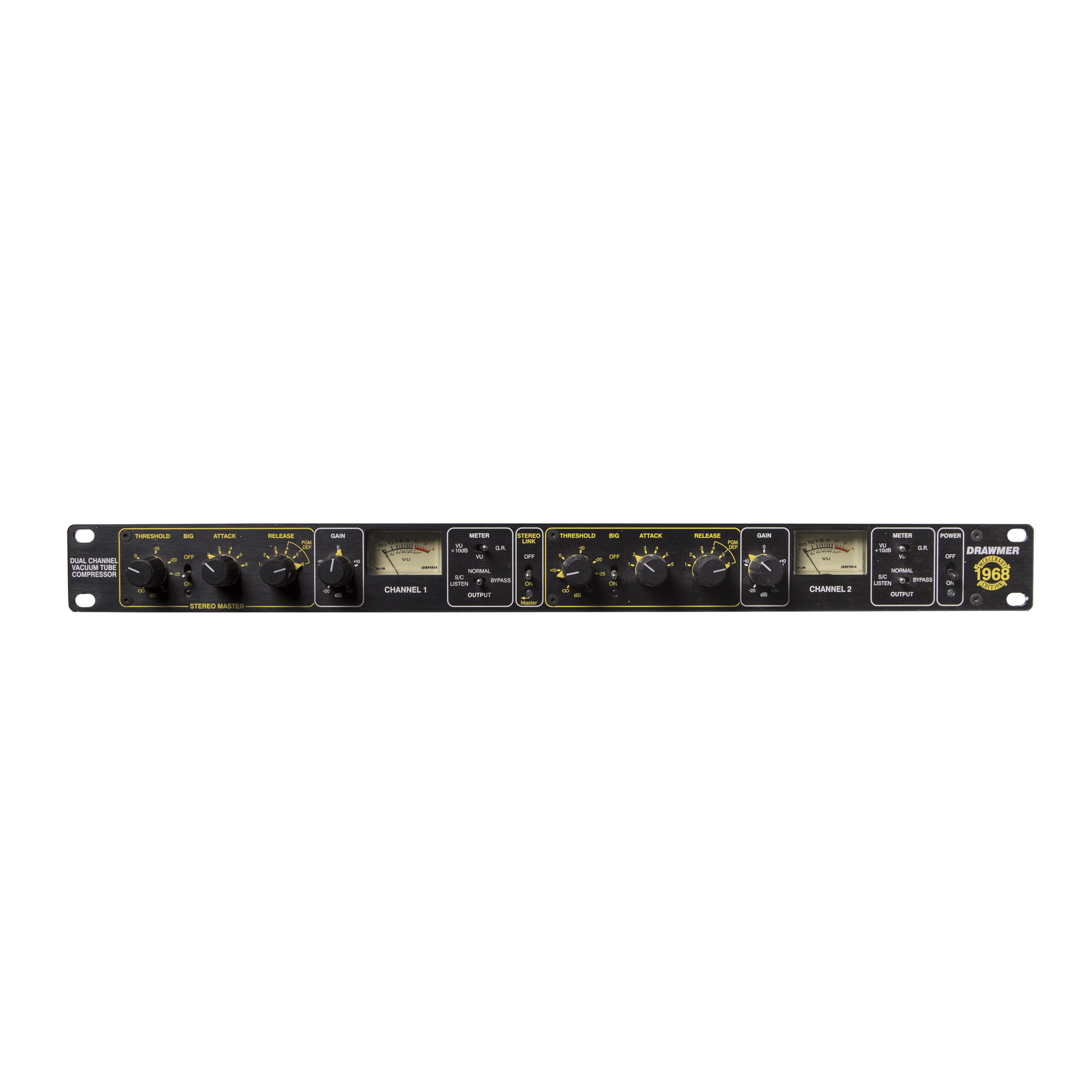

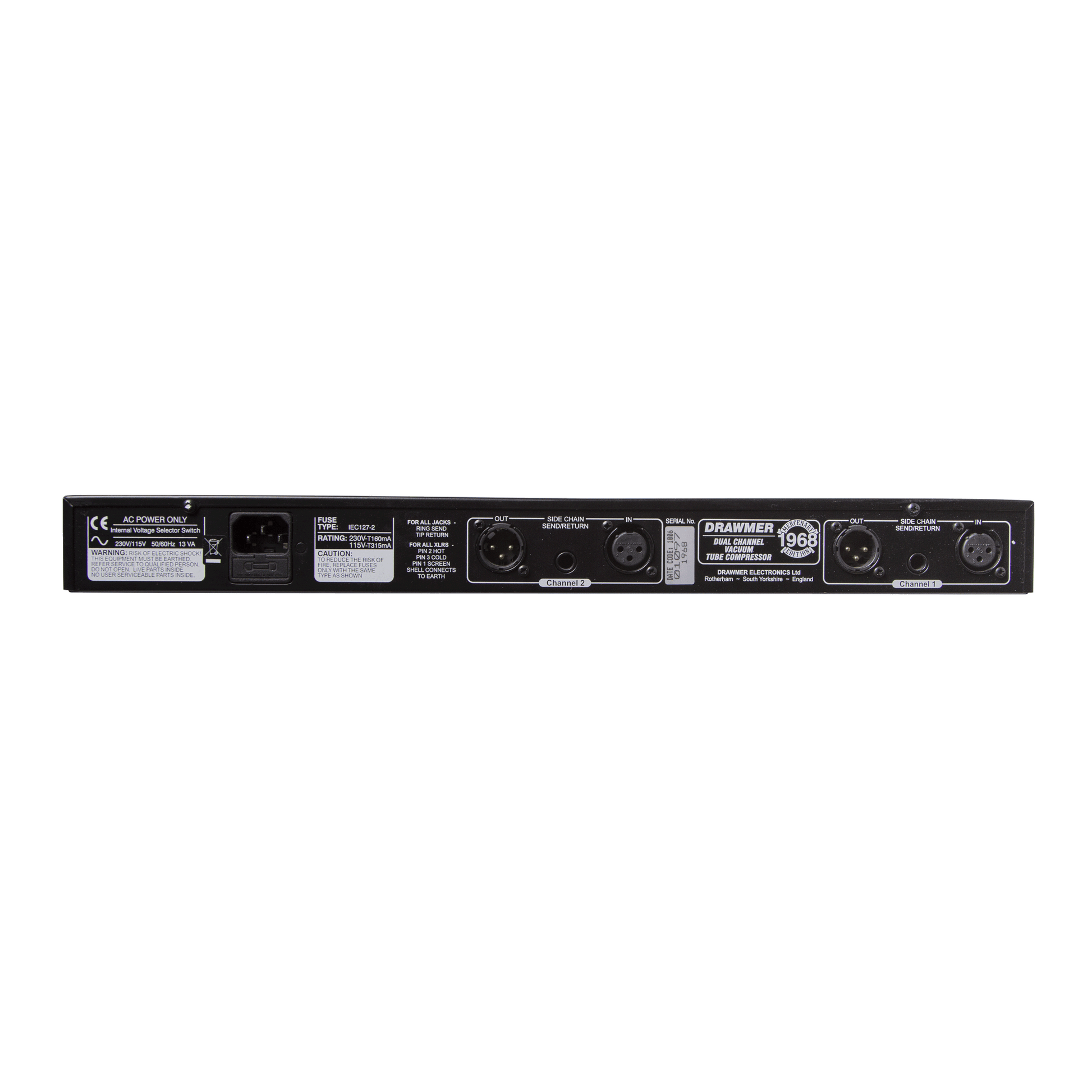

Drawmer 1968 ME MK1 (C101566)

Drawmer 1968 ME MK1 (C101566)

Out of Stock

View full details
  • Details
  • Features
  • Reviews

*Please note this item is pre-owned and may show signs of use. Please see photos.

Blend valves and FETs for quality compression. The 1968 MkI is a 1U Tube/FET ‘stereo bus’ compressor which by design delivers a transparent ‘open’ sound even during periods of heavy compression.

The original Drawmer 1960 used a tube stage at the front of the compressor, whilst the 1968 MkI utilisies a J-FET (Field Effect Transistor) gain reduction circuit that operates faster than an opto-isolator. The compressor uses a 12AX7 tube makeup gain amplifier where you can add, with the Output Gain control, up to 20 dB of additional gain. The need for a ratio control has been removed as the compressor operates on the soft knee principle where the onset of compression is progressive.

More Information
Product Name Drawmer 1968 ME MK1 (C101566)
Brand Drawmer
MPN 1968MK1
Shipping Option Free Shipping to the Continental U.S.
  • 2 Channel Tube/FET Compressor.
  • 2 soft-knee compressors with variable threshold, attack, release and output gain.
  • Switchable BIG and BIGGER control on each channel.
  • Dual mono or true stereo link operation.
  • Side chain access and side chain listen facility.
  • VU metering of gain reduction and output levels.
  • Switchable +10dB mode on VU re-scales the meter for users working at ‘hot’ output levels.
  • VU red warning glow to signify ‘approaching clipping’.
  • Balanced +4dB XLR in/outs.

Drawmer 1968 ME MK1 (C101566)

Details

*Please note this item is pre-owned and may show signs of use. Please see photos.

Blend valves and FETs for quality compression. The 1968 MkI is a 1U Tube/FET ‘stereo bus’ compressor which by design delivers a transparent ‘open’ sound even during periods of heavy compression.

The original Drawmer 1960 used a tube stage at the front of the compressor, whilst the 1968 MkI utilisies a J-FET (Field Effect Transistor) gain reduction circuit that operates faster than an opto-isolator. The compressor uses a 12AX7 tube makeup gain amplifier where you can add, with the Output Gain control, up to 20 dB of additional gain. The need for a ratio control has been removed as the compressor operates on the soft knee principle where the onset of compression is progressive.

More Information
Product Name Drawmer 1968 ME MK1 (C101566)
Brand Drawmer
MPN 1968MK1
Shipping Option Free Shipping to the Continental U.S.
Features
  • 2 Channel Tube/FET Compressor.
  • 2 soft-knee compressors with variable threshold, attack, release and output gain.
  • Switchable BIG and BIGGER control on each channel.
  • Dual mono or true stereo link operation.
  • Side chain access and side chain listen facility.
  • VU metering of gain reduction and output levels.
  • Switchable +10dB mode on VU re-scales the meter for users working at ‘hot’ output levels.
  • VU red warning glow to signify ‘approaching clipping’.
  • Balanced +4dB XLR in/outs.
