Capture Every Detail, Every Time
The Drawmer 1979 is a modern take on the classic channel strip, combining pristine clarity, tone shaping, and vintage compression in a single 1U unit.
It delivers the transparency of an ultra-clean pre-amplifier, the natural control of Lift, the precision of a three-band parametric equaliser, and the warmth of a soft-knee FET compressor - all designed to bring true analogue musicality to your recordings.
With switchable EQ and compressor order in the signal path, plus independent bypass for each section, the 1979 offers complete flexibility for shaping tone and dynamics.
Pristine & Versatile Pre-Amplifier
The 1979's pre-amplifier offers mic, line, and instrument DI inputs with up to 66dB of stepped gain, allowing you to capture ultra-clean, transparent recordings, enhance dull sources, or refine your instrument tone.
Switched impedance matching helps every microphone perform at its best - from high-end condensers to ribbons and older dynamics - revealing each mic's perfect sweet spot.
Lift - Bring Quiet Details to LifeLift - first introduced on the 1972 - is a dynamic gain module that boosts quieter signals below 0dB while leaving louder passages untouched, naturally reducing dynamic range without compression artefacts. It adjusts gain in real time for a smooth, musical response - a genuine 'set and forget' solution.
Ideal for vocals, finger-picked guitars, piano, or ambient recordings, Lift enhances subtle detail and balance without introducing noise or distortion.
Precise Parametric Equaliser
The 1979 features a fully variable three-band parametric equalizer with ±12dB of cut or boost and a switchable bandwidth control on the mid band.
Smooth, musical, and highly controllable, it excels at gentle tonal shaping as well as more surgical work to tame problem frequencies in a mix.

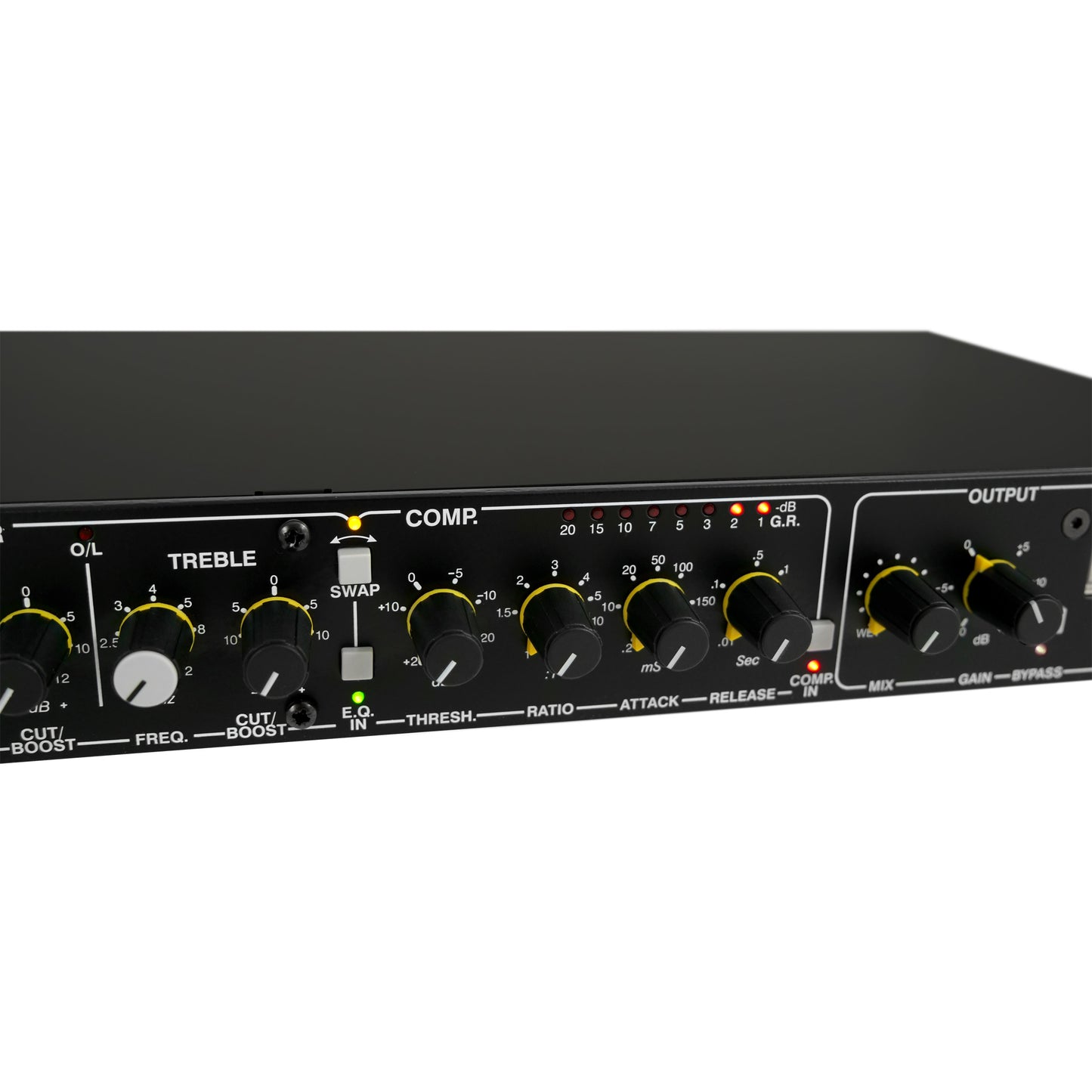

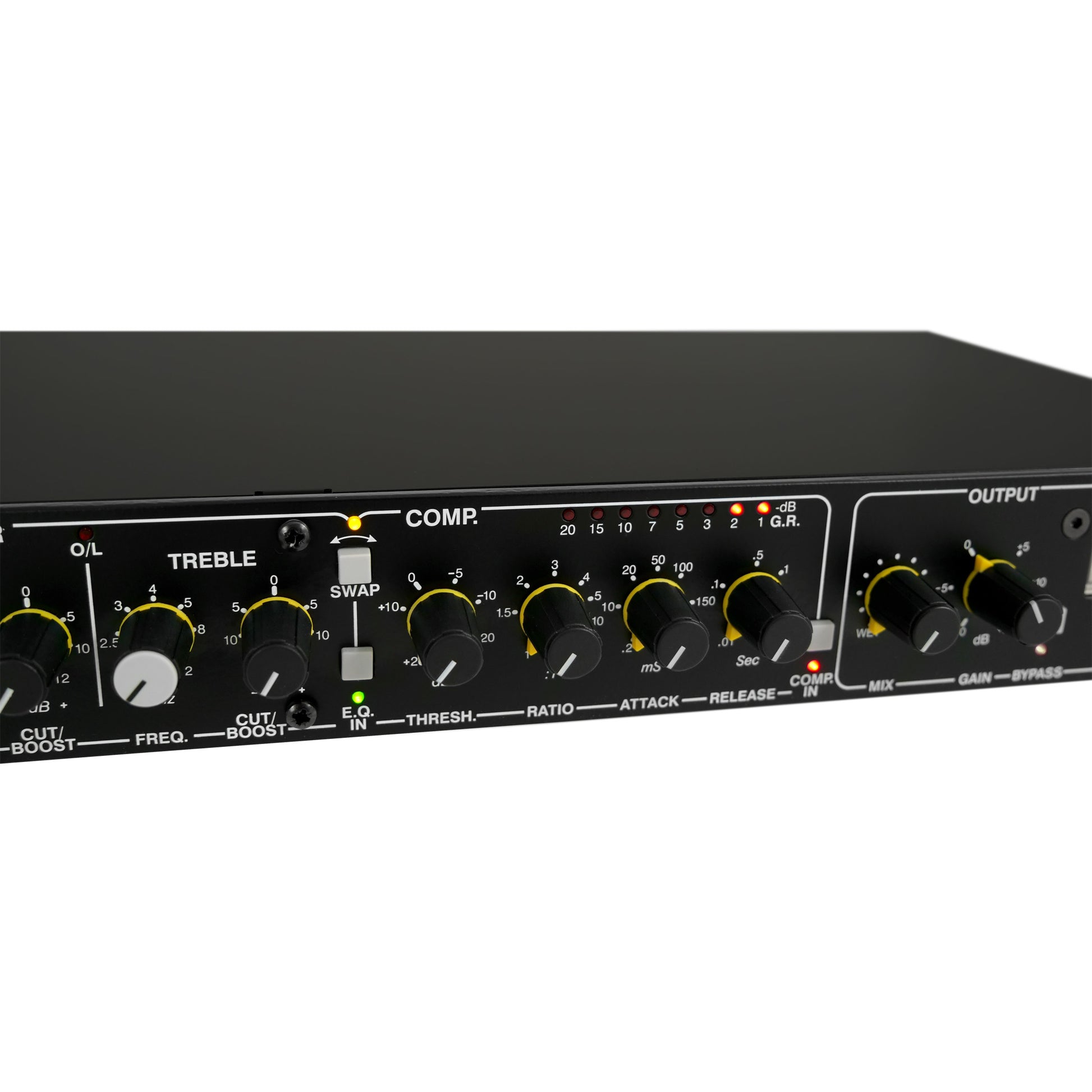

Vintage FET Compression
The soft-knee FET compressor delivers the smooth, musical control for which Drawmer is renowned. It offers everything from transparent vocal levelling and mix glue to more assertive drum or instrument compression.
Output Stage & Final Control
The output section includes a wet/dry mix for parallel processing, allowing you to fine-tune how much EQ and compression you blend into the signal. Output gain provides make-up level or lets you match interface inputs with precision.
A large backlit VU meter ensures accurate level monitoring, while a bypass switch disables both EQ and compression for an ultra-clean, direct pre-amplifier output.
| Product Name | Drawmer 1979 Channel Strip - Mic Pre, EQ, Compressor |
|---|---|
| Brand | Drawmer |
| Condition | New |
| MPN | 1979 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Drawmer 1979 Channel Strip - Mic Pre, EQ, Compressor
- Ultra-clean THAT Corporation mic pre-amplifier with 66dB of gain, phantom power, and switchable mic impedance for precise mic matching
- Mic, line, and instrument DI inputs, plus XLRs for both the dedicated direct pre-amplifier output and overall output
- Lift feature, taken from the award-winning 1972, boosts very low signals without impacting louder sources
- FET stage can be fully bypassed for ultra-clean operation
- Variable low-cut filter and phase reverse help remove rumble, tighten the low end, and ensure optimal signal integrity
- Three-band parametric equaliser inspired by vintage 1970s analogue gear, with variable frequency, ±12dB cut/boost, and adjustable bandwidth
- Soft-knee compressor with standard controls and rear-panel sidechain insert point for flexible operation
- Switchable EQ/compressor order in the signal path, with independent bypass for quick comparisons
- Variable wet/dry mix and output gain controls provide parallel EQ and compression for precise tonal balance
- Large backlit analogue VU meter with switchable +10dB rescale mode
- Time-delay relays on the outputs ensure clean power-up and power-down
- Internal low-hum toroidal linear power supply with voltage selector
- Classic Drawmer build quality with rugged steel chassis and aluminium front panel
- Designed and handmade by Drawmer in the United Kingdom
Input |
|
|---|---|
| Input Impedance | 20k Ohms or greater |
| Maximum Input Level | +25 dBu |
Output |
|
| Output Impedance | <100 Ohms |
| Maximum Output Level (into 10k Ohms Load) | +22 dBu |
Frequency Response |
|
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB |
Noise at Unity Gain |
|
| Noise (20 Hz – 20 kHz) | >91 dB |
Distortion |
|
| % Distortion (THD & Noise) @ 1 kHz 0 dB | 0.003% |
Microphone EIN |
|
| MIC EIN (A-weighted) | -130 dB |
Power Requirements |
|
| Power Requirements | 230 Volt or 115 Volt at 50–60 Hz, 15 VA |
Fuse Rating |
|
| Fuse Rating @ 230 Volt | T160 mA |
| Fuse Rating @ 115 Volt | T315 mA |
| Conforming to IEC 127-2 | Yes |
Fuse Type |
|
| Fuse Type | 20 mm × 5 mm, Class 3 Timed-Blo, 250 Volt working |
Case |
|
| Depth | 200 mm (7.87 inches) |
| Width | 482 mm (18.98 inches) |
| Height | 44 mm (1.73 inches) |
Weight |
|
| Weight | 2.6 kg (5.73 lbs) |
Drawmer 1979 Channel Strip - Mic Pre, EQ, Compressor
Capture Every Detail, Every Time
The Drawmer 1979 is a modern take on the classic channel strip, combining pristine clarity, tone shaping, and vintage compression in a single 1U unit.
It delivers the transparency of an ultra-clean pre-amplifier, the natural control of Lift, the precision of a three-band parametric equaliser, and the warmth of a soft-knee FET compressor - all designed to bring true analogue musicality to your recordings.
With switchable EQ and compressor order in the signal path, plus independent bypass for each section, the 1979 offers complete flexibility for shaping tone and dynamics.
Pristine & Versatile Pre-Amplifier
The 1979's pre-amplifier offers mic, line, and instrument DI inputs with up to 66dB of stepped gain, allowing you to capture ultra-clean, transparent recordings, enhance dull sources, or refine your instrument tone.
Switched impedance matching helps every microphone perform at its best - from high-end condensers to ribbons and older dynamics - revealing each mic's perfect sweet spot.
Lift - Bring Quiet Details to LifeLift - first introduced on the 1972 - is a dynamic gain module that boosts quieter signals below 0dB while leaving louder passages untouched, naturally reducing dynamic range without compression artefacts. It adjusts gain in real time for a smooth, musical response - a genuine 'set and forget' solution.
Ideal for vocals, finger-picked guitars, piano, or ambient recordings, Lift enhances subtle detail and balance without introducing noise or distortion.
Precise Parametric Equaliser
The 1979 features a fully variable three-band parametric equalizer with ±12dB of cut or boost and a switchable bandwidth control on the mid band.
Smooth, musical, and highly controllable, it excels at gentle tonal shaping as well as more surgical work to tame problem frequencies in a mix.
Vintage FET Compression
The soft-knee FET compressor delivers the smooth, musical control for which Drawmer is renowned. It offers everything from transparent vocal levelling and mix glue to more assertive drum or instrument compression.
Output Stage & Final Control
The output section includes a wet/dry mix for parallel processing, allowing you to fine-tune how much EQ and compression you blend into the signal. Output gain provides make-up level or lets you match interface inputs with precision.
A large backlit VU meter ensures accurate level monitoring, while a bypass switch disables both EQ and compression for an ultra-clean, direct pre-amplifier output.
| Product Name | Drawmer 1979 Channel Strip - Mic Pre, EQ, Compressor |
|---|---|
| Condition | New |
| MPN | 1979 |
What's in the Box?
Drawmer 1979 Channel Strip - Mic Pre, EQ, Compressor- Ultra-clean THAT Corporation mic pre-amplifier with 66dB of gain, phantom power, and switchable mic impedance for precise mic matching
- Mic, line, and instrument DI inputs, plus XLRs for both the dedicated direct pre-amplifier output and overall output
- Lift feature, taken from the award-winning 1972, boosts very low signals without impacting louder sources
- FET stage can be fully bypassed for ultra-clean operation
- Variable low-cut filter and phase reverse help remove rumble, tighten the low end, and ensure optimal signal integrity
- Three-band parametric equaliser inspired by vintage 1970s analogue gear, with variable frequency, ±12dB cut/boost, and adjustable bandwidth
- Soft-knee compressor with standard controls and rear-panel sidechain insert point for flexible operation
- Switchable EQ/compressor order in the signal path, with independent bypass for quick comparisons
- Variable wet/dry mix and output gain controls provide parallel EQ and compression for precise tonal balance
- Large backlit analogue VU meter with switchable +10dB rescale mode
- Time-delay relays on the outputs ensure clean power-up and power-down
- Internal low-hum toroidal linear power supply with voltage selector
- Classic Drawmer build quality with rugged steel chassis and aluminium front panel
- Designed and handmade by Drawmer in the United Kingdom
Input |
|
|---|---|
| Input Impedance | 20k Ohms or greater |
| Maximum Input Level | +25 dBu |
Output |
|
| Output Impedance | <100 Ohms |
| Maximum Output Level (into 10k Ohms Load) | +22 dBu |
Frequency Response |
|
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB |
Noise at Unity Gain |
|
| Noise (20 Hz – 20 kHz) | >91 dB |
Distortion |
|
| % Distortion (THD & Noise) @ 1 kHz 0 dB | 0.003% |
Microphone EIN |
|
| MIC EIN (A-weighted) | -130 dB |
Power Requirements |
|
| Power Requirements | 230 Volt or 115 Volt at 50–60 Hz, 15 VA |
Fuse Rating |
|
| Fuse Rating @ 230 Volt | T160 mA |
| Fuse Rating @ 115 Volt | T315 mA |
| Conforming to IEC 127-2 | Yes |
Fuse Type |
|
| Fuse Type | 20 mm × 5 mm, Class 3 Timed-Blo, 250 Volt working |
Case |
|
| Depth | 200 mm (7.87 inches) |
| Width | 482 mm (18.98 inches) |
| Height | 44 mm (1.73 inches) |
Weight |
|
| Weight | 2.6 kg (5.73 lbs) |
