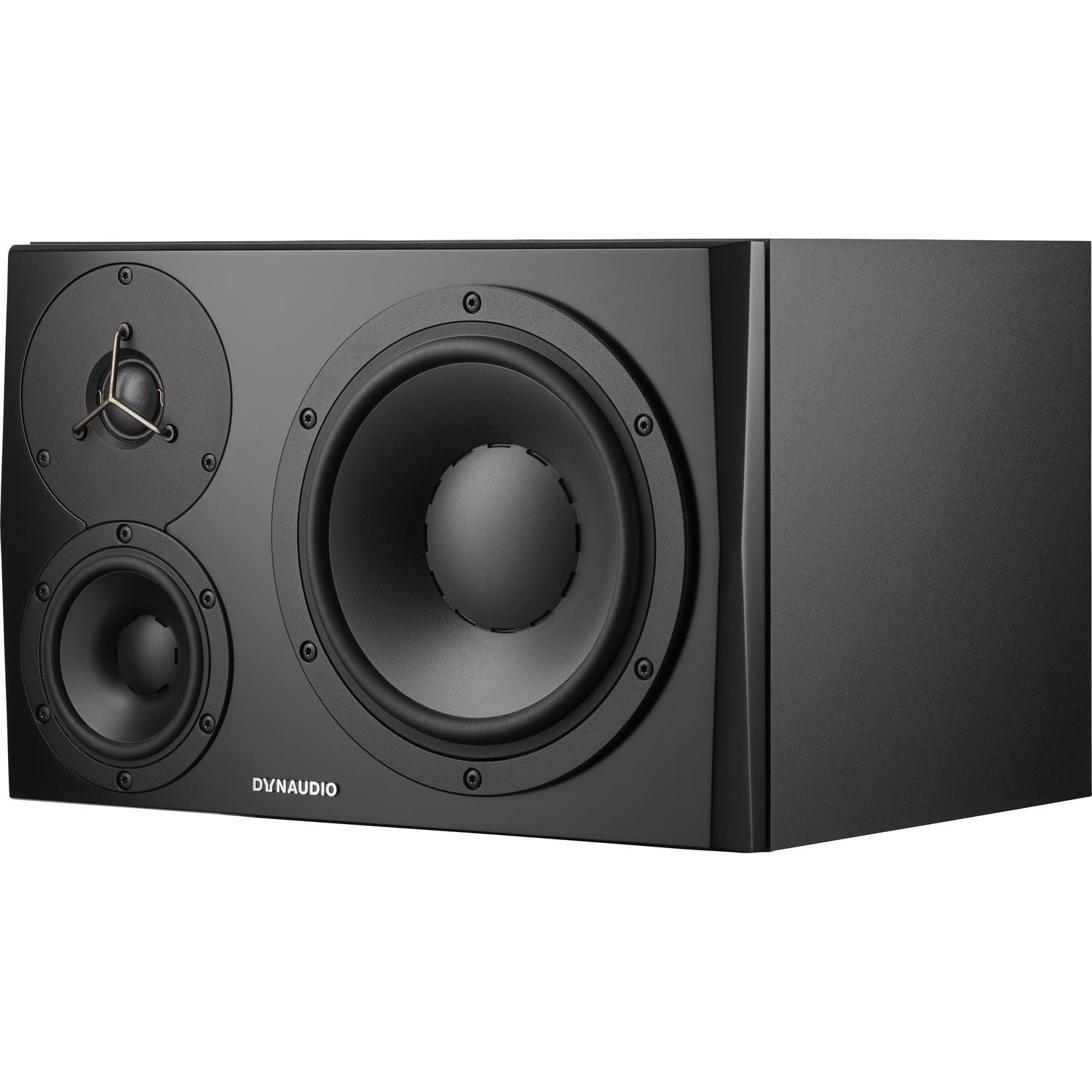

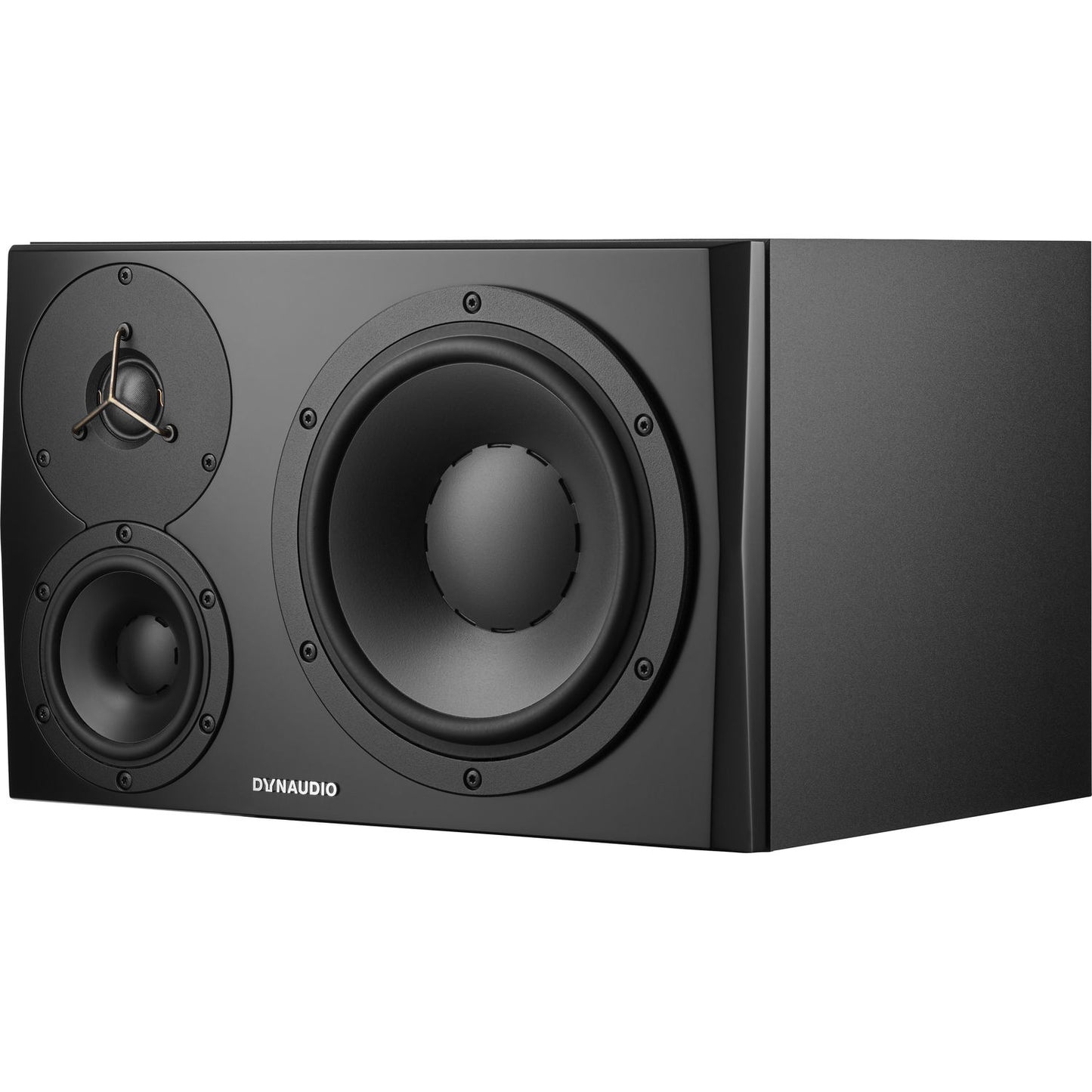

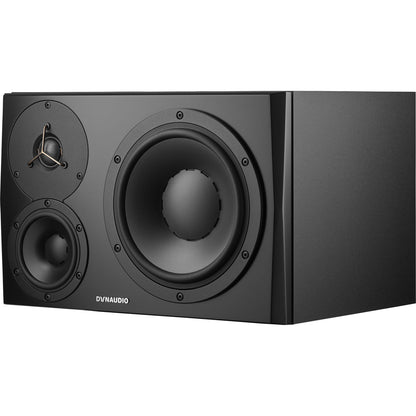

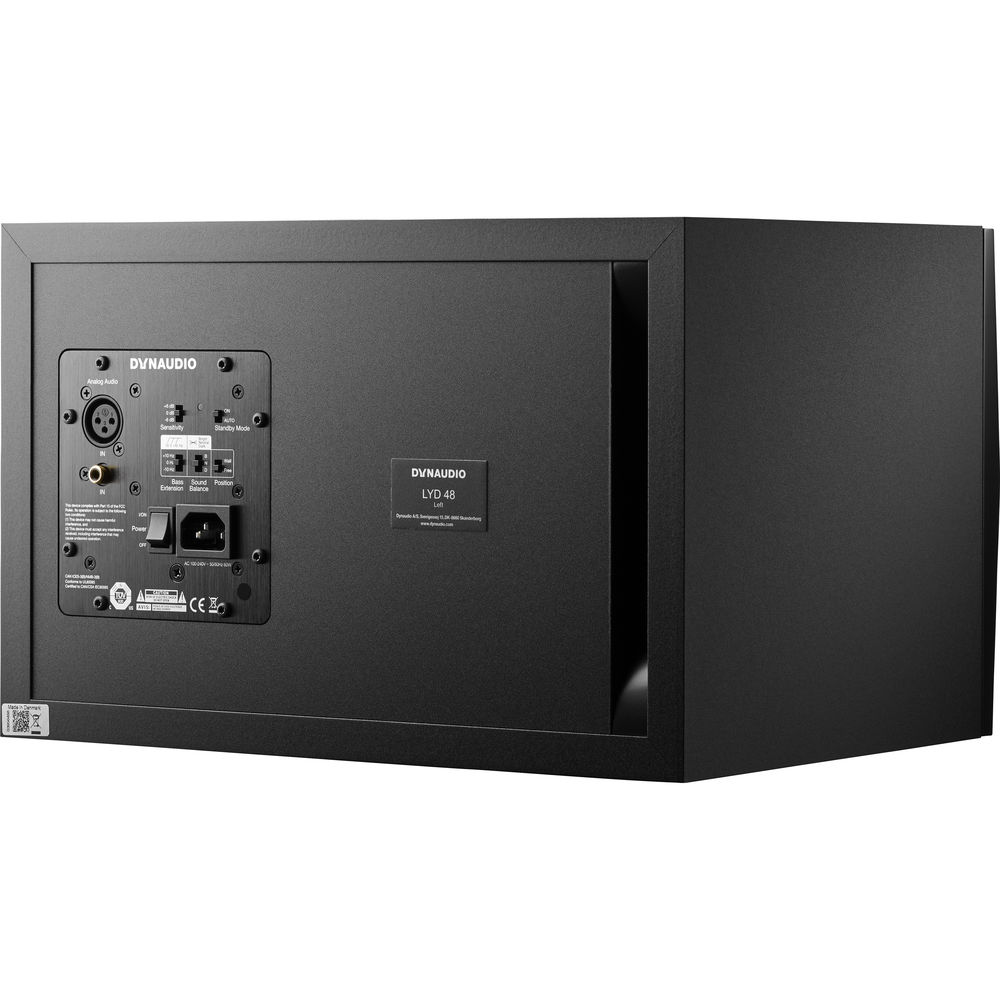

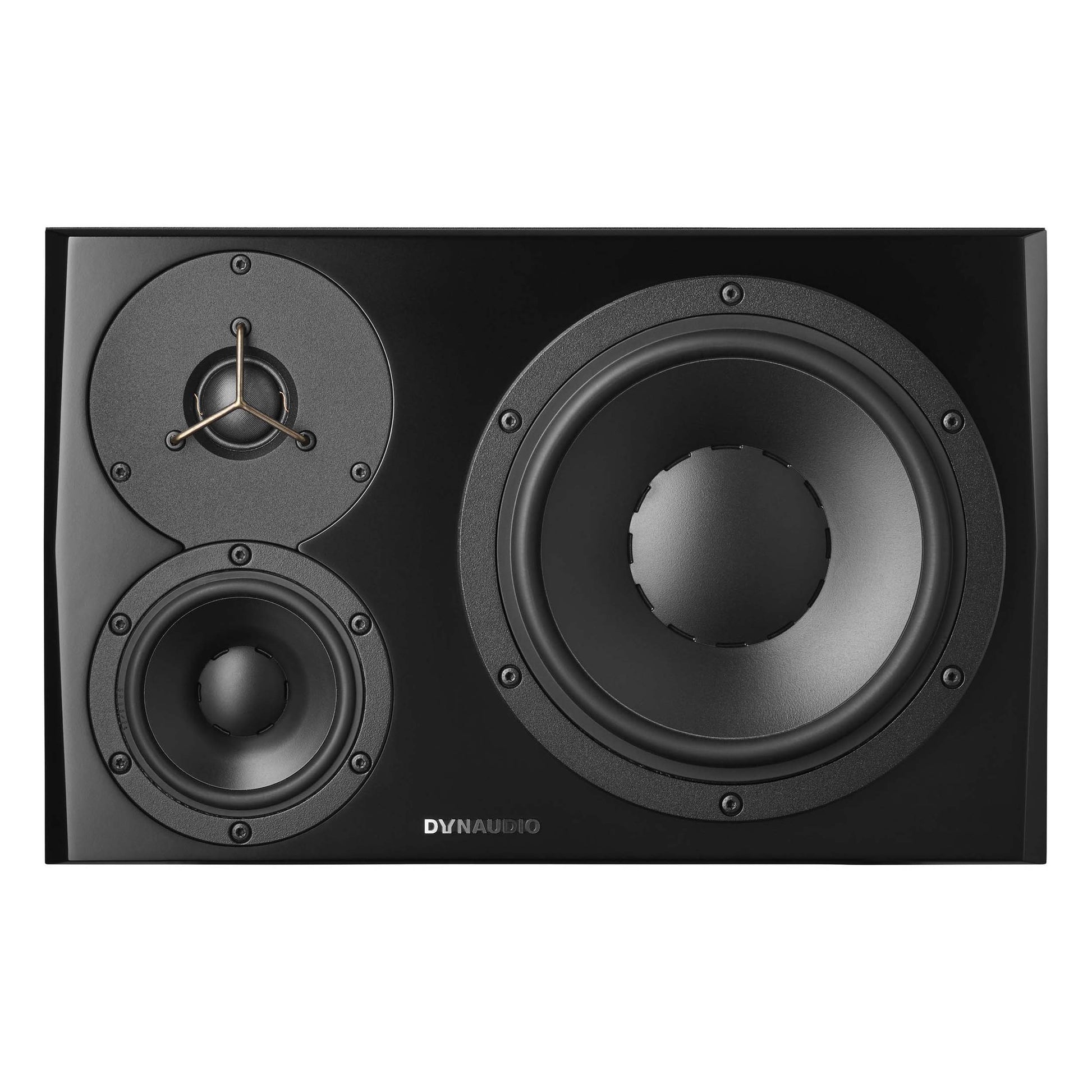

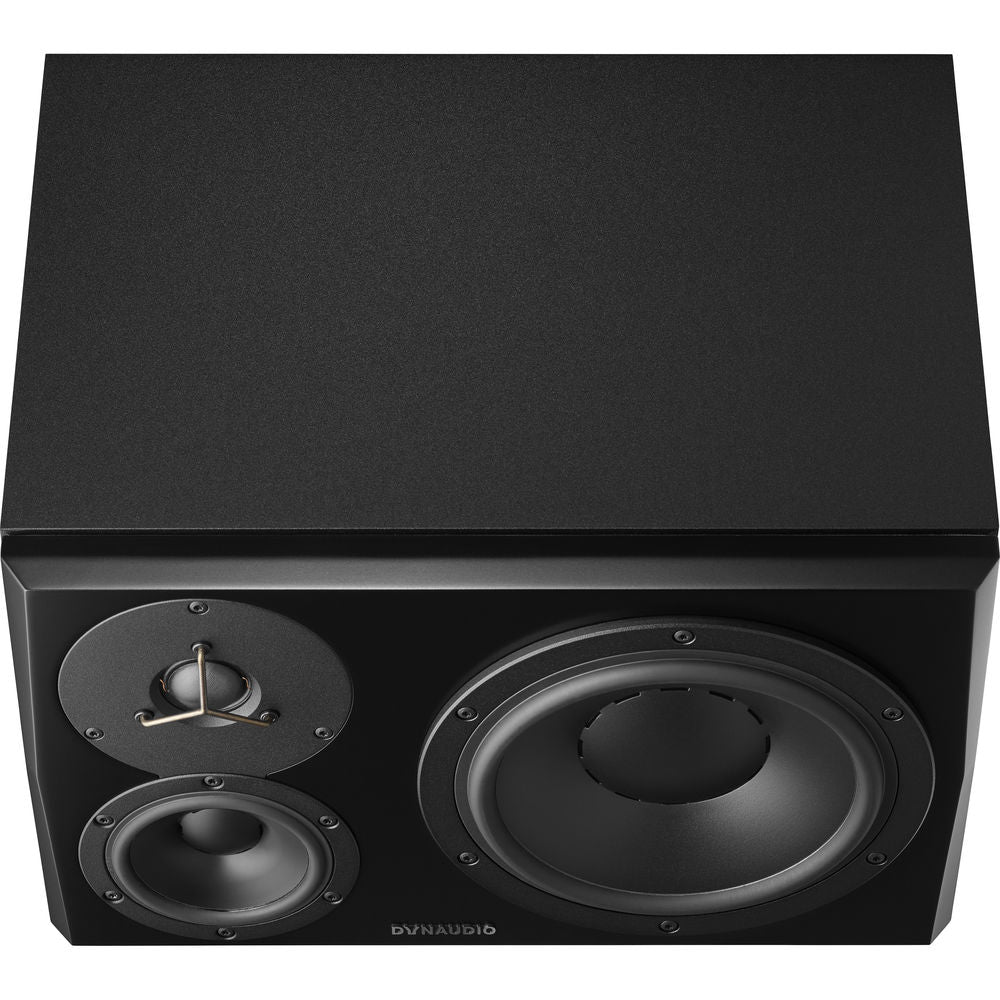

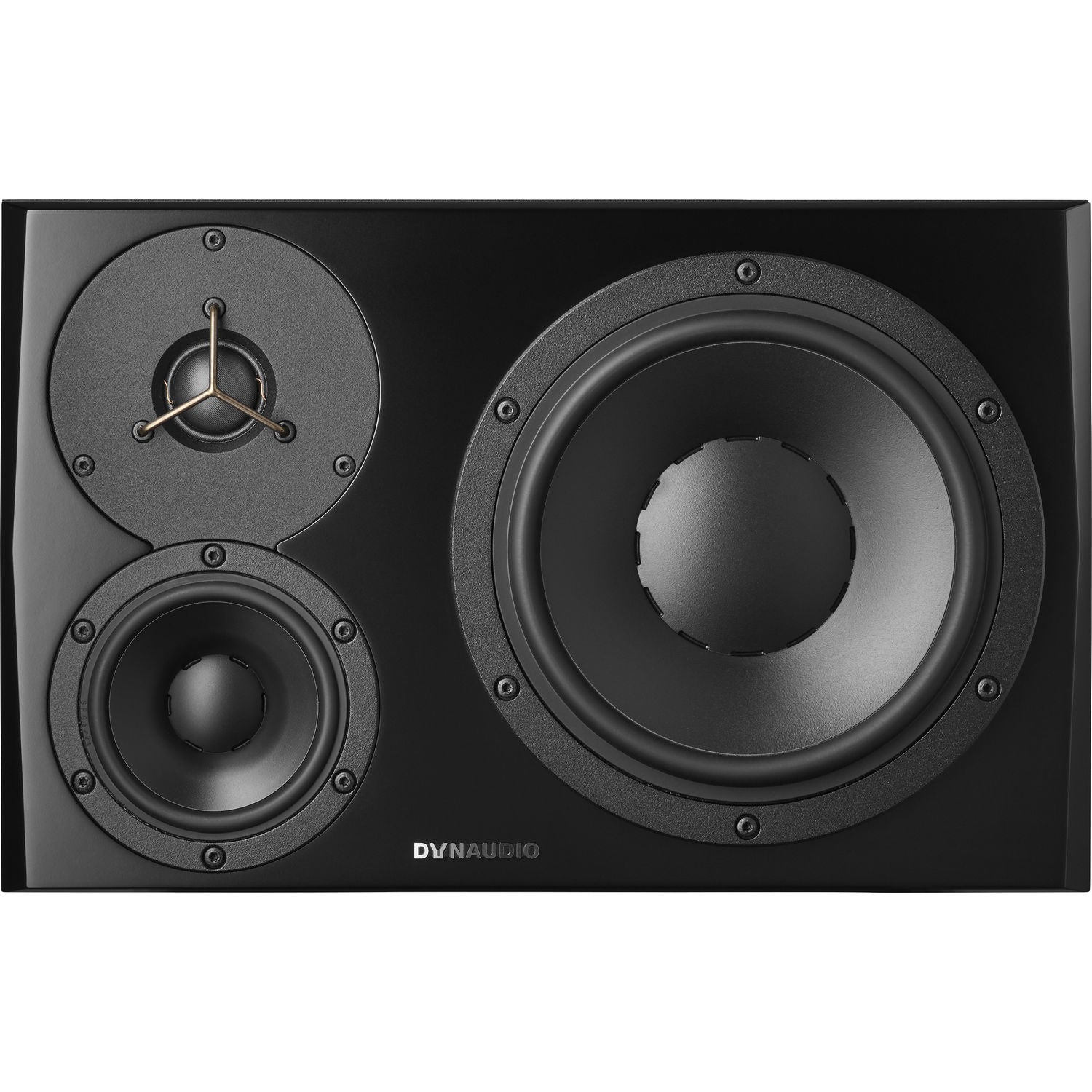

The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere - with unmatched accuracy at any volume level. This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio's proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.
| Product Name | Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor - Left, Black |
|---|---|
| Brand | Dynaudio |
| MPN | LYD-48B/L |
| UPC | 5706937629318 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Dynaudio LYD 48 3-Way Powered Studio Monitor - Dynaudio 1 Year Warranty
- Near- to midfield monitor with 4 in midrange and 8 in woofer
- Handcrafted personal reference monitor
- Tri-amped speaker design with state-of-the-art Class-D amplification
- Bass Extension to extend or curtail the low end frequency response
| Max SPL (1m, pair): | 112dB |
|---|---|
| Principle: | Bass reflex |
| Crossover Frequencies: | 460Hz / 5.5kHz |
| Tweeter: | 1in soft dome |
| Midrange: | 4in |
| Woofer: | 8in |
| Dimensions (W x H x D): | 369 x 234 x 328mm |
| Weight: | 12kg |
| Sensitivity (85dB @ 1m, free field): | |
| +6dB: | 50mV |
| 0dB: | 100 mV |
| -6dB: | 200 mV |
| Amplifier: | |
|---|---|
| Power (Tweeter/Midrange/Woofer): | 50W/50W/80W |
| Type: | Class D |
| Power consumption standby: | <0.5W |
| Power consumption max.: | 100W |
| Input voltage: | 90 - 264V AC, 50 - 60Hz |
| Inputs: | XLR balanced/RCA unbalanced |
| Outputs: | N/A |
| Frequency response -6dB limits: | |
| Bass extension +10Hz: | 60Hz - 21kHz |
| Bass extension 0Hz: | 50Hz - 21kHz |
| Bass extension -10Hz: | 40Hz - 21kHz |
| Free field frequency response: | 50Hz - 19kHz |
| Frequency response -10dB limits: | |
| Bass extension +10Hz: | 52Hz - 24kHz |
| Bass extension 0Hz: | 42Hz - 24kHz |
| Bass extension -10Hz: | 32Hz - 24kHz |
Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor - Left, Black
The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere - with unmatched accuracy at any volume level. This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio's proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.
| Product Name | Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor - Left, Black |
|---|---|
| Brand | Dynaudio |
| MPN | LYD-48B/L |
| UPC | 5706937629318 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Dynaudio LYD 48 3-Way Powered Studio Monitor - Dynaudio 1 Year Warranty
- Near- to midfield monitor with 4 in midrange and 8 in woofer
- Handcrafted personal reference monitor
- Tri-amped speaker design with state-of-the-art Class-D amplification
- Bass Extension to extend or curtail the low end frequency response
| Max SPL (1m, pair): | 112dB |
|---|---|
| Principle: | Bass reflex |
| Crossover Frequencies: | 460Hz / 5.5kHz |
| Tweeter: | 1in soft dome |
| Midrange: | 4in |
| Woofer: | 8in |
| Dimensions (W x H x D): | 369 x 234 x 328mm |
| Weight: | 12kg |
| Sensitivity (85dB @ 1m, free field): | |
| +6dB: | 50mV |
| 0dB: | 100 mV |
| -6dB: | 200 mV |
| Amplifier: | |
|---|---|
| Power (Tweeter/Midrange/Woofer): | 50W/50W/80W |
| Type: | Class D |
| Power consumption standby: | <0.5W |
| Power consumption max.: | 100W |
| Input voltage: | 90 - 264V AC, 50 - 60Hz |
| Inputs: | XLR balanced/RCA unbalanced |
| Outputs: | N/A |
| Frequency response -6dB limits: | |
| Bass extension +10Hz: | 60Hz - 21kHz |
| Bass extension 0Hz: | 50Hz - 21kHz |
| Bass extension -10Hz: | 40Hz - 21kHz |
| Free field frequency response: | 50Hz - 19kHz |
| Frequency response -10dB limits: | |
| Bass extension +10Hz: | 52Hz - 24kHz |
| Bass extension 0Hz: | 42Hz - 24kHz |
| Bass extension -10Hz: | 32Hz - 24kHz |
