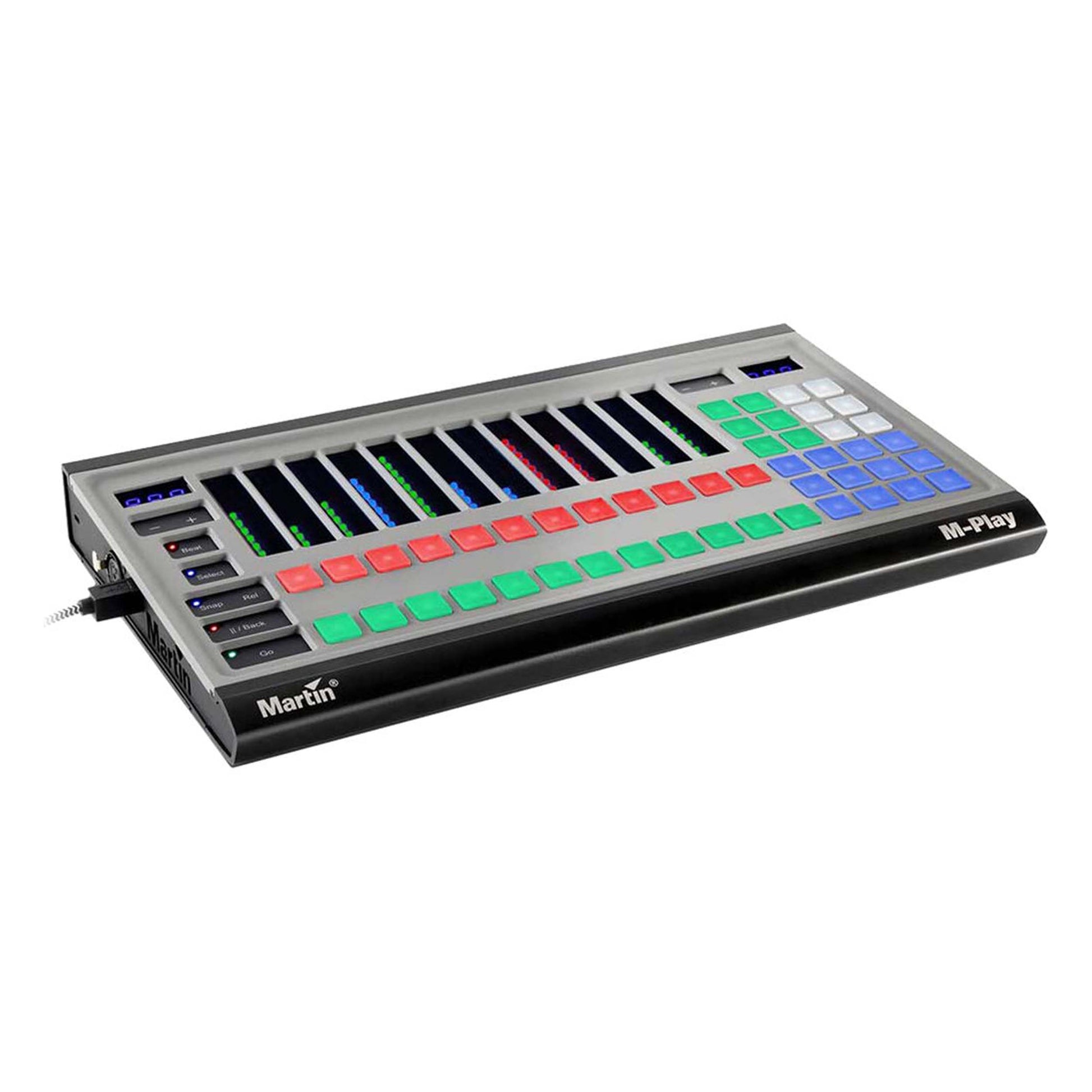

Fully compatible with all M-Series consoles and M-PC software, M-Touch, M-Play is a plug-and-play solution with an innovative control surface like no other lighting console.
Featuring a truly innovative control surface with 12 touch faders that let you control playbacks, while 48 velocity-controlled pads let you access playbacks and any function key. M-Play includes one DMX port for direct control of any compatible DMX device.
| Product Name | Elation M-Play 512-Ch DMX Lighting Controller |
|---|---|
| Brand | Elation |
| Condition | New |
| MPN | mplay |
| UPC | 837874007695 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Compact playback surface for both smaller applications and professional use
- Playback and Function button surface with innovative touch fader technology
- Pressure sensitive flash buttons
- 24 Playbacks, 24 multi-purpose function keys. Numerical keypad mode.
- Portable, rugged and lightweight design
- USB connection for M-PC or as expansion wing for all M-Series consoles
- Integrated DMX output, expandable up to 64 Universes
- Plug and Play USB device without external power supply
- Rackmount option
PHYSICAL
Length: 394 mm (15.5 in.)
Width: 219 mm (8.6 in.)
Height: 47 mm (1.9 in.)
Weight: 1.8 kg (4.0 lbs.)
CONTROL/USER INTERFACE
Bank navigation: Up/Down with numerical display (Section 1)
Bank navigation: Up/Down with numerical display (Section 2)
Main Go section: Snap, Release, Pause and Go buttons
Beat and Select button
PLAYBACK
12 Playback Touch faders with 1 button (Velocity Pad), Playback section 1
12 Playback buttons (Velocity Pad), Playback section 1
24 Playback buttons (Velocity Pad), Playback section 2
MINIMUM SYSTEM REQUIREMENTS
Windows 7 or higher
Dual-core processor, 2.0 GHz (Intel i5 or better recommended)
4 GB RAM
2 GB available disk space (SSD recommended)
Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)
USB 2.0 port for M-Play surface
10/100 Ethernet port for Art-Net or sACN output
100/1000 Ethernet port for MAXNET and Remote operation
Full administrator rights on PC
CONSTRUCTION
IP Rating: IP20
CONNECTIONS

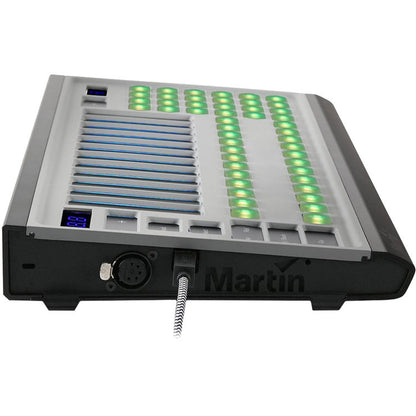

1 x DMX universe output: 5-pin locking XLR
1 x USB 2.0 input
ELECTRICAL
Power: 5 VDC over USB
Maximum current: 500 mA
THERMAL
Maximum ambient temperature (Ta Max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
