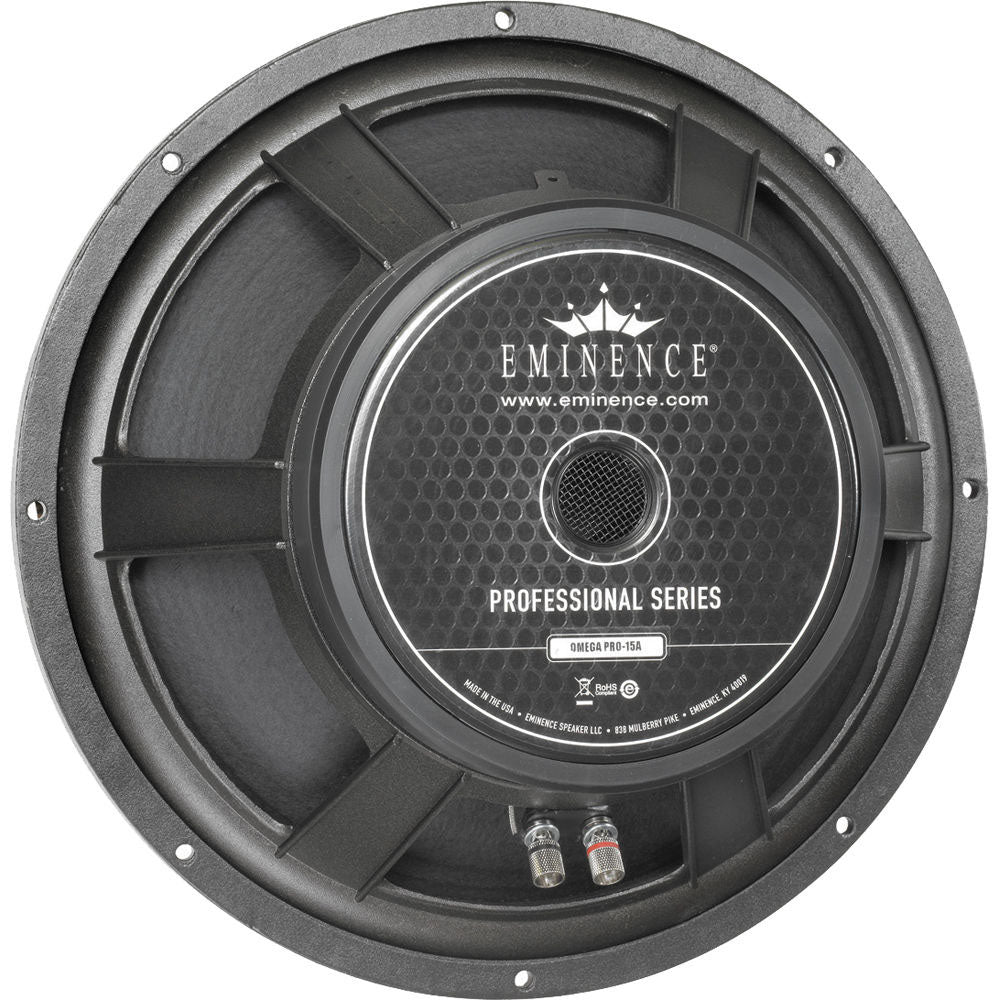

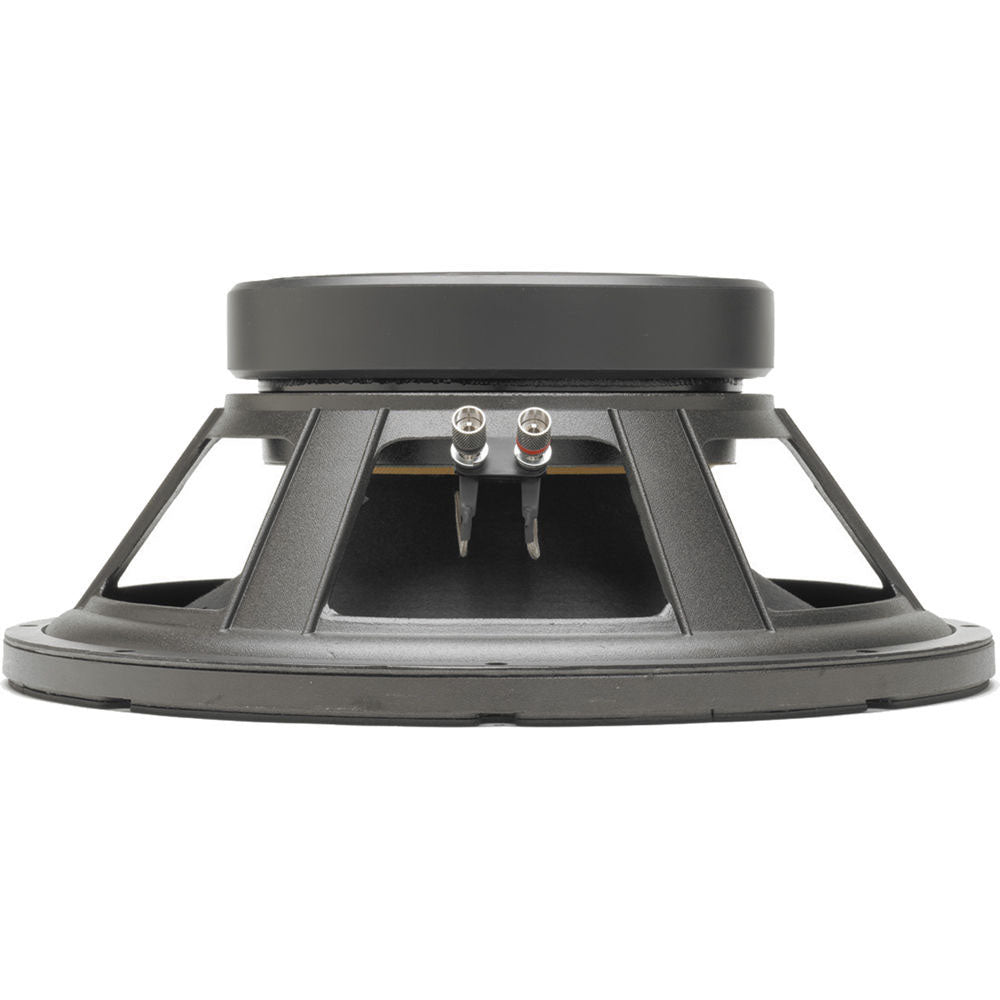

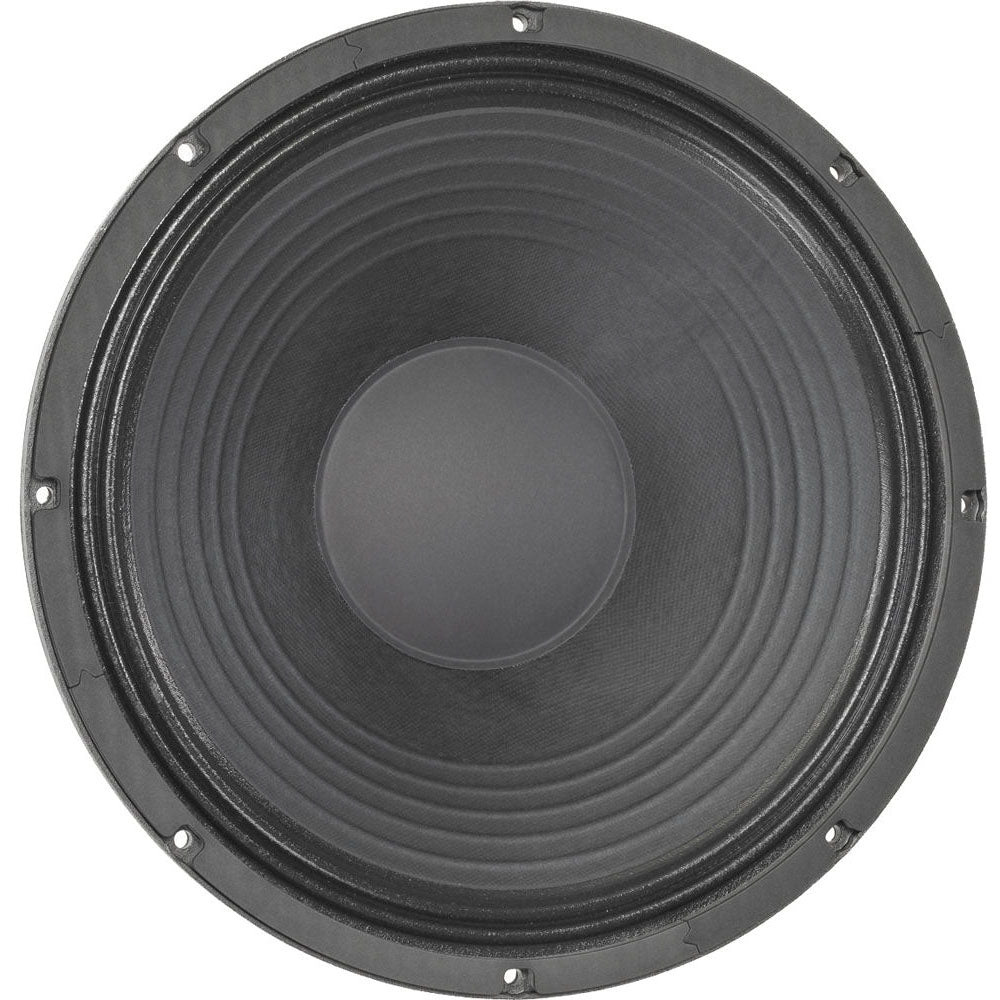

Eminence Omega Pro 15A Woofer

SPECIFICATION

• Nominal Basket Diameter 15", 381mm
• Nominal Impedance* 8 ohms
• Power Rating**
• Watts 800W
• Music Program 1600W
• Resonance 33Hz
• Usable Frequency Range 51Hz - 1.7kHz
• Sensitivity*** 97.3dB
• Magnet Weight 109 oz.
• Gap Height 0.37", 9.53mm
• Voice Coil Diameter 4", 101.6mm

THIELE & SMALL PARAMETERS

• Resonant Frequency (fs) 33Hz
• DC Resistance (Re) 5.28
• Coil Inductance (Le) 1.04mH
• Mechanical Q (Qms) 5.69
• Electromagnetic Q (Qes) 0.33
• Total Q (Qts) 0.32
• Compliance Equivalent Volume (Vas) 258.5 liters / 9.1 cu.ft.
• Peak Diaphragm Displacement Volume (Vd) 411cc
• Mechanical Compliance of Suspension (Cms) 0.25mm/N
• BL Product (BL) 17.5 T-M
• Diaphragm Mass Inc. Airload (MMs) 94 grams
• Efficiency Bandwidth Product (EBP) 99
• Maximum Linear Excursion (Xmax) 4.8mm
• Surface Area of Cone (Sd) 856.3 cm2
• Maximum Mechanical Limit (Xlim) 12.2mm

MOUNTING INFORMATION

• Recommended Enclosure Volume
  Sealed N/a
• Vented 57-108 liters / 2-3.8 cu.ft.
• Driver Volume Displaced 262.8 cu.in. / 4.31 liters
• Overall Diameter 15.21", 386.4mm
• Baffle Hole Diameter 14", 355.6mm
• Front Sealing Gasket Fitted as standard
• Rear Sealing Gasket Fitted as standard
• Mounting Holes Diameter 0.28", 7.1mm
• Mounting Holes B.C.D. 14.56", 369.9mm
• Depth 6.35", 161mm
• Net Weight 22.7 lbs, 10.3 kg
• Shipping Weight 25.2 lbs, 11.4 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction Copper voice coil
• Coil Former Polyimide former
• Magnet Composition Ferrite magnet
• Core Details Vented and extended core


• Basket Materials Die-cast aluminum basket
• Cone Composition Paper Cone
• Cone Edge Composition Cloth cone edge
• Dust Cap Composition Solid composition paper dust cap
