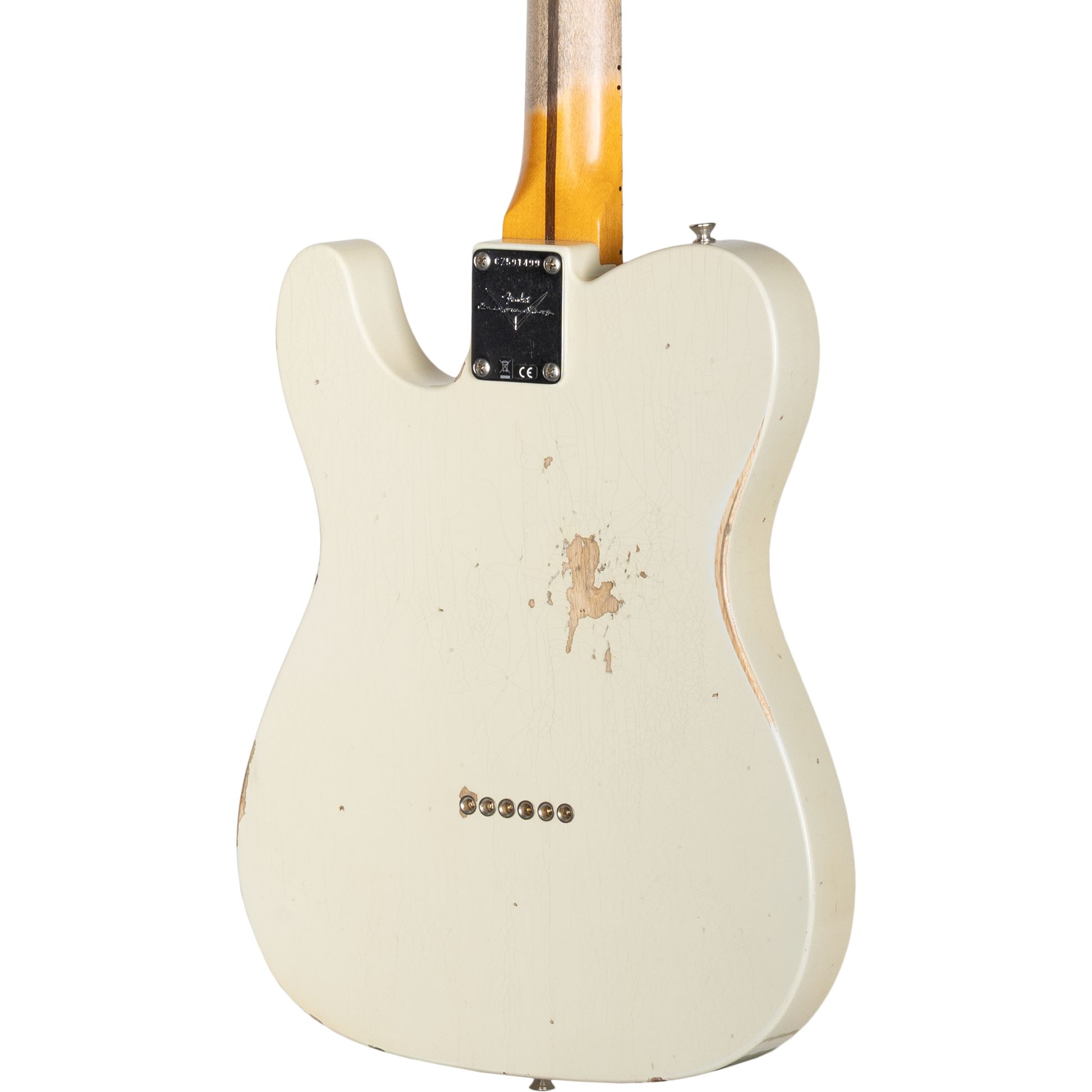

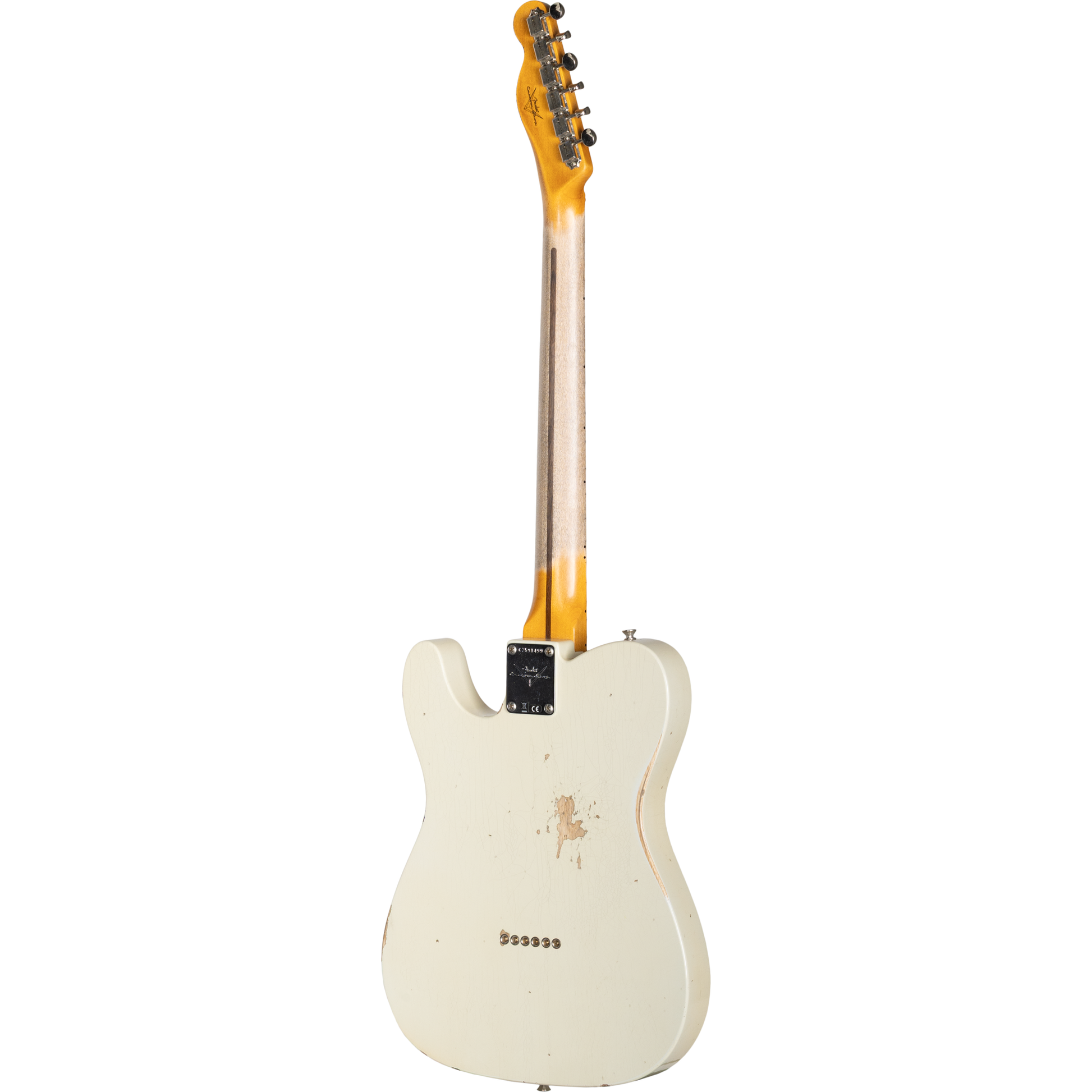

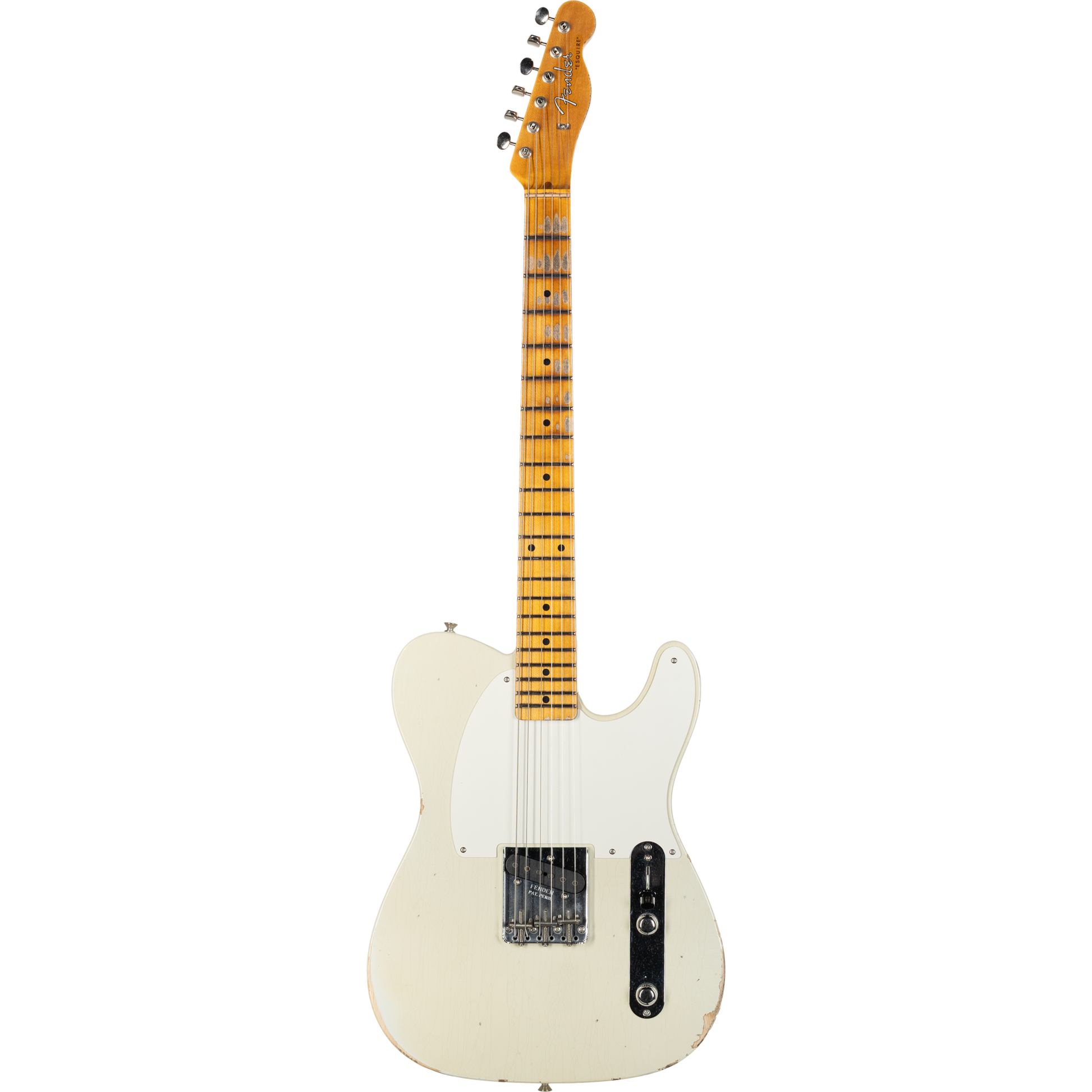

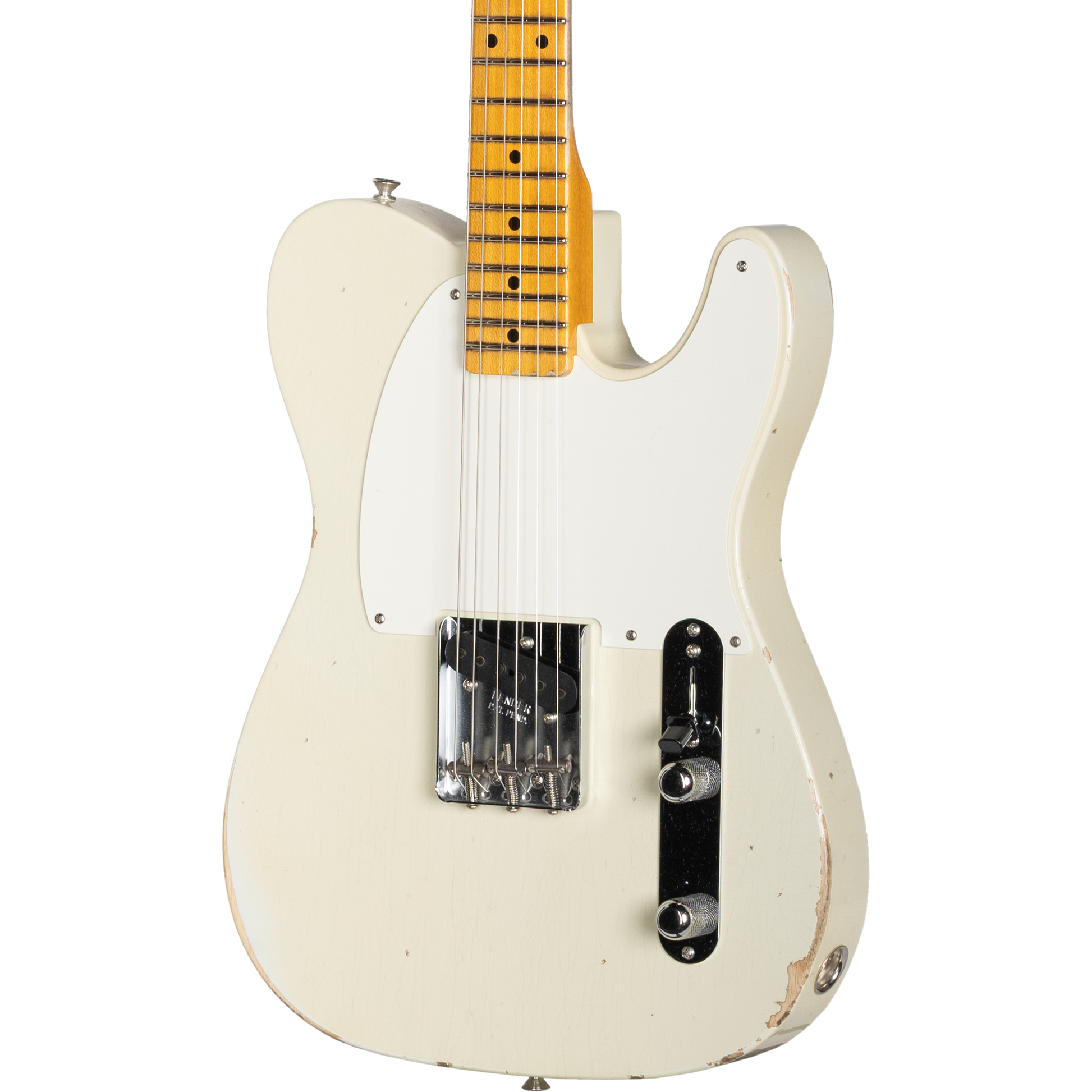

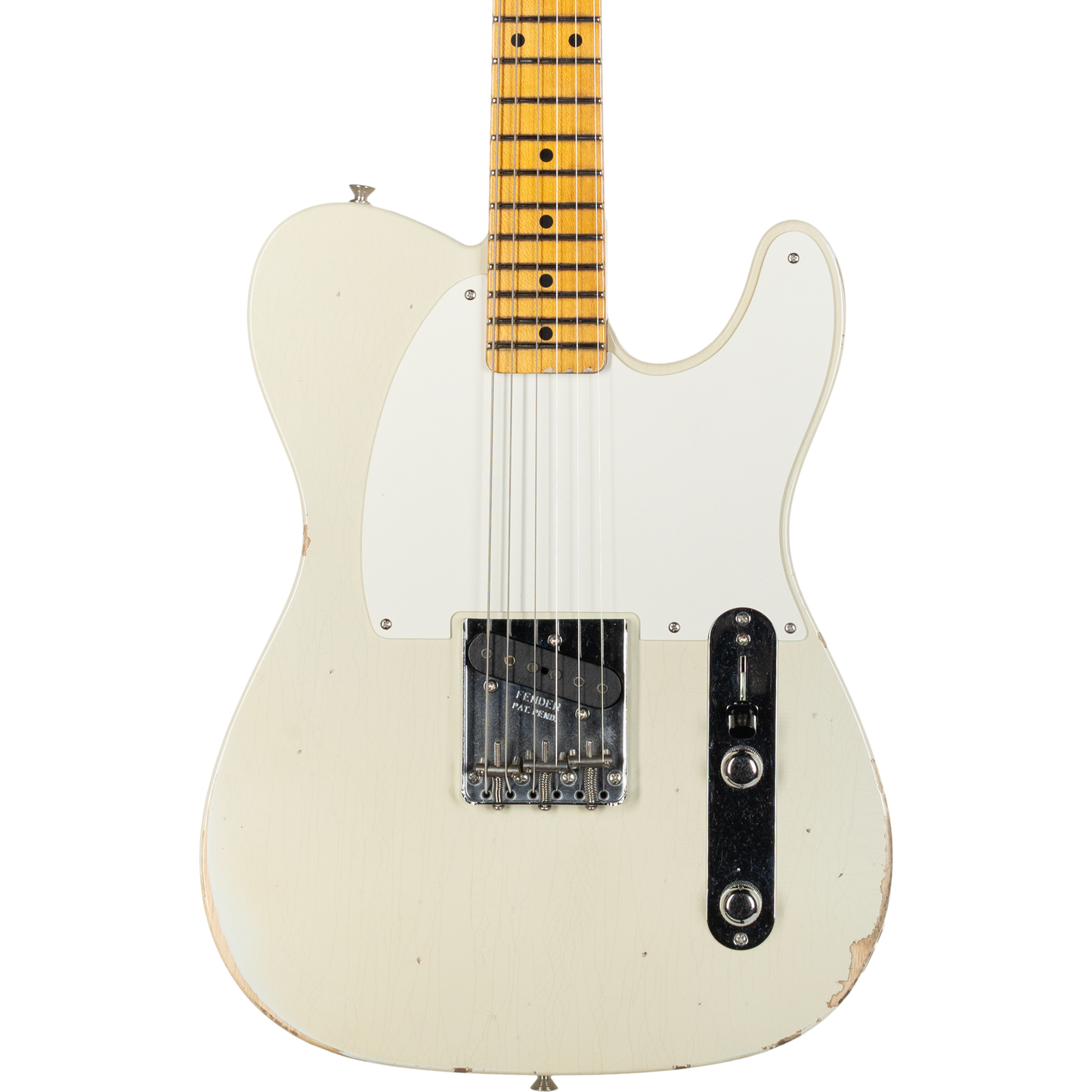

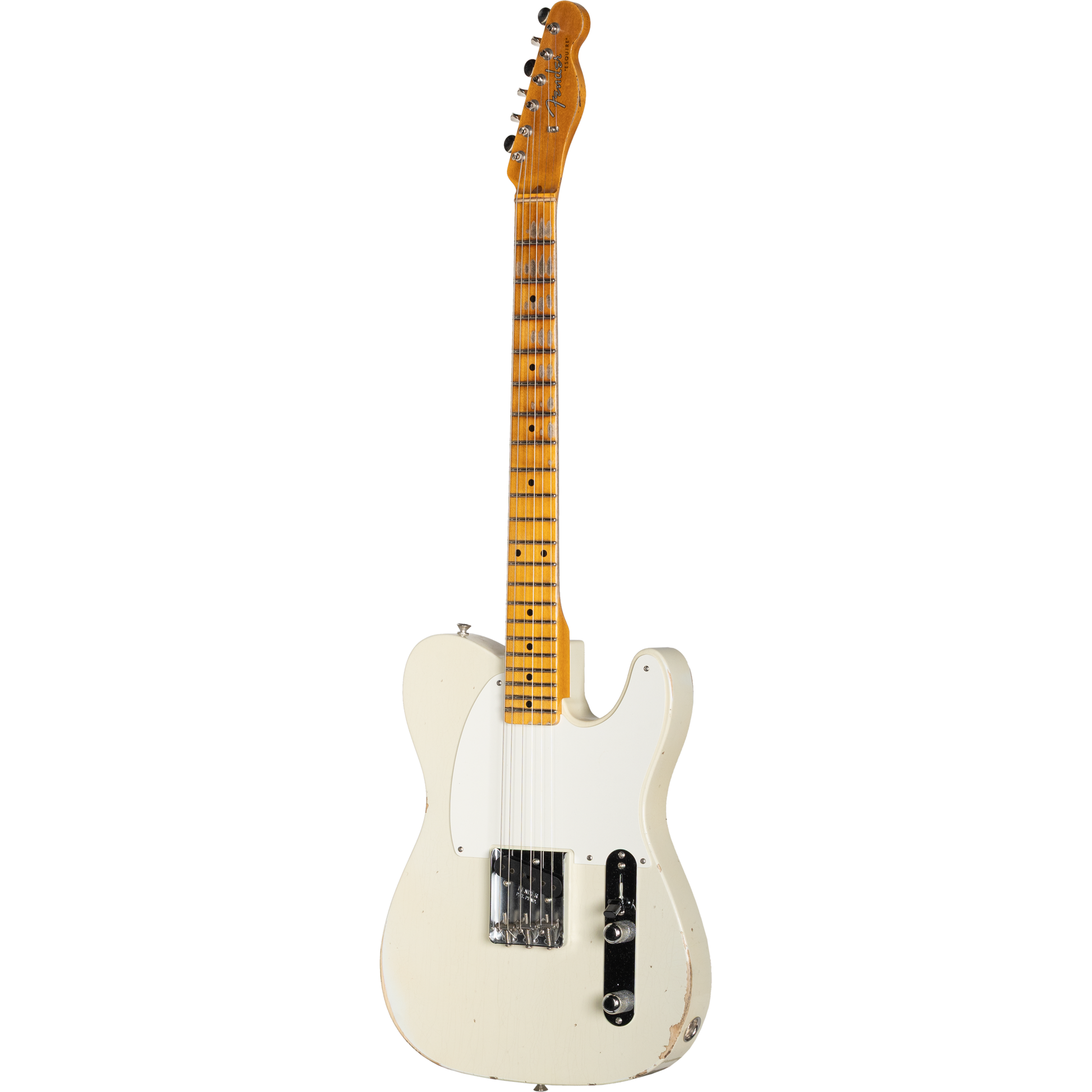

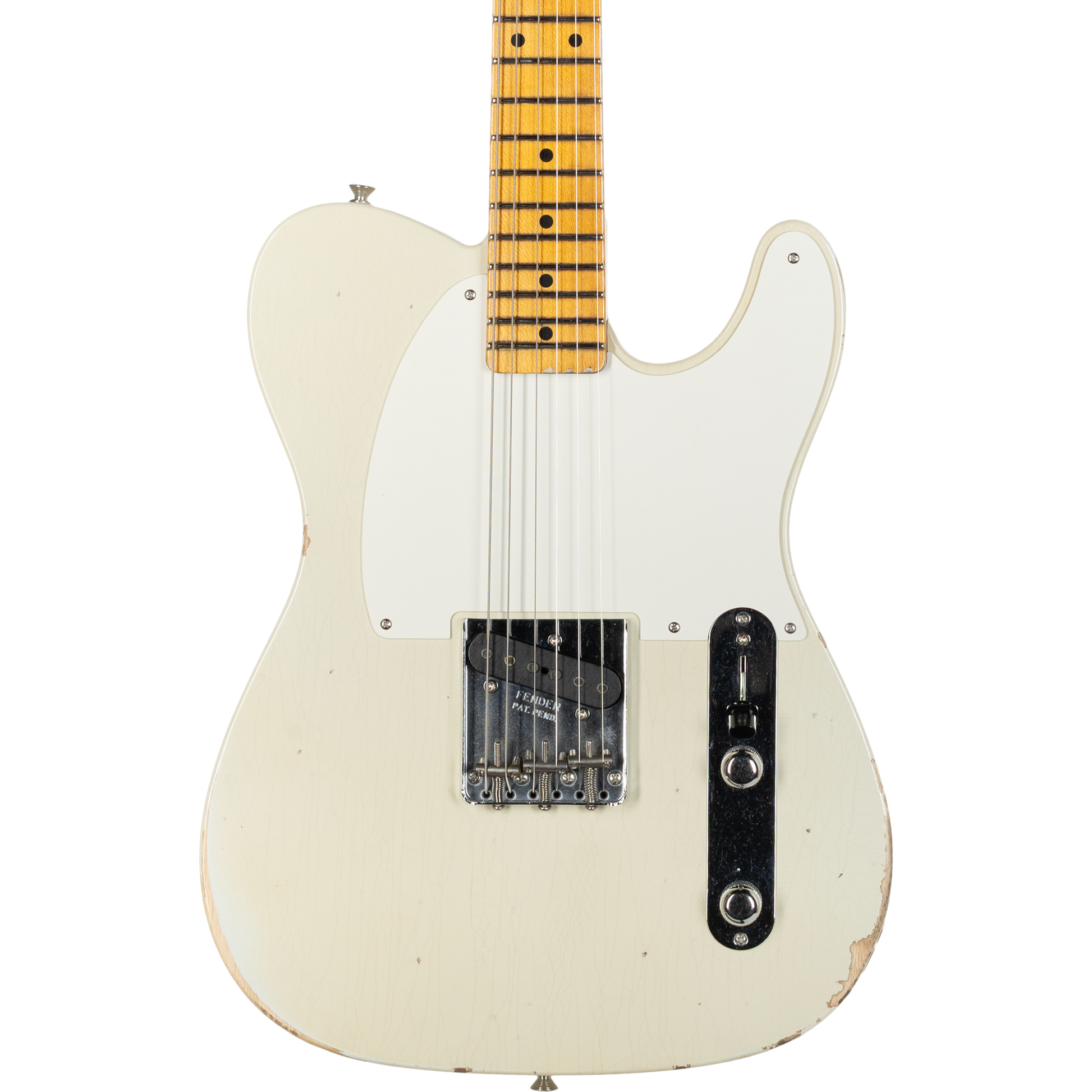

The Fender Custom Shop 1956 Esquire® Relic® embodies the raw, pioneering spirit of Fender's first solid-body electric guitar. Finished in Nitrocellulose Lacquer, this masterfully crafted instrument features a lightweight, resonant two-piece select ash body paired with a one-piece quartersawn maple neck and fingerboard.
The Custom Shop Hand-Wound '55-'56 single-coil Tele® bridge pickup, delivers the iconic cutting twang and muscular punch that made the Esquire® legendary. The traditional 3-position switching system offers three distinct voices: straight-to-output jack for maximum bite, pickup with volume control for versatility, and pickup with both volume and tone controls for fuller, rounder tones.
Other premium features include a 11/56 Off Center “V” Back Shape, 7.25”-9.25” Vintage Compound Radius, 3-Saddle American Vintage Strings-Through-Body Tele® Bridge with Brass Saddles, 1-Ply Parchment Pickguard, Vintage-Style Tuning Machines with Fender® Logo, American Vintage 56-58 String Tree, Deluxe Hardshell Case, Strap, Certificate of Authenticity.
| Product Name | Fender Custom Shop 1956 Esquire Relic with Closet Classic Hardware - Aged '55 Desert Tan |
|---|---|
| Brand | Fender |
| Condition | New |
| MPN | 9235700211 |
| UPC | 197955179063 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Fender Custom Shop 1956 Esquire Relic with Closet Classic Hardware - Aged '55 Desert Tan
- Deluxe Hardshell Case
- Strap and Certificate of Authenticity
General |
|
|---|---|
| Series | Time Machine |
| Orientation | Right-Hand |
| Color | '55 Desert Tan |
| Country Of Origin | USA |
Neck |
|

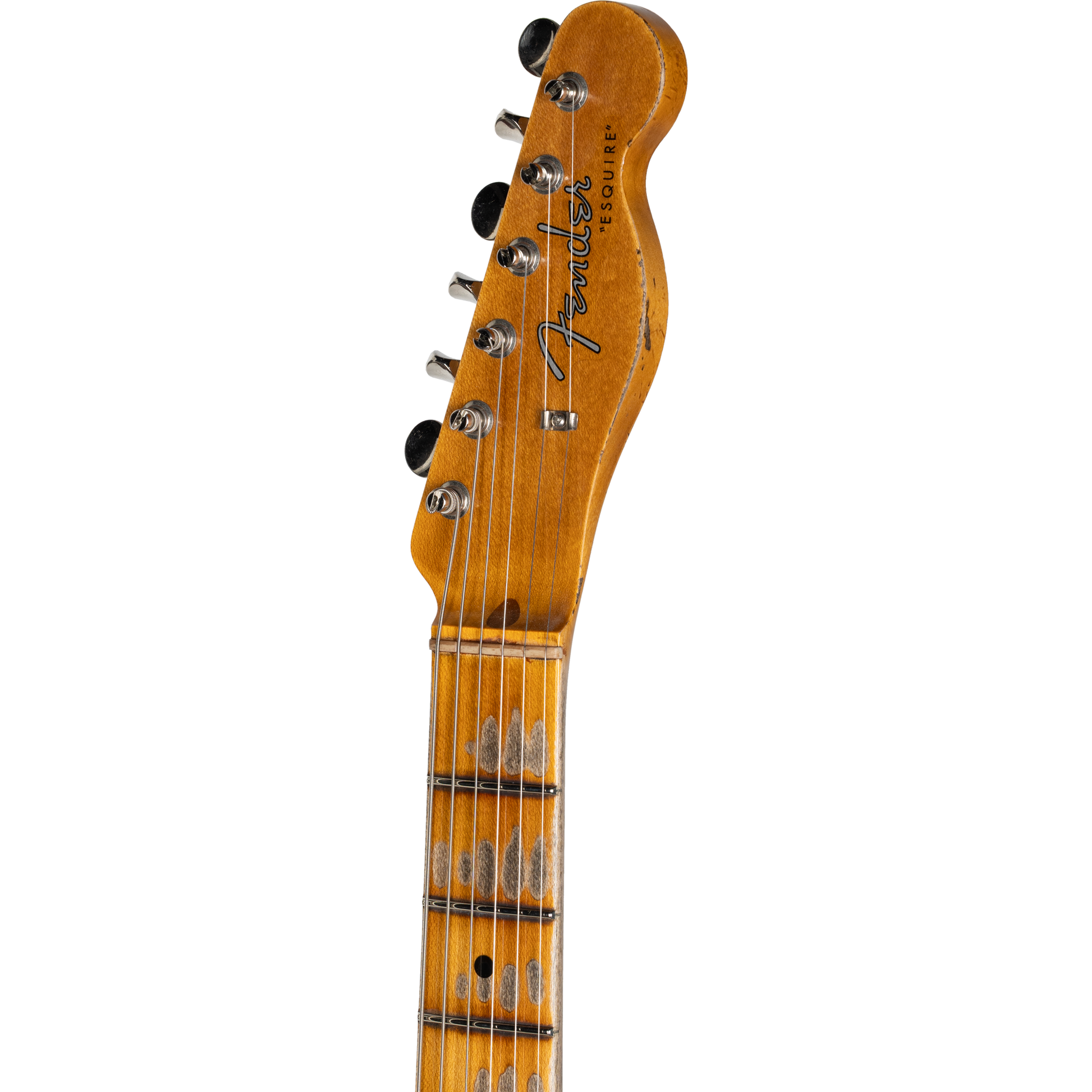

| Headstock | Telecaster® |
| Neck Material | 1-Piece Quartersawn Maple |
| Neck Finish | Nitrocellulose Lacquer |
| Neck Shape | 11/56 Off Center "V" |
| Neck Thickness | 0.840" (21.34 mm) |
| Neck Butt Width | 2.200" (55.88 mm) |
| Neck Thickness 12th Fret | 0.995" (25.27 mm) |
| Fingerboard Radius | 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm) |
| Fingerboard Material | 1-Piece Quartersawn Maple Neck |
| Position Inlays | Black Micarta Dot - 0.25" (6.35 mm) |
| Number of Frets | 21 |
| Truss Rod | Vintage-Style Heel Adjust |
| String Nut | Bone |
| Nut Width | 1.650" (42 mm) |
| Nut Material | Bone |
| Fret Size | Narrow Tall (6105) |
| Scale Length | 25.5" (648 mm) |
Body |
|
| Body | 2-Piece Select Ash |
| Body Finish | Nitrocellulose Lacquer |
| Body Shape | Telecaster® |
| Body Style | Solid Body |
| Body Material | 2-Piece Select Ash |
Hardware |
|
| Bridge | 3-Saddle American Vintage Strings-Through-Body Tele® with Brass Saddles |
| Pickguard | 1-Ply Parchment Vinyl |
| Control Knobs | Knurled Chrome |
| Switch Tip | Top Hat Style, Black |
| Hardware Finish | Nickel/Chrome |

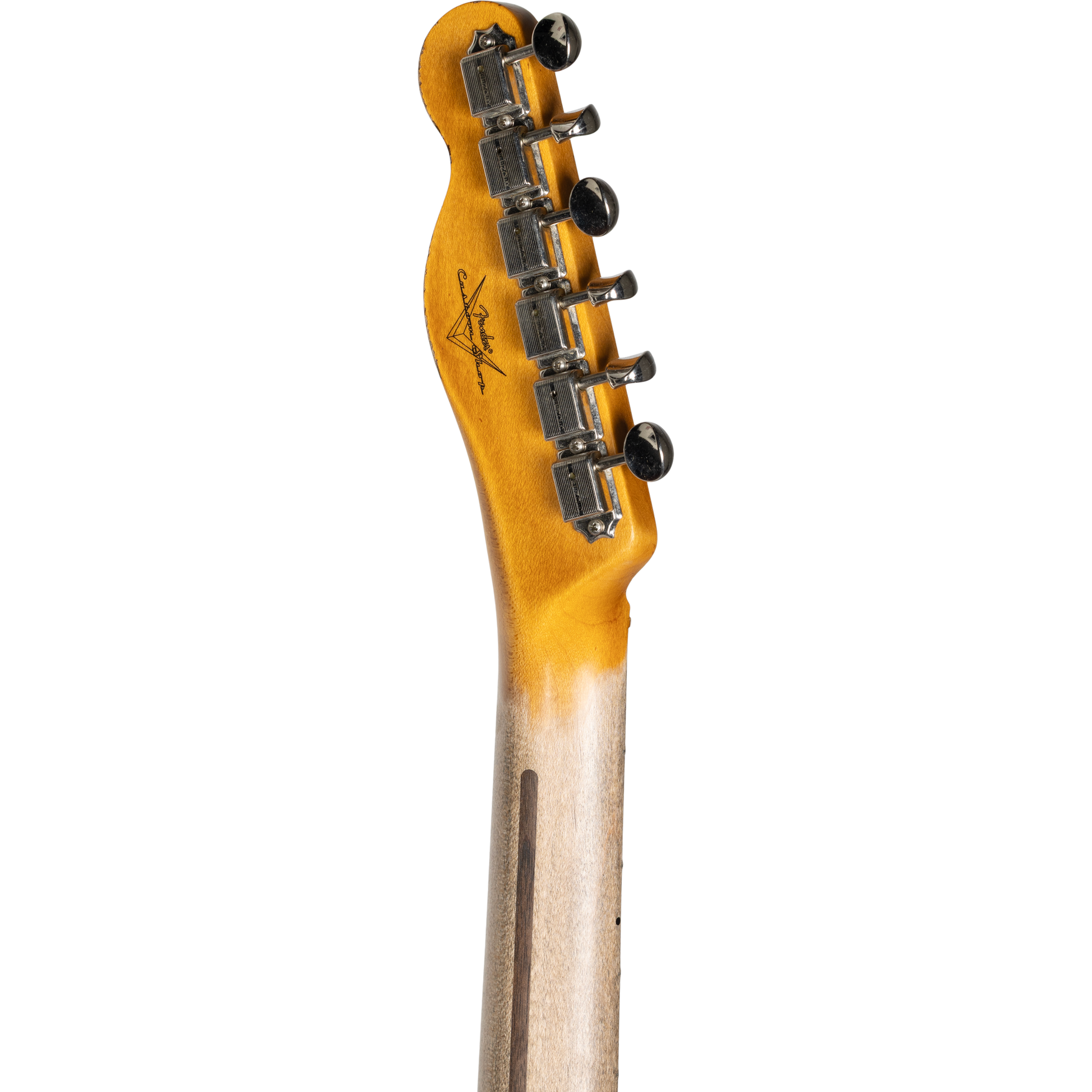

| Tuning Machines | Vintage-Style with Fender® Logo |
| String Trees | American Vintage '56-'58 |
| Strings | Nickel Plated Steel (.010-.046 Gauges) |
| Neck Plate | 4-Bolt with Custom Shop "V" Logo |
Electronics |
|
| Bridge Pickup | Custom Shop Hand-Wound '55-'56 Single-Coil Tele® |
| Middle Pickup | N/A |
| Neck Pickup | N/A |
| Pickup Configuration | S |
| Controls | Master Volume, Master Tone |
| Switching | 3-Position Blade: Position 1. Pickup Straight to Output Jack, Position 2. Pickup with Volume Control, Position 3. Pickup with Volume and Tone Control |
